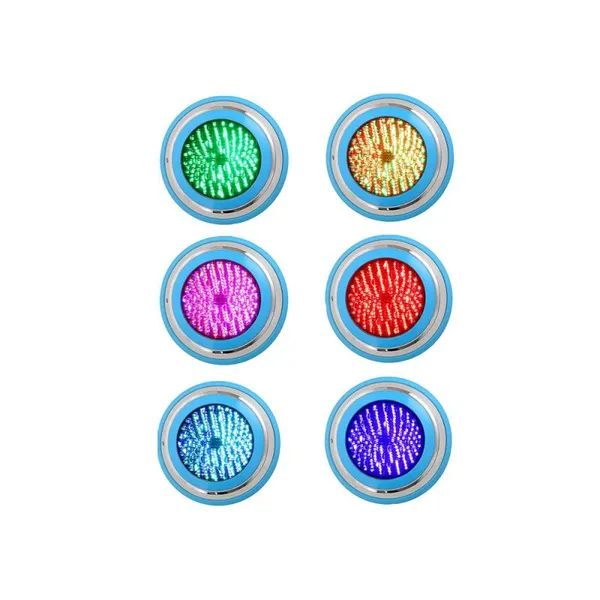

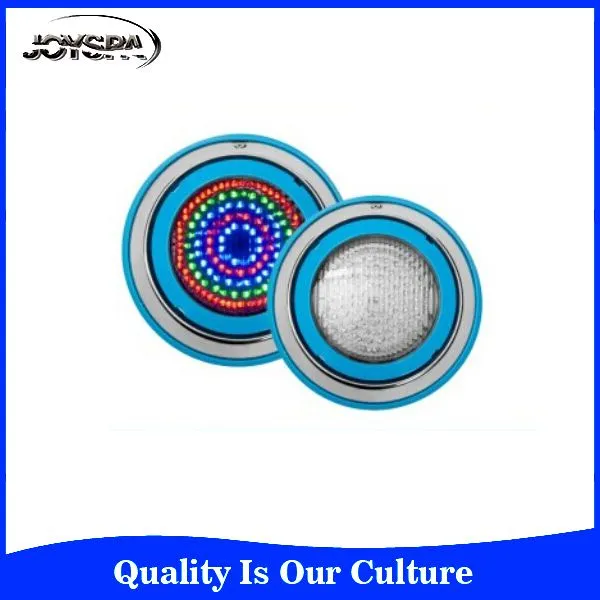

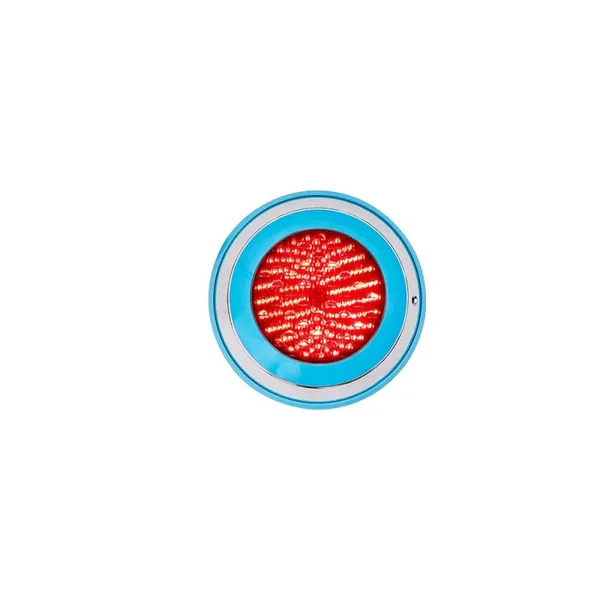

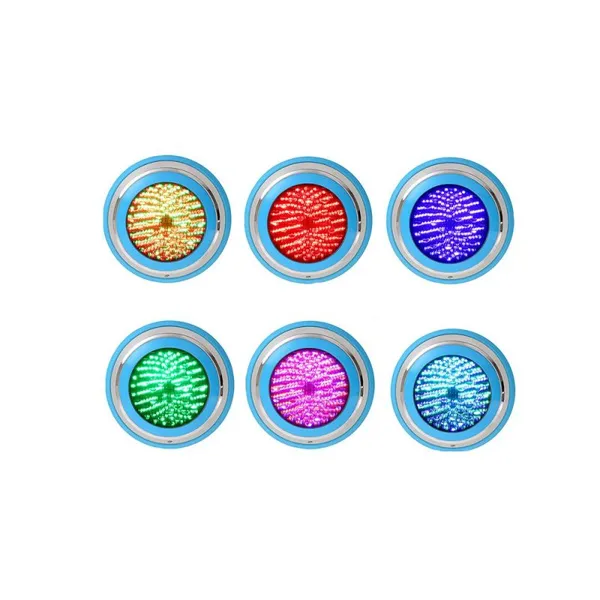

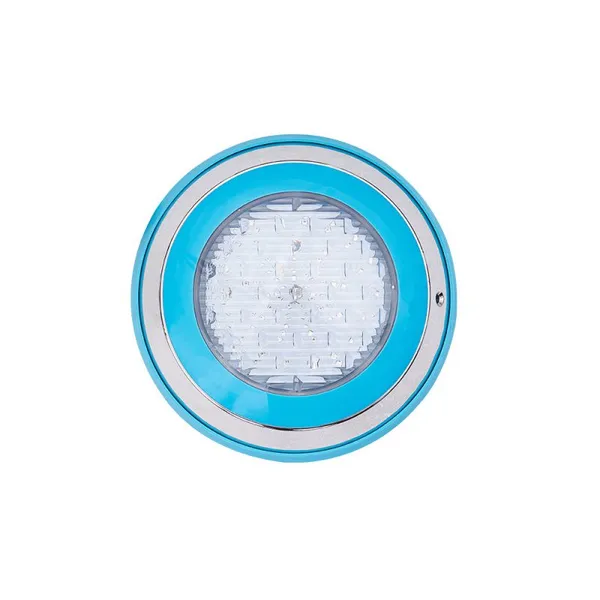

Help CenterFactory Directly Supply IP 68 AC 12V RGB Underwater Waterproof LED SPA Pond Lighting
Related Products
-
1/6 Abs Uv Material Led Underwater Light 12w 24w 12v 24v Swimming Pool LightingUS$ 15 - 80MOQ: 1 Set -
Abs Wall Mounted High Power Submersible Under Water Lamp Rgb Pool Light Ip68 Waterproof Led UnderwwaterUS$ 15 - 80MOQ: 1 Set
-
Wall Mounted Underwater Lamp 18W 24W 36W Color Changing RGB LED Swimming Pool LightUS$ 15 - 80MOQ: 1 Set
-
Swimming Pool Water Inlet PVC Fitting Pool Return NozzleUS$ 1.65 - 1.65MOQ: 1 Set
-
Swimming Pool Vaccum Head Vacuum Brush Cleaner Floating Objects Cleaning Tools Suction HeadUS$ 10 - 10MOQ: 1 Set
|

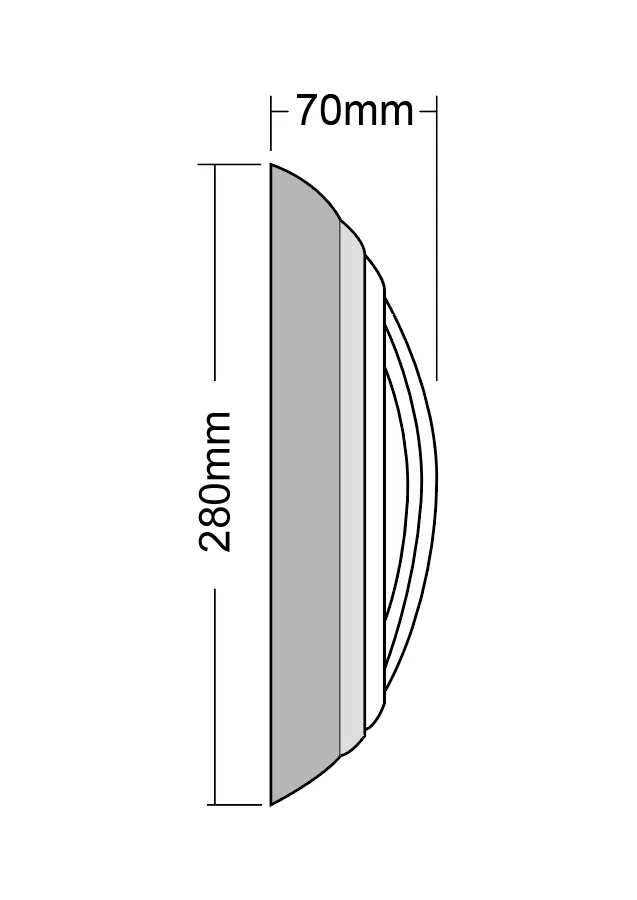

Model |
Size (mm) |
Light Source |
Power (W) |
Led Quantity (pcs) |
Luminous Flux (LM) |
||
|
Pure White |
Warm White |
RGB |
|||||
|
PK6017V |
Φ280*160 |
DIPφ5 LED |
15 |
252 |
1100 |
1000 |
550 |
|
25 |
441 |
1850 |
1700 |
900 |
|||
|
30 |
513 |
2200 |
2100 |
1000 |
|||
A brief introduction of underwater swimming pool lights
|
IP Rating |
IP68 |
|
Operating Voltage |
AC/DC 12V |
|
Body Material |
Stainless steel 304 |
|
Input Frequency (Hz) |
50 ~ 60 Hz |
|
Color Temperature (K) |
6000-6500K / 8000-12000K / 2800-3000K |
|
Wave Length (nm) |
R: 621-625nm / G: 518-520nm / B: 464-467nm |
|
Beam Angle |
45°for high power led, 120°for SMD/DIP led, or customized |
|
Constant Driver |
Yes |
|
Over-current Protection |
Yes |
|
Operating Temperature (℃) |
-20 ~ +35℃ |
|
RGB Control Methods |

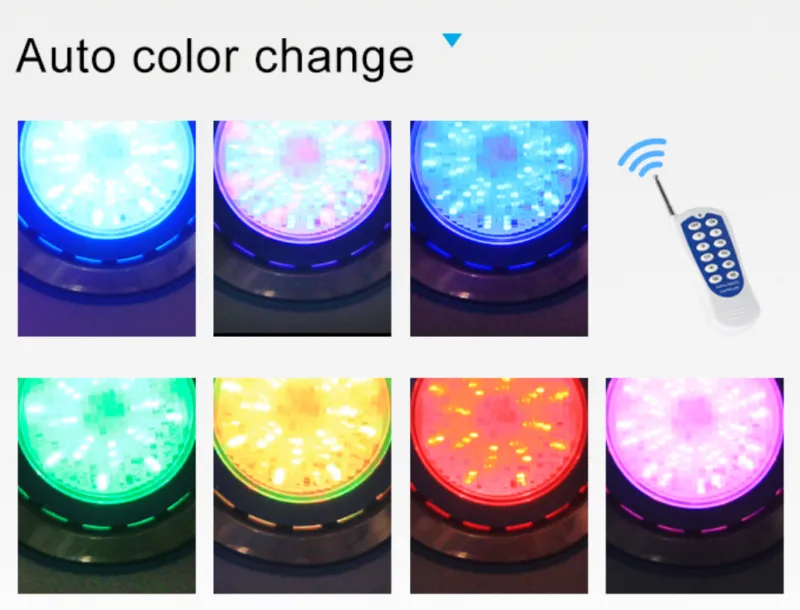

1) With Alternative Current (AC): Remote Control / (On/Off )Switch / Auto Changing 2) With Direct Current (DC): DMX / Wifi |
|
Lifetime |
50000 hours |
|
Warranty Period |
1 year |
Description of super bright ip68 12v wireless pool led underwater lighting
1. Super bright LED lamp, saving energy effectively, diversiform color provided, long using life, can stand high aseismatic, no UV and IR radiate, work safely under low voltage AC12V.
2. Adopt PWM invariableness currency technology, high effectively, low heating, in variableness currency at 12V, high precision.
3. Power supply efficiency: 80% , power factor: 0.9, EMI accord with global index .
4. Crust Temperature lower tahn 65°C(Environment Temperature =25°C).

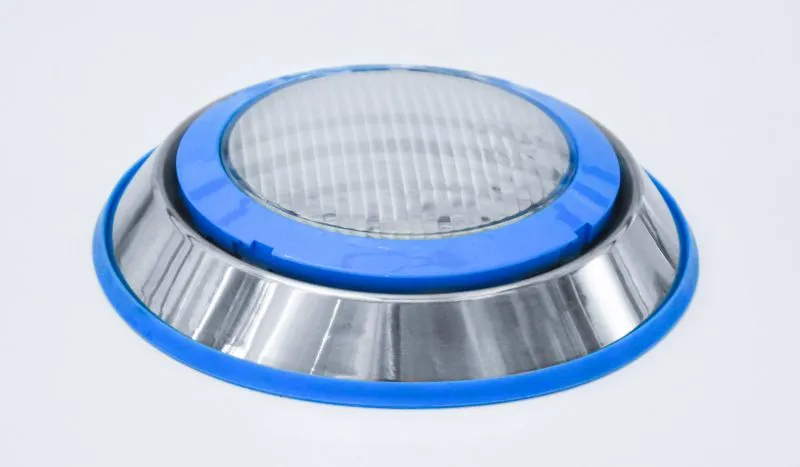

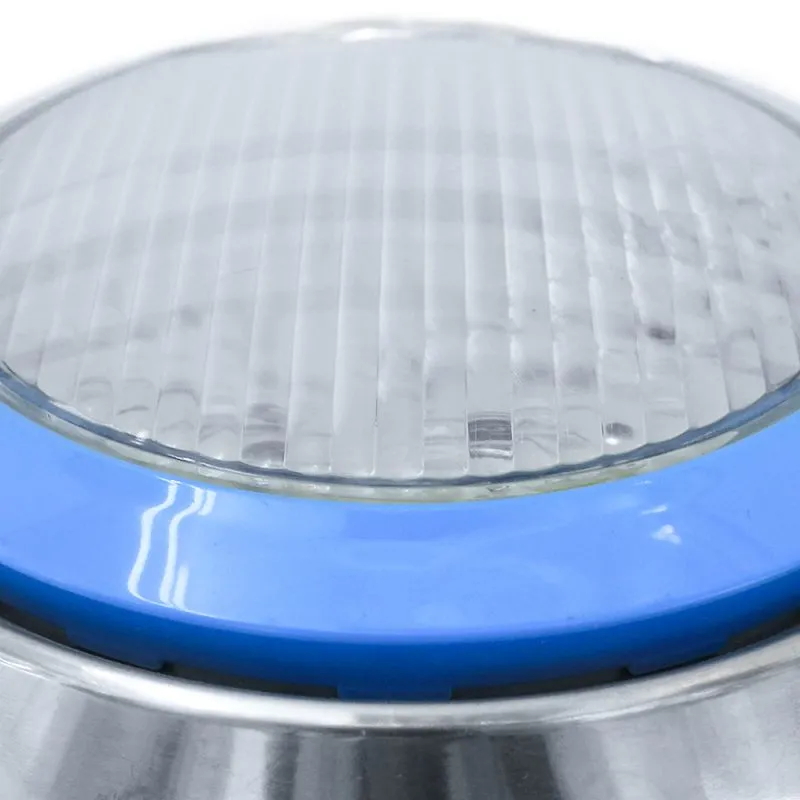

5. Stainless steel and pc cover: antirust.6. IP68 waterproof: Groove and bayonet design perfectly between lights cover and light body.
Specification of underwater light
LED swimming pool light Installation instructions
1) Light should be set 30-40cm below the water level;
2) The outlet for the conduit should be positioned so as not to interfere with the mounting ring in any way.
3) Set conduit in wall before concrete is sprayed.
4) Render or Marblesheen mounting ring into wall;
5. Ensure that the outer face of mounting ring is flush with the finished pebble surface;
6. Transformer needs to be installed in an easily accessible area to allow for servicing when requiry.
Company Information
Guangzhou Vigor Health Equipment Co., Ltd was founded in 1999, which is an integrative professional manufacturer for swimming pool filters, outdoor hot tubs, SPA, steam and sauna equipment. We own brands "JOYSPA", "PIKES" and "3T".
Qingyuan KASDALY Sanitary Ware Co., Ltd, with business development idea "excellence, integrity, innovation,win-win" for many years, has passed ISO9001 system certification, the EU CE certification, GS certification, Australia SAA certification , Nigeria SON certification. Our company also has professional product technical development team, marketing team and excellent after-sales service team. The products are mainly exported to Europe, America, Middle East, Central Asia, Africa and other countries, which has already won demestic and foreign customers' trust and praise.
Meanwhile, Vigor Group, holding on ideal development of strives for customers first and sustainable innovation. Our company has been continuously developing unique and innovative products to cater for the different demand for markets, so that we can do well and and supply professional swimming pool, SPA and other equipments for our customers. Sincerely hope common development of all partners.
Why Us
1.Timely Delivery, considerate sales after service
2.Many Years quality warranty,OEM service.
3.Top Craftmanship, All products 100% tested
4.Preferential freight by Famous shipping company
5.New Design,Very popular style products recommendation for your local market
Payments and delivery
1) Payment Details: 30% in advance,+70% balance should be paid before delivery.
2) Delivery Details: lead time:1x20ft for 15 days;1x40ft for 20 days
3) Port of loading: Huangpu,Mainland China.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
We provide a full of set swimming pool products for you :
Just need your swimming pool type(concrete vinyl pool ), size
