As medical laser technology advances rapidly, applications spanning urology, hepatobiliary surgery, dermatology, and rehabilitation therapy are moving toward ever greater precision and minimal invasiveness. Yet the “final micron” that determines whether laser energy reaches the target site safely and efficiently is the medical laser delivery fiber.

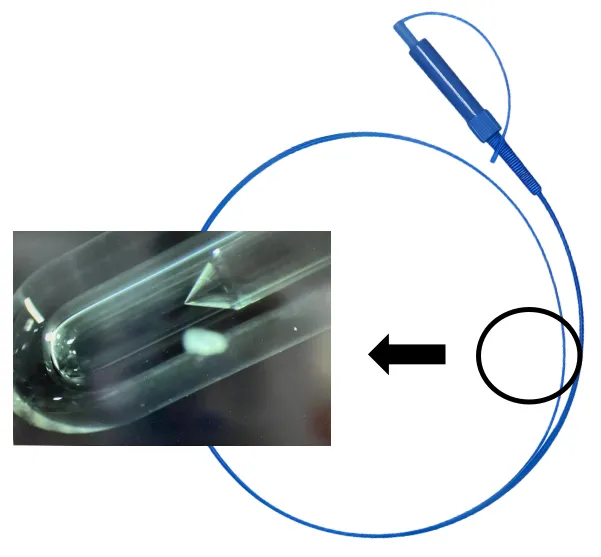

Chengdu Mirayever Optoelectronic Technology Co., Ltd. (RAYEVER) draws on deep expertise in medical photonics to introduce the MF-EF Series Medical Laser Delivery Fibers (MF-272-EF / MF-365-EF / MF-550-EF). Built around the core strengths of Safety, High Efficiency, Flexibility, and Versatility, these fibers provide a highly reliable energy-transmission solution for laser equipment operating across the 350–2200 nm spectrum.
🔹 Safety First: Multi-Process Sterilization for Greater Peace of Mind
In clinical settings, safety is non-negotiable. RAYEVER medical fibers undergo multi-process sterilization/disinfection, strictly aligned with infection-control protocols, ensuring greater confidence with every use and helping healthcare facilities maintain robust safety standards.
🔹 High-Efficiency Transmission: ≥90% Efficiency, Zero Compromise on Energy
Fiber performance directly impacts surgical quality and therapeutic outcomes. The series delivers laser transmission efficiency of not less than 90%, minimizing energy loss during delivery. Each core diameter is engineered to handle substantial power levels:
-
MF-272-EF (Core: 272 μm): Max. transmission power 60 W
-
MF-365-EF (Core: 365 μm): Max. transmission power 80 W
-
MF-550-EF (Core: 550 μm): Max. transmission power 150 W
High transmission, low loss, and stable output ensure precise control at the point of care.
🔹 Engineered for Flexibility: Minimum Bend Radius of Just 41 mm
Clinical workspaces are often constrained, making fiber flexibility critical. The MF-272-EF achieves a minimum bend radius of 41 mm (MF-365-EF: 55 mm; MF-550-EF: 85 mm). At a total length of 3 meters, the fiber remains maneuverable and responsive—easily adapting to complex anatomies and delicate procedures while reducing the risk of traction or trauma.
🔹 Comprehensive Compatibility: Broad-Spectrum Coverage from 350–2200 nm
Whether you’re working with ultraviolet, visible, near-infrared, or certain mid-infrared medical lasers (including common bands for semiconductor, thulium, and erbium lasers), the series offers stable, wide-wavelength compatibility across 350 nm to 2200 nm. This makes it suitable for multi-department, multi-platform clinical and device-integration needs.
📋 Technical Specifications at a Glance
Specification |
MF-272-EF |
MF-365-EF |
MF-550-EF |
|---|---|---|---|
Applicable Laser Wavelength |
350 nm – 2200 nm (all models) |
||
Fiber Core Diameter |
272 μm |
365 μm |
550 μm |
Max. Transmission Power |
60 W |
80 W |
150 W |
Laser Transmission Efficiency |
≥ 90% (all models) |
||
Min. Bend Radius |
41 mm |
55 mm |
85 mm |
Total Fiber Length |
3 m |
3 m |
3 m |
About RAYEVER
Chengdu Mirayever Optoelectronic Technology Co., Ltd. specializes in laser delivery and medical optical components, committed to providing high-performance, high-consistency fiber products and technical support to medical laser equipment manufacturers and clinical end users.
