Standard Turntable Wrapper - The Ultimate Classic Model, The Ideal Starter Choice.
Turntables in sizes of 1500mm, 1650mm, 1800mm, 2000mm, 2200mm with a max loading capacity of 2000 kg and height of 3000mm.
Four types of carriage with pre-stretch ratio from 100% to 400%.
Six wrapping modes, eight accessories.

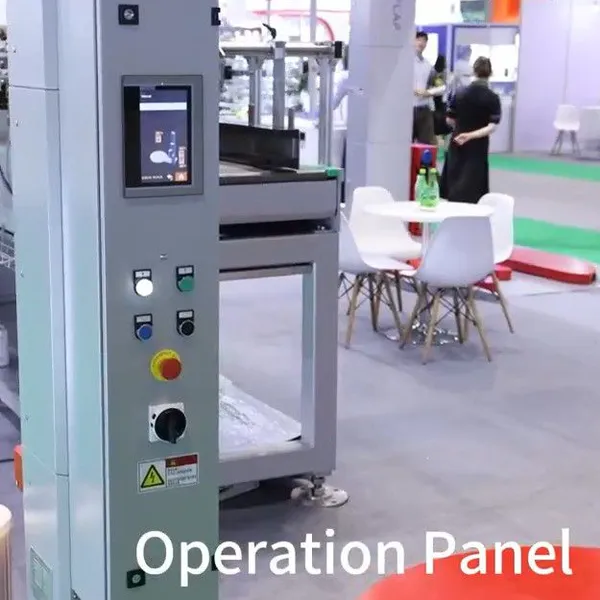

One-touch operation with an LCD touchscreen.
Spanish red turntable paired with elegant silver columns, a simple yet luxurious design.
| Standard Turntable Wrapper Model EF-CRT-S15022-PC |
Standard Turntable Wrapper (Large Column) Model EF-CRT-S16527L-PC |
|
| Machine Features | ||
| Size （L×W×H) | 2250×1500×2310mm | 2700×1650×2730mm |
| Column Height | 2200mm | 2700mm |
| Option: 2700mm/3200mm | Option： 3200mm | |
| Turntable Diameter | 1500mm | 1650mm |
| Option： 1500mm/1800mm/2000mm/2200mm | ||
| Weight | 450-500 kg | |
| Operator Panel | LCD Touch Screen | |
| Electricity Features | ||
| Power Supply | 1P 220V-230V/110V 50/60HZ | |
| Installed Power | 1.25 KW | |
| Wrapping Features | ||
| Wrapping Speed | 90s / Pcs | 100s / Pcs |
| Turntable Speed | 0-10 rpm | |

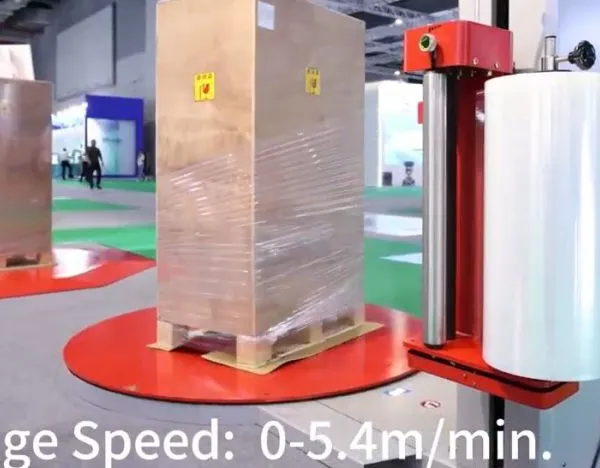

| Carriage Lifting Speed | 0-5.4 m/min | |
| Load Height | 2000mm or Pillar Height minus 400mm | |

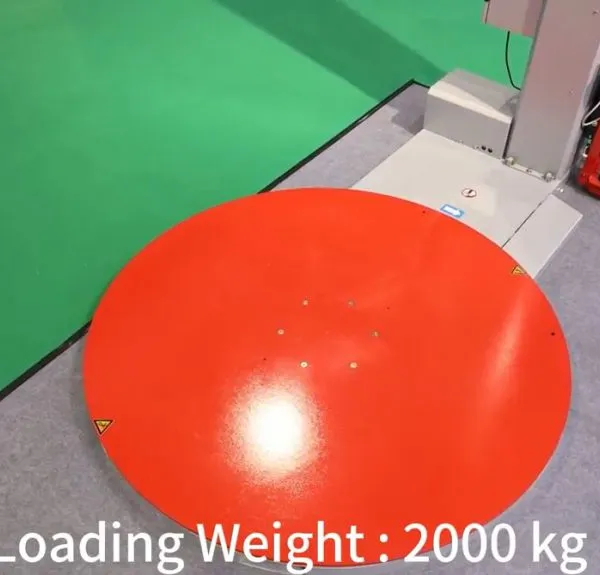

| Load Weight | 2000kg (max.) | |
| Wrapping Model | 6 Wrapping Models | |
| Film Pre-stretch | Damping Carriage : 120%/ 150% | |
| Pre-stretch Carriage : 100%-150%-200%-250% / 100%-400% Adjustable | ||
| Film Tensing | Adjustable | |
| Height Control | Photoelectric automatic | |
| Film Carriage | ||
| Carriage Types | Damping Carriage | |
| Pre-stretch Carriage | ||
| Filming Method | By Manual | |
| Roll Features | ||
| Roll Size (H×Ø) | 500mm×250mm | 500 mm / 750mm×250mm |
| Roll Diameter | 50/76 mm | |
| Roll Weight | 20 kg | |

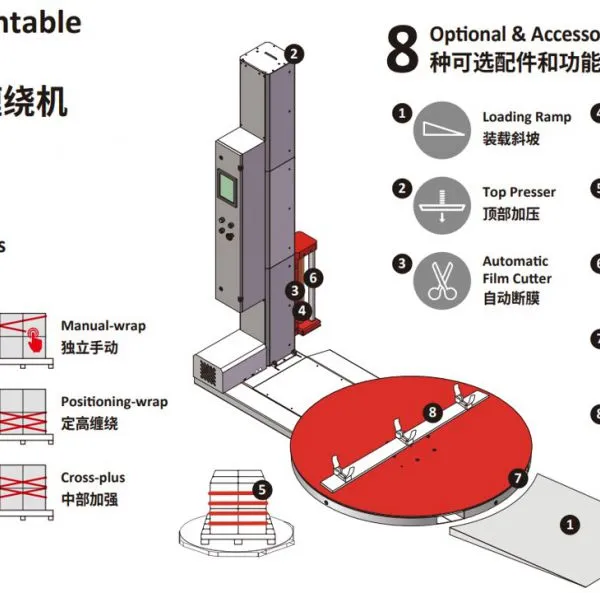

| 6 Wrapping Models | ||
| Cross-wrap Single-wrap Cross-plus Manual-wrap Positioning-wrap Cross-plus | ||
| 8 Optional & Accessories | ||
| Loading Ramp Top Presser Automatic Film Cutter Roping System Net/Bubble Flim Weighing system Doors & Windows Wrapping System(Use with Top Presser, max. loading weight is 1000kg) | ||
