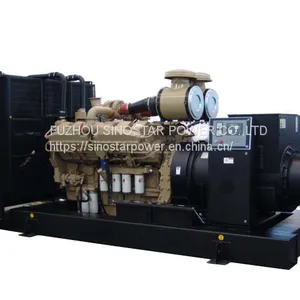

CCEC 360kw 450kVA Diesel Power Generators powered by KTA19-G3
Product features:
MODEL :SP-C500
Standby Power(50Hz) 400KW / 500KVA
Prime Power(50Hz) 360KW / 450KVA
General Features:
- Engine (CCEC KTA19-G3)
- Radiator 40OC max, fans are driven by belt, with safety guard
- 24V charge alternator
- Alternator: single bearing alternator IP23,insulation class H/H
- Absorber
- Dry type air filter, double fuel filter, oil filter,coolant filter
- Main line circuit breaker
- Standard control panel
- Two12V batteries, rack and cable
- Ripple flex exhaust pipe, exhaust siphon,flange, muffler
- User manual
ENGINE DATA
Model:CCEC KTA19-G3, 4-cycle
Air Intake System:Turbo, Water/Air cooling
Fuel System:PT type fuel pump, EFC
Cylinder Arrangement:6 in line
Displacement:18.9L
Bore and Stroke:159*159(mm)
Compression Ratio:14.5:1
Rated RPM:1500rpm
Max. Standby Power at Rated RPM:448KW/609HP
Governor Type:Electronic
Alternator Data
Number of Phase:3
Connecting Type:3 Phase and 4 Wires, “Y” type connecting
Number of Bearing:1
Power Factor:0.8
Protection Grade:IP23
Altitude:≤1000m
Exciter Type:Brushless, self-exciting
Insulation Class, Temperature Rise:H/H
Voltage Regulation, Steady State:≤±1%
Alternator Capacity:500KVA
Control panel:
-Automatic control panel(AMF),LED display.
-All protection systems
-Emergency stop
-Automatic transfer switch
-DSE/COMAP/SMARTGEN/HARSON series AMF controller
Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.
