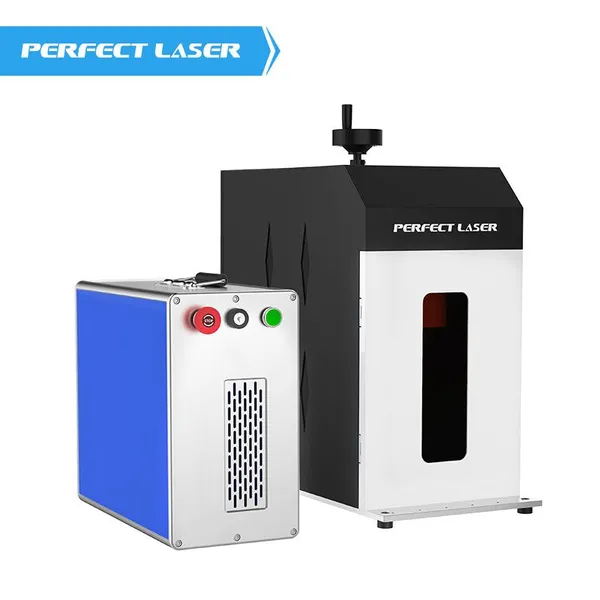

Help CenterWith Safety Closed 30w Desktop Jewelry Metal Steel Fiber Laser Engraver
Related Products
-
3W Desktop Mini UV Laser Engraver for Glass Plastic Wood MetalUS$ 2500 - 2900MOQ: 1 Unit -
5W Water Cooling UV Laser Engraver for Glass Plastic Wood MetalUS$ 4100 - 4600MOQ: 1 Unit
-
Safety Closed 5W Water Cooling UV Laser Engraver for Glass Plastic Wood MetalUS$ 6400 - 6900MOQ: 1 Unit
-
10W Water Cooling UV Laser Engraver With CCD Camera Auto Positioning and ConveyorUS$ 13700 - 14200MOQ: 1 Unit
-
CCD Camera Auto Positioning 30w Floor Type Metal Fiber Laser Engraver With Computer and TableUS$ 7300 - 7800MOQ: 1 Unit
Features:
1. High quality imported fiber laser, the adaptability of the material is very wide, you can make a very fine mark on the surface of a variety of materials, and cutting durability of the metal laser etching machine is very good.
2. The metal laser etching machine is easy to operate, simple, fast, efficient, according to their wishes to design their desired logo, clear and convenient, high satisfaction.
3. The speed block of the closed fiber marking machine is 2-3 times of that of the traditional marking machine.
4. All parts of the laser coding machine are integrated, compact, firm, light, compact, and better performance.
5. Closed fiber laser etching processing, no pollution source, energy saving, environmental protection, no supplies, to save costs for customers
6. Closed fiber laser coding machine without any maintenance, long service life, small size, easy to move, can change the position with the environment, suitable for harsh environment work.
Technical Data
| Model No | PEDB-400BII |
| Type | Desktop with rotary |
| Computer | Not includes PC |
| Laser Source | |
| IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | random |
| Nominal average output power | 30W |
| Central emission wavelength | 1064 nm ,Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth | |
| (FWHM) | |
| Long-term average power instability | |
| Pulse width(FWHM) | 100 ns |
| Laser switching ON time | 180 usec |
| Laser switching OFF time | 180 usec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | |
| Output fiber delivery length | 3m |
| Operating voltage | 220V |
| Max. Power consumption | 600W |
| Net Dimensions | 80*38*72cm |
| Net Weight | 63 kgs |
| Gross Weight | 80 kgs |
| Laser system | |
| Scanning Speed | 0-10000mm/s |
| Marking Speed | 0-7000mm/s |
| Marking size | 110mmx110mm (F-theta 160) |
| Spot size | |
| Cooling unit | Air cooled |
| Red point laser | 650nm, visible red light for marking guide |
| Continuous working time | >=16h |
| Humidity | 45~85% (no condensation) |
| Operating temperature | 0~40 C |
