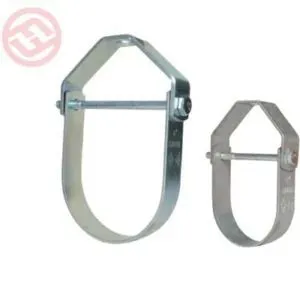

Help CenterClevis Hangers
Related Products
Size: 1/2”~12”
Material: Carbon Steel
Dimension: UL 203, MSS SP-58/69 (Type-1)
Surface: Pre-galvanized / electro-galvanized
Application: Non-insulated stationary pipeline
Products DetailsWhat’s the pipe hanger? A pipe hanger is a device or component used to support the gravity load of a system pipe. clevis hangers offers vertical adjustment and consists of a clevis-style top that bolts to a formed steel bottom strap. Seismic bracket is after seismic reinforcement of building water supply and drainage, fire fighting fittings, heating, ventilation, air conditioning, gas, heat, electricity, communications and other mechanical and electrical engineering facilities, when encountering the seismic fortification intensity of the earthquake in the area, can achieve the reduction of earthquake damage, reduce and as far as possible to prevent the occurrence of secondary disasters, so as to achieve the purpose of reducing casualties and property losses. Electromechanical seismic brackets are various components or devices that limit the displacement of auxiliary mechanical and electrical engineering facilities, control the vibration of the facilities, and transfer the load to the load-bearing structure.
Available size | ||
Pipe size |
Hanger Rod Size (RS) |
Max recommend load (N) |
1/2″ / DN15 |
3/8″ / M10 |
2710 |
3/4″ / DN20 |
3/8″ / M10 |
2710 |
1″ / DN25 |
3/8″ / M10 |
3240 |
1-1/4″ / DN32 |
3/8″ / M10 |
3240 |
1-1/2″ / DN40 |
3/8″ / M10 |
3240 |
2″ / DN50 |
3/8″ / M10 |
3240 |
2-1/2″ / DN65 |
1/2″ / M12 |
6000 |
3″ / DN80 |
1/2″ / M12 |
6000 |
4″ / DN100 |
5/8″ / M16 |
6360 |
5″ / DN125 |
5/8″ / M16 |
6360 |
6″ / DN150 |
3/4″ / M20 |
8630 |
8″ / DN200 |
3/4″ / M20 |
8890 |
10″ / DN250 |
3/4″ / M20 |
16000 |
12″ / DN300 |
3/4″ / M20 |
16900 |
