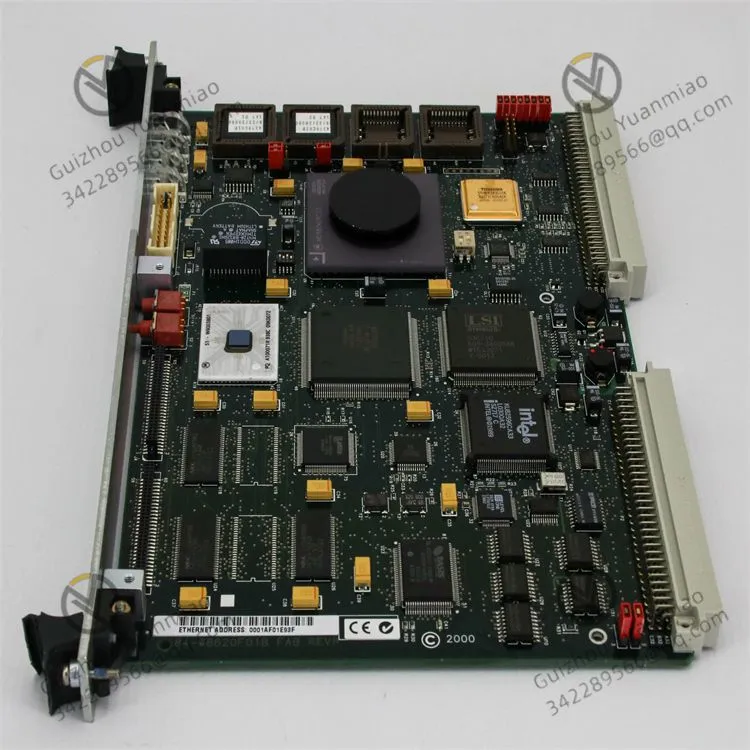

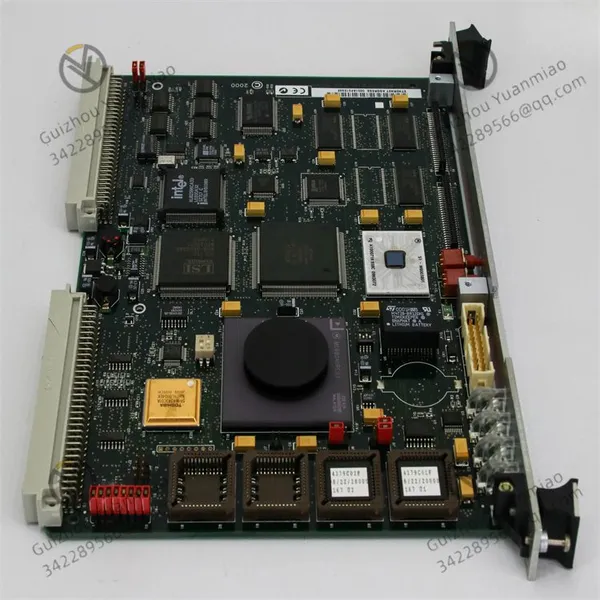

MOTOROLA MVME167P-34SE VME bus industrial-grade single-board computer
I. High-performance processors and data processing capabilities
PowerPC processor core
It adopts a PowerPC architecture processor, featuring efficient instruction processing capabilities and multi-task parallel processing performance. It can quickly execute complex algorithms (such as signal filtering and trajectory planning) in industrial control, real-time data acquisition and other scenarios, meeting the high real-time requirements.
Flexible memory configuration and data protection
Supports DRAM expansion from 4MB to 32MB, adapting to different data processing scales (such as real-time data caching in large-scale industrial monitoring systems).
It is equipped with 4K x 8 SRAM and a battery backup clock. When power is cut off, it automatically saves the system configuration, key parameters and timestamps to avoid data loss (for example, there is no need to recaliquot the parameters after the industrial equipment is restarted).
Ii. enrich interfaces and system compatibility
Integration of multiple types of communication interfaces
Four EIA-232-D serial ports: They can communicate with devices such as PLCS, sensors, and instruments, facilitating multi-station data acquisition on the production line and enabling simultaneous connection to multiple peripheral devices.
Printer compatible port: It can be directly connected to an industrial printer to output production reports and fault logs in real time, simplifying system wiring.
SCSI bus interface (with DMA) : High-speed transmission of massive data, such as waveform data storage for scientific research experiments, with a transmission rate exceeding 10MB/s, reducing data latency.
Ethernet transceiver interface: Supports local area network communication, enabling the module to remotely monitor with the upper computer and the cloud, such as transmitting the status of devices in the industrial Internet of Things.
Master/slave mode adaptation of VME bus
It can serve as a master device (actively initiating data transmission) or a slave device (responding to master device instructions) in the VME bus system, flexibly integrating into the existing VME architecture system and working in coordination with other boards (such as I/O modules, storage modules) to reduce the complexity of system integration.
Iii. Industrial-grade reliability and Environmental adaptability
Wide temperature and anti-interference design
It supports an industrial-grade temperature range (typically 0℃ to +55℃, and some models can be extended to -40 ℃ to +85℃), and is suitable for harsh environments such as high temperatures in workshops and low temperatures outdoors (such as control of rolling mills in metallurgical plants and monitoring of wellheads in oil fields).
Hardware anti-interference design (such as signal filtering and power supply voltage stabilization) reduces the impact of electromagnetic interference (EMI) in industrial sites on data transmission, ensuring the stable operation of the system.
Long life cycle and maintainability
As an industrial-grade product, it features long life cycle support and is suitable for critical systems that require long-term operation (such as power substations and rail transit signal control). The modular design facilitates on-site replacement and maintenance, reducing downtime.
Four. Real-time performance and low latency characteristics
Respond quickly to external events
The internal hardware interrupt handling mechanism can respond to external events such as sensor triggering and equipment failure (such as safety emergency stop signals) at the microsecond level, meeting the real-time requirements in industrial control (such as error compensation in robot motion control).
Deterministic task scheduling
In combination with real-time operating systems (such as VxWorks, QNX), precise timing control of tasks can be achieved, avoiding the priority inversion problem during multi-task processing. It is suitable for time-sensitive scenarios (such as pulse emission timing control of medical equipment).
V. Low Power Consumption and Compact Architecture
Low power consumption design
Adopting a low-power PowerPC processor and an optimized power management solution, the overall power consumption of the machine is relatively low. It can operate in a closed cabinet without additional heat dissipation devices, reducing the heat dissipation cost and energy consumption of industrial systems.
Compact veneer form
The standard VME single-board size (such as 6U specification) takes up little space and is suitable for volume-sensitive embedded systems (such as avionics and portable test instruments), while reducing the complexity of wiring within the cabinet.
Vi. Application Scenarios
Multi-interface compatibility: Applied to data collection in industrial production lines, it can be connected to sensors, PLCS, and printers.
High reliability and resistance to environmental interference: Suitable for control in harsh industrial sites such as metallurgy and petroleum.
Real-time data processing and transmission: It plays a role in medical imaging equipment and radar signal preprocessing scenarios.
Remote monitoring and communication capabilities: Used for intelligent traffic signal control and remote operation and maintenance of power systems.
