5X00063G01 Emerson Analog Output Module

5X00063G01 Emerson Analog Output Module thumbnail-3

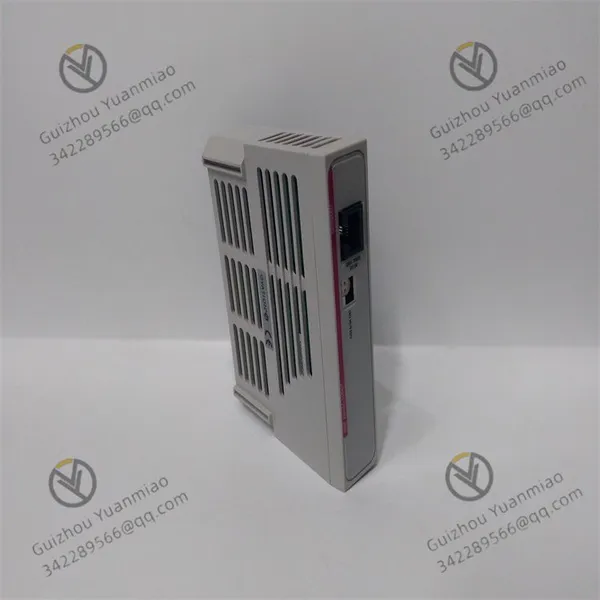

5X00063G01 Emerson Analog Output Module photo-1

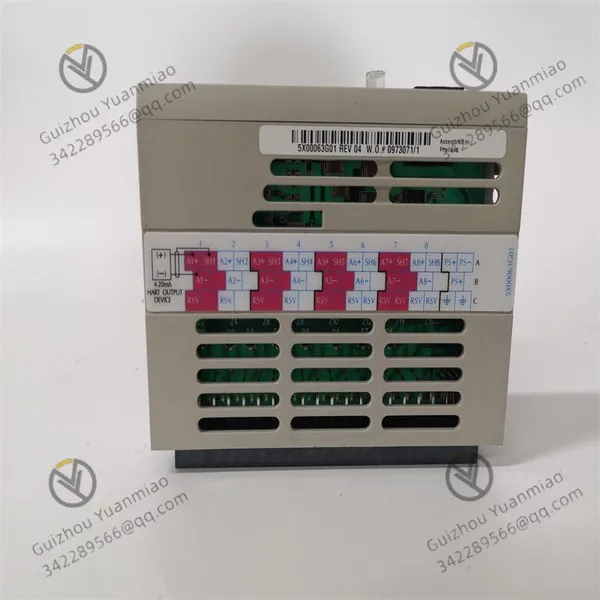

5X00063G01 Emerson Analog Output Module photo-2

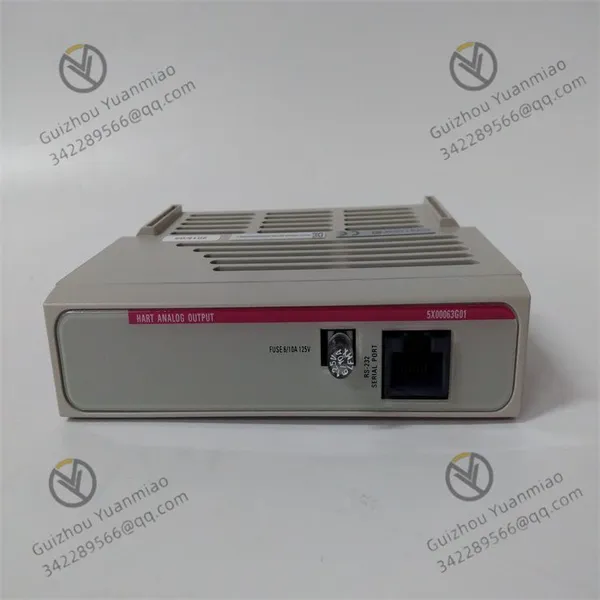

5X00063G01 Emerson Analog Output Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

5X00063G01 Emerson analog output module

I. Core Performance Indicators

High-Precision Signal Conversion

D/A Resolution: 14-bit (16,384 discrete points), with a theoretical accuracy of ±0.006% of full scale (maintaining ±0.25% full-scale accuracy within the actual operating temperature range), ensuring output signals (e.g., 4-20mA, 0-10V) precisely match digital commands.
Conversion Formula: Analog output value = Digital input value × (Full-scale value / 16,384). For example, a digital input of 8,192 corresponds to 50% output (e.g., 12mA for 4-20mA).

Rapid Response Capability

Channel Update Rate: 24 ms per channel, supporting high-speed control scenarios (e.g., quick adjustment of valve opening, motor speed) to meet dynamic process control requirements.

Reliable Electrical Characteristics

Load Driving Capacity: Current output (4-20mA) supports 0-600Ω load impedance; voltage output (0-10V) features low-impedance driving for strong anti-interference.
Isolation Design: 1000V AC/DC optoelectronic isolation between channels and logic circuits prevents interference and fault propagation, enhancing system safety.

Industrial-Grade Environmental Adaptability

Operating temperature range: -40°C to 70°C, suitable for harsh industrial environments (high temperature, high humidity); resistant to vibration and electromagnetic interference (complies with IEC 61000 standards).

II. Unique Advantages

Innovative Circuit Design and Protection Mechanisms

Passive Circuits and Repairable Fuses: Each channel is equipped with passive circuits, and field-side circuits integrate user-repairable fuses, which quickly cut off power in case of output short circuits or overloads to protect the module and field devices, reducing maintenance costs.
Independent Auxiliary Power Supply: Provides independent auxiliary power for field-side circuits to avoid output signal interference from main power fluctuations, improving stability.

Efficient Diagnosis and Feedback Functions

Open-Loop Feedback Detection: Monitors the on/off status of the output loop in real time, storing "pass/fail" bits in dedicated data registers to help the main controller quickly locate faults (e.g., broken lines, device anomalies).
Real-Time Status Feedback: Continuously monitors parameters like power voltage and DAC output values, triggering alarms and recording fault codes (e.g., out-of-range, communication interruption) during anomalies for easy system maintenance.

Flexible Modular Adaptability

Deep Integration with Ovation System: Interacts in real time with the main controller and AI/DI modules via the backplane bus (e.g., redundant communication bus), supporting closed-loop control (e.g., PID regulation).
Compatible with HART Protocol Extension: Although HART functionality is not integrated by default, FSK frequency shift keying signals (1200Hz/2200Hz) can be superimposed via external modules to enable combined transmission of digital and analog signals, supporting remote configuration and device diagnosis.

Balance of High Precision and Stability

With 14-bit resolution, temperature drift error is controlled within ±0.005%/°C through calibration circuits and temperature compensation technology, ensuring long-term output accuracy for scenarios requiring strict control precision (e.g., temperature control of chemical reactors, precise flow regulation).

III. Differentiation Comparison with Similar Products

Dimension	5X00063G01	Similar Analog Output Modules (e.g., 5X00062G01)
Resolution	14-bit, accuracy ±0.25% full scale	14-bit, accuracy within temperature range not specified
Channel Update Rate	24 ms/channel	Not specified (typically ≥50 ms/channel)
Isolation Features	1000V isolation between channels and logic, no inter-channel isolation	Isolation parameters not specified
Diagnostic Functions	Open-loop feedback detection, fault code storage	Basic status monitoring, no closed-loop detection
Protection Mechanisms	Repairable fuses, independent auxiliary power	Basic overcurrent protection, no user-repairable design

IV. Adaptability to Typical Application Scenarios

High-Precision Process Control: For closed-loop control of flow and pressure in petrochemical industries, leveraging 14-bit precision and fast update rates for smooth regulation.
Complex Industrial Environments: In metallurgy and power industries, resisting strong electromagnetic interference and high-temperature shocks through 1000V isolation and wide-temperature design.
Scenarios Requiring Easy Maintenance: Repairable fuses and real-time diagnosis shorten fault troubleshooting time, suitable for continuous production systems needing quick repairs (e.g., pharmaceutical, food processing).

Conclusion: Through the unique design of "high-precision conversion + rapid diagnosis + hardware protection", 5X00063G01 balances control accuracy and system reliability in industrial automation scenarios, especially suitable for critical control links with high requirements for safety and maintainability.

Product Tags: 5X00063G01
