HONEYWELL 05701-A-0329 Triple DPCO Relay Card

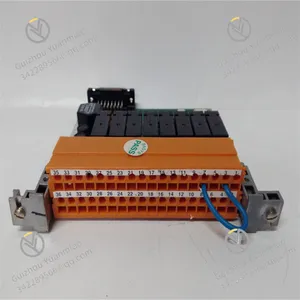

HONEYWELL 05701-A-0329 Triple DPCO Relay Card thumbnail-1

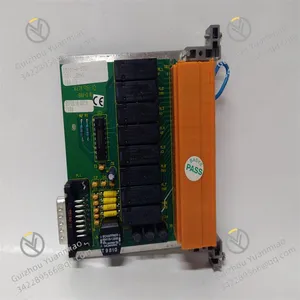

HONEYWELL 05701-A-0329 Triple DPCO Relay Card thumbnail-2
HONEYWELL 05701-A-0329 Triple DPCO Relay Card thumbnail-3

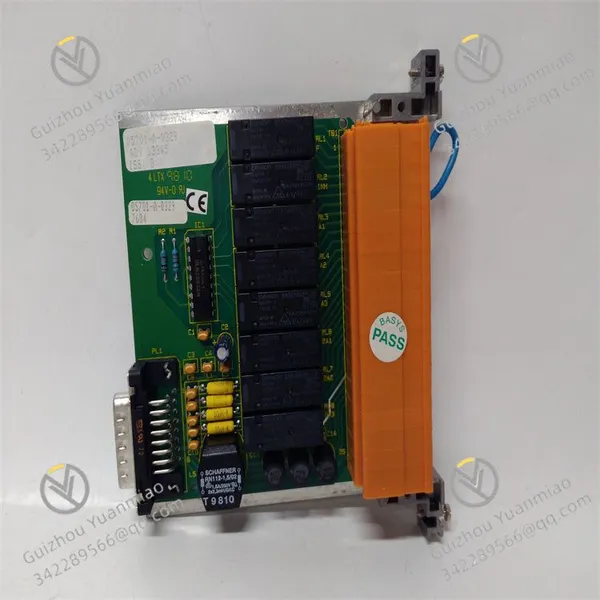

HONEYWELL 05701-A-0329 Triple DPCO Relay Card photo-1

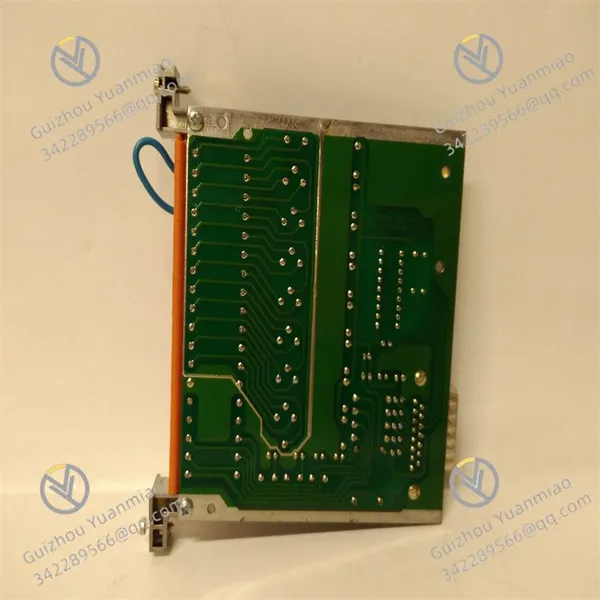

HONEYWELL 05701-A-0329 Triple DPCO Relay Card photo-2
HONEYWELL 05701-A-0329 Triple DPCO Relay Card photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




Honeywell 05701-A-0329 is a triple DPCO relay card from the Honeywell Analytics System 57 series, mainly used for gas detection and control in industrial automation. The following is relevant content from its user manual:
Product Overview
The 05701-A-0329 is a triple DPCO relay card designed to provide control and status output for up to three gas detectors. It achieves electrical isolation through the relay card, ensuring signal stability and safety.
Product Parameters

  • Power Supply: 24VDC, with an allowable range typically 18V to 32VDC.

  • Relay Contact Rating: 10A 28VDC.

  • Operating Temperature Range: -40°C to +70°C.

  • Input Voltage: 0~10V DC.

  • Rated Current: 5A.

  • Frequency Range: 50Hz~60Hz.

  • Dimensions: Approximately 112mm x 25mm x 170mm.

  • Weight: Approximately 1.36kg.

  • Housing Material: Polycarbonate.

  • Mounting Method: DIN rail mounting.


05701-A-0329 (2)



Functional Features

  • High Reliability: Adopts redundant design and fault detection mechanisms to ensure reliable system operation.

  • Flexible Expansion: Supports multi-channel system expansion to meet gas detection needs of different scales.

  • User-Friendly: Provides simple configuration and maintenance methods, facilitating operation by personnel.

  • High Performance: Equipped with advanced control algorithms, suitable for harsh environments.


Electrical Connections

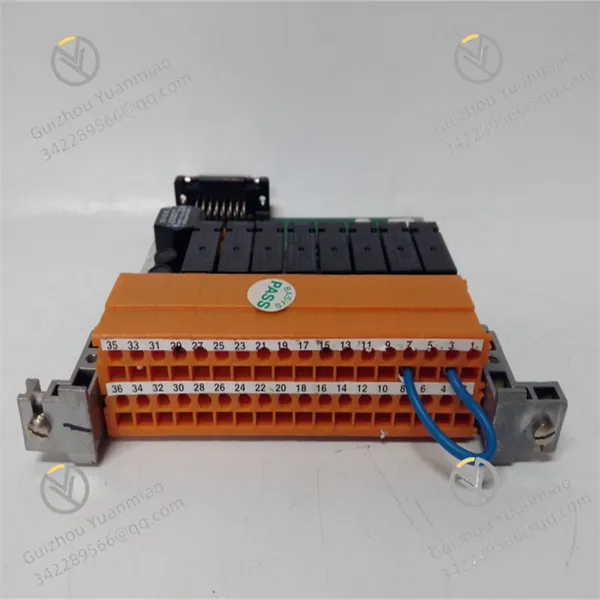

  • Fault Signal: Pin 1 is Normally Closed (NC), Pin 2 is Normally Open (NO), and Pin 3 is Common (COM).

  • Inhibit Signal: Pin 5 is Normally Closed (NC), Pin 4 is Common (COM), and Pin 6 is Normally Open (NO).

  • Alarm Signal A1: Pin 7 is Normally Closed (NC), Pin 9 is Common (COM), Pin 8 is Normally Open (NO), etc. There are 6 groups of alarm signal connection pins, supporting 2 x A1, 2 x A2, and 2 x A3 alarm levels.

  • Power Supply: Pin 35 is +24V (Output/Input), and Pin 36 is 0V (Output/Input).

  • Sensor Connection: Pin 27 is connected to sensor S, and Pin 29 is connected to sensor NS.

  • Analog Output: Pin 31 is Analogue O/P (+), and Pin 32 is Analogue O/P (-).

  • Remote Input: Pin 33 is Remote Inhibit In, and Pin 34 is Remote Reset In.


05701-A-0329 (1)
