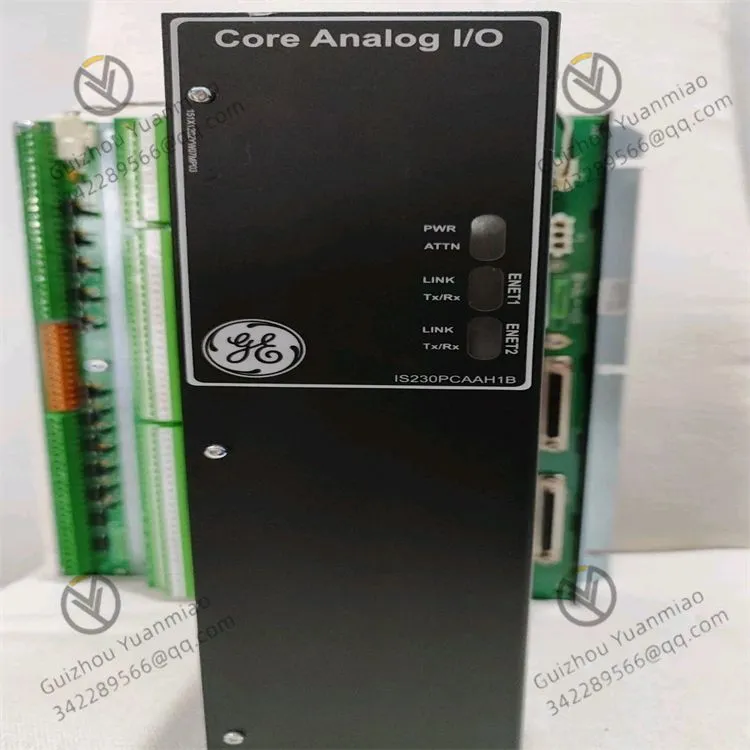

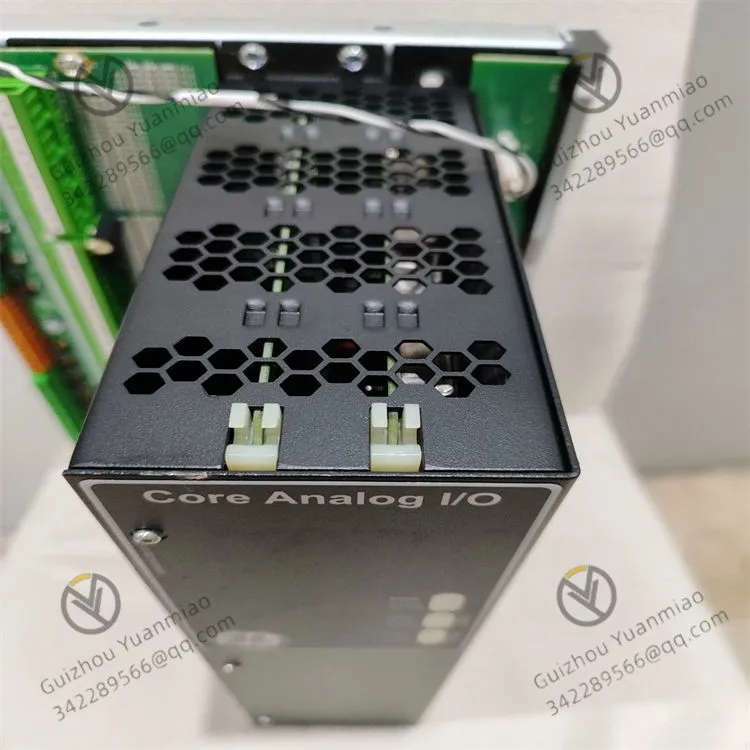

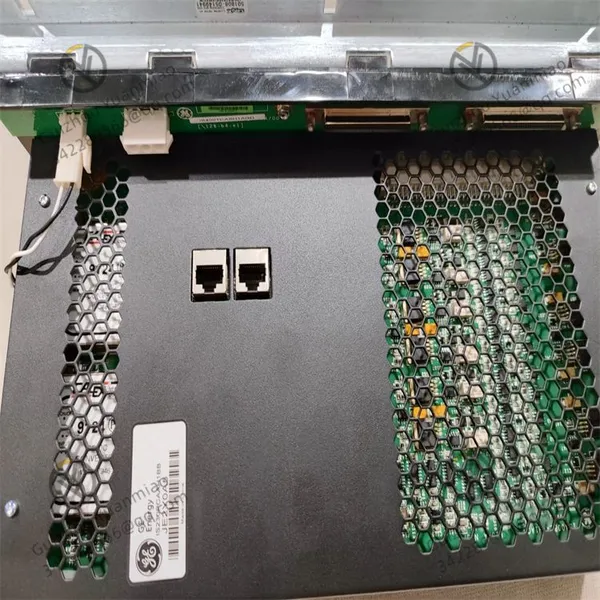

GE IS230PCAAH1B Core Analog Input/Output (I/O) Module

GE IS230PCAAH1B Core Analog Input/Output (I/O) Module thumbnail-3

GE IS230PCAAH1B Core Analog Input/Output (I/O) Module photo-1

GE IS230PCAAH1B Core Analog Input/Output (I/O) Module photo-2

GE IS230PCAAH1B Core Analog Input/Output (I/O) Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

GE IS230PCAAH1B Core Analog Input/Output (I/O) module

I. Module Positioning and Basic Functions

The IS230PCAAH1B is a core analog I/O module for industrial control launched by General Electric (GE), mainly used in GE industrial control systems such as Mark VIe. It undertakes the tasks of analog signal acquisition, processing, and output control. Its core functions include:

Analog Input (AI): Collects continuous electrical signals (such as 4-20mA, 0-10V) from field sensors (e.g., temperature, pressure, flow sensors).
Analog Output (AO): Outputs control signals to actuators (e.g., control valves, frequency converters) to achieve closed-loop control.
Signal Conditioning and Conversion: Converts physical quantities into digital signals and transforms digital control commands into analog signals.

II. Hardware Architecture and Key Components

The module's hardware design revolves around the analog signal processing flow, with core components including:

Signal Interface Circuit

Input Channels: Supports multiple analog inputs (e.g., 8 or 16 channels) with filter circuits to suppress electromagnetic interference (EMI).
Output Channels: Multiple analog outputs (e.g., 4 or 8 channels) with load driving capability, compatible with industrial actuators.

Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC)

ADC: Converts input analog signals (e.g., voltage, current) into high-precision digital quantities (e.g., 16-bit or 24-bit resolution).
DAC: Converts digital commands from the controller into analog signals (e.g., 4-20mA) to drive actuators.

Microprocessor and Storage Unit

The built-in processor handles signal processing, fault diagnosis, and communication protocol parsing.
The storage unit saves configuration parameters (e.g., range, filter coefficients) and supports power-off data retention.

Communication Interface

Supports GE proprietary communication protocols (such as IONet) or general protocols (such as Modbus) to interact with the main control system in real time.

Power Supply and Protection Circuit

Wide voltage input (e.g., 24VDC) with overvoltage and overcurrent protection, adapting to power fluctuations in industrial fields.

III. Working Process and Core Principles1. Analog Input (AI) Working Principle

Signal Acquisition: Analog signals (e.g., voltage signals corresponding to temperature) output by sensors are connected to the module's input channels via cables.
Signal Conditioning: Adjusts signals to the ADC-compatible range (e.g., 0-5V) through resistor voltage division, operational amplifier amplification, or filtering.
Analog-to-Digital Conversion: ADC converts analog signals into binary digital quantities (e.g., 0-65535 corresponding to 0-10V), with precision determined by the ADC bit depth.
Data Processing and Transmission: The microprocessor performs linearization correction (e.g., temperature-voltage curve fitting) and filtering (noise elimination) on digital signals, then sends them to the controller (e.g., PLC) via communication protocols.

2. Analog Output (AO) Working Principle

Command Reception: The module receives control commands (e.g., target valve opening) from the main control system via the communication interface (e.g., Ethernet).
Digital-to-Analog Conversion: DAC converts digital commands (e.g., 0-65535 corresponding to 0-100% opening) into analog electrical signals (e.g., 4-20mA).
Signal Amplification and Output: The conditioning circuit enhances signal driving capability to ensure accurate response from actuators (e.g., electric control valves).

IV. Key Technical Features and Industrial Application OptimizationHigh Precision and Anti-Interference Design

Resolution: ADC/DAC resolution typically reaches 16 bits or higher (e.g., 16 bits correspond to 0.0015% precision), meeting precise control requirements.
Anti-Interference Measures: Input/output channels use optoelectronic isolation technology to cut off the electrical connection between field interference sources and the module; the power supply part is equipped with EMI filtering to suppress grid noise.

Real-time Performance and Reliability

Sampling Rate: Supports high-speed sampling (e.g., above 10kHz), suitable for dynamic process control (e.g., steam turbine speed regulation).
Fault Diagnosis: Built-in self-diagnosis function monitors channel open circuits, short circuits, or overrange faults in real time, and reports them via LED indicators or communication protocols.

Industrial Environment Adaptability

Wide Temperature Design: The operating temperature range is typically -40°C to 70°C, adapting to high and low-temperature industrial sites (e.g., metallurgy, oil platforms).
Modular Compatibility: Can be integrated with other GE I/O modules (such as digital modules, communication modules) to build distributed control systems (DCS).

V. Typical Application ScenariosPower Industry

In gas turbine control, collects data from temperature and pressure sensors, outputs excitation current control signals, and maintains stable generator operation.

Petrochemical Industry

Monitors parameters such as reactor temperature and pressure, outputs valve opening signals to adjust feed volume, and realizes process closed-loop control.

Energy Management

Collects analog quantities of grid voltage and current, outputs frequency converter control signals, and optimizes motor speed for energy saving.

Manufacturing Automation

In automobile painting production lines, controls paint flow and pressure to ensure uniform coating thickness.

VI. Collaboration with Other Modules

The IS230PCAAH1B typically works with the following modules:

Main Control Module (e.g., IS415UCVGH1A): Receives data from I/O modules and executes control algorithms.
Communication Module (e.g., IS420UCSBH4A): Enables high-speed data transmission between I/O modules and host computers.
Power Module: Provides stable power for I/O modules to ensure signal processing accuracy.
