DS200DCFBG1BJB Circuit Board Components

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

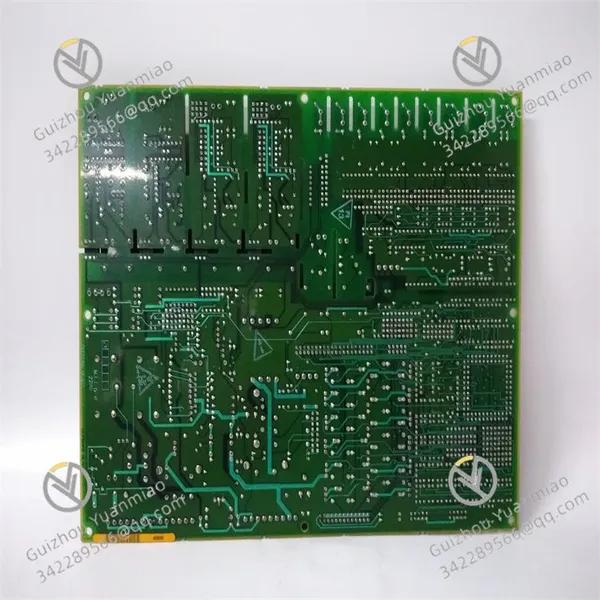

Detailed Information on DS200DCFBG1BJB
Product Overview
The DS200DCFBG1BJB is a circuit board component manufactured by General Electric (GE) and is part of the Mark V Speedtronic system. It primarily functions as a control-level power supply provider for drives and cabinet fans, and is compatible with applications such as EX2000, DC2000, FC2000, GF2000, ME2000, CB2000, and AC2000 IGBT drives.
Hardware Features

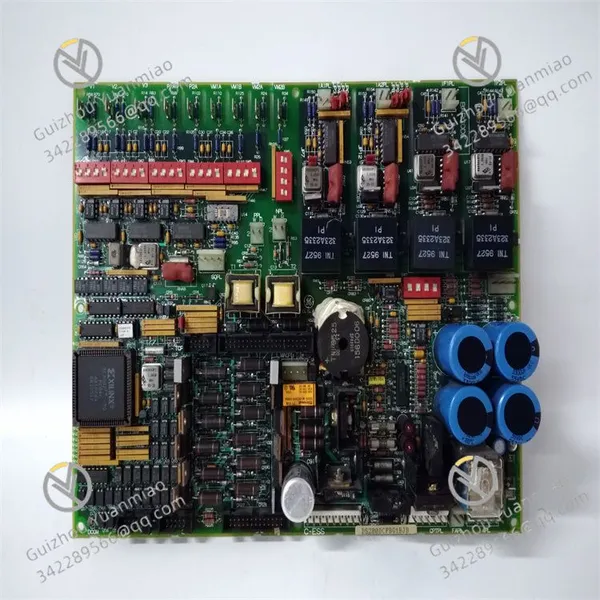

Physical Design：A large rectangular circuit board with numerous surface-mounted components, designed for integration into Mark V system enclosures.
Configurable Elements：

7 x 4-position DIP switches (6 located on one side of the board) for input scaling and parameter adjustment (e.g., Switch 4/SW4 regulates voltage applied to the VCO output bridge circuit).
12 configurable jumpers to adapt to diverse system requirements.

A neon light indicator to signal fuse failure in the 115VAC line.
Two LED indicators for monitoring fuse status in the +24VDC and -24VDC lines (illuminated when fuses are intact).

Integrated Circuits & Functional Modules
The board incorporates various specialized circuits to support drive control and power management:
Voltage and current feedback VCO (Voltage-Controlled Oscillator) circuits
Motor voltage decay circuits
AC line monitoring and zero-crossing detection circuits
Contactor drive circuits
Field/armature SCR (Silicon Controlled Rectifier) firing circuits
Interfaces & Components
I/O Connectors：Includes 1PL-1 to 1PL-40, 2PL-1 to 2PL-9, 4PL-1 to 4PL-5, and 5PL-1 to 5PL-26 for signal and power connections.
Test Points：Dedicated points for measuring voltage signals during troubleshooting and calibration.
Protective Components：Fuses to safeguard against overcurrent and voltage spikes.
Supporting Components：Resistor networks, capacitors, transistors, heat sinks, transformers, and relays for stable circuit operation.
Application Context
As a critical part of the Mark V Speedtronic system, the DS200DCFBG1BJB is primarily used in industrial drive control systems, including:
Turbine-driven compressor controls in oil and gas processing.
Motor drive systems in power generation facilities.
Heavy-duty industrial drives requiring precise voltage regulation and fault monitoring.
