Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine

Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine thumbnail-1
Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine thumbnail-2
Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine thumbnail-3
Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine thumbnail-4
Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine photo-1
Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine photo-2

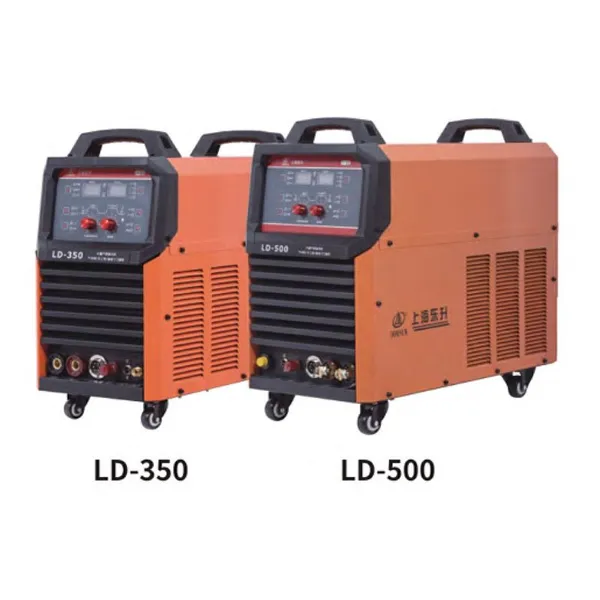

Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine photo-3
Shanghai Donsun LD-270/350/500 MIG/ARC/CUT 3in1 Multi-function Welding Machine photo-4
US$ 500 1 Set
US$ 300 ≥2 Set
Key Specifications
Get Latest Price
Type:
Other, mag mma cut
Style:
Vertical
Electric Current:
DC
Contact Supplier Request Quote Chat Now
Shanghai Donsun Welding Group Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, mag mma cut
Style Vertical
Electric Current DC
Cooling Way Air Cooling
Work Form Other, igbt
Frequency Range High Frequency
Transport Package wooden case
Specification customize
Trademark ｄｏｎｓｕｎ
Origin Ｃｈｉｎａ

 LD-270/350/500



MIG/ARC/CUT 3in1 multi-function



Industrial IGBT module

Multi-functional power source

Built-in compressor plasma cutter

MIG/ARC/CUT 3 functions

Digital parameter adjustment





Inverter technology

Multi protections

Intelligent air cooling

MIG/ARC/CUT 3 functions





Model

LD-270

LD-350

LD-500

Rated input voltage (V)

1P 220V/380V±15%

3P 380V±15%

3P 380V±15%

Input frequency (HZ)

50/60

50/60

50/60

Rated input current (A)

46/15.4

21.6

30.5

Duty cycle(%)

60

60

60

No-load voltage (V)

337.5

335

335

CUT output voltage(V)

25-65

25-85

25-110

CUT output current(A)

106

114

124

MIG output current (A)

270

350

500

MIG output voltage (V)

68

72

74

MMA output current (V)

250

320

500

MMA output voltage (V)

68

72

74

ARC-initiating

NON-Contact

NON-Contact

NON-Contact

Efficiency(%)

85

85

85

Cutting thickness （MM）

25

35

45

Weight (kg)

28

40

60

Dimension(mm)

40*280*500

600*280*540

690*320*620



delaney
delaney@en-donsun.com
Shanghai donsun welding group

Shanghai Donsun Welding Group Technology Co.,Ltd
Floor 2, Building 8, NO.3398, Puwei Highway,Fengxian District, Shanghai,China
delaney@en-donsun.com Tel/whatsapp: 86-19901694324
Web: Cn: En:
