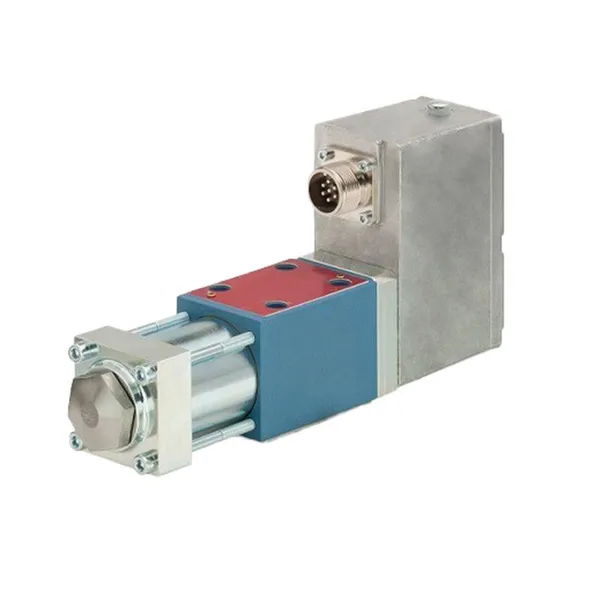

Hydraulic Valves Control Direct-Operated Pilot-Operated Servo Valves for Analog Signals D633 Series are high-performance electrohydraulic servo valves designed for precise control in critical motion systems. Part of MOOG's renowned DDV (Direct Drive Servo Valve) series, these valves combine advanced direct-drive technology with robust construction to deliver exceptional accuracy and reliability in demanding industrial and mobile applications.
🔧 Key Features:Direct-Operated Design:
Utilizes a permanent magnet linear force motor for direct spool displacement, eliminating the need for hydraulic pilot stages and reducing internal leakage.
Integrated spool position feedback (LVDT sensor) and onboard electronics enable closed-loop control, ensuring precise proportional response to analog signals (±10V, ±10mA, or 4-20mA).
High Dynamic Performance:
Rapid step response (e.g., 12 ms at 210 bar) and pressure-independent dynamics maintain consistent performance across varying operating conditions.
Low hysteresis ( and high resolution ( provide fine control for position, velocity, pressure, or force applications.
Robust Construction:
ISO 4401 Size 03/05 (NG6/10) mounting standards ensure compatibility with industrial hydraulic manifolds.
IP65 protection rating and fluorocarbon seals allow operation in harsh environments (-29°C to +135°C) with petroleum-based or compatible fluids.
Safety and Reliability:
Spring-centered fail-safe return automatically reverts the spool to neutral during power loss or cable damage, preventing uncontrolled actuator movement.
Reverse polarity and overpressure protection safeguard valve electronics and hydraulic components.
| Parameter | Value |
|---|---|
| Max Operating Pressure | 350 bar (P, A, B ports); 210 bar (T port) |
| Rated Flow | 5–100 L/min (@ Δp 35 bar) |
| Signal Options | ±10V, ±10mA, 4-20mA |
| Spool Configuration | 3-way, 4-way, or 2x2-way throttling |
| Weight | ~2.1 kg |
| Cleanliness Requirement | ISO 4406 ≤16/13 (standard); ≤15/12 (long-life) |
Industrial Machinery: Injection molding presses, plastic extruders, and precision manufacturing systems.
Mobile Equipment: Excavators, cranes, and agricultural machinery requiring load-holding stability.
Renewable Energy: Wind turbine pitch control and hydroelectric turbine regulation.
Aerospace and Defense: Simulator motion platforms and test rigs.
Elimination of nozzle-flapper precursor stages reduces complexity and manufacturing costs while maintaining performance parity with legacy designs (e.g., MOOG 30/31 series).
Integrated PWM-driven electronics simplify external control requirements and reduce system footprint.
Enhanced contamination resistance due to the absence of fine-precision pilot orifices.
The D633 series represents MOOG's innovation in merging electromechanical actuation with hydraulic power, offering a cost-effective, high-reliability solution for precision motion control.
