Home > Industrial Equipment & Components > Welding Equipment > Plasma Welder > EVO20 CUT 40 NHF L2S32
EVO20 CUT 40 NHF L2S32
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products

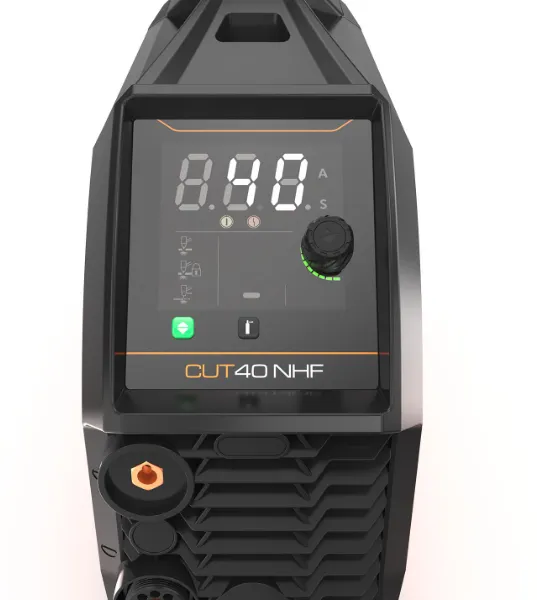

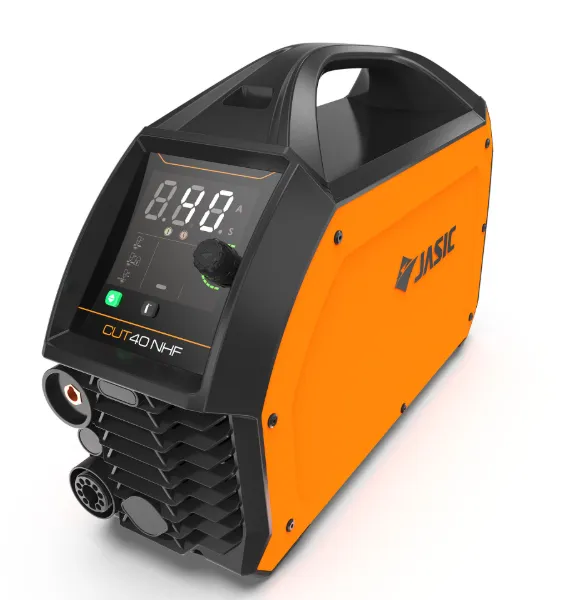

EVO20 CUT 40 NHF L2S32
JASIC EVO20 CUT 40 NHF offers professional cutting performance.
· Quality cut up to 10 mm and 20 mm severance
· HD digital panel with ClearVision tech
· SurePlasma technology for consistent arc ignition performance with different torch lengths
· Mesh cutting for perforated metal
· Non HF arc ignition and pilot arc
| CUT40 NHF L2S32 | |||
| Input power | AC230 V ±15%, 50/60 Hz | ||
| Open circuit voltage | 280 V | ||
| Rated input current | 26 A | ||
| Rated input power capacity | 6 kVA | ||
| Output current range | 20～40 A | ||
| Arc starting | NHF | ||
| Rated duty cycle | 25% | ||
| Good cutting (carbon steel)/@400mm/min | 10 mm | ||
| Severance (carbon steel) | 20 mm | ||
| Efficiency | 88% | ||
| Power factor | 0.6 | ||
| Idle state power | ＜50 W | ||
| Protection class | IP23S | ||
| Insulation class | H | ||
| Dimensions L×W×H | 546×166×341 mm | ||
| Net weight | 9.2 kg | ||
