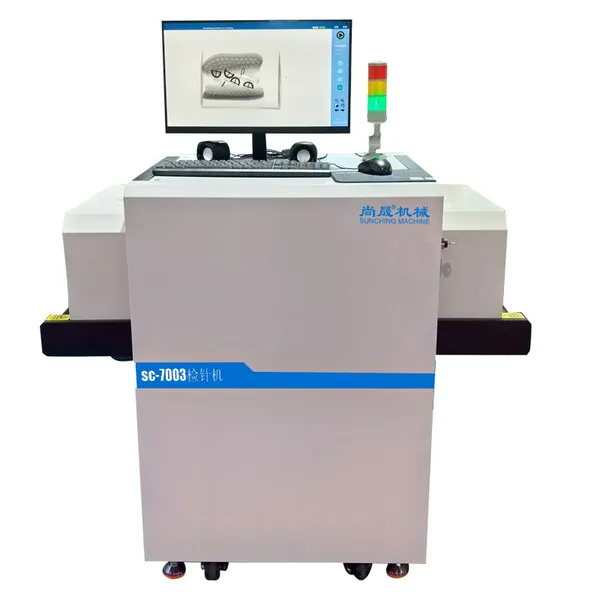

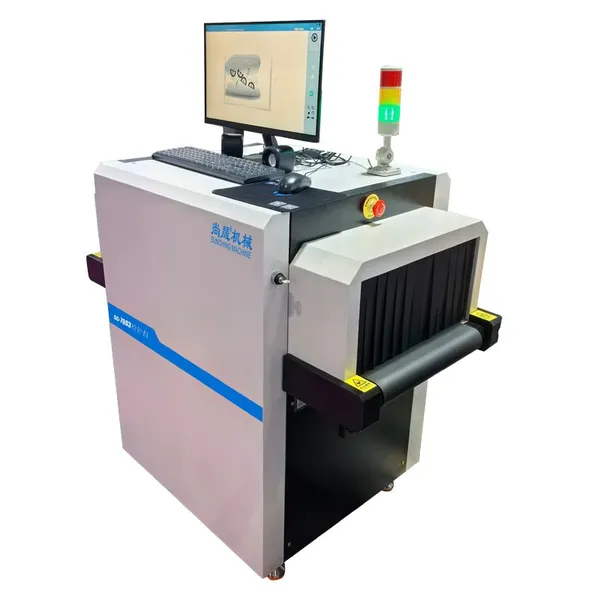

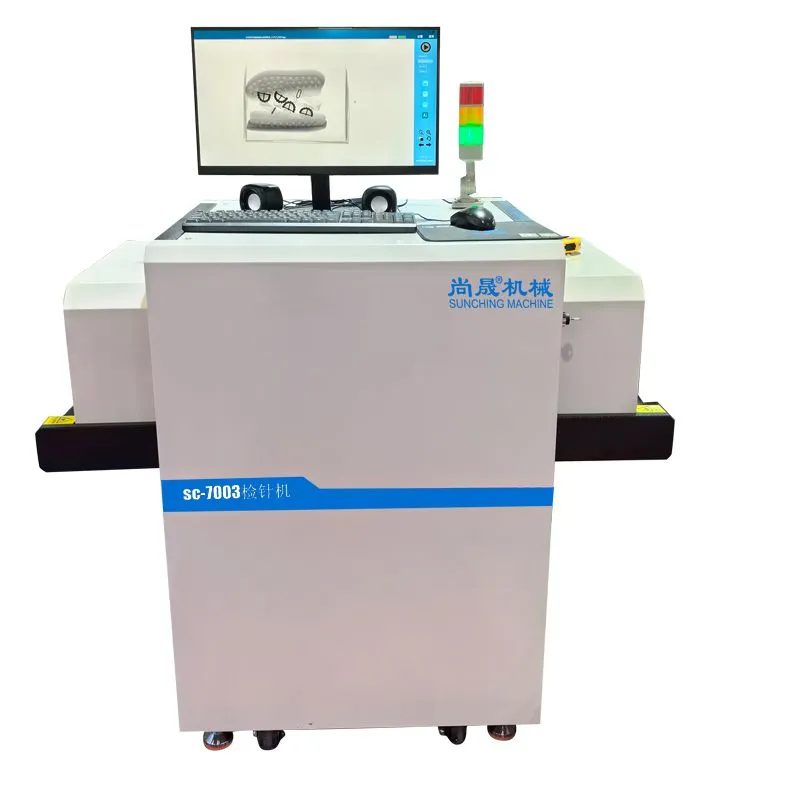

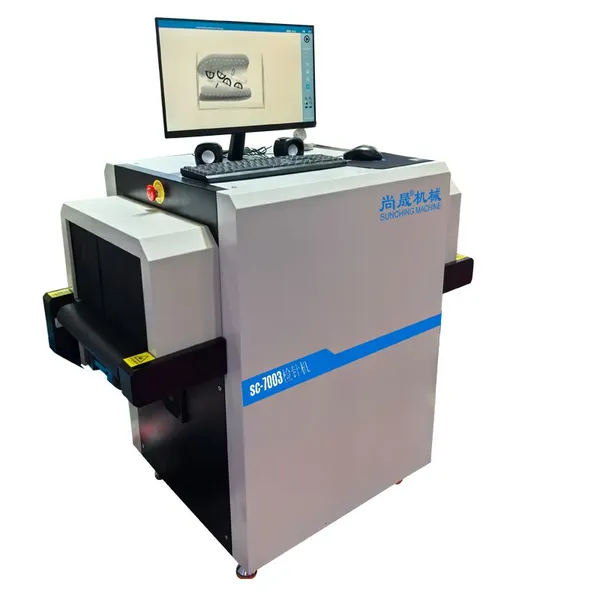

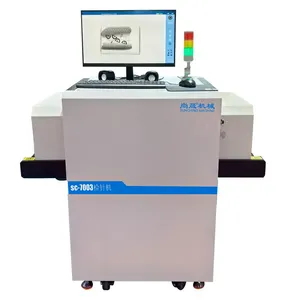

SC - 7003 X - ray Needle Detector
（Product brief introduction）： |
SC-7003 X-ray needle detector automatically identifies and marks the position of foreign objects, which can be used for auxiliary judgment. It can automatically mark iron wires with a diameter of 5*0.8mm and iron balls with a diameter of 1.2mm at the minimum. The recognition rate of conventional foreign objects reaches more than 99.99%. The equipment provides functions such as broken needle visualization, red frame marking for broken needles, sound and light alarm, automatic return when alarming, automatic picture saving, automatic NG, and traceability of defective products. It is widely used in the detection of shoes, clothing, luggage, handbags, and plush toys.
Technical Specifications: |
Model |
SC-7003 |
Monitor |
LCD22’(1 sct) |
|
Voltage |
220V/50HZ |
Curtain |
4 sets (Without lead) |
|
Rated power |
Inspected articles weight |
50KG(Max) |
||
Operating system |
Windows7 |
Inspected articles length |
90CM (Max) |
|
Hard disk space |
128G |
Leakage |
|
|
Picture storage |
>200000PCS |
X-ray voltage |
50-80kv |
|
Tunnel size |
460mm*225m |
X-ray current |
0.3-0.6mA |
|
Min detectable diameter |
φ0.3mmFe wire |
Operating temperature |
0℃~40℃ |
|
Conveyor belt speed |
12-18m/min |
Size |
L1190*H1078*W692mm |
|
Angle of irradiation |
90º(0º~60º) |
Weight |
300kg |
|
|
Optional ①Label printer ③Regulated power supply ②High definition printer ④Pulley operation desk | ||||
