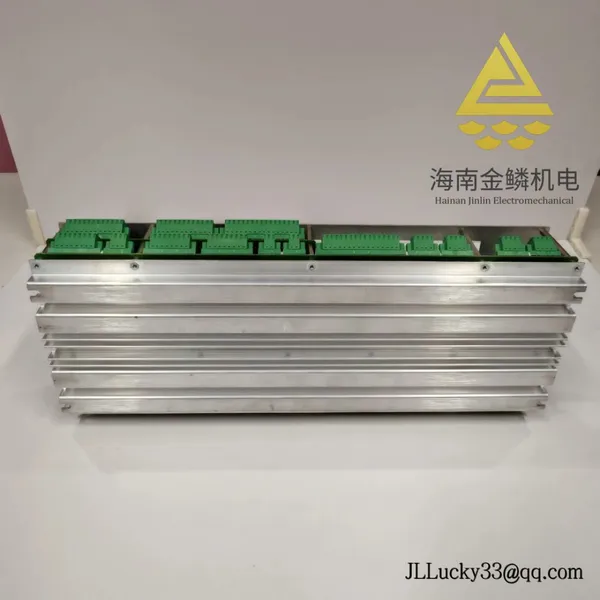

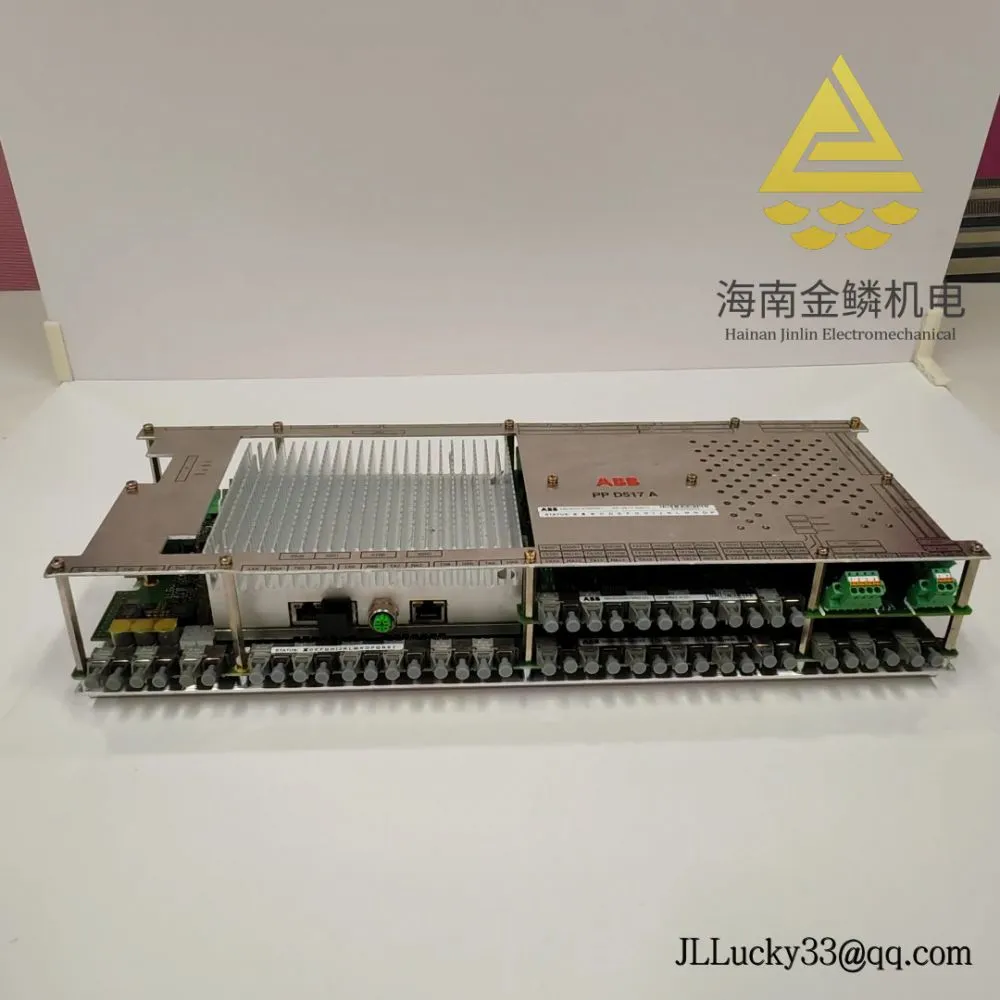

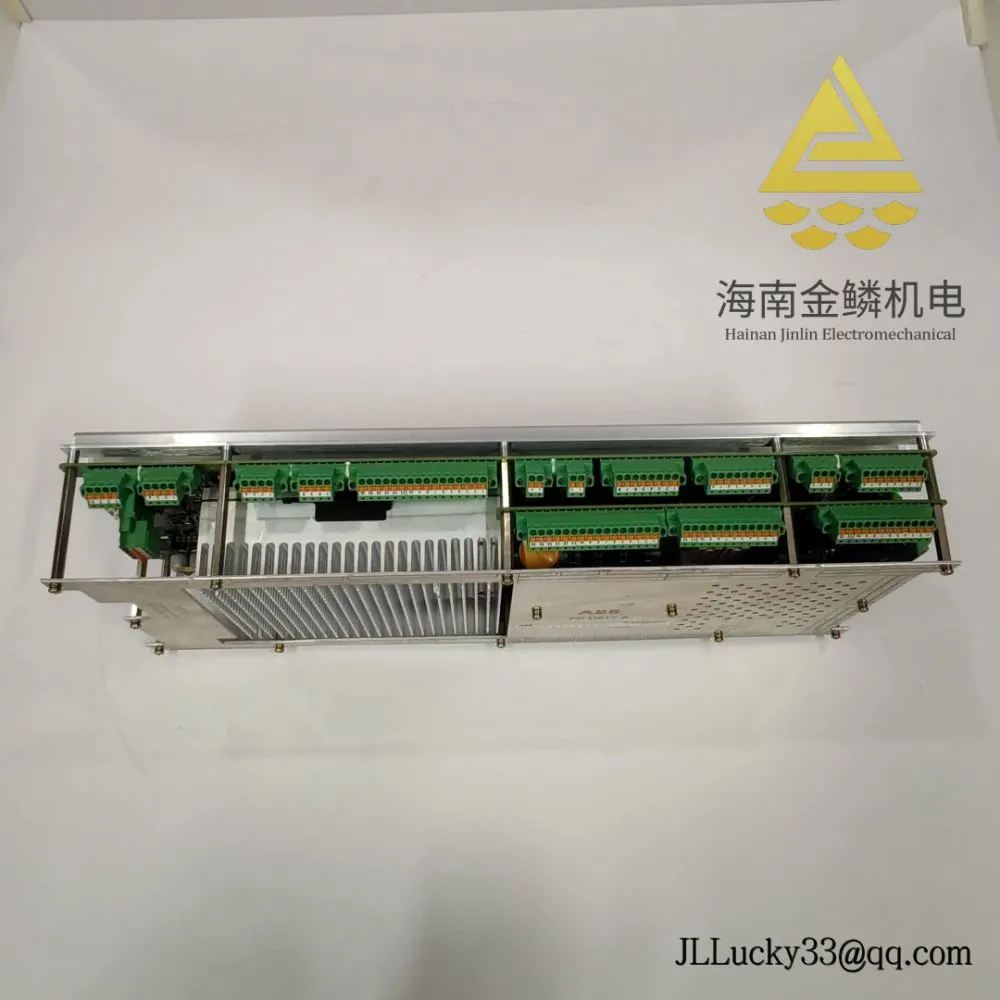

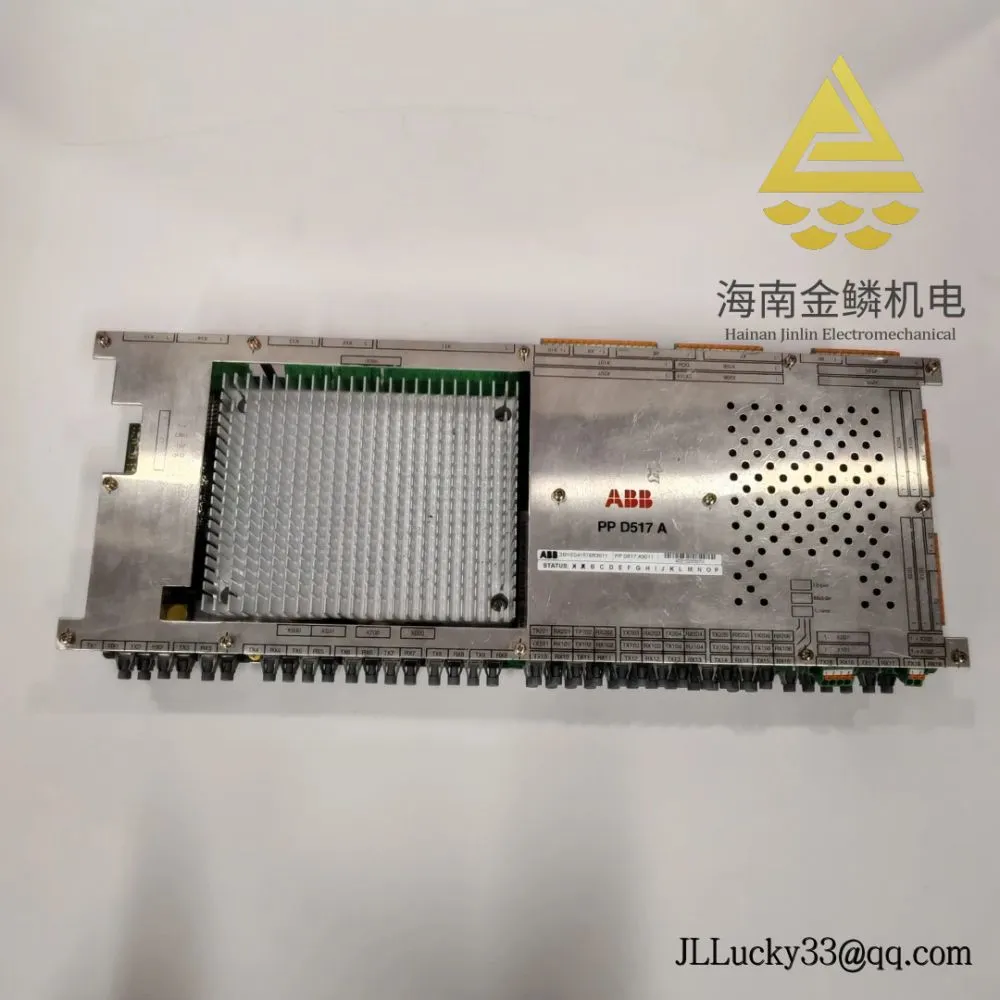

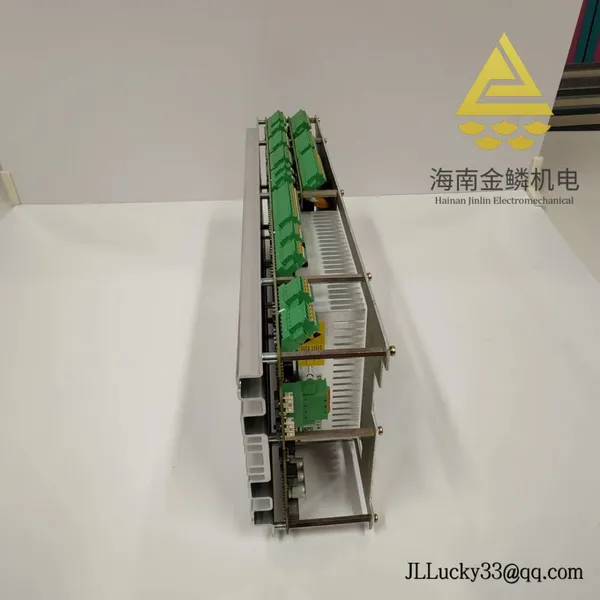

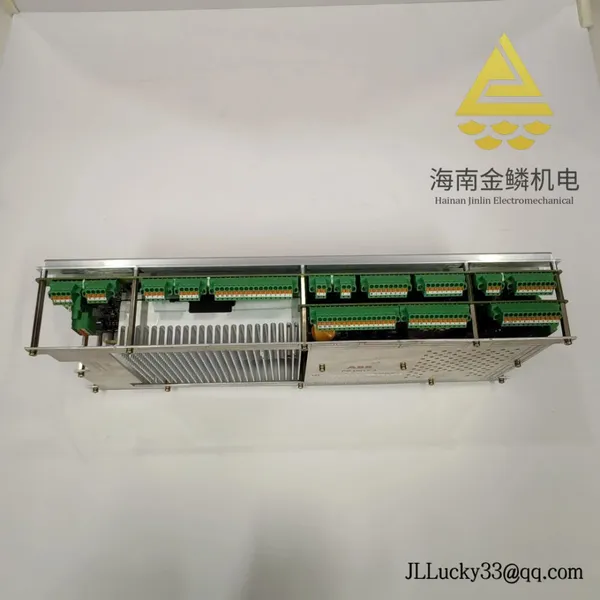

The ABB 3BHE041576R3011, also known as PP D517 A3011, is a converter controller board built for demanding ABB drive and converter cabinets where uptime and repeatable control are non‑negotiable. It typically handles high‑speed control loops, coordinates gate firing and sequencing, and interfaces with protection and measurement circuits. From my experience, plants pick this board when they need stable performance in electrically noisy rooms and predictable behavior during fast load changes.
Real‑time converter control – Executes fast loop control and gate sequencing so drives stay stable under dynamic loads.
Isolated power‑stage interfaces – Uses fiber‑optic or galvanically isolated links in many cases to reach gate units, improving noise immunity and safety.
Backplane integration – Plugs into ABB converter frames and coordinates with I/O, protection, and measurement boards over the internal bus.
Event monitoring and diagnostics – Time‑stamped alarms and status signals help maintenance teams pinpoint issues quickly and reduce MTTR.
Ruggedized for harsh cabinets – Designed to run reliably in high‑EMI environments typical of medium‑ and high‑power drive rooms.
Serviceable firmware/configuration – Firmware and configuration are managed via the host drive’s service tools, keeping lifecycle support straightforward.
| Brand / Model | ABB 3BHE041576R3011 (PP D517 A3011) |
| Function | Converter controller board for real‑time gate control, protection coordination, and system supervision |
| Power Requirements | Supplied via the converter backplane (typical internal low‑voltage bus; no separate external supply) |
| Signal I/O Types | Fiber‑optic or isolated links to gate units; backplane signals for inter‑board communication; diagnostic/event outputs |
| Communication Interfaces | Internal backplane bus; fiber‑optic channels to power stage/gate drivers; host access via the drive’s service tools |
| Form Factor | ABB PP‑series plug‑in board for converter racks |
| Operating Temperature | As per host converter specification (typically cabinet‑ambient range) |
| Installation Method | Plug‑in to designated PP D517 slot; secured with card guides/fasteners; cabled to gate units via approved links |
You’ll typically find PP D517 A3011 boards in ABB medium‑ and high‑power drive or converter systems where dynamic performance and protection coordination are critical. That includes:
Metals processing lines (hot/cold rolling stands, coilers) with large load swings
Mining conveyors, hoists, and mills needing dependable torque control
Marine propulsion and thruster drives operating in high‑EMI environments
Industrial test benches and dynamometers requiring fast, repeatable response
Power quality and grid‑tied converter cabinets where protection timing is sensitive
Reliability where it counts – Stable control loops and isolated interfaces reduce nuisance trips and keep production steady.
Lifecycle support – Configuration and firmware handled through standard ABB service tools simplifies upkeep and spares management.
Compatibility – Designed for ABB converter backplanes, so integration time is short and risky wiring changes are avoided.
Maintenance efficiency – Built‑in diagnostic signaling helps technicians locate faults faster, which, in many cases, cuts downtime.
Procurement confidence – Known part numbering (3BHE041576R3011) makes traceability and cross‑site standardization straightforward.
“We swapped a PP D517 board during a scheduled stop and had the line back within the hour—event logs told us exactly what to check.” – Maintenance lead, steel mill (typical feedback)
Installation & MaintenanceCabinet environment – Install in a clean, well‑ventilated converter cabinet; maintain airflow paths and keep cable shields properly terminated.
Backplane seating – Insert straight into the designated PP D517 slot; ensure full connector engagement and secure with the provided hardware.
Wiring – Use approved fiber‑optic or isolated link cables to gate units; route away from high‑dV/dt conductors where practical.
ESD & safety – Observe ESD protection; power down and wait the specified discharge time before handling; lockout/tagout in effect.
Routine care – Quarterly visual checks for connector wear and dust; gently clean with dry air; review diagnostic/event logs after trips.
Firmware/config – Manage via the host drive’s service tool; back up parameters before updates; validate interlocks after any change.
Manufactured under ISO 9001 quality systems (ABB)
Designed for use within CE‑marked converter systems; RoHS compliant components are typically used
UL/CSA compliance is handled at the cabinet/system level in most cases
Standard manufacturer warranty: typically 12 months from delivery, subject to terms
Gate driver units – Fiber‑optic or isolated gate units for IGBT/IGCT power stages, paired per converter rating.
Fiber‑optic link cables – Approved lengths/part numbers for noise‑immune connections to the power stage.
Backplane/rack hardware – ABB converter frame with PP‑series slots, card guides, and retention fasteners.
Host service tool – ABB drive service software for parameter backup, firmware loading, and diagnostics.
I/O expansion (where applicable) – System‑level I/O modules managed by the host controller for interlocks and process signals.
You might notice that this board’s value isn’t just in raw speed—it’s in how predictably it behaves inside real plants. If you’re standardizing spares across multiple cabinets, the 3BHE041576R3011 seems to be a safe anchor part number to keep on the shelf.
