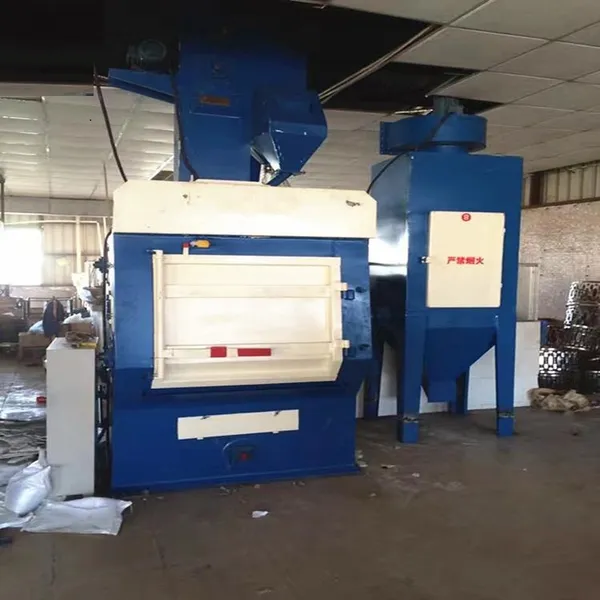

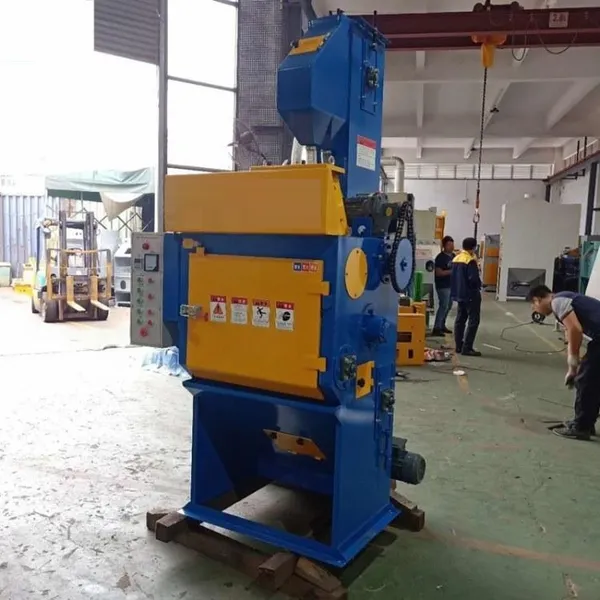

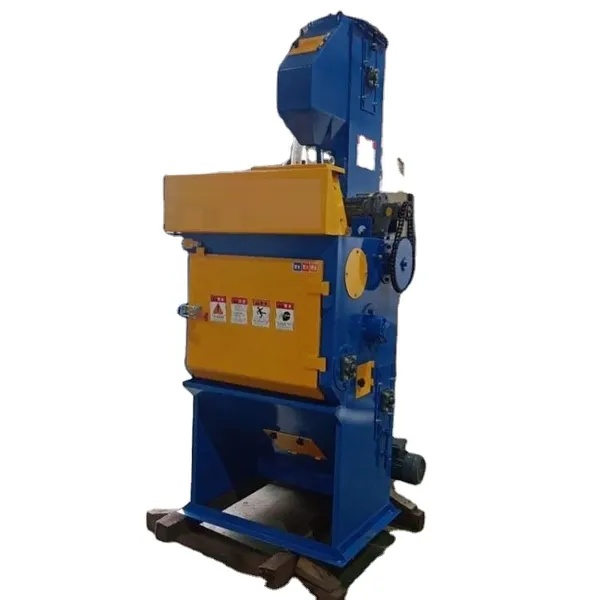

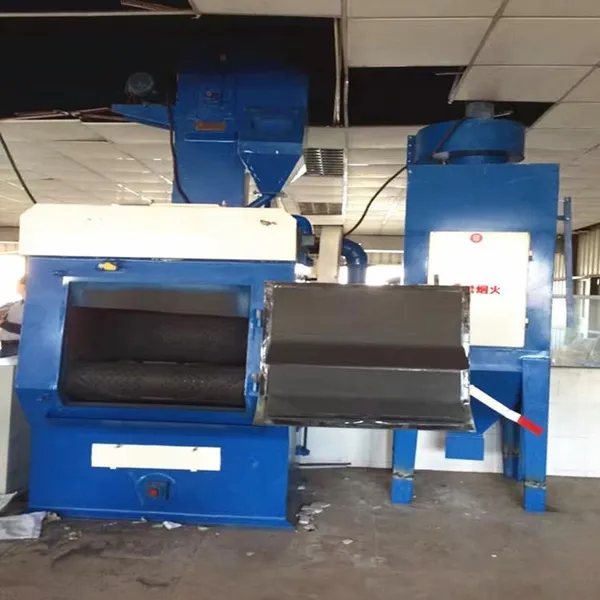

Help CenterQ326 Tracked Shot Blasting Machine, Small Workpiece Shot Blasting Cleaning Machine, Supports Non-standard Customization
Related Products
-
Burr Cleaning Automatic Roller Sandblasting Machine Through Type Multi Spray Gun Sandblasting Machinery FactoryUS$ 20000MOQ: 1 Set -
Q326 Integrated Crawler Shot Blasting Machine Small Cleaning Machine Dust Removal and Rust Removal Surface Cleaning Equipment ManufacturerUS$ 3000MOQ: 1 Set
-
The Rust Removal Roller Conveyor for Die-casting Parts Has a Tight Structure and a Short Delivery CycleUS$ 20000MOQ: 1 Set
-
Q69 Series Rust Removal and Cleaning Metal Surface H-beam Ball Bearings Roller Conveyor Through Shot Blasting MachineUS$ 20000MOQ: 1 Set
-
Q3730 Hook Type Shot Blasting Machine, Steel Sandblasting and Sanding Machine, With Engine, Motor, Core Components, and Other Service EquipmentUS$ 8000MOQ: 1 Set

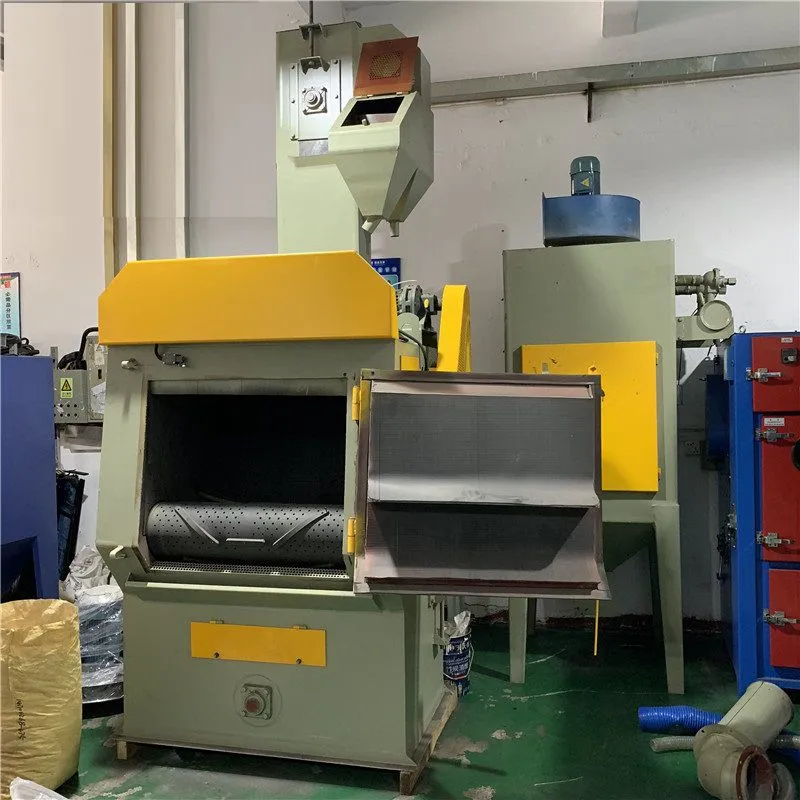

Roller Belt Type Sand Blasting Machine, Tumble Belt Automatic Sand Blaster
This tumble sand blasting machine is suitable for surface cleaning and strengthening of medium or small size castings, forge pieces and a variety of hardware.
Rubber continuous belt sand blasting clean-up machine has advantages of advanced design, rational construction, low-power. It is for different production capacity, the machine can be used not only as a single machine, but also as a part of a line.
Working principle of the rubber belt sand blasting machine:
The sand blasting machine is not powered by compressed air, but is powered by an electromechanical sand blasting machine, and uses the high-speed projectile thrown by the sand blasting machine to clean or strengthen the surface of the metal workpiece.
Application

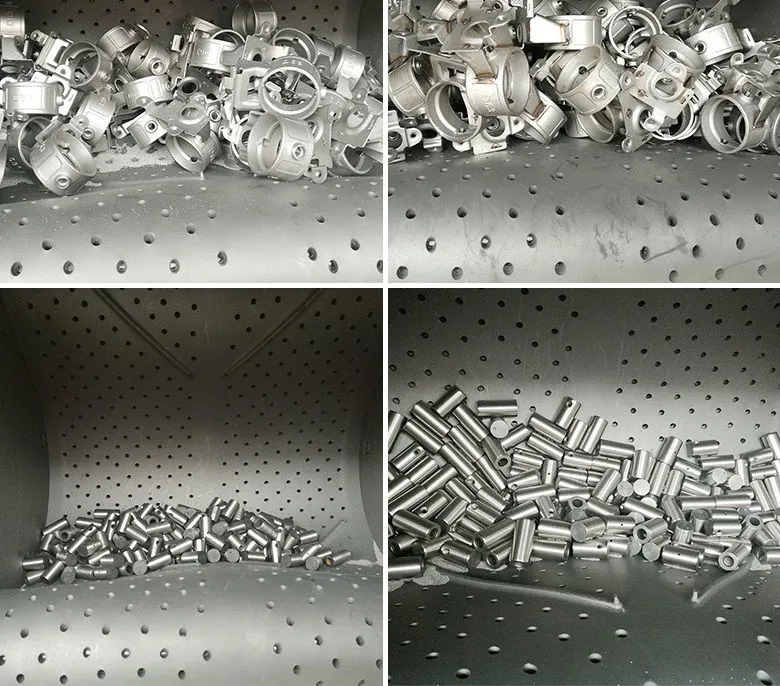

Rubber belt sand blasting machine is good application for high volumes of small components. Components are gently tumbled at constant speed under an electric powered sand stream on a perforated abrasion resistant rubber belt.
Details Images
Rubber Belt sand Blasting Machine Features
1. Uniquelly designed with double-disc impeller for high-flow and high-speed projectile throwing, it is directly driven by a reliable electric motor with long service life.
2. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
3. The sand blasting chamber is steel and plate riveted welding structure and laid with alloy guard plates, all peform wear-resistant, impact-resistant and long lifespan.
4. Equipped with safety protection devices to ensure safe and effective work, and can be equipped with automatic filling and automatic emptying systems.
5. Each sand blasting machine can be customized and manufactured depending on the size, weight and daily number of parts to be blasted.
Technical parameter
| Style | Q324 | Q326 | Q328 | Q3210 | Q3210 Automatic |
| Productivity (t/h) | 0.3-0.6 | 0.6-1.2 | 1.2-2.0 | 2.0-2.8 | 2.0-2.8 |
| Max workpiece weight (kg) | 5 | 10 | 15 | 25 | 25 |
| End plate diameter (mm) | 400 | 600 | 800 | 1000 | 1000 |
| Effective volume (m3) | 0.05 | 0.15 | 0.2 | 0.3 | 0.3 |
| Blast quantity (kg/min) | 40 | 150 | 220 | 250 | 250 |
| Air quantity (m3/h) | 2000 | 2200 | 2600 | 3500 | 3500 |
| Total power (kw) | 6 | 13 | 19 | 21 | 26 |
FAQ
Q1: How to choose blast machine type?
A: Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q2: How to choose abrasive?
A: Various kinds abrasive with different size: steel sand, cut wire sand, stainless steel sand, etc. Choose according to workpiece.
Q3: How long is the quality warranty? A: 1 year for whole machine.
Q4: Is foundation pit essential?
A: Up to machine size and workshop.
Q5: How many workers to operate the machine?
A: 1-2, up to the machine.
Q6: After sale service?
A: Full stock for spare parts, regular after sale service. What are the characteristics of a tracked drum shot blasting machine? How to comprehensively analyze the advantages, disadvantages, and applicable scenarios of a tracked drum shot blasting machine As a commonly used surface treatment equipment in the industrial field, tracked shot blasting machines are widely used in industries such as hardware and casting. But for first-time users, they may be curious about its usability and scope of application. Today, Yancheng Ruigang Machinery Co., Ltd. will help you comprehensively understand this equipment from three dimensions: performance, advantages, and shortcomings. 1、 Core performance characteristics -Stable processing efficiency: using caterpillar conveyor to transport workpieces, suitable for batch processing of small and medium-sized parts. According to the platform data of Yancheng Ruigang Machinery Co., Ltd., a single machine can process about 500-800 small workpieces per hour, which is 30% more efficient than drum shot blasting machines. -Significant cleaning effect: Through high-speed projectile impact, impurities such as oxide scale and rust can be effectively removed, especially suitable for casting sand cleaning operations. The actual measurement of a certain foundry shows that the surface roughness of the processed workpiece can reach Ra12.5 μ m. -Convenient operation: One click start+automatic loading and unloading, no need for complex programming. However, it should be noted that tracked models have strict limitations on the size of workpieces, generally with a diameter not exceeding 300mm. 2、 Advantages and Applicable Scenarios # ✅ Three prominent advantages 1. Excellent cost control: Compared to hook type shot blasting machines, the initial purchase cost of track type equipment is reduced by 40%, and the power consumption is only about 60%. 2. Strong adaptability of workpieces: In addition to metal parts, plastic and rubber parts can also be processed by simply changing the material of the pellets (such as polyurethane pellets). 3. Easy maintenance: The replacement cycle for vulnerable parts is about 3-6 months, and only the track wear and shot blasting belt tension need to be checked daily. # 🔍 Typical application scenarios -Hardware tool processing: rust removal on the surface of small metal parts such as wrenches and pliers -Casting industry: sand cleaning and deburring of sand castings -Automotive parts: brake discs, wheel hub pretreatment 3、 Limitations and Precautions ⚠️ Two obvious shortcomings 1. Limited workpiece height: The depth of the track type is generally ≤ 200mm, and large workpieces require customized extended tracks. 2. Risk of projectile rebound: When dealing with irregular workpieces, there may be projectile splashing, and protective nets need to be installed. 4、 Purchase suggestions -Priority consideration for brands: Domestic well-known brands such as Jiangsu Dafeng Machinery have good equipment stability, and Jiangsu Yancheng Dafeng Ruigang Machinery Co., Ltd. -On demand configuration model: Choose Q32 series (50kg level) or QPL series (150kg level) according to the weight of the workpiece. -Necessary safety investment: It is recommended to equip additional dust removal systems (such as cyclone separators) to reduce workshop dust concentration. summary Crawler shot blasting machine is a cost-effective choice for surface treatment of small and medium-sized workpieces. As long as the workpiece size is reasonably controlled and regularly maintained, stable and efficient cleaning effects can be achieved. However, it should be noted that when handling oversized or irregular parts, it is recommended to use them in combination with other equipment. #Shot blasting machine # Industrial equipment # Surface treatment # Casting machinery # Hardware processing
