Help CenterManual Fire Alarm Button Test Device
Related Products
Equipment Function：

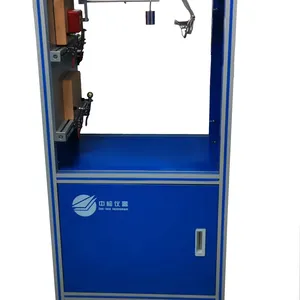

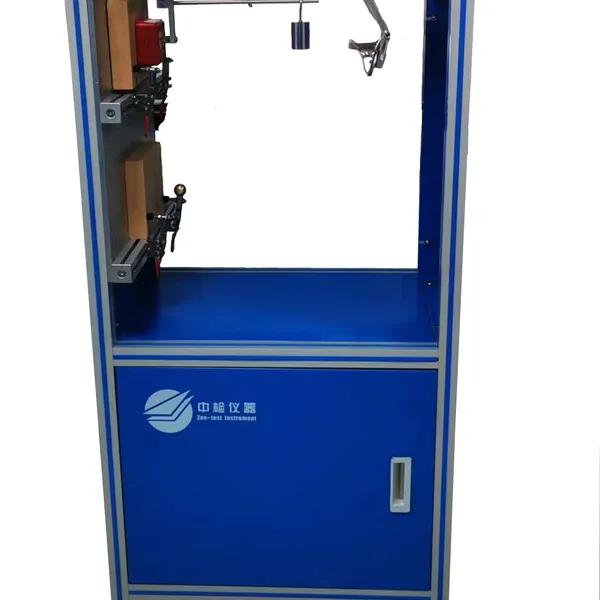

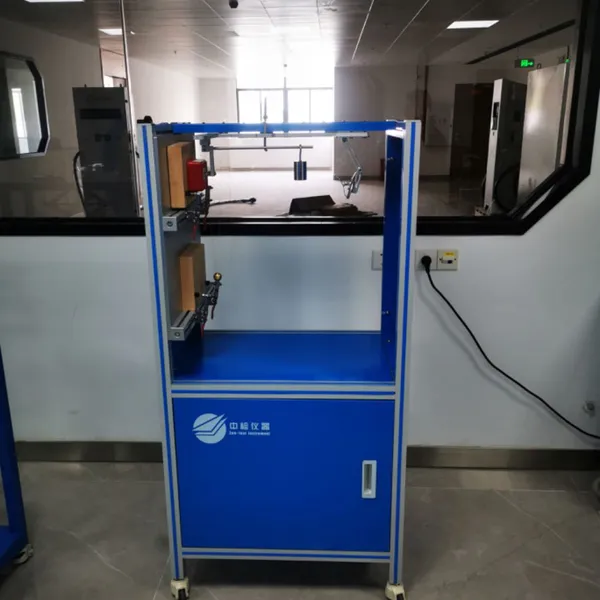

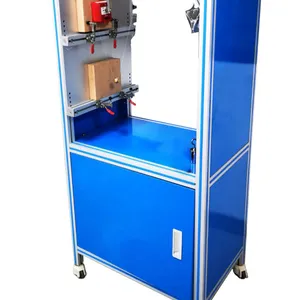

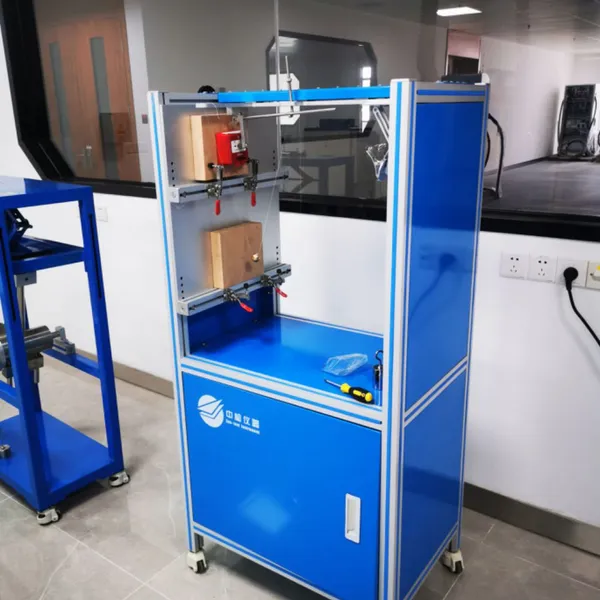

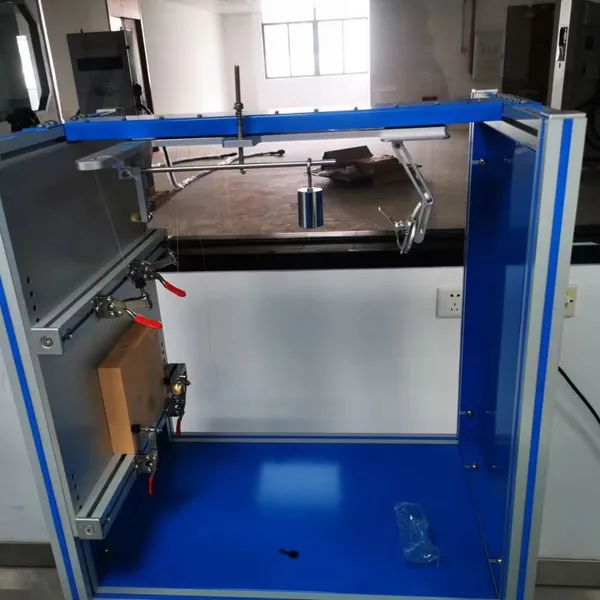

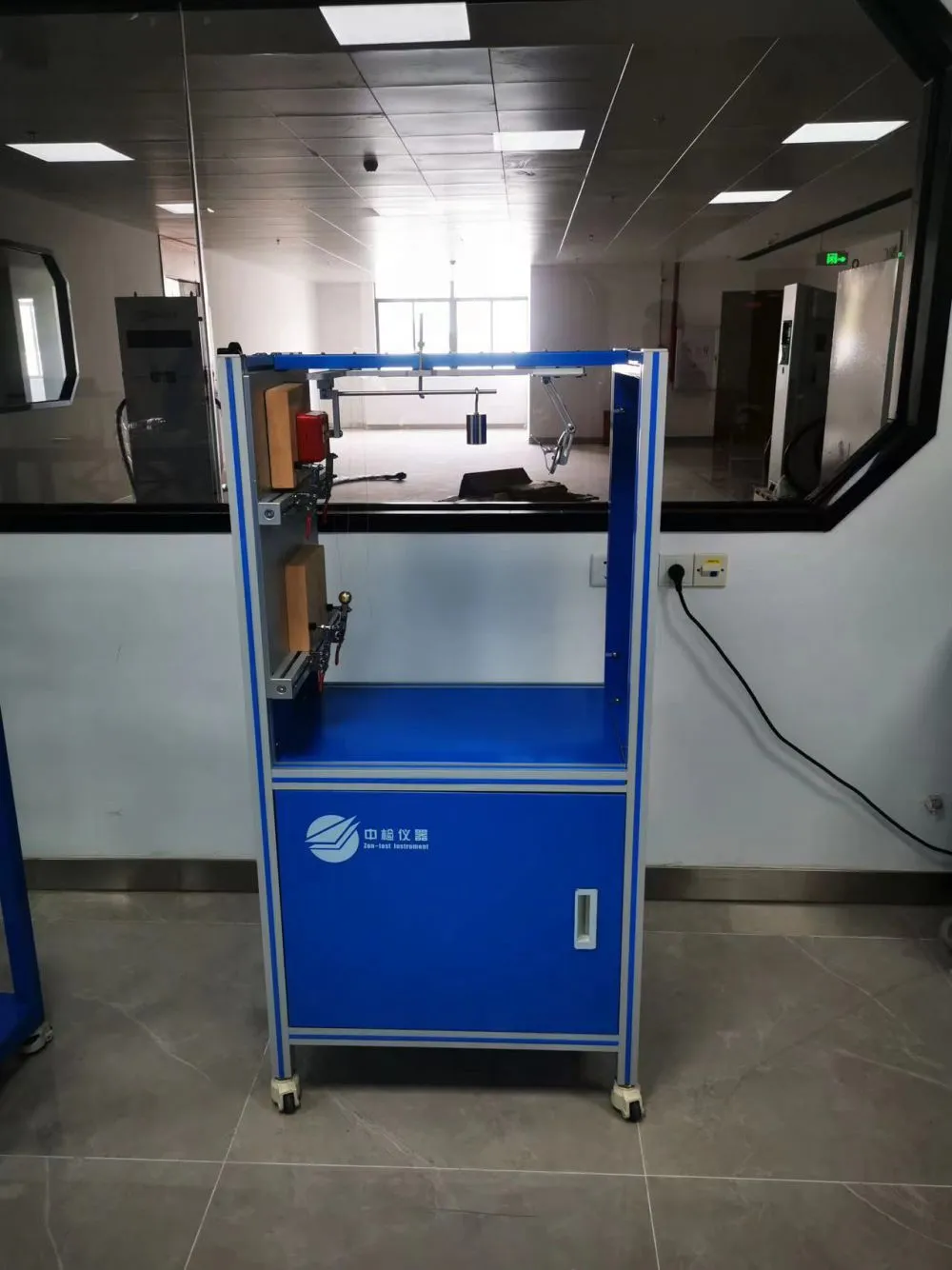

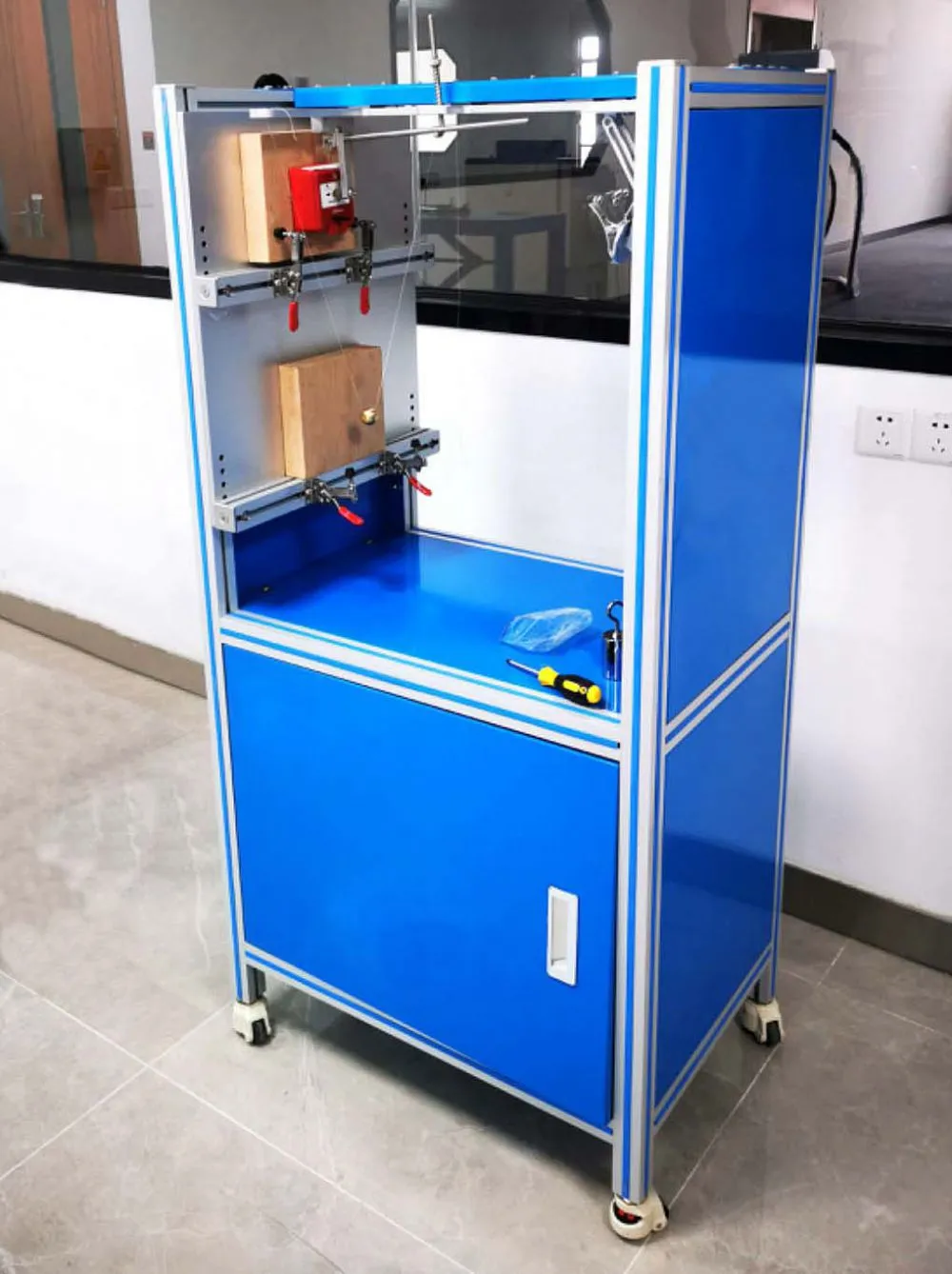

The manual fire alarm button test device is designed and produced in accordance with the appendix of EN 54-11. The device includes functional test devices and non-functional test devices. The front and rear positions are easily adjusted by the hand wheel, suitable for various types of hand reports:GB 19880 Manual fire alarm button
BSEN 54-11 Fire detection and fire alarm systems. Manual call points
The Manual Call point test device included operation test device and non-operation test device as specified in EN 54-11and ISO standards. The operation test device consist of brass spherical ball, and adjustable suspending arm, mounting board and release fixture. The non-operation test device consist of lever, and adjustable suspending pivot, mounting board and weight.It’s used to test the operation performance of Manual call points (MCP) for fire detection and fire alarm systems.
Equipment Parameters ：
Model：ZNEN54-11
Standard：EN54-11, GB 19880
Size： 800 mm, 600mm, 1500mm
Copper bead weight：85(+/-1)g
Send Inquiry to This Supplier
