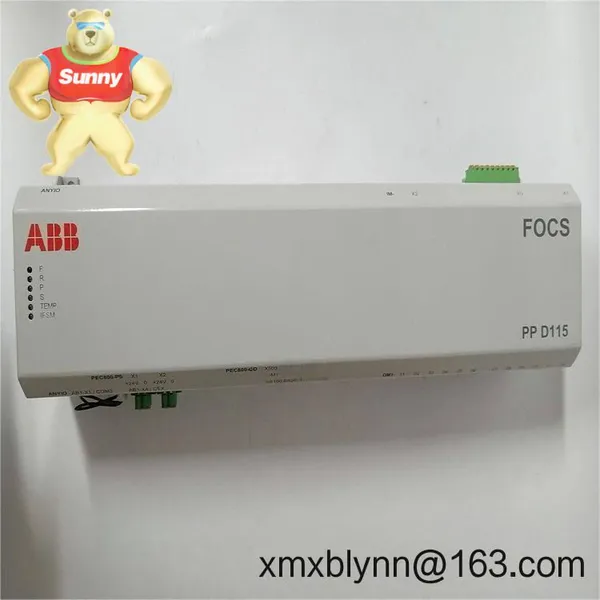

Help CenterABB PPD115A01 (3BHE017628R0001) – Protection/Interface Board for ABB 3BHE-Series Drive Systems
Related Products
-
ABB PFV0-102 (PFV0102) – Frequency-to-Voltage Signal Converter for Drives, PLCs, and Process LinesUS$ 8535.00MOQ: 1 Pallet -
ABB PM803F (3BDH000530R1) – CPU Module for Freelance AC 800F Process AutomationUS$ 8335.00MOQ: 1 Combo
-
ABB XVC768116 (3BHB007211R116) Drive Control Board – Reliable Spare for ABB Industrial DrivesUS$ 3335.00MOQ: 1 Pallet
-
ABB PM573-ETH (1SAP130300R0271) – Ethernet CPU for AC500 PLC SystemsUS$ 4335.00MOQ: 1 Pallet
-
ABB PM861AK01 (3BSE018157R1) – AC 800M CPU Module for Robust System 800xA ControlUS$ 4585.00MOQ: 1 Pallet
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Pre-shipment testing and visual inspection available upon request
Protection signal handling – Collects and routes protection/interlock signals to the control rack, enabling safe drive trips when needed.
Rack-powered design – Typically powered from the cabinet backplane (no external supply), simplifying replacement on site.
Status indication – On-board indicators (where applicable) provide quick visual checks for technicians.
3BHE-platform compatibility – Built for ABB drive/power-conversion systems that use 3BHE-series boards, promoting straightforward interchangeability.
Service-friendly form factor – Plug-in card with guided insertion and fixed edge connector; swap times are usually minutes, not hours.
Industrial-grade design – Components and layout suited for cabinet environments found in metals, mining, cement, and power applications.
| Brand / Model | ABB PPD115A01 – 3BHE017628R0001 |
| HS Code | 853890 (Parts for industrial control equipment) |
| Power Requirements | Supplied via system backplane; typically 24 VDC logic, low power ( |
| Operating Temperature | 0 to 55°C, 5–95% RH non-condensing (cabinet environment) |
| Signal I/O Types | Opto-isolated digital protection/status lines; conditioning of interlock and trip signals; LED status (where fitted) |
| Communication Interfaces | Internal backplane interface to controller; no external fieldbus on the board itself |
| Installation Method | Plug-in card; edge connector seating into ABB rack; secured by card guides/fasteners |
Note: Electrical and environmental limits can vary by cabinet configuration and revision. The above reflects typical values seen in ABB 3BHE-based systems.
Application FieldsThe PPD115A01 is commonly used as a spare or replacement board in ABB drive and power-conversion cabinets where protection and interlock integrity are critical. Typical sites include:
Medium-voltage drive systems in metals, mining, and cement plants
Pumping, compressor, and fan drives in oil & gas and chemicals
Power generation auxiliaries and balance-of-plant drives
Marine propulsion and large winch drives where fast trip handling matters
One maintenance lead told us a swap of PPD115A01 “took under 30 minutes end-to-end,” mainly because the rack and connectors are keyed and the signals are already conditioned for the system. That seems to be the norm when you’re replacing on a like-for-like revision.
Reliability – Industrial-grade components aimed at stable operation in harsh cabinet environments.
Compatibility – Designed for ABB 3BHE-series racks, helping ensure seamless interoperability with existing control cards.
Reduced downtime – Quick card exchange; typically no rewiring, which minimizes outage time.
Lifecycle support – Suitable as a field spare for installed bases where long-term service continuity is essential.
Procurement confidence – Functional testing options and a 365-day warranty support risk-aware purchasing.
Install in a clean, ventilated cabinet; maintain ambient within 0–55°C and non-condensing humidity.
Observe ESD precautions; handle by the edges and use grounded wrist straps.
Power down and lock out the cabinet before removal/insertion; verify residual DC link discharge per plant procedures.
Seat the edge connector fully and secure with the card guides/fasteners; avoid cable strain on nearby harnesses.
After replacement, run system diagnostics and confirm interlock chain health before energizing the drive.
Routine checks: visual inspection for dust or hot spots, gentle cleaning with dry air, and verification of status LEDs during periodic maintenance.
Firmware/parameter alignment: where applicable, confirm the installed revision (A01) matches the site’s control expectations.
Manufactured within ABB’s ISO 9001 quality framework (vendor level)
CE conformity at the complete system level; board used as a component within compliant cabinets
RoHS status may depend on production batch/revision; available upon request
365-day warranty provided with supply
The PPD115A01 is often paired with other ABB 3BHE-series control and gate-unit interface boards in the same rack. If you’re planning a preventive maintenance kit, it usually makes sense to review companion protection cards (e.g., other PPD-series variants) and the adjacent control CPU or fiber/trigger interface boards used in your cabinet. Sharing the installed base photo or BOM typically speeds up compatibility checks.
