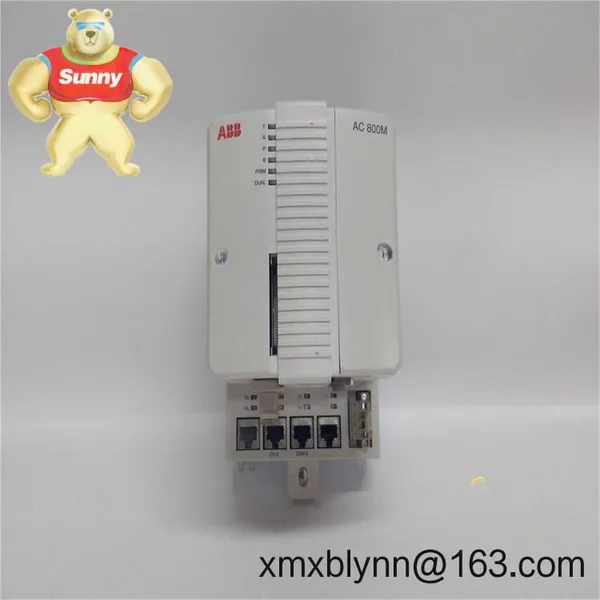

ABB PM866 (3BSE093347R1) – High‑performance AC 800M CPU for Scalable, Redundant Control

ABB PM866 (3BSE093347R1) – High‑performance AC 800M CPU for Scalable, Redundant Control thumbnail-1
ABB PM866 (3BSE093347R1) – High‑performance AC 800M CPU for Scalable, Redundant Control photo-1
US$ 5950.00 ≥1 Pallet
Key Specifications
Get Latest Price
Place of Origin:
America
Model Number:
3BSE093347R1
Condition:
NEW
Contact Supplier Request Quote Chat Now
Xiamen Xiongba E-commerce Co., LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin America
Model Number 3BSE093347R1
Condition NEW
Warranty One Year
Package Original Packaging
Quality 100%Brand New
MOQ 1 Piece
HS Code 853710
Company's Order Placement Process and Guarantees

  • Warranty: 365 days

  • Lead time: 1 week for in‑stock; no more than 1 month at the latest

  • Payment terms: 50% advance payment; full payment before delivery

  • Express options: FedEx, UPS, DHL

Key Features

  • AC 800M performance CPU – Designed for medium to large applications where scan time and memory headroom matter.

  • Redundancy-ready architecture – Supports hot‑standby CPU redundancy (with appropriate sync accessories), which in many cases cuts over in milliseconds.

  • Dual Ethernet for control networking – Two 10/100Base‑T ports typically used for segregated or redundant networks in 800xA environments.

  • No onboard I/O by design – Pairs with S800 I/O or fieldbus interfaces, keeping the controller clean and serviceable.

  • Flexible fieldbus connectivity – Add modules for PROFIBUS DP, PROFINET, Modbus and others to match existing plant standards.

  • Industrial temperature rating – Built for cabinet installation in typical plant floor conditions.

  • Service/diagnostics access – Serial service port and rich diagnostics in Control Builder M/800xA make commissioning smoother.

Technical Specifications
Brand / Model ABB PM866 (Order code: 3BSE093347R1) – AC 800M CPU module
HS Code 8537.10 (Programmable controllers, for a voltage ≤ 1,000 V)
Power Requirements 24 V DC nominal (from AC 800M base/power unit; use clean, regulated supply; redundant feed recommended)
Operating Temperature Typically 0 to +55 °C for cabinet‑mounted operation
Signal I/O Types No onboard I/O; uses S800 I/O or fieldbus-connected remote I/O
Communication Interfaces 2× Ethernet 10/100Base‑T (control/plant network); 1× serial service port; additional fieldbus via expansion modules (e.g., PROFIBUS, PROFINET, Modbus)
Installation Method DIN‑rail cabinet installation with AC 800M base unit; front-access wiring and service

Note: The PM866 is part of the AC 800M platform; capabilities such as redundancy and fieldbus depend on the selected base units and communication interfaces.

D1F2A77952A7729F5FB225D562FE4249

Application Fields

You’ll typically see PM866 in continuous and batch industries where deterministic control and availability are non‑negotiable:

  • Power generation and district heating – turbine balance‑of‑plant, water/steam cycle control

  • Water & wastewater – filter beds, pumping stations, chemical dosing, SCADA integration

  • Oil & gas and petrochemicals – compressor control, utilities, storage and loading terminals

  • Pulp & paper and metals – line control, drives coordination, advanced interlocks

  • Food & beverage and pharmaceuticals – batch sequencing, CIP/SIP, audit‑friendly diagnostics

Advantages & Value

  • Reliability – Proven AC 800M platform; redundancy options reduce process trips in most cases.

  • Compatibility – Works cleanly with S800 I/O and 800xA. Mixed fieldbus support helps when migrating older panels.

  • Total cost – Scalable CPU and modular comms mean you only add what you need; easier spares strategy for multi‑line sites.

  • Lifecycle support – Firmware, diagnostics, and large installed base make maintenance straightforward for plant teams.

One thing I appreciate is how technicians can add a PROFIBUS or Modbus interface without reworking the whole cabinet. A maintenance lead at a water utility told us the PM866 redundancy cut their switchover events to barely noticeable blips on SCADA—no night calls afterward.

Installation & Maintenance

  • Cabinet and grounding – Install on DIN rail in a clean, ventilated cabinet; bond the cabinet and controller ground to a low‑impedance plant earth.

  • Power & wiring – Use a regulated 24 V DC supply with proper fusing. Separate power and signal routing; shield Ethernet and fieldbus as per ABB guidelines.

  • Redundancy – For hot‑standby, mount the paired CPU and synchronization accessories per ABB spacing rules; test failover before handover.

  • Environment – Keep within 0…55 °C; avoid condensation. Provide airflow around the module front for service access.

  • Routine tasks – Back up the application after each change, check diagnostics logs, keep firmware aligned across redundant pairs, and schedule periodic connector/terminal inspections.

Quality & Certifications

  • Typically complies with CE and UL for industrial control equipment

  • RoHS compliant product family

  • Manufacturer quality system aligned with ISO 9001

  • Standard warranty provided here: 365 days replacement/repair support

If you’re migrating from an older AC 800M CPU or consolidating spares across multiple panels, the PM866 (3BSE093347R1) tends to be a low‑risk path—same platform, stronger performance, and straightforward commissioning under Control Builder M.
