Help CenterABB 3BHE017628R0102 PPD115A102 – Pulse Pattern Driver Board for Medium-Voltage Drive Control
Related Products
-
ABB 3BHE014105R0001 + 5SHY3545L0020 5SHX26L4510 – Gate Unit and IGCT Pair for Medium-voltage Drives and ConvertersNegotiableMOQ: 1 Combo -
ABB 3BHE021951R0124 – OEM Control Board Module for ABB Industrial Drive and Control SystemsNegotiableMOQ: 1 Combo
-
ABB PPD113B03-26-100110 (3BHE023584R2634) – Control Board for ABB Drive and Excitation PlatformsNegotiableMOQ: 1 Combo
-
ABB 3BHE023584R1923 Control Board – Reliable Replacement Module for ABB Drive and Excitation PlatformsNegotiableMOQ: 1 Combo
-
ABB 3BHE023784R1010 – Control Board Module for Advanced Drive and Power Control SystemsNegotiableMOQ: 1 Combo

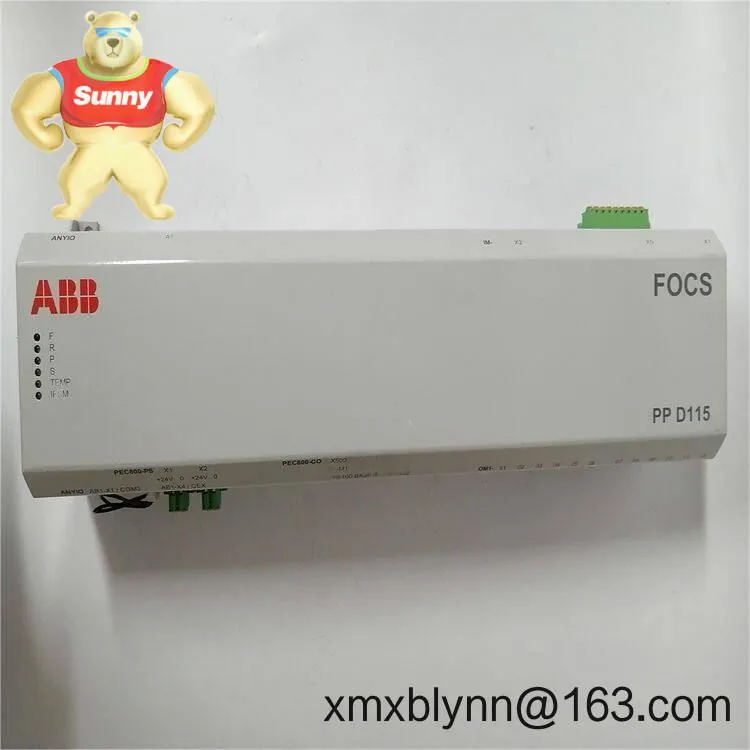

The ABB 3BHE017628R0102 (PPD115A102) is a pulse pattern driver/control board used in ABB medium-voltage drive systems, typically in applications where IGCT/IGBT gate control and synchronized firing are critical. It’s designed as a drop-in service replacement to keep installed ABB MV drives running reliably, minimizing downtime and avoiding costly reengineering.
You might notice that this module shows up most often in ACS-series medium-voltage cabinets (e.g., ACS1000/3000, depending on system build). From my experience, its main job is to generate and manage accurate firing patterns and feedback handling between the control backplane and the power/gate units via fiber-optic links.
Pulse Pattern Generation – Provides tightly synchronized gate firing for MV inverters, helping reduce switching stress and harmonics in many cases.
Fiber-Optic Gate Interfaces – Isolated, noise-immune links to gate units for robust operation in high-EMI environments typical of MV drives.
Backplane Integration – Plugs into ABB drive control racks; communication and power are handled via the internal backplane for straightforward replacement.
Hardware Revision A102 – The PPD115A102 variant aligns with common ABB MV drive configurations and field service kits.
Service-Friendly Design – Supports quick swap-out during scheduled stops; fewer adjustments mean faster return to service.
Signal Isolation & Diagnostics – Appears to include isolated channels and status LEDs/diagnostics that help maintenance teams verify operation at a glance.
| Brand / Model | ABB 3BHE017628R0102 – PPD115A102 |
| Product Type | Pulse Pattern Driver / Control PCB for ABB MV drives |
| Power Requirements | Supplied via drive control backplane (typically 24 VDC control power) |
| Signal I/O | Fiber-optic outputs to gate units; isolated digital feedback/status channels |
| Communication Interfaces | ABB internal backplane bus; fiber-optic links for firing/feedback |
| Operating Temperature | Typically 0…+55°C in ventilated drive cabinets |
| Installation Method | Plug-in card for ABB control rack; guided rails with screw/retainer locking |
| Dimensions & Weight | Compact PCB format; lightweight module (commonly |
| Typical System Fit | ABB medium-voltage drives (e.g., ACS1000/ACS3000 series, depending on build) |
This board is used in heavy-duty MV drive cabinets where precise timing of gate firing is essential. I typically see it in:
Cement kilns and large ID/FD fans
Metals rolling mills and continuous casters
Mining hoists, conveyors, slurry pumps
Oil & gas compression and injection pumps
Power generation auxiliaries and large compressors
Marine propulsion and thruster drives (where specified)
A maintenance lead at a cement plant told me their swap of a failing PPD board cut nuisance trips to zero for months—no parameter changes, just align firmware and run. That seems to be the typical experience when the surrounding fiber links and gate units are healthy.
Advantages & ValueReliability under EMI – Fiber-optic isolation helps in electrically noisy MV rooms.
Form-Fit-Function Replacement – Reduces downtime; no cabinet rework in most cases.
Compatibility with ABB Installed Base – Works within ABB’s backplane and control logic architecture for MV drives.
Cost Control – Extends life of existing assets; postpones full drive upgrades while maintaining performance.
Service Support – Documentation and field-proven procedures make commissioning straightforward for ABB-certified technicians.
Environment – Install in an enclosed, ventilated cabinet (IEC/UL-compliant). Keep ambient within the drive’s specified range and avoid condensation.
ESD Handling – Use proper grounding straps and antistatic packaging when handling or storing the board.
Backplane & Seating – De-energize control power, insert along the card guides, and secure the retainer. Inspect connector pins for wear or contamination.
Fiber Links – Clean and inspect fiber ends; verify correct TX/RX mapping to gate units. Bend radius should respect fiber specs.
Firmware/Parameter Alignment – Match board revision/firmware to the drive’s control version. In most cases, parameter transfer is handled via the main controller.
Routine Checks – Periodically verify status LEDs, run self-tests where available, and tighten terminal hardware to recommended torque.
Preventive Care – Keep the cabinet dust-free; schedule gentle cleaning with dry air and check ventilation filters quarterly.
Manufactured under ISO 9001 quality systems
RoHS-compliant materials, lead-free assemblies in most builds
CE conformity as part of the complete ABB drive system
UL/CSA cabinet-level compliance where the drive package is certified
Standard limited warranty (typically 12 months, terms may vary by region and supply route)
If you’re maintaining an ABB ACS1000/ACS3000 installed base and need a reliable swap for the pulse pattern driver stage, the 3BHE017628R0102 PPD115A102 is usually the right fit—just confirm your drive’s bill of material and firmware match before scheduling the outage.
