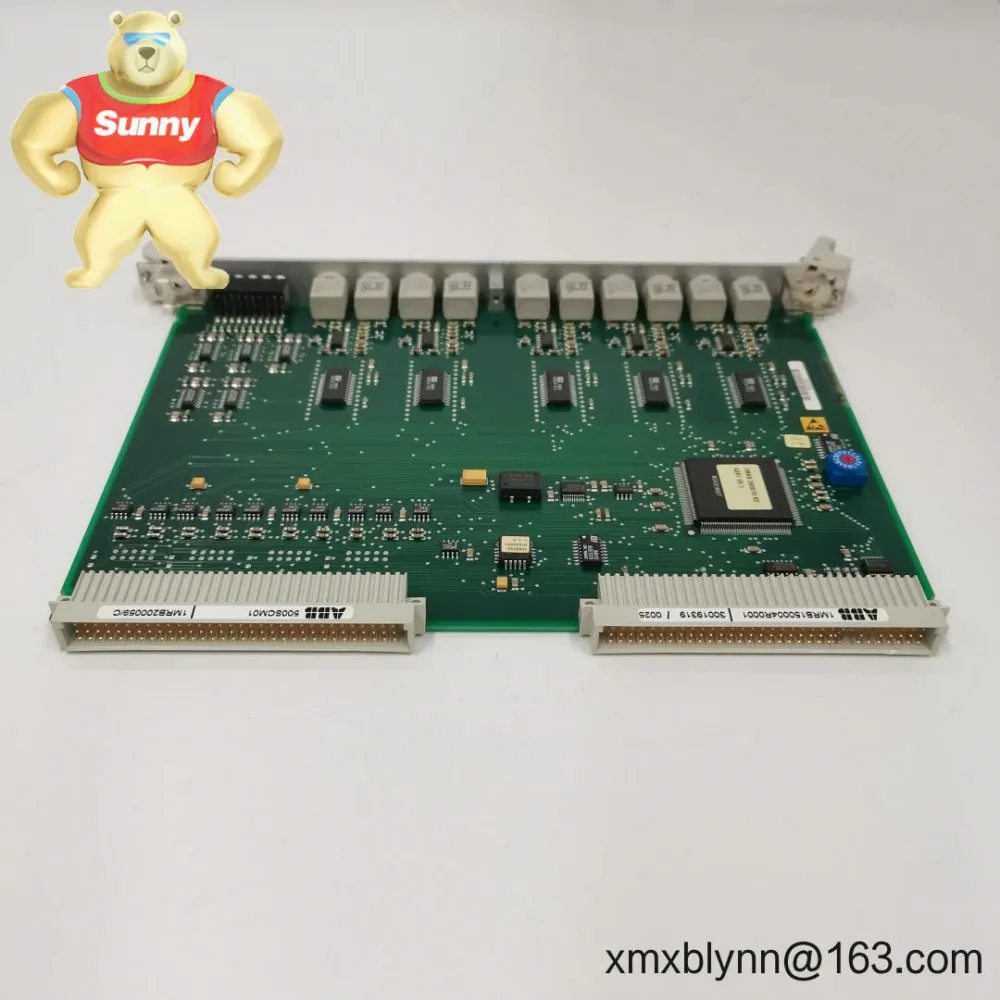

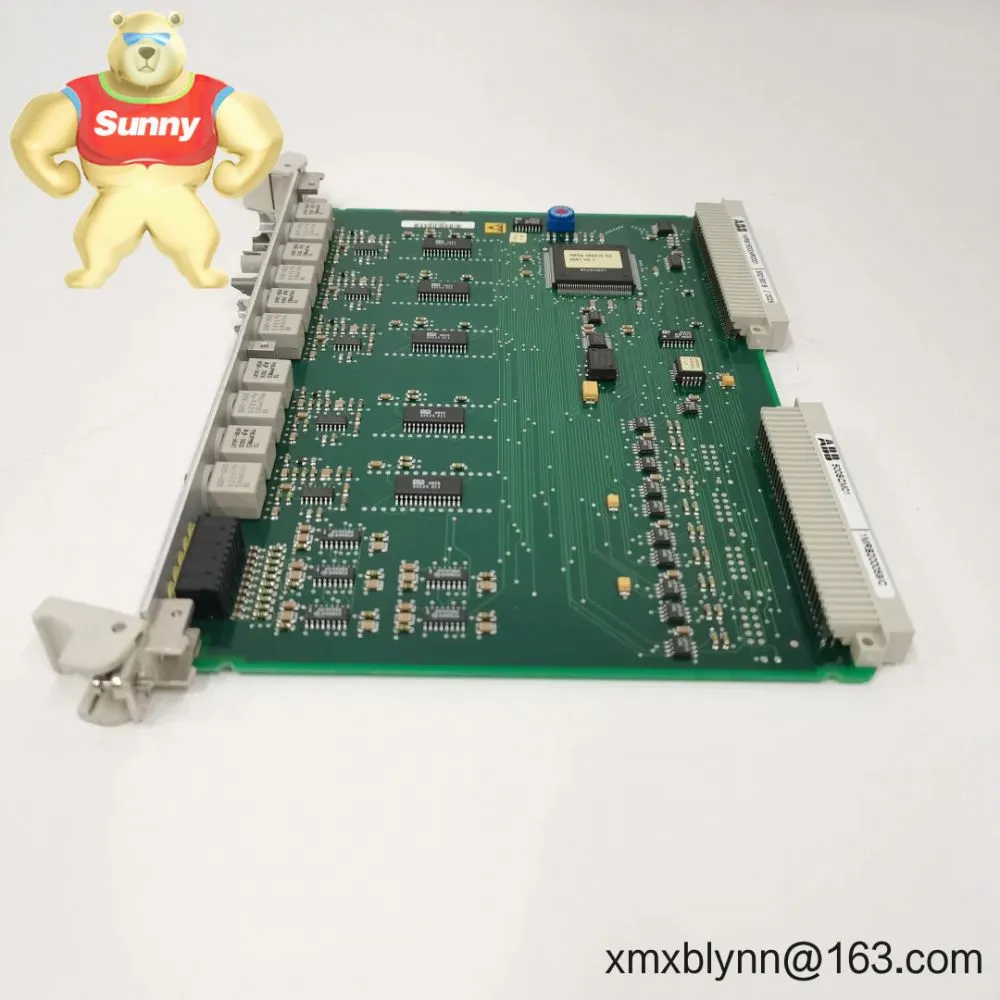

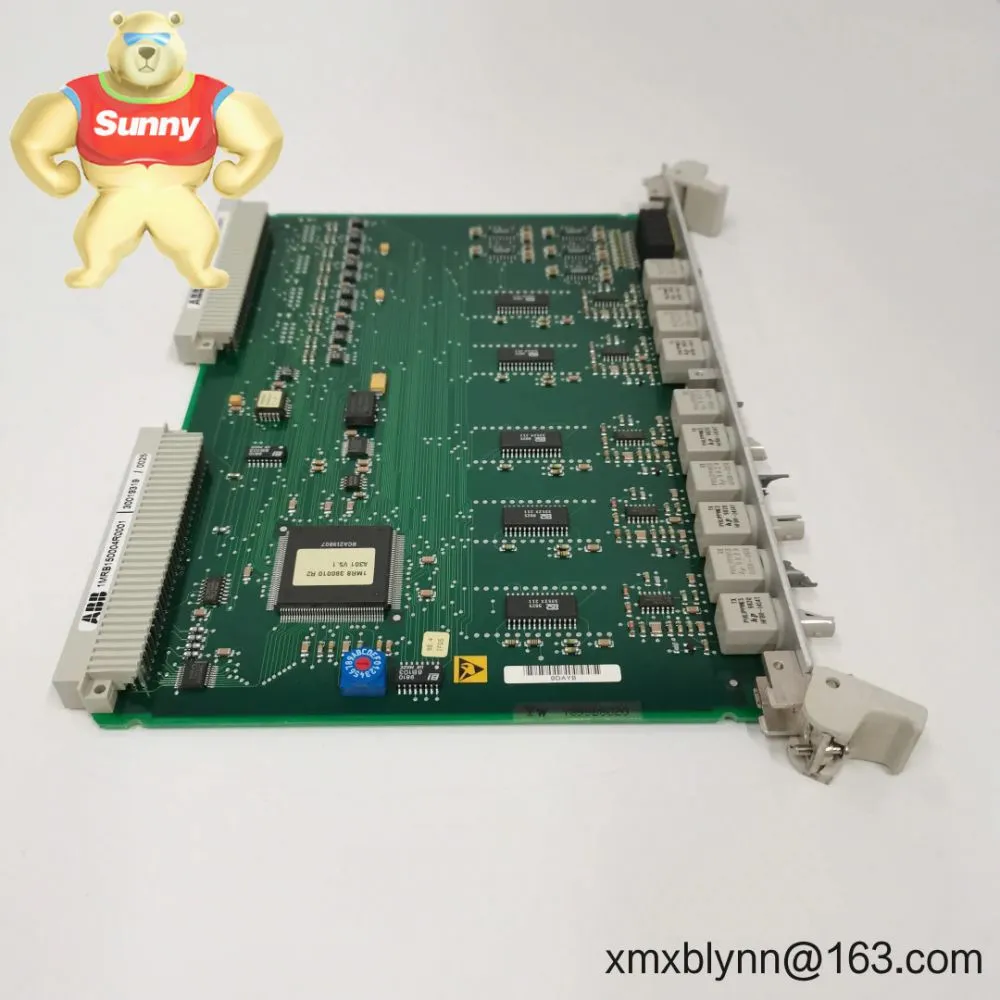

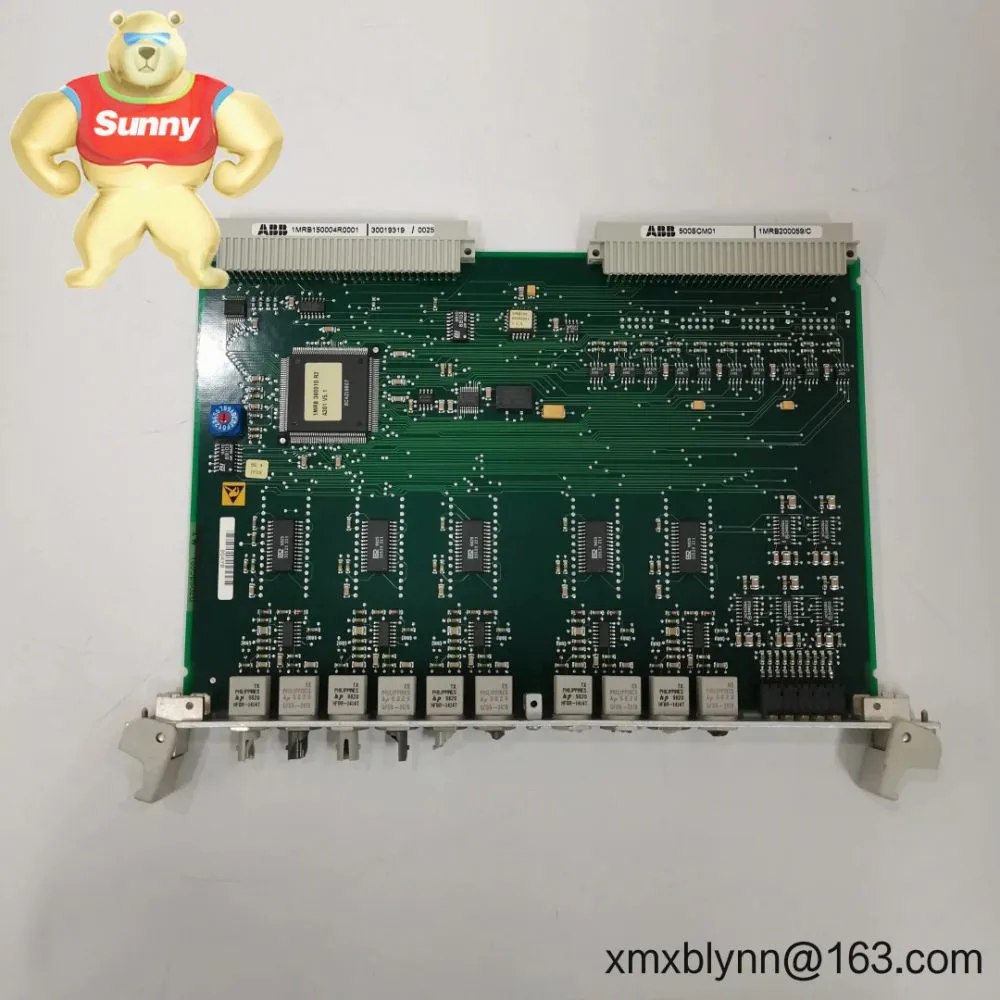

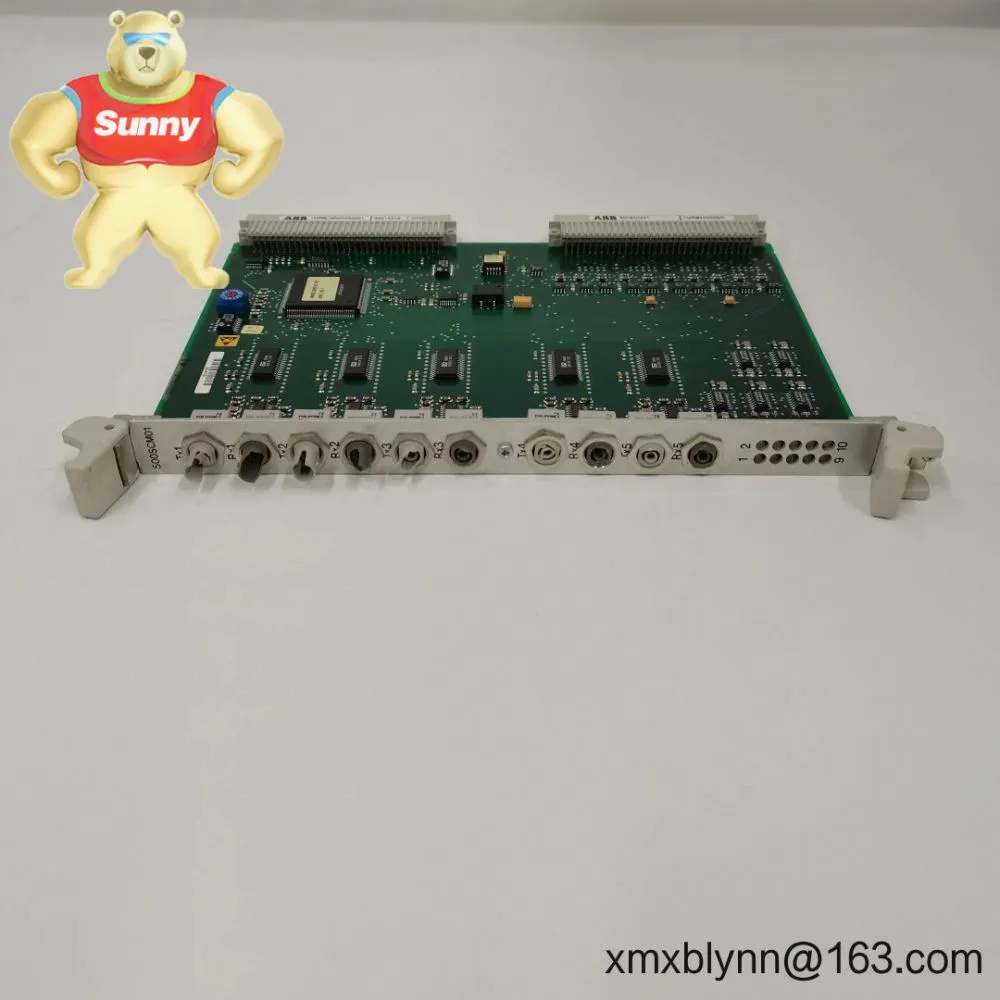

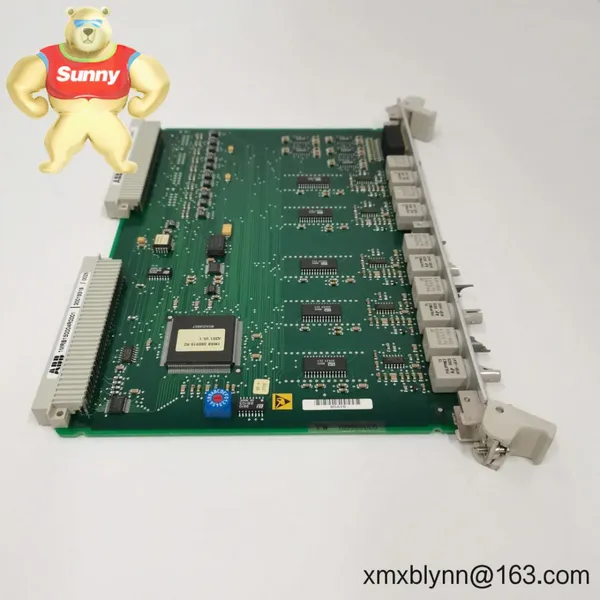

The ABB 500SCM01, part number 1MRB150004R0001, is a Serial Communication Module designed for SattCon 500 PLC platforms. It’s typically used to add reliable RS-232/RS-485 connectivity and protocol handling for SCADA/HMI links, smart instruments, and drives. From my experience, it’s a straightforward way to extend legacy SattCon installations without reworking the control strategy or rewiring the entire cabinet.
You might notice that these modules are favored in brownfield upgrades—where a plant needs to pull data from serial meters or integrate a third-party subsystem while keeping the existing SattCon CPU and I/O intact. That balance of simplicity and dependable performance is usually why engineers pick the 500SCM01 first.
Key FeaturesNative SattCon 500 integration – Installs in the SattCon 500 rack and is powered via the system backplane, so no extra power supply is required.
Industrial serial interfaces – Supports RS-232 and RS-485 electrical layers for point‑to‑point links or multi‑drop networks, which is handy for instruments and drives.
Protocol flexibility – Commonly used for COMLI (ABB) and, in many cases, Modbus RTU master/slave via application libraries or configuration options.
Configurable baud rates – Typical serial speeds from low to mid‑range (e.g., 9.6–38.4 kbps are frequently used in the field) for stable operation over longer runs.
Noise‑resilient design – Shielding and proper termination practices make RS‑485 networks stable in industrial environments with VFDs and contactors.
Maintainable long term – Simple diagnostics and well-known wiring practices reduce downtime during maintenance or device replacement.
SCADA/HMI connectivity to legacy SattCon 500 controls in water, wastewater, and district heating stations.
Serial integration with VFDs, soft starters, or DC drives using Modbus RTU over RS‑485.
Data collection from serial instruments—power meters, barcode readers, temperature controllers—in manufacturing cells.
Brownfield retrofits where a SattCon CPU must exchange data with newer panels or edge gateways without a full PLC migration.
Low-risk expansion – Keeps the installed SattCon 500 architecture; typically no need to rewrite core logic.
Compatibility first – COMLI and widely used serial protocols mean easy handshake with SCADA or third‑party devices.
Cost-effective lifecycle – Extends useful life of legacy assets while deferring a major control system replacement.
Serviceable in the field – Straightforward wiring, clear port labeling, and predictable diagnostics reduce downtime.
Cabinet & mounting – Install in a SattCon 500 rack inside a clean, dry enclosure. Maintain ventilation and keep ambient below typical 55 °C.
Wiring practices – Use shielded twisted-pair for RS‑485, ground the shield at one point, and apply proper end‑of‑line termination and biasing.
Isolation & EMC – Route serial cables away from high‑power conductors and VFD output leads to reduce noise coupling.
Configuration – Match baud rate, parity, stop bits, and protocol roles (master/slave). Document node addresses for future service.
Maintenance – Periodically check connectors, inspect for oxidation, and verify comms statistics. Firmware or configuration backups should be kept with the site’s change records.
Compliance – Units in this family are typically CE marked; many installations report UL compliance depending on system configuration.
RoHS – For legacy modules, RoHS status can vary; verify per production batch if this is a purchasing requirement.
Warranty – New ABB products follow ABB’s standard warranty terms; many distributors provide a 12‑month warranty on refurbished or surplus units.
AC/DC power base for SattCon 500 racks (e.g., 500-series power modules) to supply the backplane.
SattCon 500 CPU modules for program execution and task scheduling.
SattCon 500 digital/analog I/O modules for process signals.
RS‑485 termination resistors, shielded twisted-pair cabling, and DIN-rail surge protectors for field comm lines.
