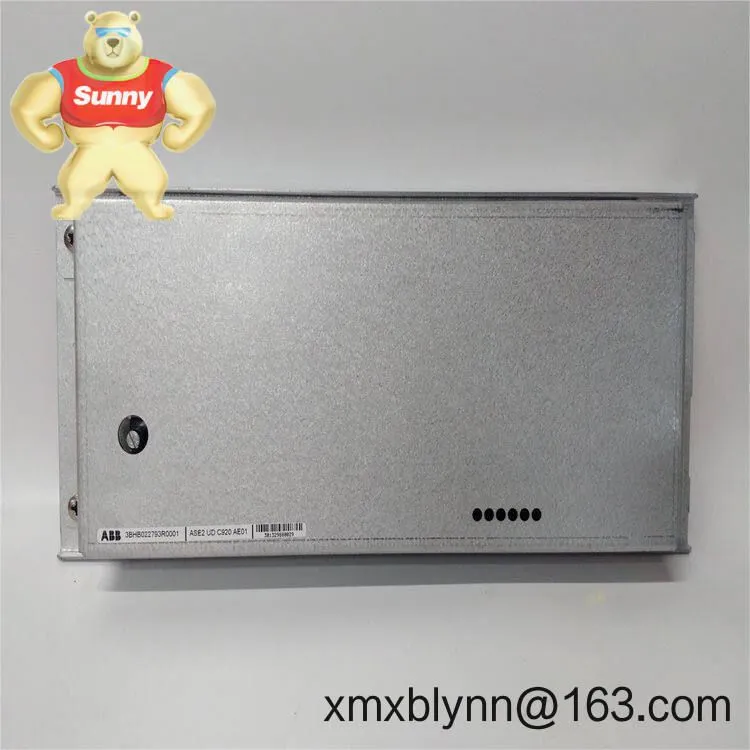

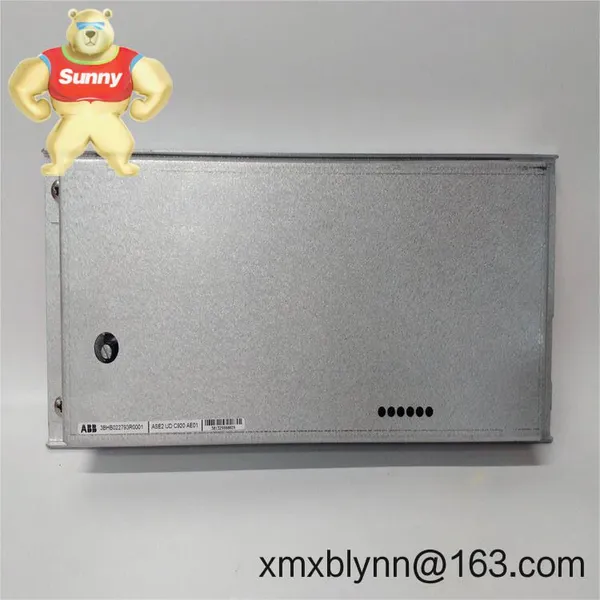

The ABB ASE2UDC920AE01 appears to be a modular DC control/power module intended for use inside ABB drive racks and power-conversion systems. Typically installed as a field-replaceable unit, it provides DC-bus management, monitoring and protective functions that help keep medium- and low-voltage drive trains stable and serviceable. From my experience, these modules are most useful where uptime and quick swap-out capability matter — pump stations, conveyor drives, and industrial motor control centers are common fits.
Modular, slot-mount design — allows fast replacement on a drive rack; ideal for reducing mean time to repair (MTTR).
DC-bus control & protection — typically handles DC link monitoring, over/under-voltage protection and basic balancing tasks for the power train.
Diagnostic indicators — front LEDs and status signals provide quick field diagnostics; many units also support remote fault reporting.
Industrial I/O — usually includes a mix of analog and digital inputs/outputs plus discrete relay contacts for interlocks and alarms.
Flexible communications — in most cases compatible with common industrial fieldbuses or host supervisory links when fitted in a drive system (configurable per rack/application).
Rugged construction — designed for cabinet environments with typical industrial temperature ranges and vibration tolerance.
| Brand / Model | ABB ASE2UDC920AE01 (S/N: 3BHB022793R0001) |
| Power Requirements | Powered from the host drive DC bus. Typical system DC link ranges vary by application (many ABB drive racks use DC bus voltages in the 600–1200 VDC range). Check nameplate and system documentation for the exact rating. |
| Dimensions & Weight | Module-style form factor for rack mounting. Approximate module size in common ABB racks: ~200 × 120 × 150 mm; weight typically 2–4 kg (dependant on specific housing). |
| Operating Temperature | Typical -10°C to +50°C in cabinet; dependent on rack ventilation and ambient conditions. |
| Signal Input / Output | Mixed analog/digital I/O plus relay contacts for alarms and interlocks. Exact pinout varies by sub-model and system integration. |
| Communication Interfaces | Often integrated into an ABB rack with gateway support for common fieldbuses (e.g., Profibus, Modbus, Ethernet-based interfaces) depending on configuration. |
| Installation Method | Slot-mounted module inside ABB drive rack or enclosures; requires compatible backplane and secure fastening. Panel and cabinet mounting performed at the drive/rack level. |
ASE2UDC920AE01 modules are typically used in industrial motor drive systems where a centralized DC link is present. Common applications include:
Water/wastewater pump stations and booster sets — where fast replacement reduces downtime.
Bulk material handling and conveyors in mining, cement and aggregate plants.
Steel and metal-processing lines that require stable DC link regulation for DC drives.
Large HVAC and chiller plants with centralized drive solutions.
Reduced downtime — modular swapability typically shortens repair time compared with hard-wired assemblies.
Compatibility — designed to integrate with ABB rack architectures, which makes spares management easier if you standardize on the platform.
Predictable lifecycle costs — in many cases, using OEM modules reduces engineering time and commissioning complexity compared with custom replacements.
Serviceability — accessible diagnostics and clear fault signaling tend to simplify root-cause analysis on the shop floor.
When installing the ASE2UDC920AE01, plan for a cabinet that meets the drive system’s thermal and ingress protection needs (many installations use IP20 racks inside IP54/55 enclosures). Ensure the cabinet has adequate forced ventilation or cooling, consistent with the overall drive rating. Wiring should follow the system schematic and ABB’s commissioning manual: isolate DC bus capacitors and follow lock-out/tag-out procedures before any work.
Routine maintenance typically consists of visual inspections, connection torque checks, thermal scans of hot spots, and keeping firmware/configuration backed up. From my experience, keeping a small stock of critical modules on-site (one or two spares) is cost-effective for 24/7 operations.
Quality & CertificationsModules in this class commonly carry CE and RoHS compliance and are produced by manufacturers that follow ISO 9001 quality processes. Many ABB drive components also meet UL requirements for control equipment depending on model and regional variants. Warranty terms typically run 12 months from installation or delivery, but exact coverage and duration should be confirmed with the supplier for this specific serial-numbered unit.
Note: The information above is based on model-pattern inference and practical experience with ABB drive modules. For exact electrical ratings, pinouts and firmware details please consult the ASE2UDC920AE01 nameplate and the ABB product documentation specific to your drive rack; if you need, I can help pull together the precise datasheet and compatibility checklist for your system.
