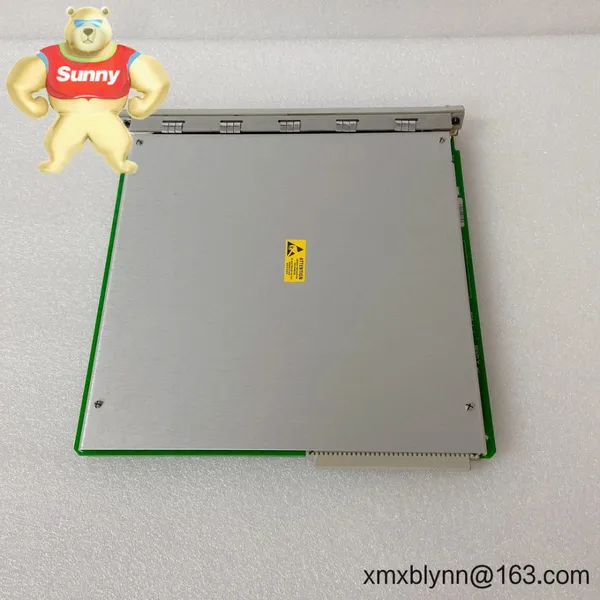

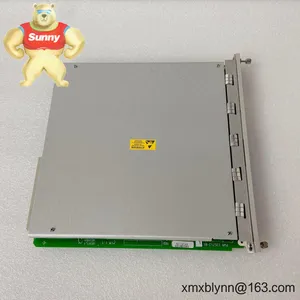

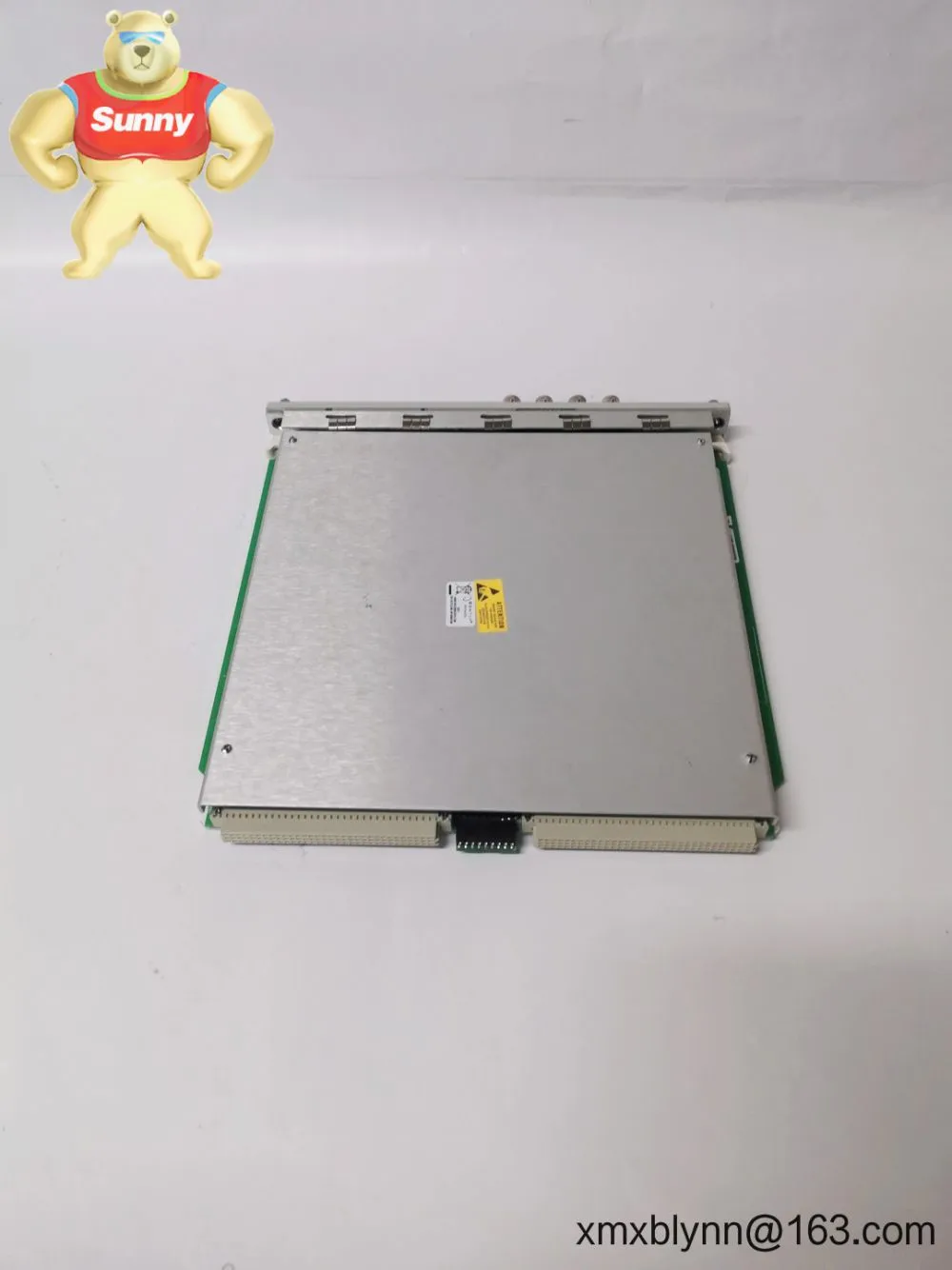

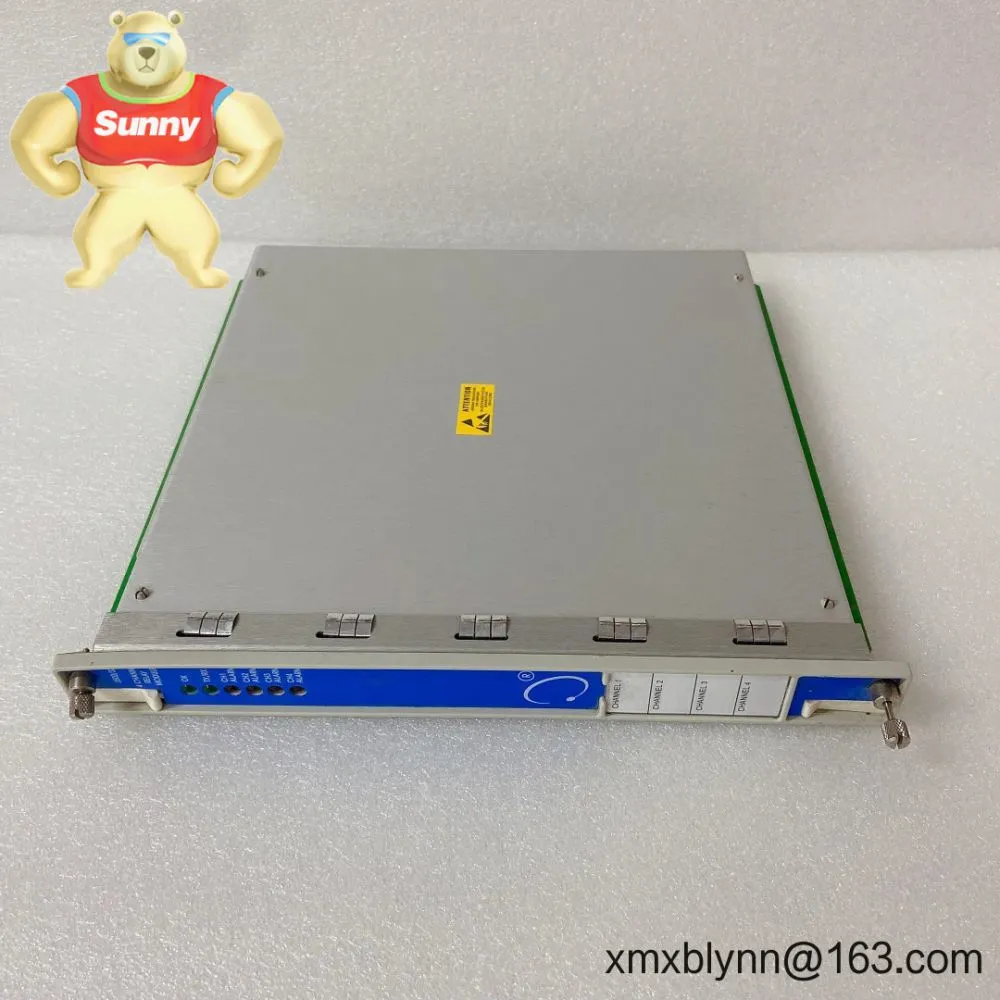

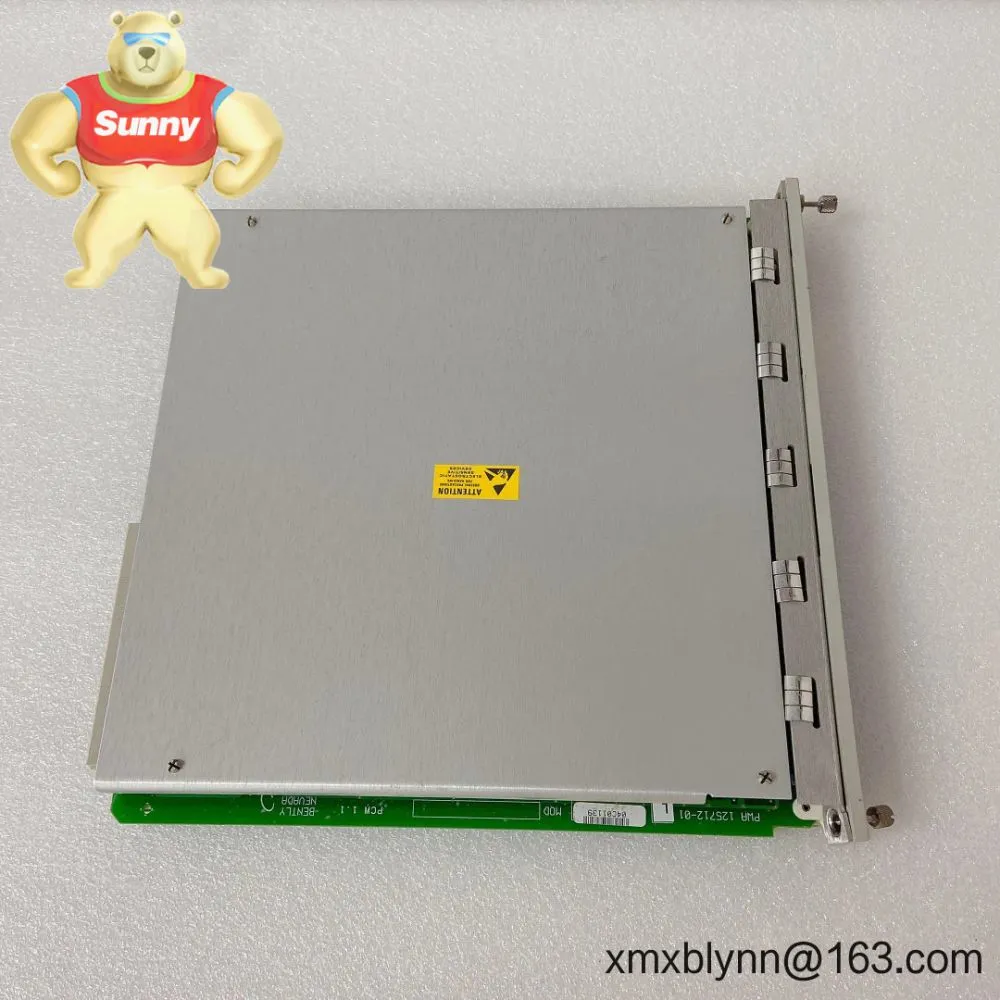

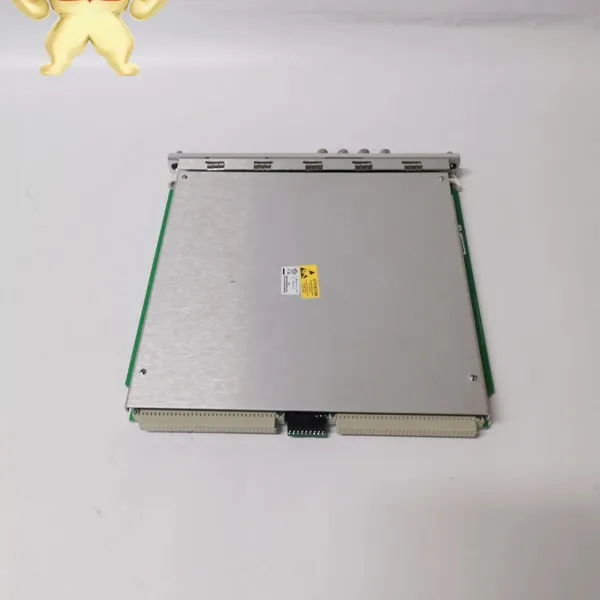

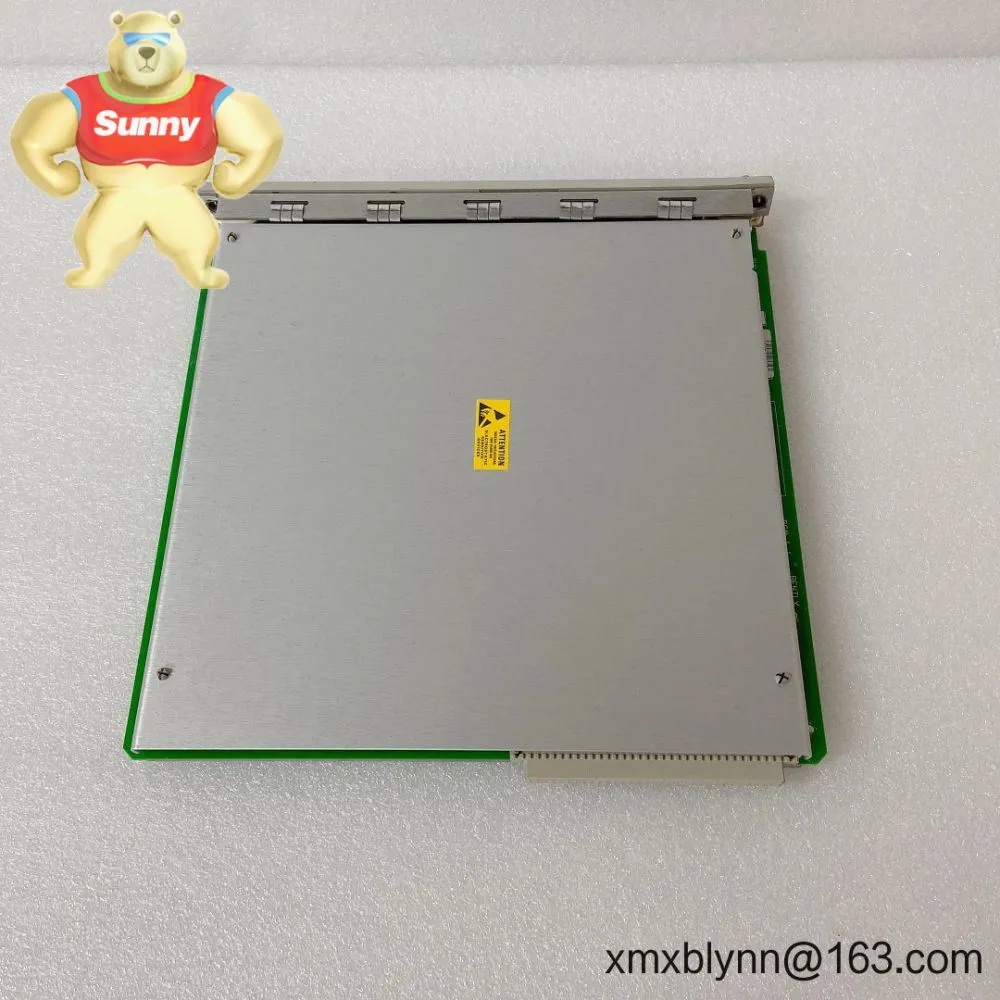

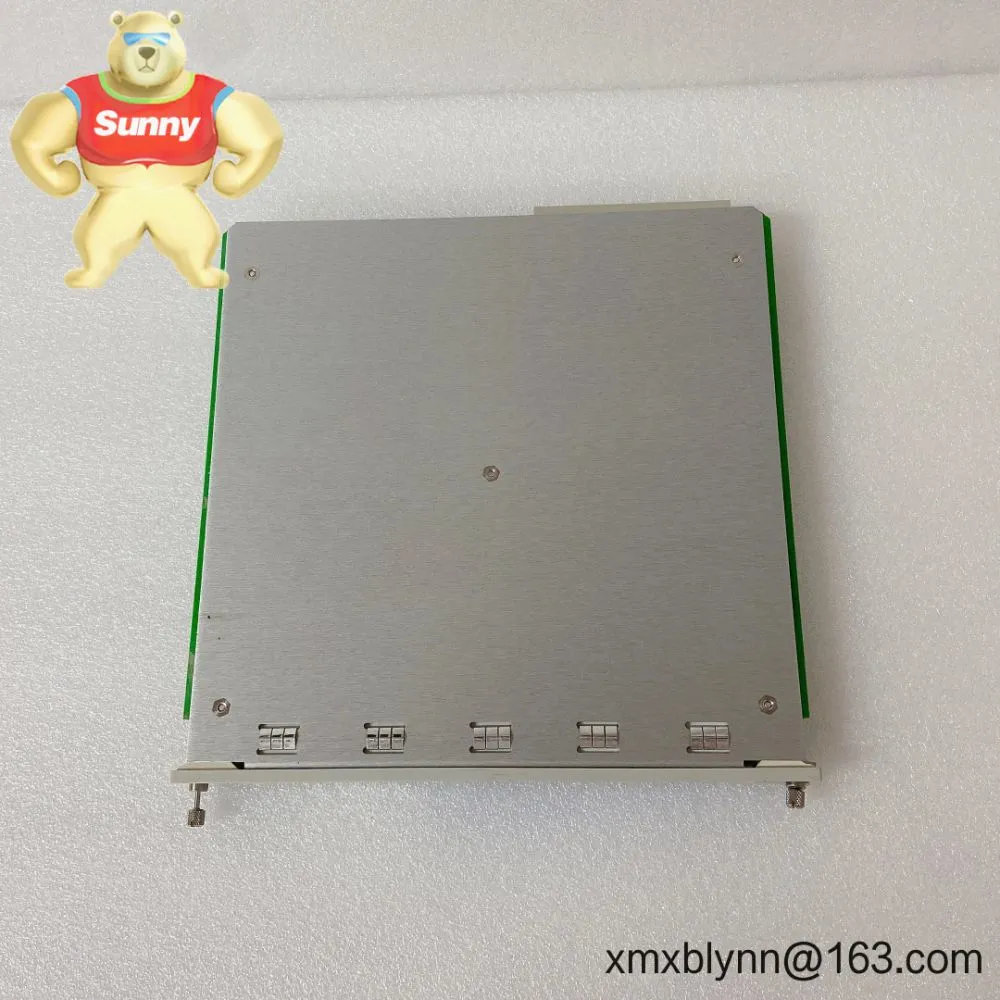

The Bently Nevada 3500/32-01-00 is a rack-mounted relay module designed to translate vibration and process alarms from the 3500 system into clean, dependable dry-contact outputs. It’s typically used to drive shutdown relays, annunciators, and DCS/PLC interlocks where deterministic trip logic matters. In many cases, plants choose this module to consolidate permissives and trips that would otherwise require separate safety relays and wiring.
Key FeaturesMulti-channel relay outputs – Provides multiple independent dry-contact outputs (typically four) for Alarm, Danger, and system events.
Configurable logic & voting – Supports common voting schemes (e.g., OR, AND, 2-of-3) across channels/monitors to reduce spurious trips while keeping protection conservative.
Latching or non‑latching behavior – You can choose latching for shutdown integrity or non‑latching for simple alarm annunciation.
SPDT “Form C” dry contacts – Normally-Open/Normally-Closed contacts for flexible field wiring into ESD, PLC, or DCS systems.
Seamless 3500 integration – Powered from the rack backplane and configured via standard 3500 tools; no external power or separate comms module needed on the card.
TMR-friendly design – Works with Triple Modular Redundancy strategies used in critical turbines and compressors, improving availability without losing protection.
Diagnostics and status indication – Provides clear relay/channel status within the 3500 system so troubleshooting is straightforward in most cases.
| Brand / Model | Bently Nevada 3500/32-01-00 Relay Module |
| Power Requirements | Supplied via 3500 rack backplane; no separate external supply to the module |
| Relay Outputs | Multiple channels (typically 4), SPDT (Form C) dry contacts; N.O./N.C. configurable, latching or non‑latching per setup |
| Signal I/O Types | Discrete relay outputs for Alarm, Danger, System OK/Not OK, trip logic |
| Communication Interfaces | Configured through the 3500 rack (e.g., via 3500/22M TDI and 3500 Configuration software); no field comm port on the module itself |
| Installation Method | Plug-in 3500 full-height module; uses corresponding rear I/O terminal; occupies one rack slot plus associated I/O position |
| Operating Temperature | Industrial control-room range (typically -30 to +65 °C); consult datasheet for exact limits |
| Dimensions & Weight | Standard 3500 full-height form factor; designed for 3500 racks; approximate values vary slightly by revision |
From my experience, the 3500/32-01-00 is most at home in continuous-process and rotating equipment environments where you need deterministic shutdown logic and clean interface points to ESD or PLCs.
Turbines and compressors – Trip chains combining high vibration (Danger), axial position, and high temperature with 2oo3 voting.
Critical pumps and fans – Alarm/Danger contacts to DCS, plus permissives for startup sequences and auto-shutdown.
Refining, petrochemical, LNG – Integrates with ESD/SIS architectures as a discrete layer of protection for rotating assets.
Power generation and pipeline stations – Reliable, field-proven relay outputs for annunciation panels and shutdown solenoids.
Reliability – Mature platform used widely in machinery protection; reduces nuisance trips when configured with appropriate voting logic.
Compatibility – Works across 3500 monitors (e.g., 3500/40M, 3500/42M, 3500/44M) so one module can handle multiple alarm sources.
Cost & wiring efficiency – Consolidates alarms/trips into onboard relays, often cutting external relay counts and panel space.
Maintainability – Clear status in the 3500 software makes proof-testing and troubleshooting faster than ad‑hoc relay banks.
Lifecycle support – Broad install base, spares availability, and firmware/tooling that typically remain consistent across revisions.
A maintenance lead at a gas compressor station told me, “We moved our shutdown voting into the 3500/32, and false trips dropped right away. Testing is simpler too.”
Cabinet environment – Install the 3500 rack in a clean, ventilated cabinet; maintain ambient temp within the module’s rating. Allow airflow around the rack.
Wiring practices – Use appropriately rated conductors for relay circuits; keep relay wiring separate from high-noise power cables. Label each output to its destination (ESD, PLC, annunciator).
Safety precautions – De-energize the relay circuits and place equipment in a safe state before making changes. Confirm logic and latching settings in the configuration software prior to commissioning.
Routine checks – Periodically proof-test relay operation and verify alarm setpoints. Exercise latching relays with supervision to ensure contacts operate as expected.
Firmware & configuration – Keep 3500 system firmware and configuration tools current (when approved by site change control). Back up configuration files after any change.
Spares strategy – In many cases, plants keep a spare 3500/32 module to minimize downtime during critical-path outages.
CE marking and UL/cUL recognition are commonly available for the 3500 platform; RoHS compliance applies to most current revisions.
Hazardous location approvals (e.g., CSA, ATEX/IECEx) may be available when ordered with the appropriate rack and module options.
Manufacturer’s limited warranty is typically 1 year; extended service agreements are often supported via local channels.
3500/20 Power Supply – Redundant-ready power for the rack; choose appropriate input range for your site.
3500/22M Transient Data Interface (TDI) – Centralizes configuration and provides system communications to DCS/OSI/PI historians.
3500/40M Proximitor Monitor – Common vibration monitor feeding Alarm/Danger logic that can drive the 3500/32 relays.
3500/93 & 3500/94 Communication Gateways – For Modbus/serial or Ethernet integration when needed.
