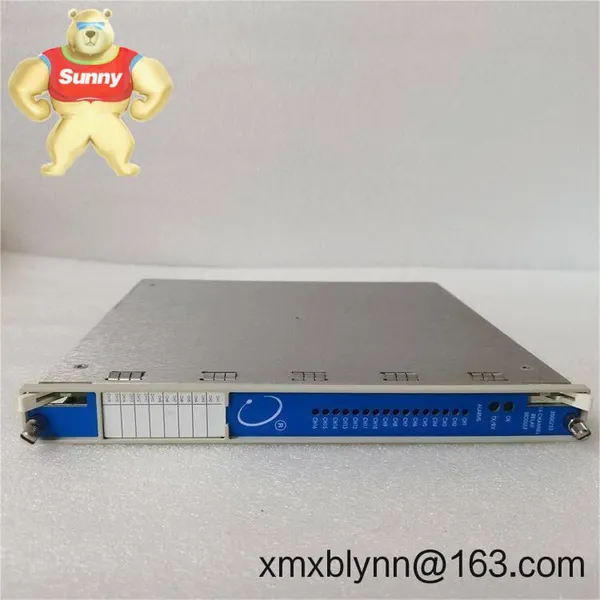

The Bently Nevada 3500/33-SIL-01 is a SIL-qualified 16‑channel relay module designed for use in 3500 racks where alarm voting and interlock outputs need a safety lifecycle pedigree. It consolidates alert and danger conditions coming from 3500 monitors and converts them into hardwired relay contacts for trips, shutdowns, annunciation, or ESD inputs. In many cases, plants use it to implement de‑energize‑to‑trip logic and verified voting without adding a separate safety relay panel.
Key Features16 independent relay outputs – Typically dry-contact outputs mapped to alert/danger conditions or logic combinations from any 3500 monitor channel.
SIL-oriented design – The -SIL version is intended for IEC 61508 applications; commonly used with de‑energize‑to‑trip behavior and restrained configuration options that support safety practices.
Flexible voting and logic – AND/OR voting, time delays, and latching/non‑latching options help reduce nuisance trips while keeping response predictable.
Rack-powered, no external supply – Draws power from the 3500 backplane for a clean, one-rack solution.
Front-panel status – You might notice that health and activity indicators make diagnostics straightforward during FAT/SAT or turnarounds.
Barrier/non‑barrier rear I/O options – Supports hazardous area strategies without redesigning the cabinet layout.
Configuration via 3500 software – From my experience, engineers appreciate being able to set relay mapping and voting directly through the standard 3500 configuration tool.
| Brand / Model | Bently Nevada 3500/33-SIL-01 (16-Channel Relay Module, SIL variant) |
| Module Type | Relay output module for 3500 machinery protection racks |
| Channels / Outputs | 16 relay outputs (configurable mapping and logic) |
| Relay Contacts | Dry contact outputs; de‑energize‑to‑trip is typically used for SIL deployments |
| Power Requirements | Supplied by the 3500 rack backplane; no separate external power |
| Signal I/O | Rear-terminals via I/O module (barrier or non‑barrier, as specified) |
| Communication | Configurable through 3500 rack configuration software; backplane integration with other 3500 modules |
| Operating Temperature | Typically −30°C to +65°C (application and enclosure ventilation dependent) |
| Installation Method | Installs in a standard 3500 rack slot with matching rear I/O; field wiring to terminal base |
| Dimensions & Weight | Standard 3500 full-height module form factor (use rack mechanicals for panel layout) |
This module shows up most in turbomachinery protection where hardwired trips must be deterministic and proven: steam/gas turbines, compressors, critical pumps, and large motors. It’s also common in refinery and chemical units where machinery trips need to align with the plant’s SIS or ESD philosophy. Power generation sites typically map danger alarms to shutdown permissives and route alert alarms to DCS annunciation through these relays.
Machinery protection racks where safety integrity is a requirement
Hardwired shutdown chains to ESD/SIS or motor control circuits
Voting logic for redundant sensors (e.g., 2oo3 on high vibration)
Brownfield retrofits replacing legacy relay panels in cramped cabinets
Reliability – Hardware relays tied directly to the 3500 backplane reduce latency and avoid external conversion layers.
Compatibility – Works natively with 3500 monitors (e.g., vibration, speed, temperature), so mapping alarm states is straightforward.
Cost & footprint – In many cases, one 3500/33-SIL-01 replaces a separate relay logic cabinet, saving panel space and wiring time.
Lifecycle support – Documentation, configuration tools, and a well-established installed base make MOC and audits much smoother.
“We mapped 2oo3 danger votes from the compressor trains to three shutdown circuits. Commissioning went faster than expected because the relay logic mirrored what we had in the configuration files.” — Maintenance Lead, downstream petrochem (shared from a recent project)
Installation & MaintenanceCabinet & mounting – Install in a clean, dry 3500 rack inside an enclosure that meets your site’s panel standards (typically IP54 or better for process areas).
Ventilation – Provide airflow to keep the rack within the recommended temperature range; heat from adjacent power supplies can raise local temperatures.
Wiring – Use shielded, labeled field wiring to the rear I/O terminal base; verify contact type (NO/NC) and de‑energize‑to‑trip behavior before FAT.
Grounding – Tie shields and cabinet ground per plant EMC practices to minimize chatter or false transitions.
Safety – Prove trip circuits during commissioning. For SIL functions, follow approved test intervals and bypass procedures; document voting and latching settings.
Routine maintenance – Periodically exercise relays during scheduled outages, back up configuration, and—if applicable—apply firmware updates validated for your 3500 rack revision.
SIL compliance – The 3500/33-SIL-01 is intended for use in SIL-rated architectures in accordance with IEC 61508; the achievable SIL level depends on the complete loop design and proof-test interval.
Regulatory – Typically supplied with CE marking; UL and RoHS conformity are common across the 3500 platform.
Warranty – Covered under the manufacturer’s standard hardware warranty policy; support and spares available through the 3500 ecosystem.
3500/05 Rack, 3500/22M Power Supply – Rack infrastructure and redundant power options
Rear I/O terminal base (barrier or non‑barrier) for 3500/33 – Field wiring interface
3500/94 or equivalent comms module – For Ethernet gateway to DCS/asset systems, when needed
3500 monitors (e.g., vibration, speed, temperature) – Signal sources driving relay logic
One thing I appreciate is how predictable the setup feels—map the alarms, set the voting, prove the relays, and you’re ready. If your site has strict SIS practices, this module seems to fit neatly without forcing a rewrite of the machinery trip narrative.
