Welcome to Zhaoqing City Greater Technology Co., Ltd
Now we not only offer previous machines, but also work with more factories directly.
We are in good position to offer more and better heater machines and heating supplies /service to customers.
ZhaoQing Greater is a professional auto pipe cutting machine for tubualr heaters, auto cutting machine a a main cutting machine for heater machinery, it suitable for tubular heater production, cartridge heaters produciton, hot runner heater making, industrial heaters.
★Description
Resistance wire winding machine, which is a machine to coil resistance wire into compact spiral coil. Put the original resistance wire rolls on the shaft rack which with a brake gear, guide the resistance wire to a precision rotating tool by the wire wheel, and coil and compact the wire on the mandrel by an adjustable speed rotary device.

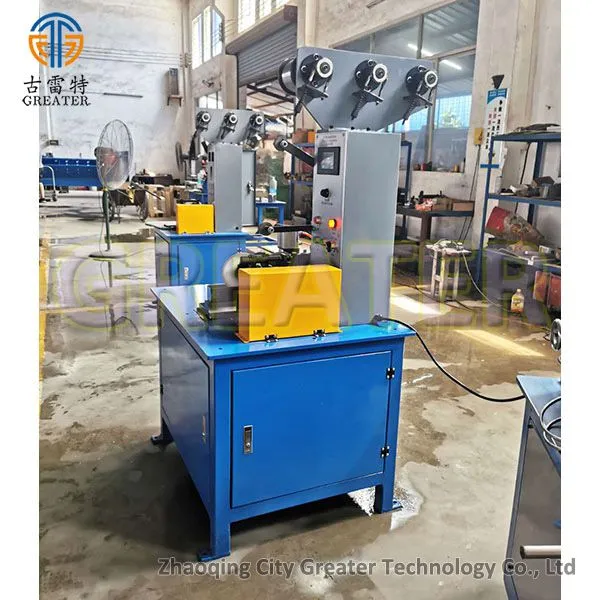

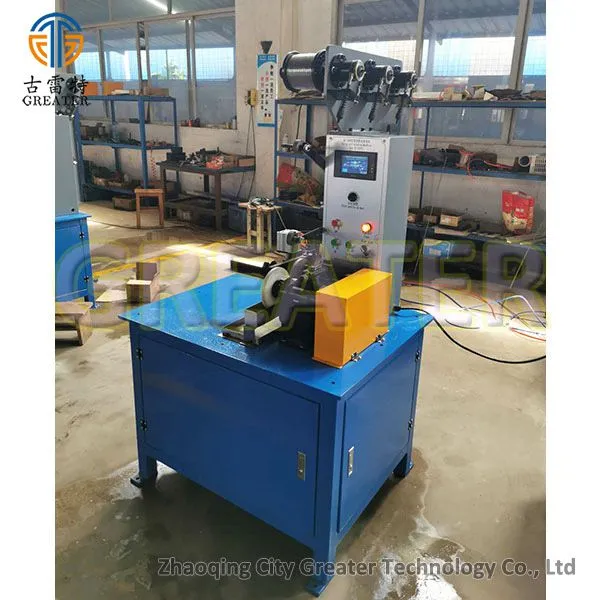

GT-RS328 PLC Resistance Winding Machine
Item No.:GT-RS328 PLC
Diameter of resistance wire:Φ0.15-Φ0.8mm
Diameter of core axle: Φ1.0-Φ10mm
Power: 220 500W INQUIRY
Air supply: 0.6mpa compressed air
Application: suitable for tubular heaters, cartridge heaters which need spiral resistance coil.
Features:
*** suitable for single or double wire winding (can make in three or four wire winding according to order)
*** with PLC control, data setting easy;
*** cut resistance coil according to resistance value set on the machine;
*** can store 10 group parameter datas.
*** small size with easy operation.
Information need for order for winding machine:
*** wire diameter to coil;
*** inside diameter of coil to wind;
*** power supply: such as single phase 220V, 50HZ
