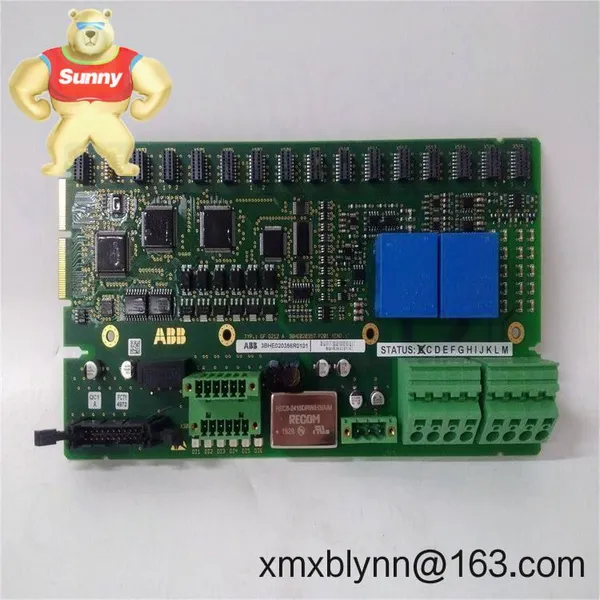

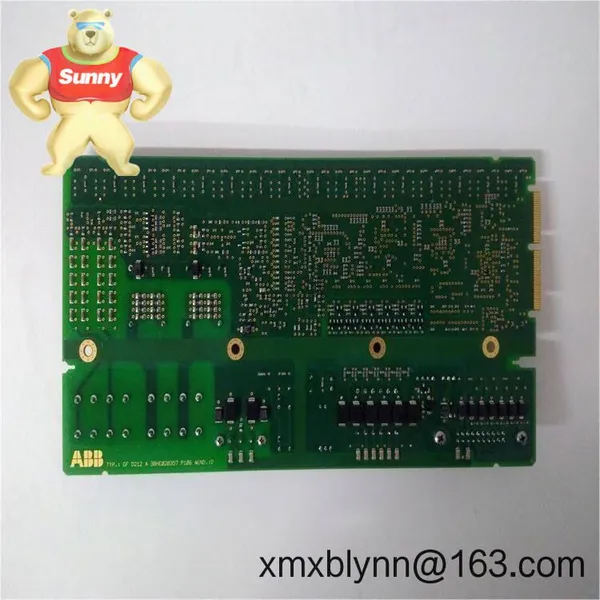

Help CenterABB GFD212A (GF D212A) 3BHE020356R0101 – Gate Firing / Drive Interface Board for ABB Industrial & Medium-Voltage Converters
Related Products
-
ABB GFD563A102 (3BHE046836R0102) – Control/Driver Board for ABB Excitation and Drive CabinetsUS$ 1360.00MOQ: 1 Combo -
ABB GFD563A101 (3BHE046836R0101) – Control/Interface Board for ABB Industrial Drive & Excitation CabinetsUS$ 1360.00MOQ: 1 Combo
-
ABB 81EU01E-E (GJR2391500R1210 / GJR2391511R42) – INFI 90 System Module for Bailey DCS RacksUS$ 4360.00MOQ: 1 Combo
-
ABB GFD233A (3BHE022294R0101) – Gate Firing/Driver Board for Medium-Voltage Drive Power StagesUS$ 8360.00MOQ: 1 Combo
-
ABB 07KT97F (GJR5253000R0160) – Communication Interface Module for 07‑series Rack SystemsUS$ 2360.00MOQ: 1 Combo
Warranty: 365 days
Delivery: 1 week for in‑stock items; no more than one month at the latest
Payment terms: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Order flow: Confirm model and revision (3BHE020356R0101) → Receive quotation → Place PO and pay deposit → Functional testing and packing → Balance payment → Express shipment with tracking
Gate firing interface – Handles trigger/feedback for power semiconductors via insulated links, typically fiber‑optic, to minimize noise and ground loops.
Proprietary backplane connectivity – Plugs directly into ABB drive/control racks for reliable data and power exchange.
High noise immunity – Designed for harsh electrical environments around high-current converters, reducing nuisance trips.
Diagnostic indication – On-board status/health LEDs help maintenance teams pinpoint issues quickly.
Revision-matched consistency – The R0101 suffix helps ensure firmware/hardware alignment within the installed drive family.
Rugged build quality – Industrial-grade components and conformal coating (in many cases) for improved longevity in dust and humidity.
| Brand / Model | ABB GFD212A (GF D212A), Part No. 3BHE020356R0101 |
| HS Code | 853890 (Parts for electrical control/switchgear apparatus) |
| Power Requirements | Supplied via host system backplane; 24 VDC nominal, low-power board-level consumption (typical) |
| Operating Temperature | 0 to +55 °C (typical control cabinet range) |
| Signal I/O Types | Fiber‑optic trigger/feedback channels to power unit; digital status and control through backplane |
| Communication Interfaces | Proprietary ABB backplane interface; optical links to gate units |
| Installation Method | Plug‑in board mounted inside the drive/control cabinet; secured with retaining hardware; ESD‑safe handling required |
You’ll typically find the GFD212A in ABB high-power drives and converter platforms where optical gate control is required. Common sites include cement kilns, steel rolling and annealing lines, mining conveyors and hoists, paper & pulp mills, heavy compressors in oil & gas, and marine propulsion. One thing I appreciate is its consistent behavior in cabinets with high EMI, which in many cases lowers the risk of spurious trips around thyristor/IGCT stacks.
Reliability under load – The optical isolation approach typically keeps switching noise off the logic side, which is a real advantage in medium‑voltage rooms.
Compatibility – Revision R0101 helps match existing firmware/hardware sets, reducing commissioning time after replacement.
Cost control – Direct swap with minimal rewiring; shorter downtime compared with redesigning control paths.
Technical support – We assist with revision checks and pre‑shipment testing so what arrives is ready to install.
A maintenance supervisor at a cement plant told us they swapped a GFD212A during a planned stop and had the line back within two hours. That’s typical when wiring looms and fiber routing are intact and the board revision matches.
Installation & MaintenanceCabinet environment: Install in a clean, closed control cabinet with adequate ventilation; keep within 0–55 °C and non‑condensing humidity.
ESD safety: Use a grounded wrist strap; avoid touching connector pins and optical ports.
Wiring & fiber: Route fiber‑optic leads with large bend radii; label channels before removal; verify correct orientation on re‑assembly.
Grounding & shielding: Ensure cabinet grounding is intact; maintain separation from high‑current busbars to reduce EMI coupling.
Commissioning checks: Match part number 3BHE020356R0101; run the drive’s built‑in diagnostics and monitor LED states; verify interlocks.
Routine maintenance: Quarterly visual inspection for dust or corrosion; gently clean with dry air; confirm connector tightness; firmware alignment should follow the host drive’s recommended toolchain and versions.
Manufactured within ABB’s ISO 9001 quality system
CE compliance and RoHS conformity are typically applicable to ABB control boards
UL/CSA recognition may apply at the system level depending on the drive cabinet certification
365‑day warranty from delivery; functional testing available upon request
We can also support complementary items typically paired with the GFD212A, such as optical gate units, fiber‑optic harnesses, backplane connectors, and controller boards used in ABB converter racks. If you’re unsure about cross‑compatibility, share your installed drive type and cabinet photos—we’ll help verify before you place an order.
