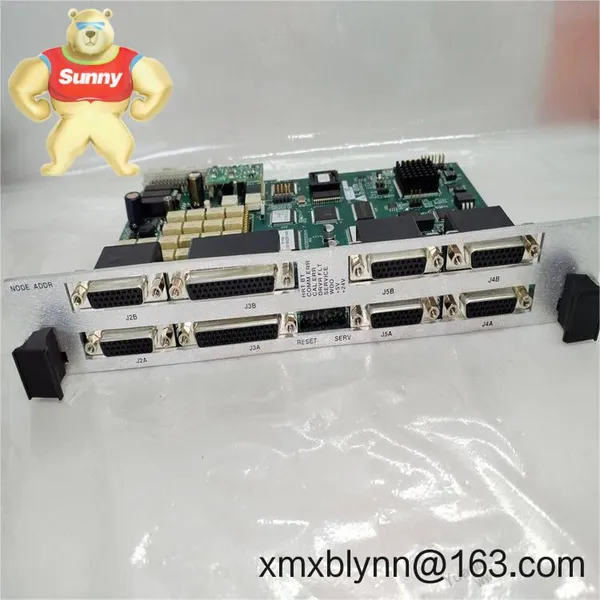

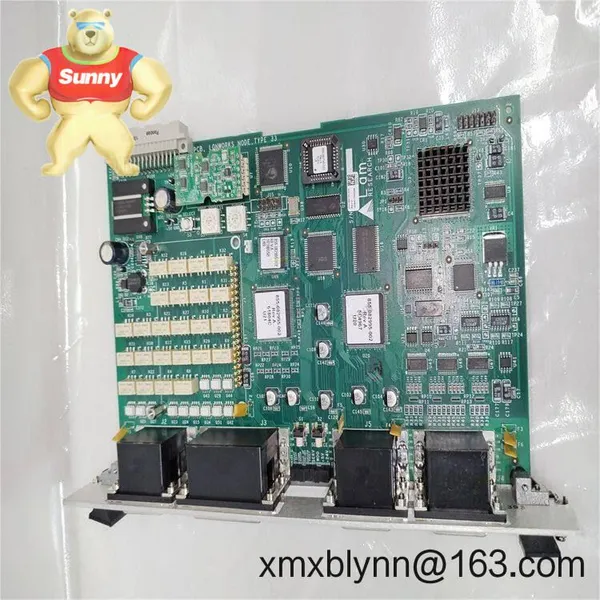

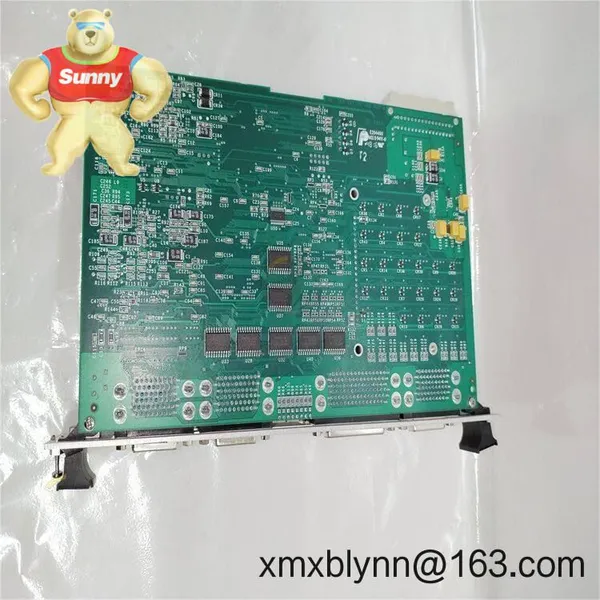

Help CenterLAM 810-082745-003 Industrial Circuit Board – OEM-grade Replacement for Tool Control and I/O
Related Products
-
Zygo 1115-801-346 Laser Head Cable – Stable, Low‑Noise Connection for Precision MetrologyUS$ 3475.00MOQ: 1 Pallet -
Eaton 1785T-PMPP-1700 Operator Interface Module – PanelMate Power Pro HMI for Machine Visualization and ControlUS$ 3216.00MOQ: 1 Blade
-
Eaton CS‑TX3‑3.81×2.54‑64TW Pluggable Terminal Block – High‑Density, Dual‑Pitch Connector for Control and I/O BoardsUS$ 1216.00MOQ: 1 Blade
-
EATON MP3010 Motor Protection Relay – Reliable Protection and Diagnostics for Low-Voltage MotorsUS$ 1216.00MOQ: 1 Blade
-
EATON XV-440-10TVB-1-20 Touch Screen Controller – 10.4-inch HMI-PLC for Reliable Machine Visualization and ControlUS$ 1216.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment, full payment for delivery
Express: FedEx, UPS, DHL
Traceability: Each unit is inspected and packed in ESD-safe materials with serial tracking
Drop-in OEM compatibility – Built for Lam tool backplane architecture; no rewiring or adapters in normal cases.
Backplane-powered – Receives low-voltage DC from the tool; no separate AC input, which keeps integration straightforward.
Service-friendly design – Front-panel fastening and keyed connectors make swap-outs quick during PM or reactive maintenance.
Functional testing – Units are typically bench-tested prior to shipment to screen for noise, connector wear, and basic I/O integrity.
Stable revisions – The “003” suffix indicates a later revision in this part family, which in many cases improves reliability versus early runs.
| Brand / Model | Lam Research – LAM 810-082745-003 |
| HS Code | 8538.90 (Parts for electrical control equipment) |
| Power Requirements | Backplane-supplied low-voltage DC (typical Lam tool distribution); no direct AC mains input |
| Communication / I/O | Edge/backplane connector to tool control system; discrete and signal lines per Lam platform configuration |
| Installation Method | Plug-in PCB for Lam control chassis; secured via front-panel screws; ESD-safe handling required |
| Operating Environment | Tool interior (cleanroom equipment); non-condensing; cooled by system airflow |
| Revisions / Alternates | Same-family part numbers typically include 810-082745-001 / -002 (verify compatibility before ordering) |
You’ll typically see this board inside Lam Research semiconductor manufacturing tools managing chamber interlocks, sensors, and subsystem coordination. Common scenarios include:
Plasma etch platforms requiring stable digital I/O and status feedback to the main controller
Deposition tools (e.g., PECVD/ALD families) where chamber safety and process control signals run through the backplane
Tool refurbishments and upgrades where later-revision boards improve noise immunity and connector reliability
A maintenance manager told us their “MTTR dropped noticeably” after keeping one of these on-site—when a chamber fault escalated, they swapped the board in under 30 minutes and moved on with the lot.
Reliability – Later revision boards tend to have better connector plating and component choices, which seems to reduce intermittent I/O.
Compatibility – Built to OEM spec for Lam backplanes; we match revisions on request to align with your installed base.
Cost control – Stocking a tested spare typically costs less than an emergency OEM field visit and avoids extended downtime.
Support – Guidance on revision matching, handling, and installation, so your team can move fast during a line stop.
Environment – Install in a clean, dry tool cabinet with proper airflow; avoid cable strain and keep vent paths unobstructed.
ESD & Safety – Power down and lockout/tagout the tool; use a grounded wrist strap and handle the PCB by the edges only.
Seating – Align the edge connector carefully with the backplane; tighten front-panel screws evenly to prevent vibration-induced loosening.
Firmware/Params – Where applicable, confirm board parameters or firmware are aligned with the tool’s software load (your service menu usually shows the map).
Routine checks – During PM, inspect connectors for discoloration, clean dust with ESD-safe air, and confirm no bent pins or cold joints.
Compliance – Tool-level CE/UL compliance where applicable; board supplied to OEM specification.
RoHS – Status may vary by revision for legacy Lam platforms; we can confirm per serial before shipment.
Quality system – Units are inspected, function-tested, and packed in ESD-compliant packaging with traceable labeling.
Warranty – 365-day warranty as stated above.
To keep your tool stable, many customers pair this board with stocked spares for backplane connectors, I/O harnesses, and the associated low-voltage power supply modules. We also support adjacent Lam board families in the 810-xxxxxx series and can help identify revision-matched alternates if your tool BOM calls out earlier suffixes.
