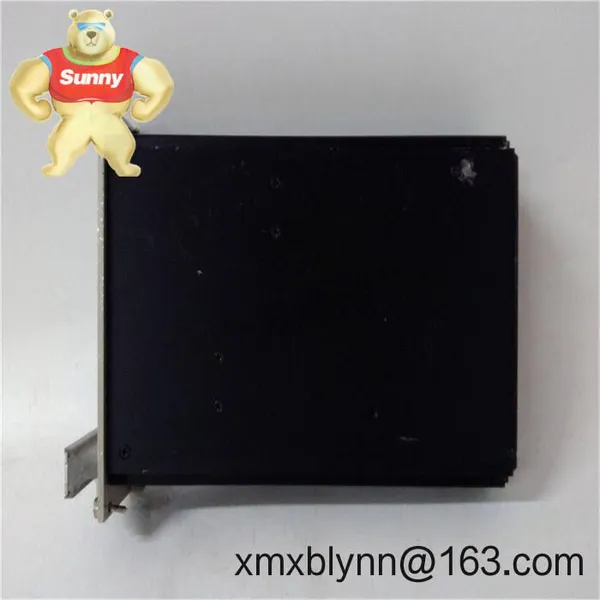

Help CenterHIMA F7123 4-Channel Multi-Function Power Distribution Module – Dependable 24 VDC Distribution for HIQuad Safety Systems
Related Products
-
HIMA K9202B (996920261) Energy-Saving Cabinet Fan Module – Reliable Cooling for Safety Control CabinetsUS$ 2216.00MOQ: 1 Blade -
HIMA F2102 – Smart Safety Module for High-Integrity Shutdown and InterlocksUS$ 2216.00MOQ: 1 Blade
-
HIMA F3113 Output Module – Safety Digital Outputs for Reliable Machine and Process ControlUS$ 2216.00MOQ: 1 Blade
-
HIMA F3221 Refurbished Input Module – Cost‑Effective Safety I/O for HIMA SystemsUS$ 2216.00MOQ: 1 Blade
-
HIMA F3222 Digital Input Module – Reliable 24 VDC Safety-Critical Signal AcquisitionUS$ 2216.00MOQ: 1 Blade
Warranty: 365 days
Delivery time: Typically 1 week if in stock; no more than 1 month at the latest
Payment terms: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
4 independent power channels – Distributes 24 VDC to multiple loads, helping reduce external terminal blocks and fuse rails.
Channel health monitoring – Status feedback via the backplane so the controller can flag faults and simplify diagnostics.
Optimized for HIQuad racks – Plug-in module design keeps installation clean and consistent with HIMA cabinet standards.
Short-circuit/overload detection – Protects field wiring and helps pinpoint issues faster during maintenance.
Compact form factor – Saves panel space and keeps wires close to the I/O where they belong.
SIL-oriented architecture – Suits safety-related applications when used within a certified HIMA system architecture.
| Brand / Model | HIMA F7123 |
| Product Type | 4-Channel Multi-Function Power Distribution Module |
| System Compatibility | HIMA HIQuad / HIQuad X racks (backplane-powered) |
| HS Code | 8538.90 (Parts for control panels/PLCs) |
| Power Requirements | 24 VDC supply via HIMA system backplane (module-internal distribution) |
| Signal I/O Types | 4 x 24 VDC power output channels; channel status/diagnostics via backplane |
| Communication Interfaces | No external fieldbus; status communicated through the rack backplane |
| Installation Method | Plug-in card for HIQuad/HIQuad X rack; front field-wiring connector |
| Operating Temperature | 0 to +60°C (typical for HIMA rack modules) |
| Form Factor | 3U Eurocard-style front plate; compact, panel-space efficient |
You’ll typically find the F7123 in safety instrumented systems where reliable 24 VDC distribution is essential:
Oil & gas ESD, fire & gas, and HIPPS cabinets built on HIMA HIQuad
Refining and petrochemical burner management and interlocks
Power generation turbine protection and balance-of-plant safety loops
Pharma and specialty chemicals where validated safety controls are needed
General machinery safety panels leveraging HIQuad I/O
A maintenance lead from a Middle East refinery told us the module “cleaned up the 24 V rails” and made trip loop checks quicker because channel faults were visible straight from the controller diagnostics.
Reliability – Channel fault detection helps catch wiring issues early and protects the loop.
Compatibility – Built for HIMA HIQuad architectures, so it drops into existing racks with minimal rework.
Cost efficiency – Reduces the need for external distribution/fusing hardware and shortens commissioning time.
Diagnostics – Backplane status reporting cuts mean time to repair, which, in many cases, offsets the module cost over the lifecycle.
Spares strategy – One module covering four channels simplifies inventory and improves cabinet standardization.
Cabinet environment – Mount in a HIMA HIQuad rack within a ventilated, clean enclosure; keep ambient within the specified industrial range.
Wiring – Use appropriately rated 24 VDC conductors; segregate power and signal wiring; verify polarity and channel assignment before energizing.
Grounding – Maintain a low-impedance cabinet ground; follow HIMA grounding guidelines to avoid nuisance trips.
Protection – The module provides channel monitoring; still, coordinate with upstream PSU protection, especially for high inrush loads.
Routine checks – Periodically inspect terminal torque, clean dust from the front plate, and review system diagnostics logs for any recurring channel alarms.
Firmware/system compatibility – When updating controller firmware or replacing legacy cards, confirm the F7123 revision is approved for your HIQuad release.
Designed for use in safety systems up to SIL3 when applied within a certified HIMA architecture (IEC 61508)
CE compliant; RoHS-compliant construction
Manufactured under ISO 9001 quality management
Warranty: 12 months (365 days)
One thing I appreciate is how the F7123 seems to cut down on panel clutter. If you’re consolidating 24 V rails for solenoids, beacons, or interposing relays, this is a practical, low-drama upgrade that keeps to HIMA’s safety-first philosophy.
