MS Series Horizontal Stainless Steel Single - Stage Centrifugal Pump

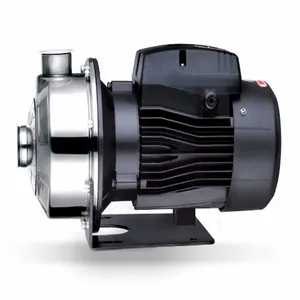

MS Series Horizontal Stainless Steel Single - Stage Centrifugal Pump thumbnail-1

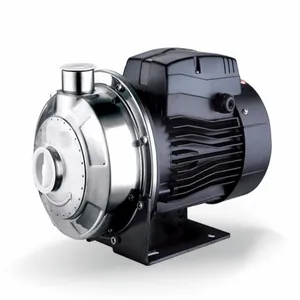

MS Series Horizontal Stainless Steel Single - Stage Centrifugal Pump thumbnail-2
MS Series Horizontal Stainless Steel Single - Stage Centrifugal Pump thumbnail-3

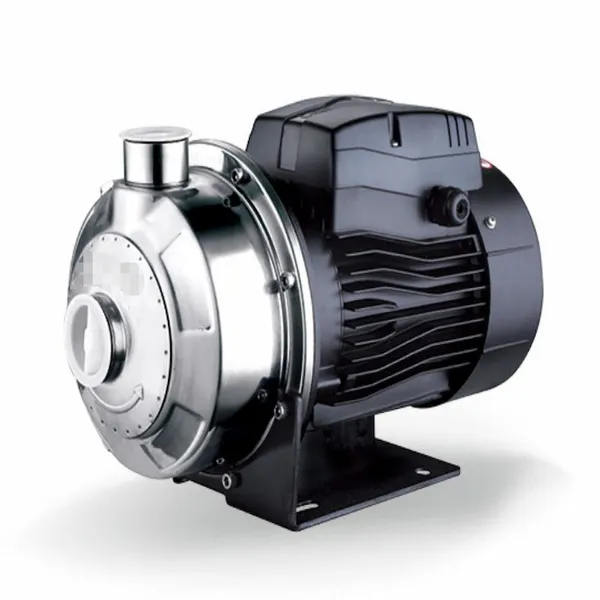

MS Series Horizontal Stainless Steel Single - Stage Centrifugal Pump photo-1

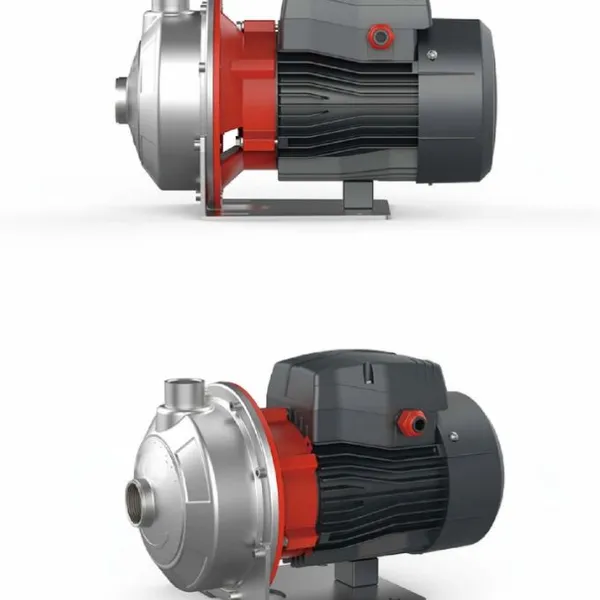

MS Series Horizontal Stainless Steel Single - Stage Centrifugal Pump photo-2
MS Series Horizontal Stainless Steel Single - Stage Centrifugal Pump photo-3
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Stainless Steel
Application:
Other, single centrifugal pump
Structure:
Single-stage Pump
Contact Supplier Request Quote Chat Now
NANJING SUOU PUMP VALVE Co. LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Stainless Steel
Application Other, single centrifugal pump
Structure Single-stage Pump
Theory Other, single centrifugal pump
Power Electric
Industry Other, Household water supply
Performance Other, Household pumps
Max.Head Other, 30m
Max.Capacity Other, 9.6m³/h
Start Up Electric Pump
Type Other, Household pumps
Media Other, clear water
Driving Type Motor

Horizontal Stainless Steel Single - Stage Centrifugal Pump

Technical parameter:

Flow rate, Q: maximum 9.6 m³/h

Head, H: maximum 30m

Product overview

AMS series is horizontal stainless steel single stage centrifugal pump, with a wide range of uses in domestic water supply, industrial, construction. It can be used in: liquid delivery and circulation in light industry; pressurization and domestic water supply, but also widely used in cooling systems and air conditioning systems.

Working conditions

When the density of the medium transported by thin, clean, non-corrosive, non-flammable and explosive is greater than clear water, high-power motor shall be used

Temperature range of the liquid: 0℃ to 85℃

Maximum ambient temperature: + 40℃

Maximum suction range: related to pump NPSH (steam corrosion margin), medium temperature, sea level height of installation location, and inlet pipeline loss

Maximum work pressure: 8bar

Electrical Appliances

Pump is equipped with fully closed, air-cooled, mouse cage fan;

Protection level: IPX 4

insulation grade:F

Standard voltage：Single phase 220-240V, 50Hz

                               Three-phase 380-415V, 50Hz

Single-phase generator is equipped with built-in thermal protection device, and the three-phase motor must be connected to the motor starter according to local regulations


Product Tags: single centrifugal pump , centrifugal single stage pump , water supply booster pump
