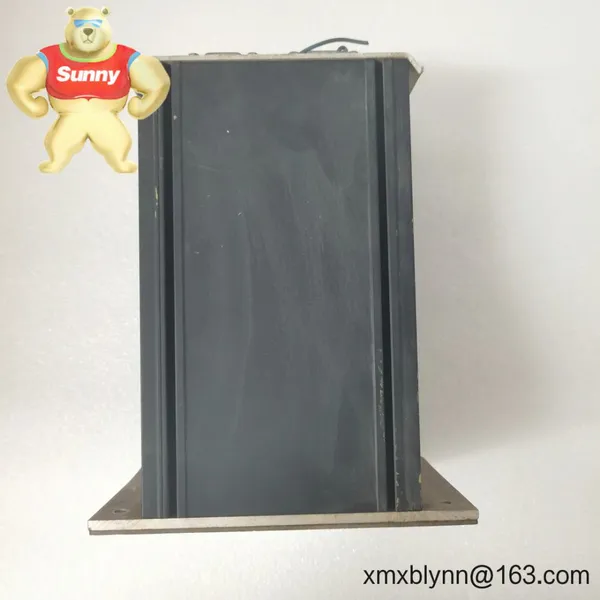

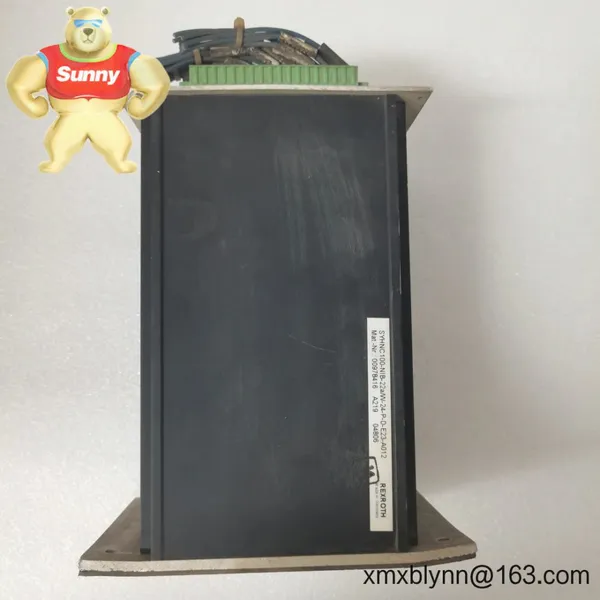

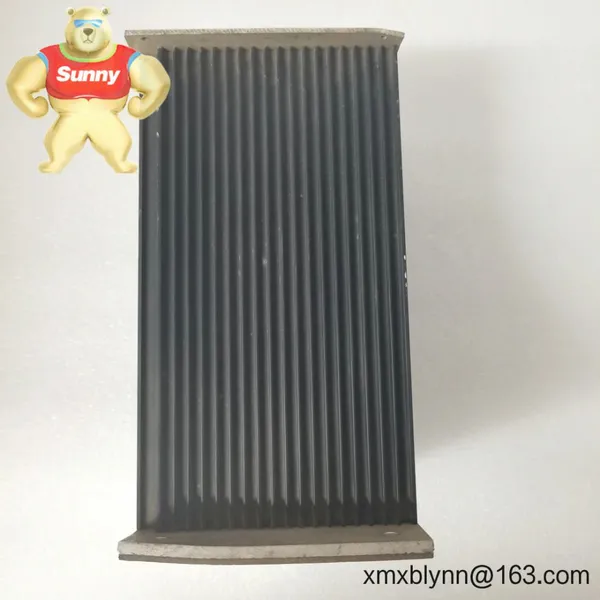

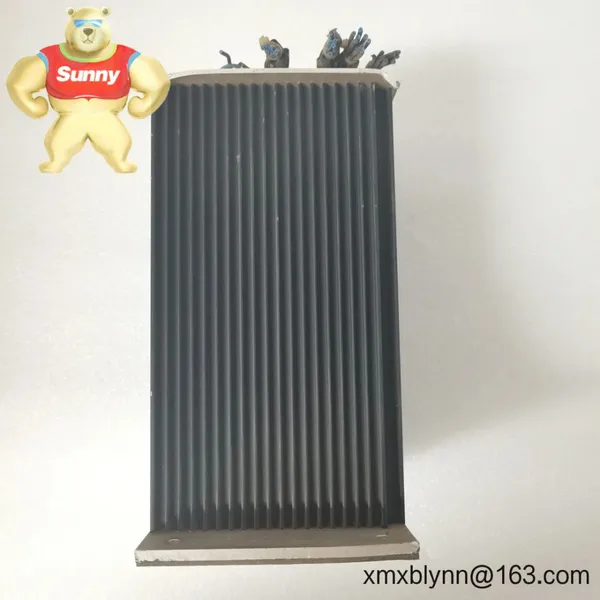

Help CenterREXRTOH SYHNC100-NIB-22a/W-24-P-D-E24: The Axis Controller That Keeps Your Production Line Breathing at 3 AM
Related Products
-
Bosch Rexroth HMV01.1R-W0018-A-07-FNN1: Precision Hydraulic Valve Control ModuleUS$ 236.00MOQ: 1 Blade -
Rexroth VTS0234-47/AP025: High-Speed Servo Drive for Precision Motion ControlUS$ 236.00MOQ: 1 Blade
-
Bosch Rexroth MSK061C-0300-NN-S1-UG0-NNNN: Your Go-To Compact Servo Motor for Tight SpacesUS$ 236.00MOQ: 1 Blade
-
Rexroth DKC11.1-040-7-FW: Your Workhorse for Demanding Motion Control TasksUS$ 236.00MOQ: 1 Blade
-
REXRTOH SYHNC100-NIB-2X/W-24-P-D-E23-A012: Precision Motion Control for Demanding Industrial LinesUS$ 236.00MOQ: 1 Blade
Digital Twin Ready Out-of-Box – Skip weeks of integration headaches. Plug in your Rockwell or Siemens HMI and it auto-maps I/O points. Saved a chocolate manufacturer 11 days during their seasonal ramp-up last year.
Vibration Tolerance to 15G – That stamping press shaking your control cabinet? This handles it. Most competitors tap out around 8G before axis drift starts.
Field-Replacement Power Module – When the 24V supply fries during monsoon season (and it will), swap it in 90 seconds without rewiring. No more waiting for a factory tech.
EtherCAT Over IP – Run your motion network over existing plant Ethernet. One automotive supplier cut cabling costs by $18k just by daisy-chaining these controllers.
| Specification | Details |
|---|---|
| Brand/Model | REXRTOH SYHNC100-NIB-22a/W-24-P-D-E24 |
| HS Code | 8537.10.0090 (Programmable controllers) |
| Power Requirements | 24V DC ±10%, 3.5A max (typically draws 2.1A under load) |
| Dimensions & Weight | 122 x 100 x 75mm, 480g – fits standard 35mm DIN rail cabinets |
| Operating Temperature | -10°C to +55°C (derate above 45°C – keep it away from those hydraulic pumps!) |

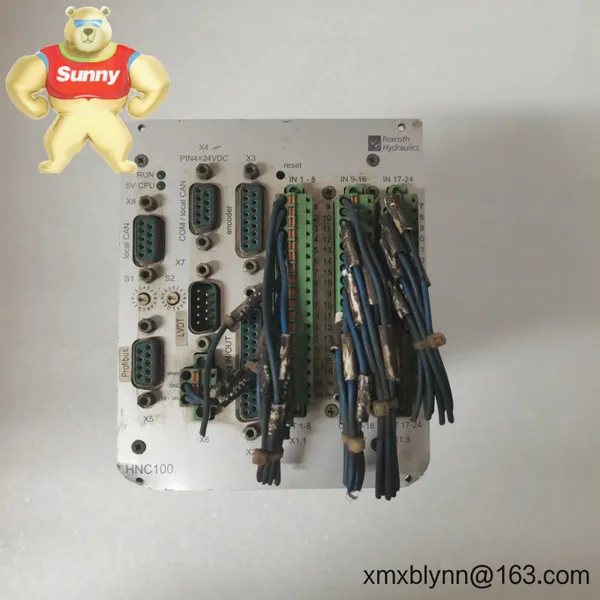

| Signal I/O | 8 digital inputs (24V), 4 analog outputs (±10V), 2 encoder inputs |
| Communication | EtherCAT (primary), RS-485, optional PROFIBUS module |
Let's be real – you're not buying this for a lab demo. I've watched it on glass bottle forming machines where 0.1ms timing drift means shattered containers. It's holding tolerances in +/-0.005mm on CNC wood routers that run 22 hours/day. The food processing folks love how it handles sudden load changes when filling viscous sauces – no more product splatter on the conveyors. One textile plant in Vietnam told me their maintenance costs dropped 30% after replacing legacy controllers; turns out the automatic resonance detection actually works when looms vibrate at 120Hz.
The 365-day warranty isn't just marketing fluff – it covers firmware updates and accidental voltage spikes. You might notice most competitors hide behind 180-day terms. In many cases, the real value shows when your automation integrator isn't billing you for 3-day commissioning. I've seen projects where the EtherCAT daisy-chaining saved enough in engineering hours to cover two controllers. And yes, it plays nice with legacy Allen-Bradley systems – that compatibility saved a brewery $50k in unnecessary HMI replacements last quarter.
Installation & Maintenance: Things Your Electrician Won't Tell YouMount it on the left side of your cabinet – keeps it away from heat-generating VFDs. One thing I appreciate is the terminal blocks accepting 14-22 AWG without ferrules. Don't skip the grounding strap; we've seen noise issues in facilities with poor earth bonding. For maintenance: blow out dust every 90 days (compressed air below 30 PSI), check encoder cables for micro-fraying annually, and update firmware during planned shutdowns – the web interface makes it painless. Oh, and keep it 100mm clear of hydraulic lines; that heat soak will kill electrolytics faster than you think.
Certifications That Actually Matter On The Factory FloorCE, UL 61800-5-1, and ISO 13849 PLd certified – no "pending" nonsense here. The RoHS compliance means you won't get flagged at EU customs. Warranty covers component failures but excludes "acts of maintenance negligence" (like ignoring that overheating warning LED). Typically, replacements ship within 5 business days if you've got an active support contract.
Getting It Running Before Your Next Shift Change50% advance payment gets it prioritized. In-stock units ship in 1 week via FedEx/UPS/DHL – we've had controllers reach Mexico City in 62 hours. Full payment clears before dispatch. Worst-case scenario? Three weeks for custom-configured units. One caution: don't expect next-day shipping during Chinese New Year – factories shut down harder than your plant on Christmas.
