Hastelloy C276 Round Bar Custom Cutting Alloy C276 Od10 - 350mm
Negotiable
MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Nickel Bar
Purity:
>99.99%
Application:
Aviation, Electronics, Industrial, Medical, Chemical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Alloy/Inconel/Angle/Magnesium/ Hastelloy/Nickel/Stainless Steel Inconel 718 N07718 5596 2.4668 Gh4169 Alloy Steel 8620 4140 BarsNegotiableMOQ: 1 Kilogram -
High Electrical Conductivity Copper Nickel Alloy Wire for Floor Heating CablesNegotiableMOQ: 1 Kilogram
-
2.4619 Wrought Nickel Chromium Molybdenum Alloy StripNegotiableMOQ: 1 Kilogram
-
201, 202, 410 Seamless Welded Premium Length Tough Stainless Steel Round Tube Pipe FittingNegotiableMOQ: 1 Kilogram
-
ASTM Standard A53 Ms Carbon 3m 6m 9m 12m Length Round Hot Rolled Seamless Steel PipeNegotiableMOQ: 1 Kilogram
Type
Nickel Bar
Purity
>99.99%
Application
Aviation, Electronics, Industrial, Medical, Chemical
Standard
JIS, GB, DIN, BS, ASTM, AISI
Powder
Not Powder
Alloy
Alloy
Product Description

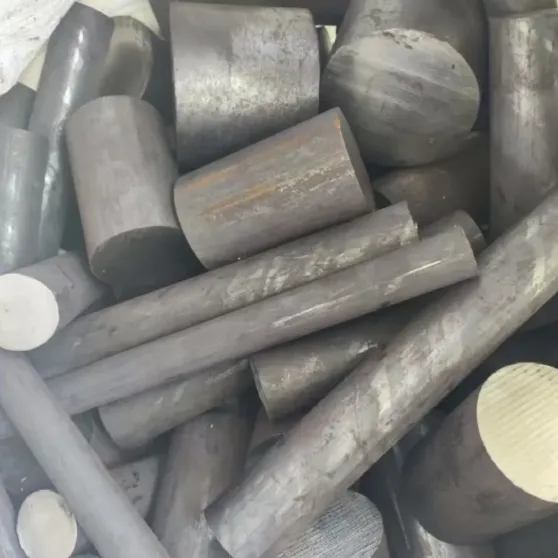

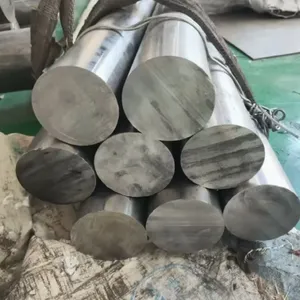

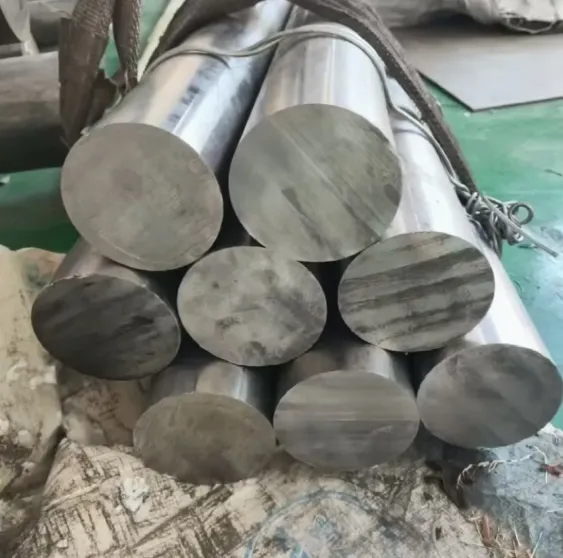

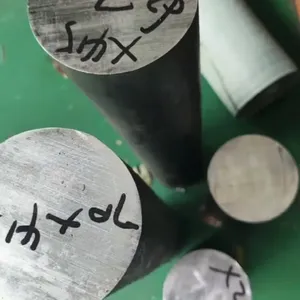

Hastelloy C276 Round Bar Custom Cutting Alloy C276 OD10 - 350mm
More Specification Informations
| Products Name | Hastelloy C276 Round Bar / Rod |
| Diameter | 6.0 - 350mm |
| Length | custom cutting any length as request |
| Surface | Black , bright |
| Brand | DELTA |
| Service | cutting, Polishing |
| MOQ | 1 Kgs |
| Other Type | round bar, strip,coil,pipe.sheet, plate,wire.etc |
| Packing | waterproof paper and wooden pallets, wooden box |
| Loading Port | Shanghai Port |
| Price term | EXW,FOB,CIF,CFR |
| Deliver time | within 12 days |
Regular Diameter of Hastelloy C276 Round Bar in Stock
| 6mm | 8mm | 9mm | 10mm | 12mm | 14mm |
| 15mm | 16mm | 18mm | 19mm | 20mm | 22mm |
| 25mm | 28mm | 30mm | 32mm | 35mm | 38mm |
| 40mm | 42mm | 45mm | 48mm | 50mm | 55mm |
| 60mm | 65mm | 70mm | 75mm | 80mm | 85mm |
| 90mm | 95mm | 100mm | 105mm | 110mm | 115mm |
| 120mm | 125mm | 130mm | 140mm | 150mm | 160mm |
| 170mm | 180mm | 190mm | 200mm | 210mm | 220mm |
| 230mm | 240mm | 250mm | 260mm | 270mm | 280mm |
| 290mm | 300mm | 310mm | 320mm | 330mm | 340mm |
Hastelloy C276 (designated as EN 2.4819 under European standards) is a premium nickel-molybdenum-chromium alloy renowned for its exceptional corrosion resistance in harsh environments. The small-diameter round bars (6-100mm) with a standard length of 6m combine this alloy's inherent performance advantages with dimensional precision, making them ideal for high-demand industrial applications where reliability and durability are critical.
The EN 2.4819 (Hastelloy C276) round bars adhere to strict material and dimensional standards, ensuring consistency in performance and compatibility with engineering requirements.
| Parameter Category | Details |
|---|---|
| Alloy Designation | EN 2.4819 (European Standard); UNS N10276 (American Standard); DIN 1.4529 (German Standard) |
| Diameter Range | 6mm - 100mm (small-diameter range, suitable for precision machining) |
| Standard Length | 6m (custom lengths available upon request, e.g., 3m, 4.5m) |
| Processing State | Hot-rolled (HR) or Cold-finished (CF); CF bars offer higher dimensional accuracy (tolerance: ±0.1mm for diameters ≤50mm) |
| Surface Finish | Mill finish (for general use) or Polished finish (for sanitary/high-purity applications) |
| Chemical Composition | Nickel (Ni): ≥57%; Chromium (Cr): 14.5-16.5%; Molybdenum (Mo): 15-17%; Tungsten (W): 3-4%; Iron (Fe): ≤5%; Carbon (C): ≤0.01%; Silicon (Si): ≤0.08%; Manganese (Mn): ≤1% |
Hastelloy C276's performance is defined by its balanced mechanical strength and superior resistance to aggressive media, even at elevated temperatures.
2.1 Mechanical Properties (at Room Temperature, for Cold-Finished Bars)Tensile Strength: ≥730 MPa
Yield Strength (0.2% offset): ≥310 MPa
Elongation (in 50mm): ≥40%
Hardness: ≤210 HB (Brinell) / ≤220 HV (Vickers)
Note: Mechanical properties can be adjusted via heat treatment (e.g., solution annealing at 1150-1175°C followed by rapid quenching) to enhance strength for high-stress applications.
2.2 Corrosion ResistanceThe alloy's unique composition (high Mo, Cr, and W content) delivers outstanding resistance to:
Oxidizing acids: , sulfuric acid (dilute to moderate concentrations).
Reducing acids: Hydrochloric acid, phosphoric acid, and organic acids (e.g., acetic acid).
Chloride-induced corrosion: Pitting, crevice corrosion, and stress corrosion cracking (SCC) in seawater, brines, or chloride-rich process streams.
High-temperature environments: Stable oxidation resistance up to 1040°C (2000°F) in air; maintains strength and corrosion resistance in high-temperature chemical reactors.
Hastelloy C276 is standardized across regions under different designations, ensuring global sourcing compatibility.
| Standard System | Grade Designation | Region | Key Similarity |
|---|---|---|---|
| European (EN) | EN 2.4819 | EU, UK | Direct equivalent to Hastelloy C276 |
| American (UNS) | UNS N10276 | USA, Canada | Primary American designation for C276 |
| German (DIN) | DIN 1.4529 | Germany, Europe | Near-equivalent (minor compositional tweaks) |
| Japanese (JIS) | JIS NW2201 | Japan | Equivalent for Asian markets |
| ASTM | ASTM B574 | USA | Specification for nickel-alloy round bars (includes C276/UNS N10276) |
The 6-100mm diameter, 6m length EN 2.4819 round bars are widely used in industries where corrosion resistance and dimensional precision are non-negotiable:
Chemical Processing: Components for reactors, heat exchangers, valves, and piping (handling acids, solvents, and corrosive intermediates).
Oil & Gas: Downhole tools, wellhead components, and offshore equipment (resistant to seawater and sour gas environments).
Pharmaceutical & Food Processing: Sanitary piping, mixing blades, and reactor internals (compliant with high-purity and corrosion-free requirements).
Pollution Control: Scrubber systems, flue gas desulfurization (FGD) equipment, and wastewater treatment components (resistant to acidic flue gases).
Aerospace & Power Generation: High-temperature fasteners, turbine components, and combustion system parts (withstands elevated temperatures and oxidative media).
Beyond Hastelloy C276 (EN 2.4819), there are several widely used nickel alloys, each optimized for specific environments:
| Alloy Series | Grade Designation | Key Feature | Typical Applications |
|---|---|---|---|
| Hastelloy | Hastelloy C22 (UNS N06022) | Better resistance to oxidizing acids than C276 | Chemical reactors, pulp/paper processing |
| Hastelloy B3 (UNS N10675) | Superior resistance to reducing acids (e.g., HCl) | Hydrochloric acid handling equipment | |
| Hastelloy X (UNS N06002) | High-temperature strength (up to 1200°C) | Gas turbine combustors, furnace parts | |
| Inconel | Inconel 625 (UNS N06625) | High strength + corrosion resistance | Aerospace fasteners, offshore pipelines |
| Inconel 718 (UNS N07718) | Ultra-high strength (age-hardenable) | Jet engine components, pressure vessels | |
| Incoloy | Incoloy 825 (UNS N08825) | Balanced resistance to acids & seawater | Oil well tubulars, heat exchangers |
| Incoloy 800H (UNS N08810) | High-temperature creep resistance | Power plant boilers, industrial furnaces | |
| Monel | Monel 400 (UNS N04400) | Excellent resistance to seawater & alkalis | Marine hardware, chemical storage tanks |
| Monel K-500 (UNS N05500) | Higher strength than Monel 400 (age-hardenable) | Valve stems, pu |
