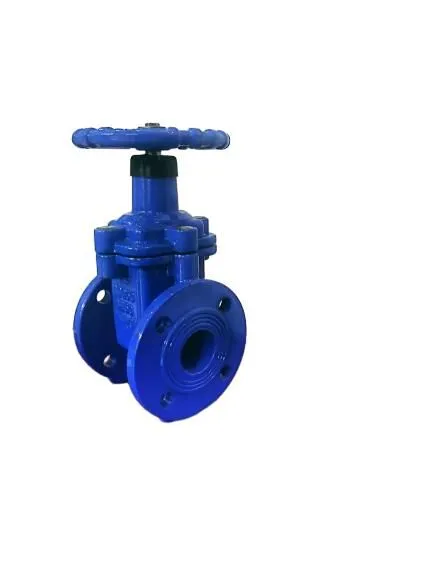

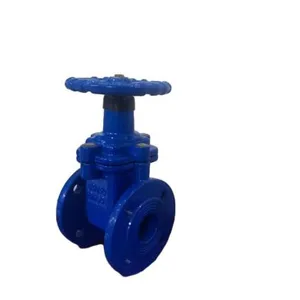

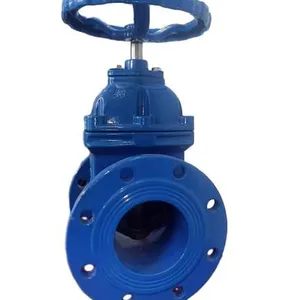

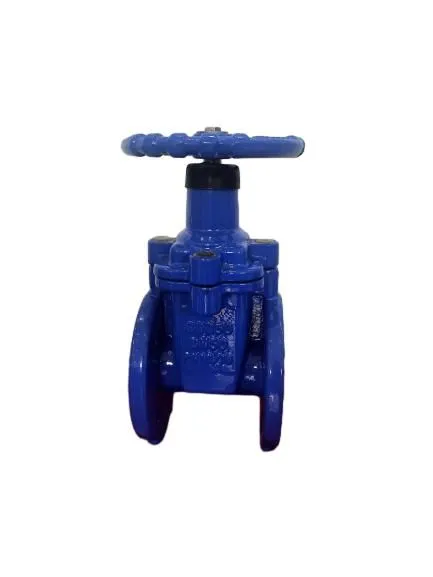

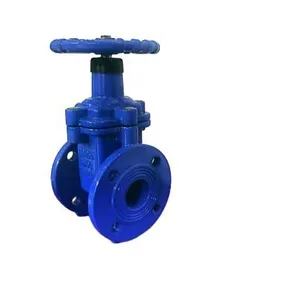

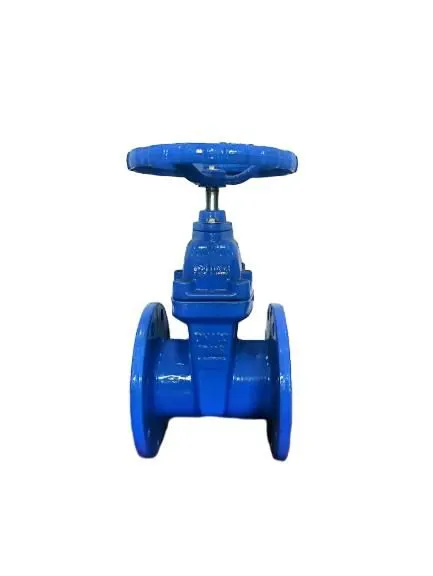

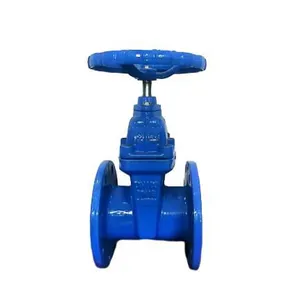

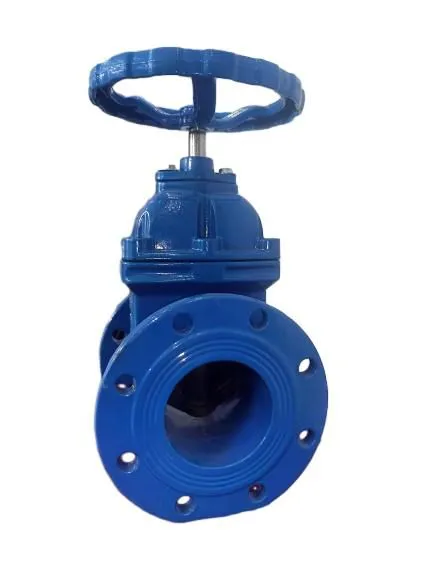

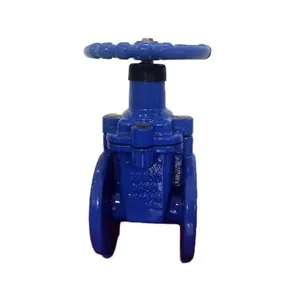

Help CenterResilient Gate Valve Cast Iron Bonnet & Bronze Wedge Ring Suitable for Fire Protection Systems
Related Products
-
Heavy-Duty Resilient Gate Valve 2"-12" Face-to-Face DIN 3202 F5 for Oilfield Auxiliary PipesNegotiableMOQ: 1 Piece -
Industrial-Grade DIN F4 Metal Seat Gate Valve (2"-12") PN10/PN16 With Ductile Iron BodyNegotiableMOQ: 1 Piece
-
DIN F4 Metal Seat Gate Valve: Bronze B62 Seat + SS304 Stem, Meets DIN 3352 DesignNegotiableMOQ: 1 Piece
-
High-Strength DIN F4 Metal Seat Gate Valve – Cast Iron Disc & Graphite Packing (F2-F5 F2F)NegotiableMOQ: 1 Piece
-
DIN F4 Metal Seat Gate Valve With Brass Wedge Ring & Stem Nut, 2"-12" Size for Chemical PlantsNegotiableMOQ: 1 Piece
DIN F4 Resilient Gate Valve: A Premier Solution for Industrial Applications
DIN F4 resilient seat Gate Valve Standard:
Production Size:2"-12"
Pressure range:PN10,PN16
Design Standard:DIN3352
Face to Face:DIN 3202 F4,F5
Flange Standard:DIN 2501/2 EN 1092
Testing Standard:EN 12226/ISO5208
DIN F4 resilient seat Gate Valve main material of parts:
Body:Ductile Iron/Cast Iron
Bonnet:Ductile Iron/Cast Iron
Stem:2Cr13/SS304/SS316/Carbon Steel
Stem Nut:brass
Wedge Ring:Bronze B62/Brass
Disc:Ductile Iron/Cast Iron
Seat:EPDM
Bonnet Gasket:Graphite
Packing:Graphite
Hand wheel:Ductile Iron/Cast Iron
Overview
The DIN F4 Resilient Gate Valve is a high - performance valve specifically designed for industrial use. Compliant with the rigorous EN 12226/ISO5208 testing standards, this valve offers reliability and durability in a wide range of industrial settings. It is a product of Chengxin Valve Co., Ltd., a well - established manufacturer since 1993. With a strong export record of US$1 Million - US$1.5 Million, the company has a significant presence in major markets such as South America, Eastern Europe, Africa, and the Mid East.
Material and Construction
Material: This gate valve is crafted from cast iron, a material known for its excellent strength and corrosion resistance. Cast iron provides a robust structure that can withstand high - pressure environments commonly found in industrial applications. It also offers long - term durability, reducing the need for frequent replacements.
Resilient Design: The valve features a resilient design that ensures a tight seal, preventing leakage even under extreme conditions. The resilient components are carefully engineered to maintain their integrity over time, providing consistent performance.
Technical Specifications
Standard Compliance: The DIN F4 Resilient Gate Valve adheres to the DIN standard, which is widely recognized for its quality and precision in valve manufacturing. Additionally, it meets the EN 12226/ISO5208 testing standards, which ensure that the valve operates safely and efficiently in various industrial scenarios.
Size and Dimensions: Available in a variety of sizes, the valve can be customized to fit different pipeline requirements. The precise dimensions are designed to ensure easy installation and compatibility with existing industrial systems.
Application
Industrial Usage: This valve is primarily intended for industrial applications where the control of water flow is crucial. It can be used in water treatment plants, power generation facilities, and manufacturing plants. In water treatment plants, it helps regulate the flow of water during the purification process. In power generation, it controls the water supply for cooling systems.
Media Compatibility: The valve is designed to handle water as the media. Its internal components are resistant to the corrosive effects of water, ensuring a long service life even when in constant contact with this medium.
Quality Assurance
Production Certification: Chengxin Valve Co., Ltd. holds important production certifications such as ISO9001, ISO14000, and OHSAS18001. These certifications demonstrate the company's commitment to quality management, environmental protection, and occupational health and safety.
Testing Procedures: Each DIN F4 Resilient Gate Valve undergoes a series of strict testing procedures to ensure it meets the specified standards. These tests include pressure testing, leakage testing, and performance testing under different operating conditions.
Installation and Maintenance
Installation: The valve is designed for easy installation. It comes with clear installation instructions, and its standardized dimensions make it compatible with most industrial pipelines. Professional installation is recommended to ensure optimal performance.
Maintenance: Maintenance requirements for the DIN F4 Resilient Gate Valve are relatively low. Regular inspections should be carried out to check for any signs of wear or damage. Simple maintenance tasks such as lubrication of moving parts can help extend the valve's service life.
Company Background
Chengxin Valve Co., Ltd. has been in the valve manufacturing business since 1993. With a team of 1 - 10 experienced sales representatives, the company is committed to providing high - quality products and excellent customer service. The presence of overseas offices further enhances its ability to serve international customers effectively.
If you are looking for a reliable and high - performance gate valve for your industrial needs, the DIN F4 Resilient Gate Valve is an ideal choice. Its compliance with international standards, robust construction, and wide range of applications make it a valuable addition to any industrial system.
