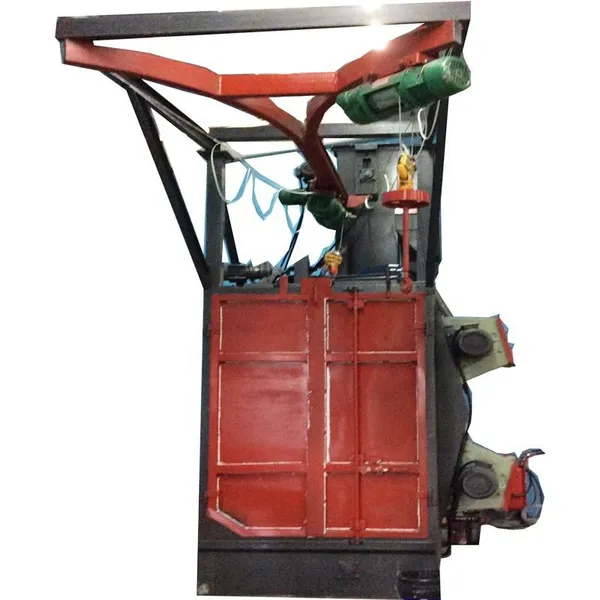

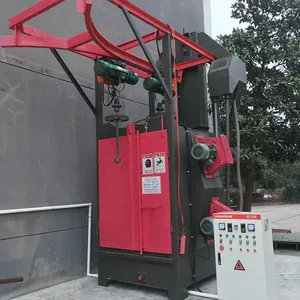

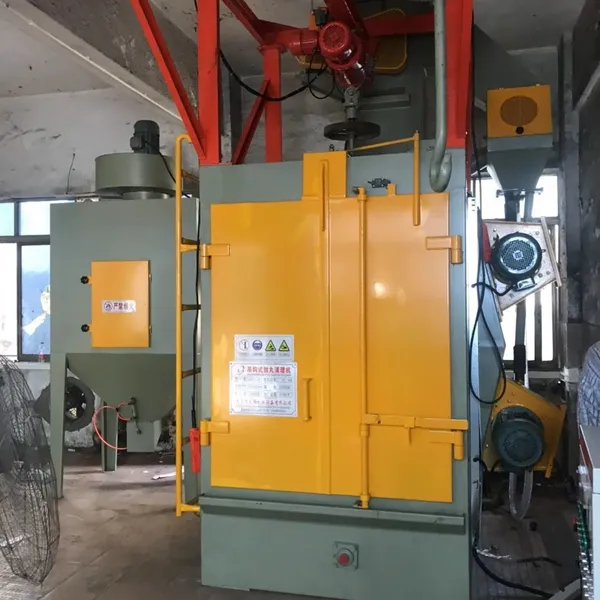

Help CenterQ37 Series Hook Type Shot Blasting Machine Integrated Without Pit, Customized According to Needs, After-sales Guarantee
Related Products
-
Crawler Type Shot Blasting Machine, Single and Double Hook Type Sanding Machine, Shot Blasting Cleaning MachineUS$ 30000MOQ: 1 Carton -
Single and Double Hook Shot Blasting Machine, Large Automatic Sandblasting Machine, Cleaning and Rust Removal EquipmentUS$ 7000 - 7500MOQ: 1 Barrel
-
Fitness Equipment Components - Slender Rods Shot Blasting EquipmentUS$ 10000MOQ: 1 Set
-
Yancheng Ruigang Machinery Co., Ltd Double Hook Explosion-proof Shot Blasting MachineUS$ 10000MOQ: 1 Set
-
Double Hook Explosion-proof High-speed Rotating Shot Blasting MachineUS$ 10000MOQ: 1 Set

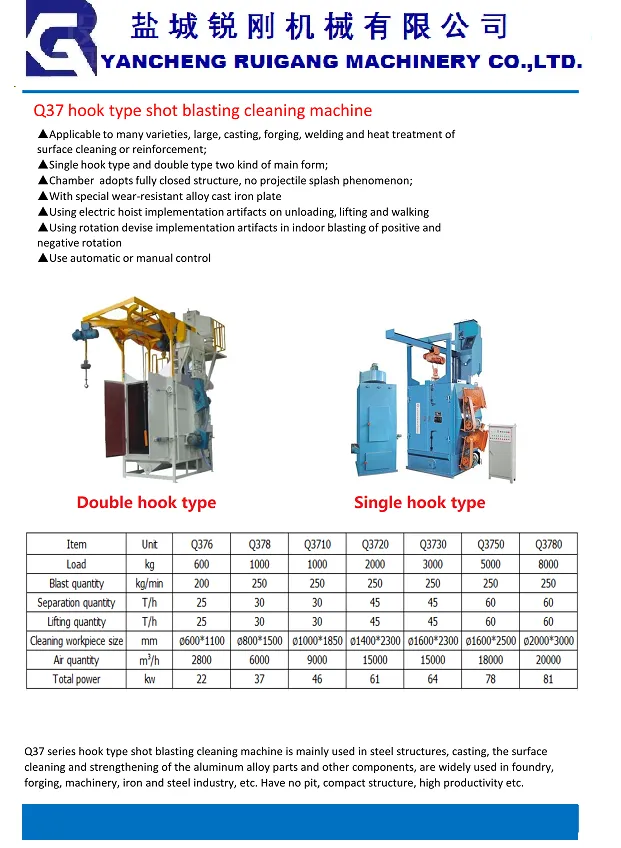

Hook shot blasting machine is a hook type cleaning equipment, mainly composed of a shot blasting cleaning room, a hoist, a separator, a screw conveyor, two shot blasting wheel assemblies, a shot control system, a hook walking track, a hook system, a rotation device, a foundation, a dust removal system, and an electrical control part, including models Q376, Q378, Q3710, Q3720, etc
The diameter range of the working cylinder of the equipment is Φ 900- Φ 1300 millimeters, with a maximum bearing capacity of 10000 kilograms and a single cleaning cycle of 5-7 minutes. It is suitable for surface treatment of castings, forgings, weldments, and wind power equipment components
.
This equipment uses 0.2-0.8mm pellets for shooting, with a shot blasting capacity of up to 2 * 220kg/min (Q3720 model parameters), equipped with the fourth generation cantilever centrifugal shot blasting device and a pit free structural design
Some models integrate intelligent control systems with temperature and humidity monitoring functions, which can meet the requirements of constant temperature and humidity processes in the wind power industry
The core components adopt a double hook design to improve work efficiency, and the workpiece is cleaned in all directions through the hook rotation device
How much is the hook type shot blasting machine?
The price range of hook type shot blasting machines is relatively wide, and the specific price depends on factors such as model, configuration, and function. Here is the price information for some models:
Q376 hook type shot blasting machine: approximately 30000 to 50000 RMB,CHINESE YUAN.
Q378 hook type shot blasting machine: approximately 50000 to 80000 RMB,CHINESE YUAN.
Q3710 hook type shot blasting machine: approximately 60000-80000 RMB,CHINESE YUAN.
Q3720/Q3730 hook type shot blasting machine: approximately 80000 to 120000 RMB,CHINESE YUAN.
Q3750 hook type shot blasting machine: approximately 100000 to 200000 RMB,CHINESE YUAN.
YQ-1012/2/7.5 Double Hook Shot Blasting Cleaning Machine: RMB 112222.00,CHINESE YUAN.
In addition, there may be different configurations of hook type shot blasting machines provided by other manufacturers, and the prices may vary. For example, the Q376 hook type shot blasting machine from Yancheng Ruigang Machinery Co., Ltd. is quoted wholesale starting at 36000.00 yuan. If you need a more accurate quotation, it is recommended to contact the manufacturer or supplier directly for detailed information.
How many years can a hook type shot blasting machine generally last, and is the maintenance cost high?
More than 10 years
The service life of a hook type shot blasting machine can usually reach more than 10 years, depending on the equipment quality, usage environment, and maintenance situation.
The service life of shot blasting machines is affected by various factors.
Firstly, the quality of the equipment is crucial. Machines made of high-quality materials that are wear-resistant and corrosion-resistant are usually better able to resist wear and extend their service life.
Secondly, the usage environment also has a significant impact on the service life of shot blasting machines. Shot blasting machines usually work in harsh environments such as high temperature, high humidity, and high dust. If the machine is not well protected and maintained during use, it is easy to cause damage and malfunction, thereby shortening its service life.
In addition, regular maintenance is crucial for extending the service life of shot blasting machines, including regular inspection and cleaning of equipment, replacement of worn parts, and timely repair of mechanical failures.
Regarding maintenance costs, Yancheng Ruigang Machinery Co., Ltd. can infer that if high-quality machines are selected, a good operating environment is provided, and regular maintenance is carried out, the service life of shot blasting machines can reach more than 10 years, or even longer. This indicates that reasonable maintenance can effectively control maintenance costs.
However, as shot blasting machines are fragile equipment, maintenance costs may increase due to equipment wear and component replacement. The specific maintenance cost needs to be determined based on actual usage and the recommendations of the equipment manufacturer.
