Description

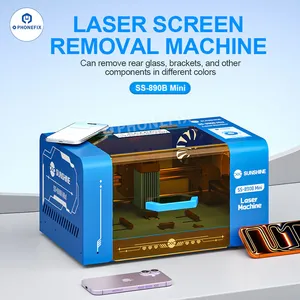

SUNSHINE SS-890B Mini Laser Screen Removal Machine for iPhone X-17 Back Cover Glass/Screen Bracket Removal. Sunshine SS-890B Mini Laser Machine used with fume extractor smoke absorber to remove the iPhone rear glass, LCD screen brackets and other phone components. Precise and automatic positioning, no damage to the mobile phones, suitable for disassembling and repairing mobile phone iPhone back glass and screen brackets.
Option:

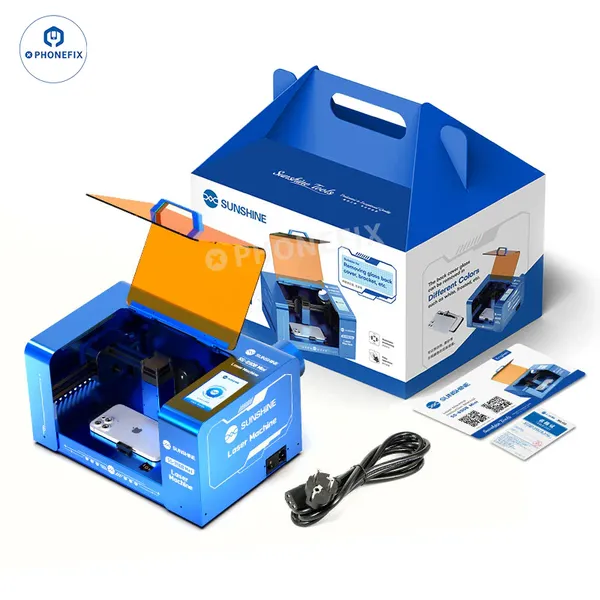

1. SUNSHINE SS-890B Mini Laser Machine.

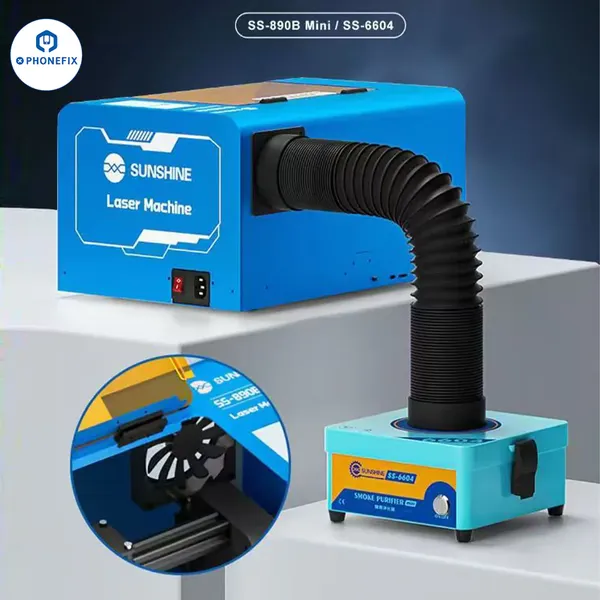

2. SUNSHINE SS-890B Mini Laser Machine with SS-6604 Fume Extractor.
SS-890B Mini Laser Machine Features:
1. Large Working Area: 174x87mm working area, compatible with a wide range of popular and mainstream models.

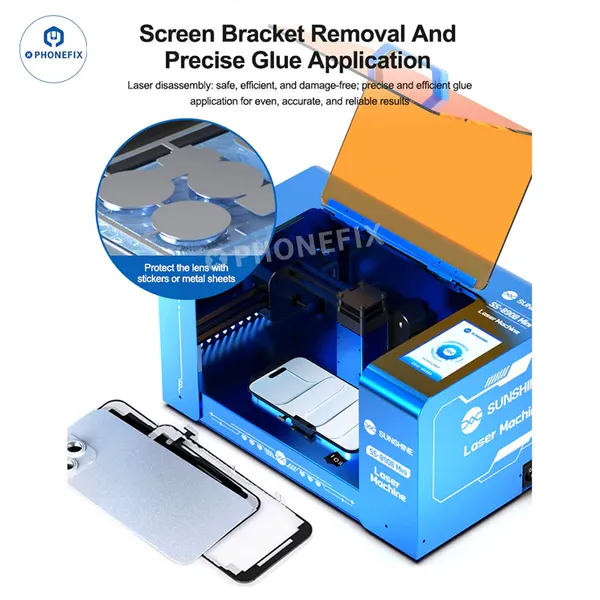

2. Precision Laser Disassembly: Laser disassembly is safe, efficient, and damage-free, ensuring a precise and rapid disassembly process.
3. Automatic Precision Positioning: Automatically positions and secures the phone, eliminating manual operation and improving disassembly accuracy.
4. Multi-Color Adaptability: Supports the removal of back glass in various colors, including white and frosted.
5. High-Definition Touchscreen: Equipped with a smart, high-definition touchscreen, the machine offers a sensitive touchscreen, allowing you to browse through large drawings with a single touch, enhancing the user experience.
6. Visual Design: A transparent, light-filtered work chamber allows for real-time observation of work progress, ensuring eye safety.
7. Rapid Exhaust System: A rear-mounted fan design provides rapid exhaust and can be connected to an external fume extraction system to maintain a clean working environment.
8. Intelligent Drawing Update: Supports IPX-17PM series, ensuring continuous drawing updates and enhancing the machine's usability.
SS-890B Mini Laser Machine Specifications:
Product Name: SUNSHINE SS-890B Mini Laser Screen Removal Machine
Working Range: 174 x 87 mm

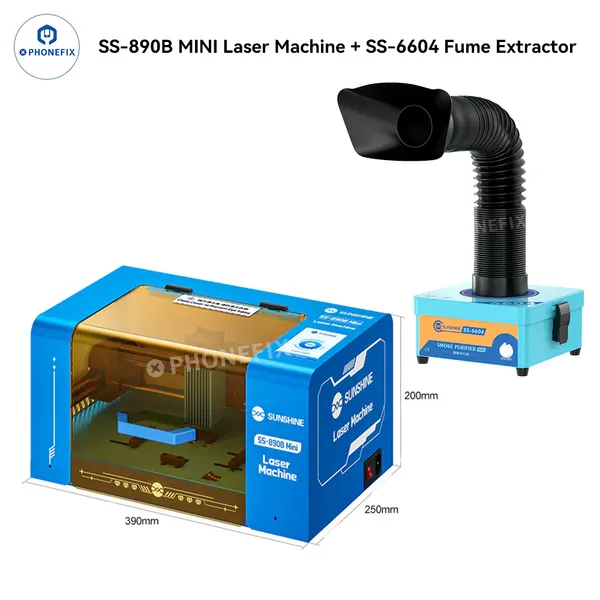

Dimensions: 390 x 250 x 200 mm
Packaging Dimensions: 450 x 310 x 270 mm
Net Weight: 7.39 kg
Gross Weight: 9.2 kg
SS-6604 Fume Extractor Specifications:
Model: SUNSHINE SS-6604 Smoke Purifier
Power: 10W
Voltage: 110V-220V
Current: 1.5A
Bamboo Tube Dimensions: Telescopic Tube 230mm, Extended 800mm
Packaging Dimensions: 275x260x143mm
Net Weight: ≈1.1kg
Gross Weight: ≈1.6kg
Main Unit Dimensions: 165x155x105mm
Installation: Main Unit x1, Power Cord x1, Universal Bamboo Tube x1, Flange x1, Diamond-Shaped Smoke Hood x1, Primary Filter x1 + Activated Carbon Filter x1, Instruction Manual x1
