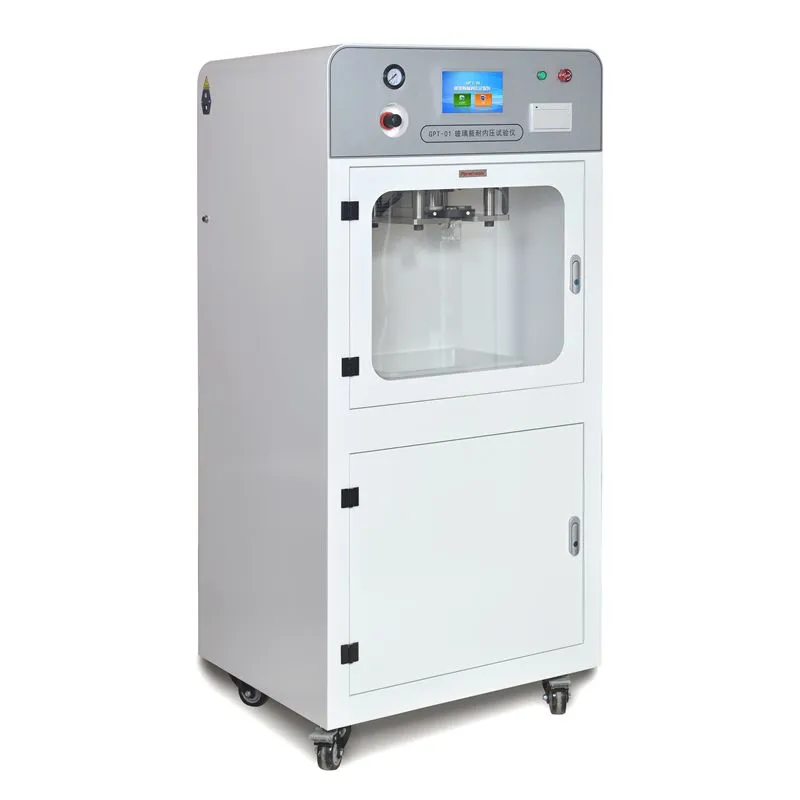

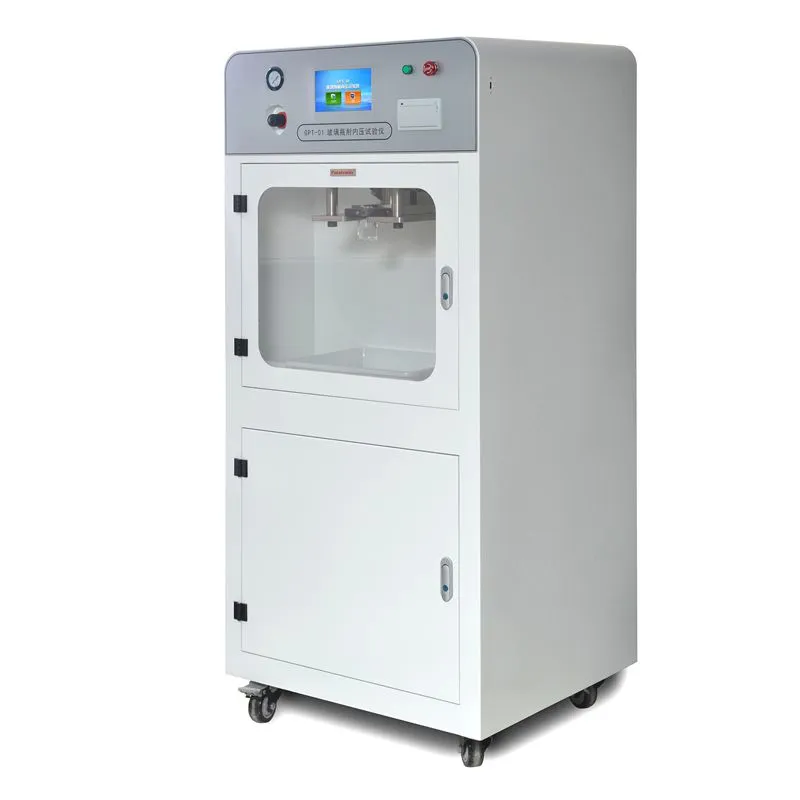

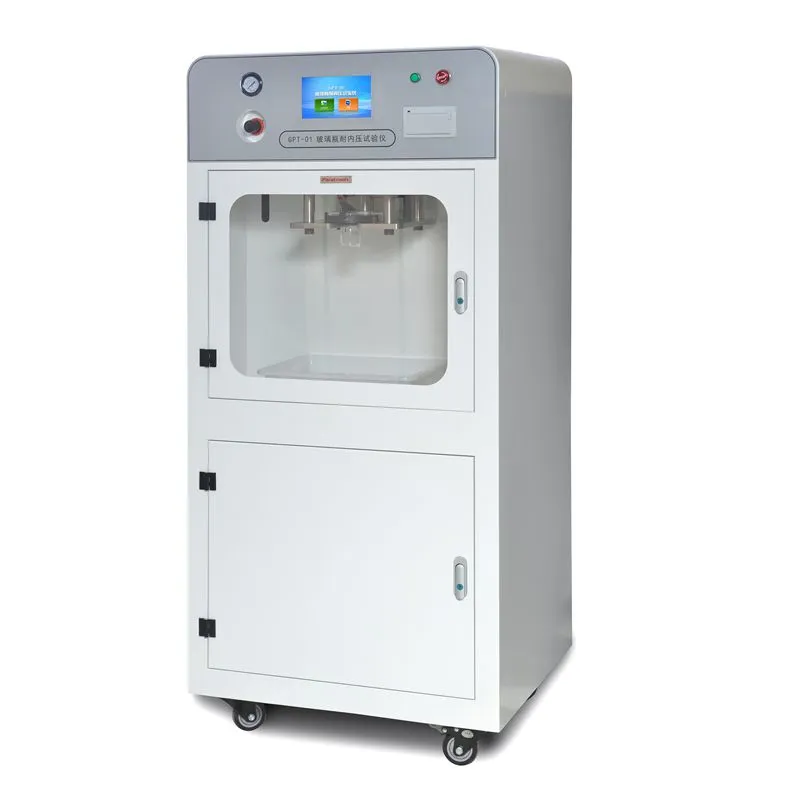

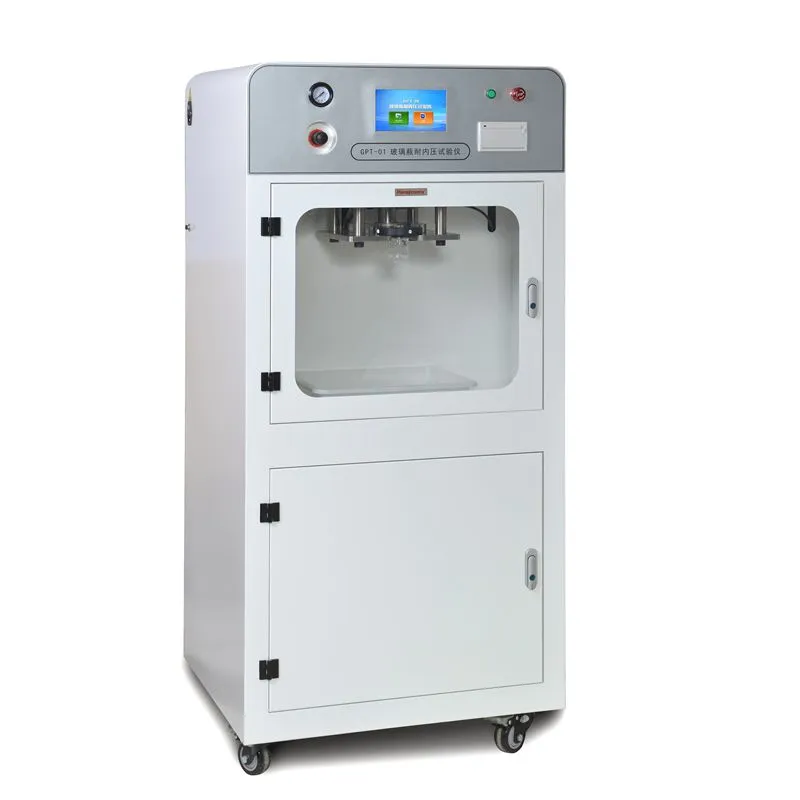

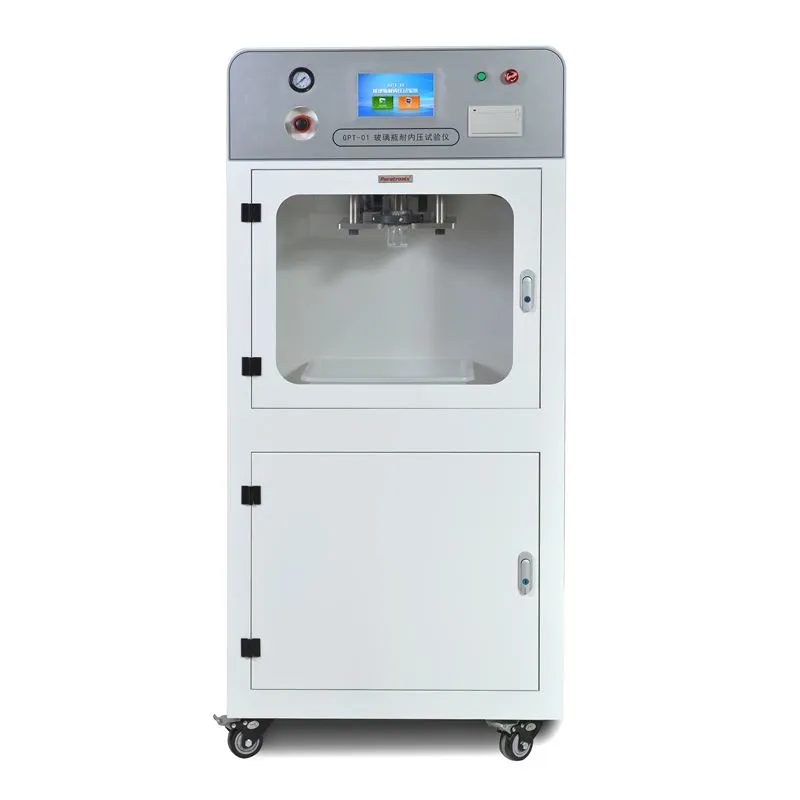

Automatic glass bottle internal pressure tester
Product introduction
GPT-01 automatic glass bottle internal pressure tester is designed and produced according to ASTM C147-76 (reviewed in 81) method B (linear pressurization method) of the American Society for Materials, in line with GB/T 4546-2008 "Glass container internal pressure test method". National standard YBB00172003-2015 "internal pressure test method" and ISO/CD7458 "Glass container internal pressure test method" international standards. It is mainly used for the internal pressure test of glass beer bottles, soda bottles, cola bottles and glass infusion bottles
Check.
Product characteristics
1. High test accuracy, large range, the maximum test pressure is 6.00Mpa.
2. High test speed, the pressure increasing time for each test bottle is not more than 10 seconds, and for ordinary tests it is about 4 seconds (the end point, the pressure is 1.60Mpa).
3. High degree of automation, easy to use, automatic fault detection and common fault prompts and equipped with a printer.
4. High reliability. Advantages of foreign products, key materials, components using imported parts.
5. This tester is suitable for glass bottle factory, beer brewery, beverage factory and relevant quality inspection department to batch glass bottles.
Product parameter
1.Measuring pressure range: 0.50 ~ 6.0Mpa
2.Number of workstations：2
3.Pressure resolutions: 0.01MPa
4.Pressure test error: less than 1.5% F.S
5.Test bottles per minute: about 5 ~ 10 pieces
6.Boost rate errors: less than 5%
7.bottle clamp diameter: 24 ~ 29mm (other specifications need to be customized)
8.Ambient temperature ranges: 0 to 40 ° C
9.Ambient humidity ranges: less than 95% relative humidity
10.Power supply voltage range: 220 VAC ± 5% (grounding must be good)
11.10 Air pressure 0-0.8mpa User provided (pressure boost rate can meet 0.4MPa/s± 0.1MPa /s, 0.58MPa/s± 0.1MPa /s, 1.0MPa/s±0.2MPa/s)
12.Security protections
