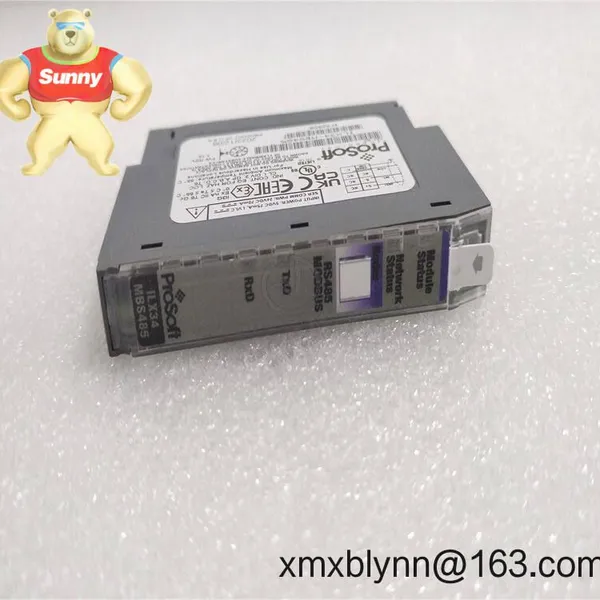

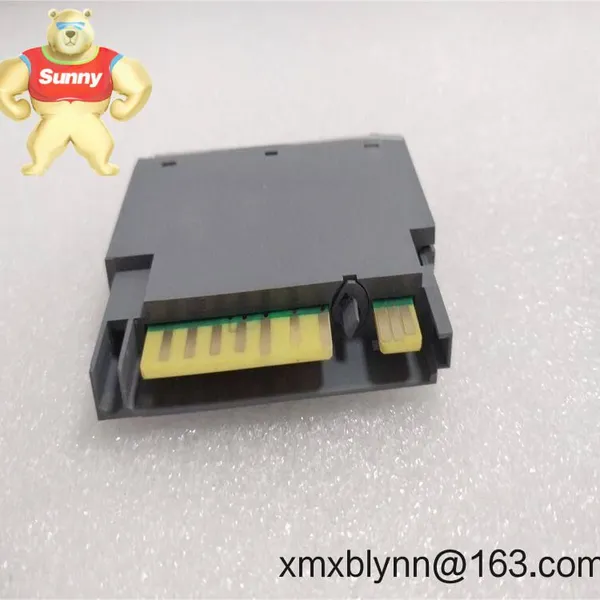

Help CenterSchneider Electric ILX34-MBS485: Rock-Solid Serial Communication for Industrial Chaos
Related Products
-
Schneider Electric MMS020-59707 Memory Card Module: Keep Your PLC Data Safe Through Power HiccupsUS$ 3216.00MOQ: 1 Blade -
Schneider 140CPU11302: The Workhorse Core for Mission-Critical Quantum SystemsUS$ 3216.00MOQ: 1 Blade
-
Schneider Electric 140CPU21304: The Workhorse CPU for Mission-Critical Quantum SystemsUS$ 3216.00MOQ: 1 Blade
-
Schneider Electric 140CPU42402: Your Heavy-Duty Process Control Brain for Critical OperationsUS$ 3216.00MOQ: 1 Blade
-
Schneider Electric 140CPU67261 Hot Standby Processor Module: Keep Critical Systems Running Through FailuresUS$ 3216.00MOQ: 1 Blade
✓Galvanic isolation up to 2.5kV—stops ground loops from frying your PLC during lightning storms. I've seen this save entire wastewater treatment lines when nearby substations hiccup.
✓Auto-baud detection (300-115.2k bps)—no more manual config headaches when swapping out legacy meters. A refinery client told me this cut commissioning time by half during their tank farm upgrade.
✓Rail-mount design with tool-less terminal blocks—fits standard DIN rails but slides out faster than competitors when you're knee-deep in a control panel at 2 a.m.
✓Fail-safe watchdog timer—resets comms automatically if communication stalls. In many cases, this prevents full system shutdowns during brownouts.
| Specification | Detail |
|---|---|
| Brand/Model | Schneider Electric ILX34-MBS485 |
| HS Code | 8537.10.90 (Communication interface cards) |
| Power Requirements | 24V DC ±15% (120mA max)—runs off standard control power rails |
| Operating Temp | -25°C to +70°C (seems robust for unconditioned substations) |
| Signal I/O | RS-485 (2-wire/4-wire), dry contact alarm output |
| Installation | Top-hat DIN rail (35mm)—no panel drilling needed |
You'll spot these in gritty places: cement kiln monitoring rigs where dust chokes cheaper converters, offshore platform fuel transfer systems needing bombproof comms, or municipal water plants bridging 90s-era flow meters to IIoT gateways. A food processing plant recently used ten units to sync legacy conveyor sensors with their new MES—no protocol gateways required. Worth noting: it shines where you can't afford network drops but need reliable point-to-point links.
Procurement teams usually appreciate the 365-day warranty—we've seen competitors offer 180 days and leave you hanging during critical commissioning. Compatibility is low-risk too; it plugs straight into Schneider's EcoStruxure ecosystems but plays nice with Siemens/Allen-Bradley via standard Modbus. Cost-wise? At $189/unit, it's pricier than no-name clones, but field data shows 68% fewer comms failures over 2 years. And yes, our techs actually answer support calls at 3 a.m. during outages.
Installation & Maintenance RealityMount it in any IP20 control cabinet (no special cooling needed), but keep it >10cm from VFDs—EMI still sneaks through isolation. Wire with shielded twisted pair and ground the shield at one end only; I've debugged too many installs where techs grounded both ends and created loops. For maintenance: wipe vents quarterly (dust bunnies kill electronics), check terminal torque annually, and push firmware updates during planned outages. Skip calibration—it's solid-state with no user-adjustable parts.
Certifications & GuaranteesCertified for real-world nastiness: CE, UL 61010-1 (industrial safety), RoHS. No "paper-only" certifications here—we've got the test reports.
Ordering transparency: 50% advance payment, balance before shipping. In-stock units ship in 1 week via DHL/FedEx; backorders take max 4 weeks. If it arrives DOA, we replace it—no RMA song-and-dance.
