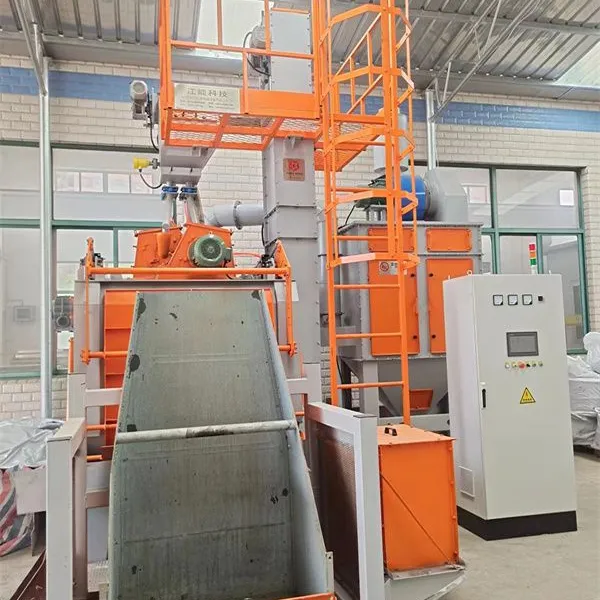

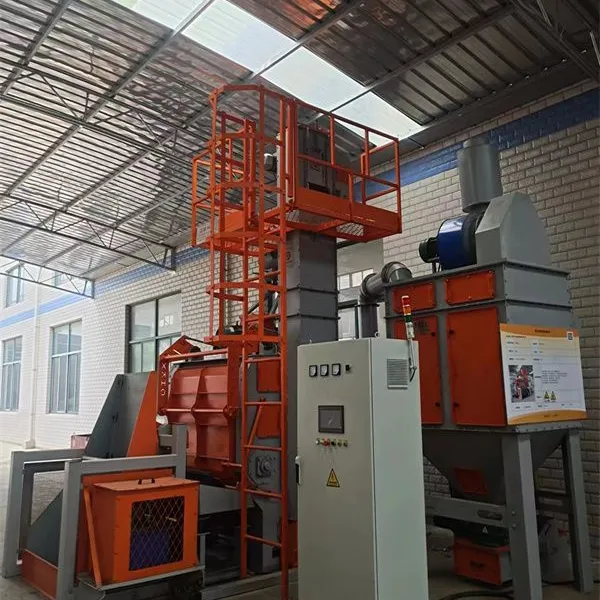

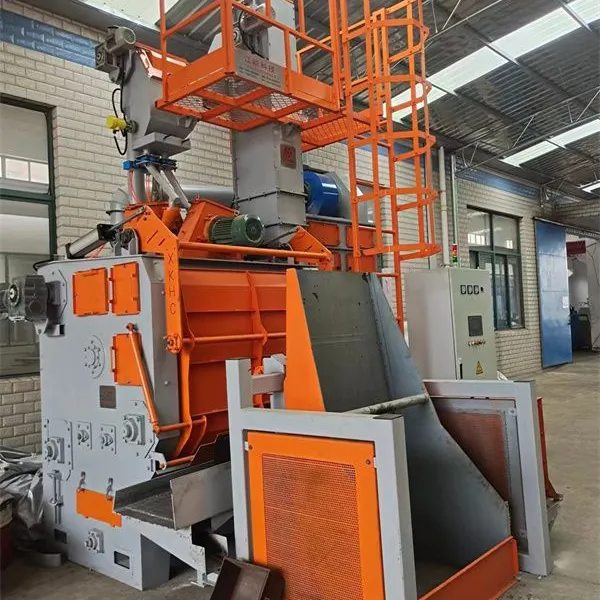

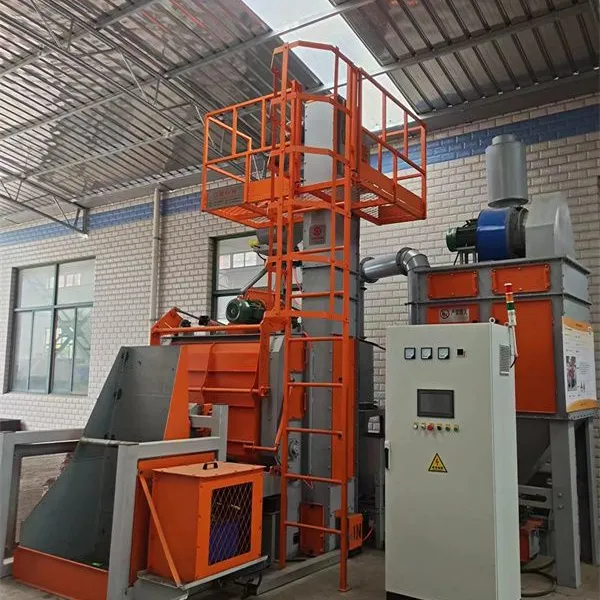

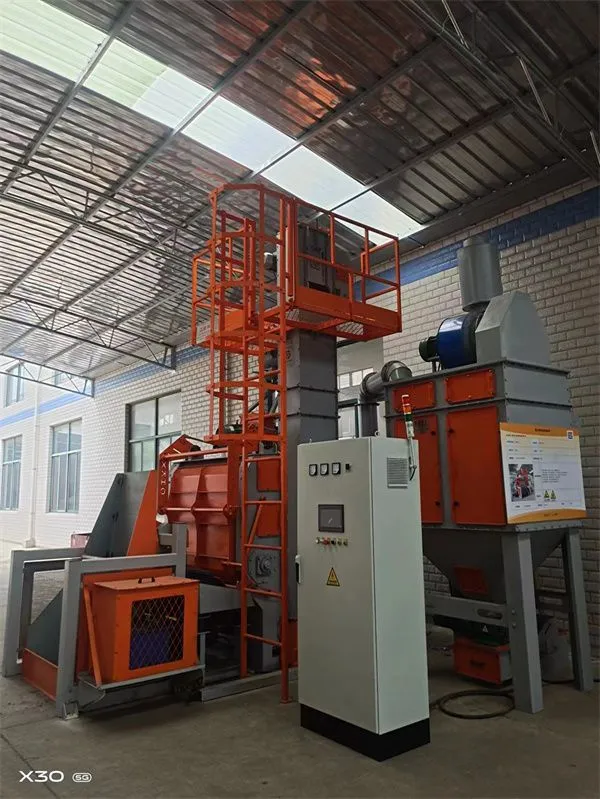

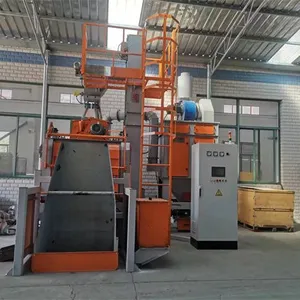

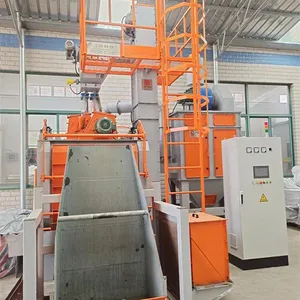

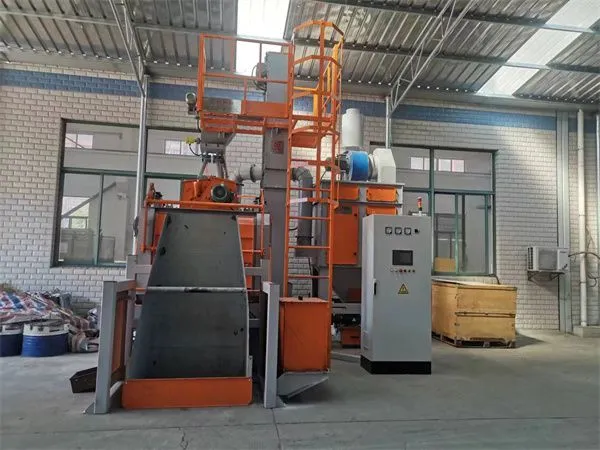

Automatic loading and unloading shot blasting machine is a highly automated industrial equipment widely used in surface treatment in various fields.
Its main function is to remove dirt, oxide layers, and other substances on the surface of the workpiece through high-speed abrasive spraying, in order to achieve the goals of removing surface rust, increasing surface roughness, and improving adhesion.
Generally speaking, an automatic loading and unloading shot blasting machine consists of five parts: feeding system, cleaning system, shot blasting system, chip removal system, and discharge system.
Among them, the feeding system is used to send the workpiece into the shot blasting room, the cleaning system is used to clean the dirt on the surface of the workpiece, the shot blasting system is used for shot blasting processing, the chip removal system is used to remove the abrasive and workpiece residue after shot blasting, and the discharge system is used to remove the completed workpiece after shot blasting processing.
When using an automatic loading and unloading shot blasting machine, the first step is to place the workpiece to be processed in the feeding system and send it into the shot blasting room through the automatic loading device.
In the shot blasting chamber, the workpiece is fixed on a rotating workpiece frame, and the shot blasting machine is driven by a pneumatic device to spray abrasive at high speed, removing dirt and oxide layers on the surface of the workpiece.
The cleaning system is used to clean the dirt on the surface of the workpiece before shot blasting, which has a better shot blasting effect.
The chip removal system is used to clean the abrasive and workpiece residue generated after shot blasting, in order to maintain the cleanliness of the shot blasting chamber.
Remove the processed workpiece from the discharge system through an automatic feeding device.
Compared to traditional manual shot blasting, automatic loading and unloading shot blasting machines have the following advantages:
1. High degree of automation.
The automatic loading and unloading shot blasting machine can achieve various automated operations such as automatic loading and unloading, automatic cleaning, and automatic shot blasting of workpieces, reducing the cost and risk of manual operations, and improving work efficiency and processing quality.
2. Good shot blasting effect.
The automatic loading and unloading shot blasting machine uses high-speed abrasive spraying for processing, which can fully remove dirt and oxide layers on the surface of the workpiece, improve surface quality and adhesion, and also increase surface roughness, making it easier for the workpiece to undergo subsequent treatment and coating.
3. Wide application range.
The automatic loading and unloading shot blasting machine is suitable for surface treatment of various materials, including cast iron, steel, copper, aluminum, zinc, stainless steel, etc. It can be used for surface treatment of automotive parts, mechanical equipment, steel structures, bridges, and other fields.
Overall, the automatic loading and unloading shot blasting machine is a *, precise, and stable surface treatment equipment that can greatly improve work efficiency and processing quality.
In future industrial production, its application will become increasingly widespread and indispensable as an important equipment.
The crawler shot blasting machine is a highly efficient industrial cleaning device, primarily utilized for removing rust, oxide scale, and other impurities from the surfaces of metal workpieces. It achieves cleaning and strengthening effects by projecting abrasive pellets onto the workpiece surface through high-speed rotating blast wheels. This article will elaborate on the crawler shot blasting machine from two perspectives: its selling points and functional features.Firstly, the selling points of the crawler shot blasting machine are mainly reflected in its efficiency and versatility. 1. Efficient Cleaning: The equipment operates in a continuous mode, ensuring high cleaning efficiency and enabling rapid surface treatment of large batches of workpieces. 2. Structural Stability: The crawler design ensures smoother operation, minimizing vibrations and noise. 3. High Automation Level: Modern crawler shot blasting machines are typically equipped with automated control systems, enabling unmanned operation and enhancing production efficiency.
