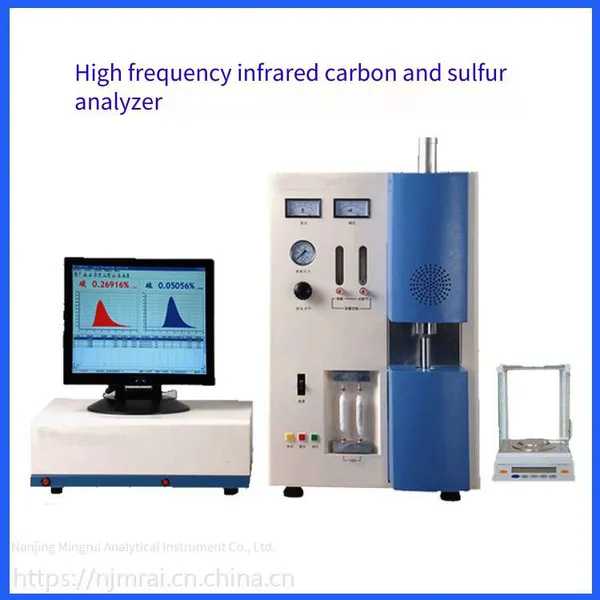

Help CenterSupply of Electric Carbon Products Carbon and Sulfur Analyzer, Mingrui mr - Cs995 Type, High - Frequency Infrared Carbon and Sulfur Analyzer
Related Products
-
Supply of Lead and Mercury Harmful Substance Detector, Mingrui Edx8300h Energy Dispersive X-ray Fluorescence SpectrometerUS$ 44307.69 - 50461.54MOQ: 1 Unit -
Supply of Solder Atomic Absorption Spectrometer, Mingrui Aa2630 Model, Solder Bar Atomic Absorption SpectrometerUS$ 10461.54 - 13230.77MOQ: 1 Unit
-
Supply of Alumina Ceramic Circuit Board Detector, Mingrui Model Aa2630 Atomic Absorption SpectrometerUS$ 12000 - 15076.92MOQ: 1 Unit
-
Supply of Daily-use Fine Porcelain Material Analyzer, Mingrui Aa2630 Model, Ceramic Product Material AnalyzerUS$ 13538.46 - 16615.38MOQ: 1 Unit
-
Supply of Precious Metal Electroplating Spectral Analyzer, Model Aa2630 Atomic Absorption SpectrometerUS$ 11692.31 - 13230.77MOQ: 1 Unit
Nanjing Mingrui MR-CS995 type Carbon and Sulfur Analyzer for Electric Carbon Products uses a high-frequency induction heating furnace to burn samples and the infrared absorption method to test the mass fractions of carbon and sulfur in the samples. It can quickly and accurately determine the mass fractions of carbon and sulfur in steel, iron, alloys, casting core sand, non-ferrous metals, cement, ores, coke, catalysts and other materials. It is a high-tech product integrating optics, mechanics, electricity, computers and analysis technology, with the characteristics of wide measurement range, strong anti-interference ability, complete functions, simple operation, accurate and reliable analysis results, etc. Tel: 18651882886 (WeChat ID).
Carbon and Sulfur Analyzer for Electric Carbon Products Technical Specifications and Indicators
1. Basic Parameters: Instrument Performance and Accessories
Elements to be Determined: Simultaneous determination of carbon and sulfur
Analysis Principle: High-frequency furnace combustion - Infrared absorption method detection
Analysis Range: Carbon: 0.0005% - 6.0000% (can be extended to 99.999%), Sulfur: 0.0005% - 0.3500% (can be extended to 99.999%)
Sample Weighing (Solid Steel Standard): Standard 0.5g
Analysis Precision: Carbon: Complies with ISO9556 standard; Sulfur: Complies with ISO4935 standard
Sensitivity (Reading): C/S: 0.1ppm
Analysis Time: Adjustable from 20 - 100 seconds (usually 35 seconds)
High-frequency Induction Heating Furnace:
1. High-frequency furnace output power: 2200W; Frequency: 20MHz
2. Automatic leak detection, over-time and over-current alarm
3. Adjust the furnace temperature by current/voltage/power/selection method: Suitable for samples of different materials
4. Gas Path: High-precision flow controller ensures stable gas flow and imported gas path system
Dust Filter: 0.4 micron ultra-microporous metal filter to ensure complete separation of dust and gas
Furnace Head Heating: Improves the conversion rate of sulfur and stabilizes the sulfur analysis results
Dust Removal System: Automatic cleaning: Reduces the influence of dust on the analysis results
Ash Discharge System: High-pressure ash discharge to remove dust in the pipeline
Detection System:
1. Circuit Design: The whole machine adopts a modular design of dual CPUs for the upper and lower computers. The lower computer selects Atmega162 as the control single-chip microcomputer. The electronic circuit is highly integrated, stable and reliable;
2. Sampling: Uses a high-speed 24-bit ADS1224 sampling chip with high sampling precision;
3. Communication: The upper and lower computers communicate through the USB2.0 interface, which improves the communication speed; Connection: The infrared detection part is connected to the high-frequency furnace via high-speed optical fiber, and is paired with a multi-stage concealed isolation circuit.
5. Power supply: An industrial-grade integrated linear module power supply with stable output.
6. Light source: A platinum infrared light source with continuous heat generation and high spectral characteristic efficiency.
7. Analysis cell: A gold-plated carbon-sulfur analysis cell and a high-precision pyroelectric infrared detector.
2. Analysis software
(1). Operating software: Compiled with Deliph software, it is a fully Chinese-operated software for WINDOWS XP.
(2). Analysis channels: It provides channel management functions. Carbon and sulfur channels can be added, deleted, and edited without any quantity restrictions.
(3). Analysis function: Dynamic data integration during the analysis process, with sampling at 20 times per second, improving the sensitivity and accuracy of the analysis.
(4). It provides sample management functions, allowing editing of sample names and identifiers, as well as adding and deleting sample names.
(5). The software provides a multi-user management system, where administrators can set different user permissions.
(6). Display function: One curve box for carbon and one for sulfur, dynamically displaying real-time data during the analysis process and the release curves of carbon and sulfur.
(7). Data processing function: Analysis results are stored in the ACCESS database, capable of storing all data and curves of each carbon-sulfur analysis.
(8). Analysis results can be queried at will, and queries can be made based on multiple aspects such as time, operator, sample name, and identifier.
(9). It provides multiple functions such as curve/data storage, blank deduction, parameter setting, channel selection, mathematical statistics, result correction, and curve comparison.
(10). The generation of carbon-sulfur working curves can be realized in the software, and curve fitting can be performed.
(11). Printing function: There are diverse printing modes, offering two printing modes for the laboratory and the testing station, and the printing format can be designed independently.
(12). Self-diagnosis function: A system diagnosis function that can detect the airtightness of the furnace head and the gas chamber through the software.
