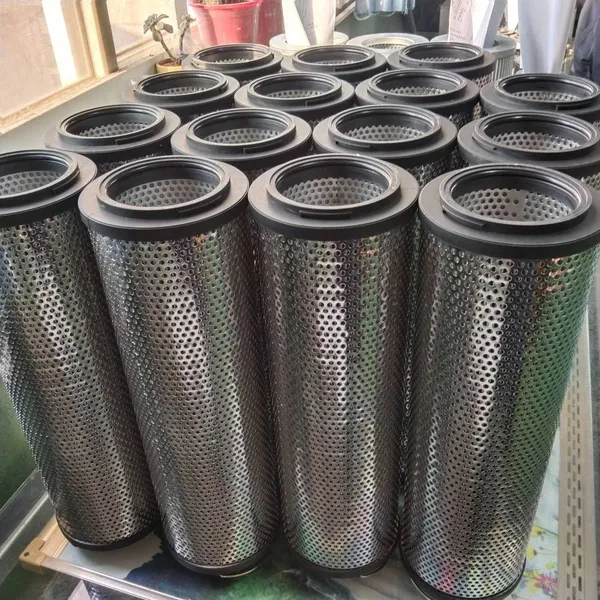

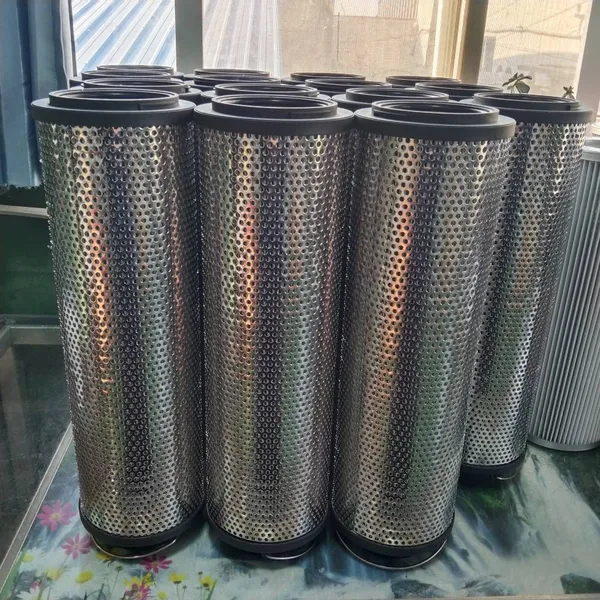

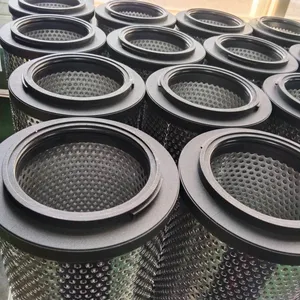

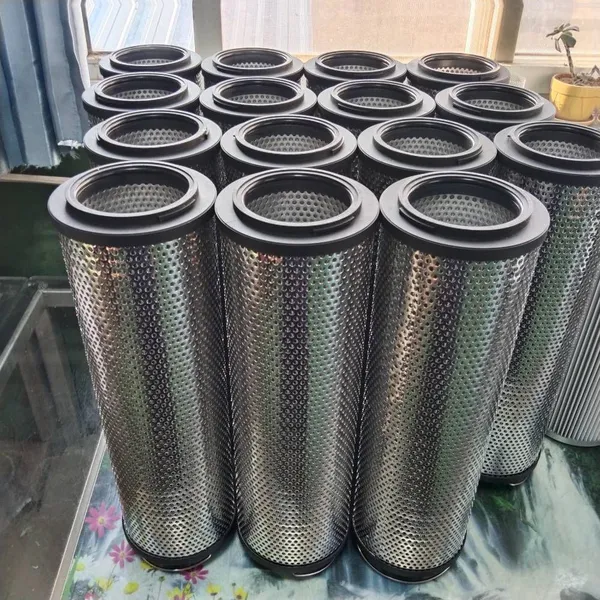

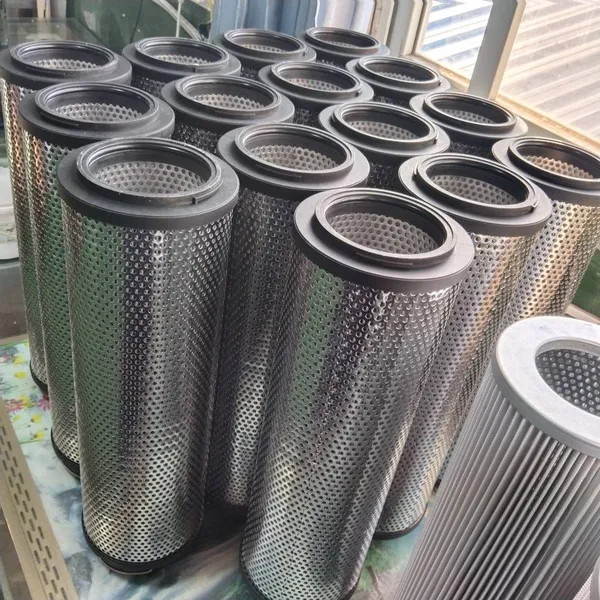

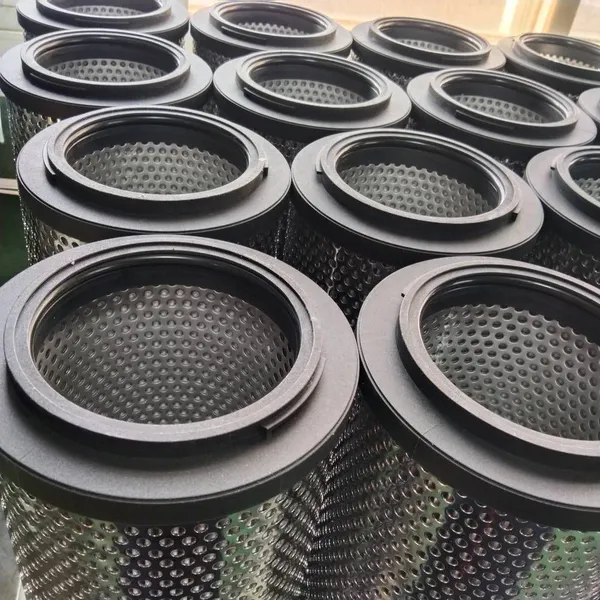

QF9702GS10H3 Replaces the Turbine Hydraulic Oil Filter Element of Jiujiang 707 Institute, Supplied by Henan Jiashuo Environmental Protection Technology Co., Ltd.
Product Introduction:
This filter element is a replacement for the filter element of Jiujiang 707 Institute, which is surveyed and mapped on-site by our company. After replacement, the using effect is better. QF9702GS10H3 It is installed in the oil circuit of the hydraulic system to remove the metal powder and other mechanical impurities worn by various components in the hydraulic system, keeping the oil circuit clean. When the filter element is not replaced in time, the bypass valve can open automatically to protect the normal operation of the system. Similar to general hydraulic oil filters, this filter element features a metal outer protective mesh design, and the end caps are made of stainless steel.
High-precision Hydraulic Oil Filter Element QF9702GS10H3 It has the basic characteristics of an oil filter element and better meets the user's requirements. The filtration accuracy can reach the micron level. The internal glass fiber layer enhances the stability of the filter element. It is mainly used to filter out solid particles and colloidal substances in the hydraulic oil of equipment, maintain the cleanliness of the oil, prevent oil contamination, ensure the normal operation of machines and equipment, and improve the using efficiency. The filter layer of the filter element is made of non-composite glass fiber filter material or stainless steel filter material, which has high strength, is resistant to high temperatures and corrosion, has a large dirt-holding capacity, and good filtration performance. The materials used in the filter element are easily damaged, so please pay attention to maintenance during use to extend its service life.
Performance Parameters of the Filter Element of Jiujiang 707 Institute
Working Medium: General Hydraulic Oil
Filter Material: Metal Mesh
Filtration Accuracy: 10μm
Working Temperature: -30℃...+110℃
Working Pressure: 21bar...210bar
Sealing Material: Fluorine Rubber Ring
Application Scope of the Filter Element of Jiujiang 707 Institute
1. Thermal Power Plants and Mechanical Equipment
2. Pharmaceutical Factories, Petroleum, and Chemical Industry
Features of the Filter Element of Jiujiang 707 Institute
Made of metal mesh, it is resistant to high temperatures, has a large oil-passing capacity, a large dirt-holding capacity, high filtration accuracy, a small initial pressure loss, strong impurity removal ability, and can be cleaned and reused.
Flow Rate: 20 - 400L/min
