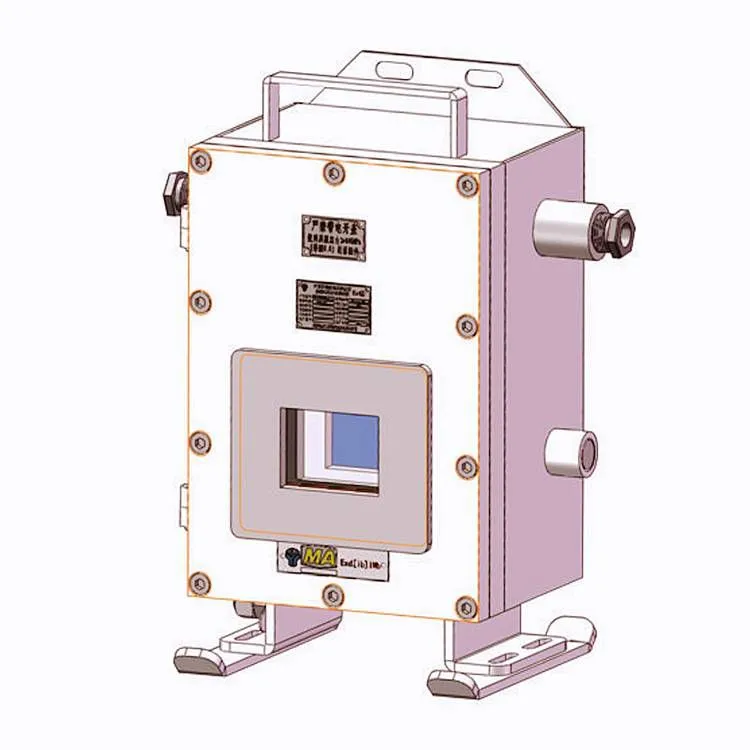

![[hunan Chuang'an Explosion-proof] Bbl-1140 Mine-used Flameproof Remote Terminal Protector thumbnail-1](https://img13.fr-trading.com/2/1_914_119838_750_750.jpg.webp)
![[hunan Chuang'an Explosion-proof] Bbl-1140 Mine-used Flameproof Remote Terminal Protector photo-1](https://img13.fr-trading.com/3/1_914_119838_750_750.jpg.webp)
Related Products
-
![[hunan Chuang'an Explosion-proof] Ztk(a) Mine-used Explosion-proof Hoist Electric Control Device](https://res.suppliergo.com/img/env2/common/load/circle-loading.svg)
[hunan Chuang'an Explosion-proof] Ztk(a) Mine-used Explosion-proof Hoist Electric Control DeviceNegotiableMOQ: 0 Unit -
[hunan Chuang'an Explosion-proof] Kxb-127(d) Mine-used Flameproof and Intrinsically Safe Acousto-optic and Language Signal AlarmNegotiableMOQ: 0 Unit
-
[hunan Chuang'an Explosion-proof] Zwjk-127a Mine-used Stepless Rope Winch Electric Control DeviceNegotiableMOQ: 0 Unit
-
[hunan Chuang'an Explosion-proof] Kxj1-280-2/1140(660) Mine-used Flameproof and Intrinsically Safe Programmable Control BoxNegotiableMOQ: 0 Unit
-
[hunan Chuang'an Explosion-proof] Zjz-□/□sm Mine-used Flameproof and Intrinsically Safe Dual-circuit Lighting and Signal Comprehensive Protection DeviceNegotiableMOQ: 0 Unit
BBL-1140
Mine-used explosion-proof long-distance terminal protector
Purpose and scope of use Application and range of application
This product is suitable for use in coal mine underground and the environment where the surrounding medium contains explosive gases (methane mixture). It can be used in the power grid with an alternating current of 50HZ and a voltage below 1140V, serving as a long-distance short-circuit protection function.
Product features Product features
This product's short-circuit protection does not use current sampling and is not affected by cable length, area, and current. Within the allowable voltage drop range, the protection distance can be extended arbitrarily;
When the terminal protector is connected to the farthest end of the power supply distance of the comprehensive lighting protection device, it can achieve long-distance short-circuit protection for any two-phase and three-phase circuits.
Main technical parameters Main technical parameters
Working voltage:1140VAC
Short-circuit action time: W100MS
Protection distance: Within the range of voltage drop operation, the protection distance can be extended arbitrarily.
Transport and storage conditions it can withstand:
Temperature:-40 to ~+60°C;
Humidity:
Vibration:50 m/s² ；
Shock:500 m/s²
