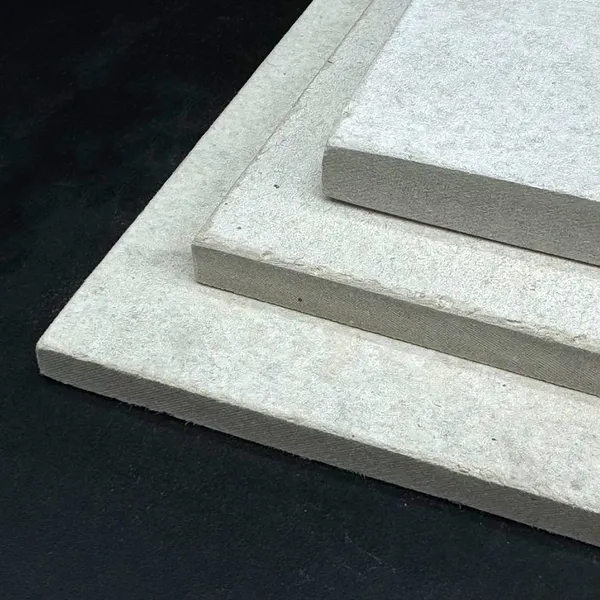

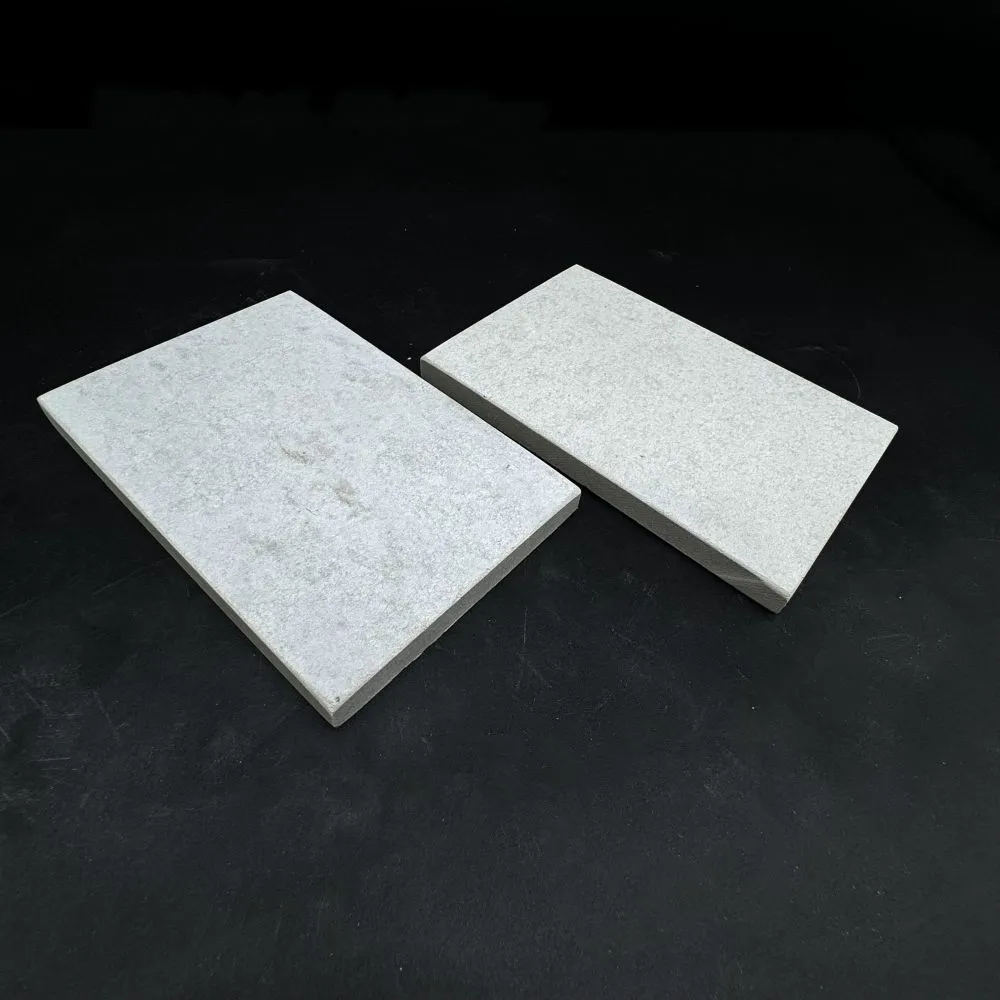

High-Density Calcium Silicate Board for Long-Lasting Fire Barrier Systems in Tunnels
US$ 2.3 - 6.8
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Material:
Other, Calcium Silicate
Fire Rating:
Other, Up to 4 Hours (ASTM E119)
Density:
High-Density (≥ 1.0g/cm³)
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
Eco-Friendly Calcium Silicate Board With Low Thermal Conductivity for Energy SavingUS$ 2.3 - 6.8MOQ: 1000 Pieces -
Lightweight Calcium Silicate Board 2440x1220x6-12mm With Excellent Thermal Insulation PropertiesUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Middle Density Calcium Silicate Ceiling Board With Superior Sound Absorption CapabilityUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
Fire Resistant Calcium Silicate Board for High-Temperature Insulation in External Wall CladdingUS$ 2.3 - 6.8MOQ: 1000 Pieces
-
600x1200mm Calcium Silicate Board for Steel Structure Protection in WarehousesUS$ 2.3 - 6.8MOQ: 1000 Pieces
Material
Other, Calcium Silicate
Fire Rating
Other, Up to 4 Hours (ASTM E119)
Density
High-Density (≥ 1.0g/cm³)
Thickness Options
15-50mm (Customizable)
Application
Tunnel Fire Protection Systems
Certification
ISO9001, ISO14000 Certified
Thermal Conductivity
≤ 0.055 W/m·K (25°C)
Water Resistance
Low Water Absorption Rate
As a leading manufacturer certified by ISO9001 and ISO14000 standards, Shanxi Pano Building Materials Co., Ltd specializes in producing premium High-Density Calcium Silicate Boards engineered for critical infrastructure protection. Established in 2021 with a 30,000-50,000 sqm advanced facility, we deliver rigorously tested fire barrier solutions to global markets including North America, Europe, and Southeast Asia. Our boards are designed to provide uncompromising safety in high-risk environments like tunnels, where fire containment is paramount.
Core Advantages:
- Exceptional Fire Resistance: Withstands temperatures exceeding 1000°C, maintaining structural integrity for up to 4 hours to facilitate safe evacuation.
- Superior Durability: High-density composition (≥1.0g/cm³) resists impact, moisture, and chemical corrosion in harsh tunnel conditions.
- Eco-Compliance: Asbestos-free formulation aligns with international environmental standards (ISO14000).
Technical Specifications:
| Parameter | Value |
| Standard Sizes | 1200×2400mm, 1220×2440mm (Custom sizes available) |
| Thickness Range | 15mm, 20mm, 25mm, 30mm, 40mm, 50mm |
| Thermal Conductivity | 0.048-0.055 W/m·K |
| Compressive Strength | ≥ 5.0 MPa |
| Water Absorption | ≤ 45% (24h immersion) |
Installation & Performance Benefits:
- Precision-cut edges ensure seamless integration with mounting systems, reducing labor costs by 20%.
- Low thermal conductivity minimizes heat transfer, protecting structural reinforcements in concrete tunnels.
- Non-combustible properties (Class A1 fire rating) prevent toxic smoke emission during incidents.
Backed by an annual export value of US$2.5-5 million and a 101-200 person workforce, our factory in Shanxi, China, guarantees consistent quality through automated production lines. Ports of shipment include Tianjin and Qingdao for efficient global delivery. Trusted by contractors across 15+ markets, these boards have been deployed in subway tunnels, highway passages, and utility conduits worldwide. For tunnel projects demanding certified fire protection, request technical datasheets or volume pricing today.
FAQ:
-
Q: What standards does this board comply with?
A: It meets ASTM E119 fire endurance requirements and is certified under ISO9001/14000 for quality management. -
Q: Can it be used in humid tunnel environments?
A: Yes, its low water absorption (≤45%) ensures dimensional stability in high-moisture conditions. -
Q: Are custom thicknesses available?
A: Absolutely. We produce boards from 15mm to 50mm thickness upon request. -
Q: How does it compare to gypsum boards?
A: Our calcium silicate boards offer 3x higher fire resistance and superior moisture tolerance. -
Q: What mounting systems are compatible?
A: Designed for steel framing and mechanical anchors; installation guidelines are provided. -
Q: Lead time for 20-foot container orders?
A: Typically 15-20 days after confirmation, subject to order volume.
