Help CenterSnap-on Insulating Sheath for Electrified Railways
Related Products
-
Catenary Electrical Connection Wire (electrical Connection Wire, Soft Copper Stranded Wire)US$ 11.69MOQ: 1000 Meters -
Internally Wrapped Steel-aluminum Composite Contact Wire, Internally Wrapped Steel Tram Wire, Steel-aluminum Tram Wire, Steel-aluminum Contact WireUS$ 2.92MOQ: 1000 Meters
-
Copper Trolley Wire for Electric Locomotives (copper Double-groove Wire), Copper Contact Wire, Copper Sliding Contact Wire Ct85, Tcg-85US$ 9.23MOQ: 1000 Meters
-
Copper-magnesium Alloy Stranded Wire (high-strength Copper-magnesium Alloy Messenger Cable, Bronze Stranded Wire)US$ 23.08 - 46.15MOQ: 1 Meter
-
Copper and Copper Alloy Contact Wires (trolley Wires, Sliding Contact Wires) for Electrified RailwaysUS$ 11.69MOQ: 1000 Meters
Due to the unstable price of product materials, the product price fluctuates. The above prices are for display purposes only and not the actual transaction prices. If you need them, please call to confirm the prices.
VX and QQ have the same number: 345237427
Insulating sheaths for electrified railways
There are two types. One is the Type A insulating sheath made of silicone rubber, and the other is the Type B insulating sheath made of polyolefin high - molecular polymer. The models are JHTSi - A and JHTP - B respectively.

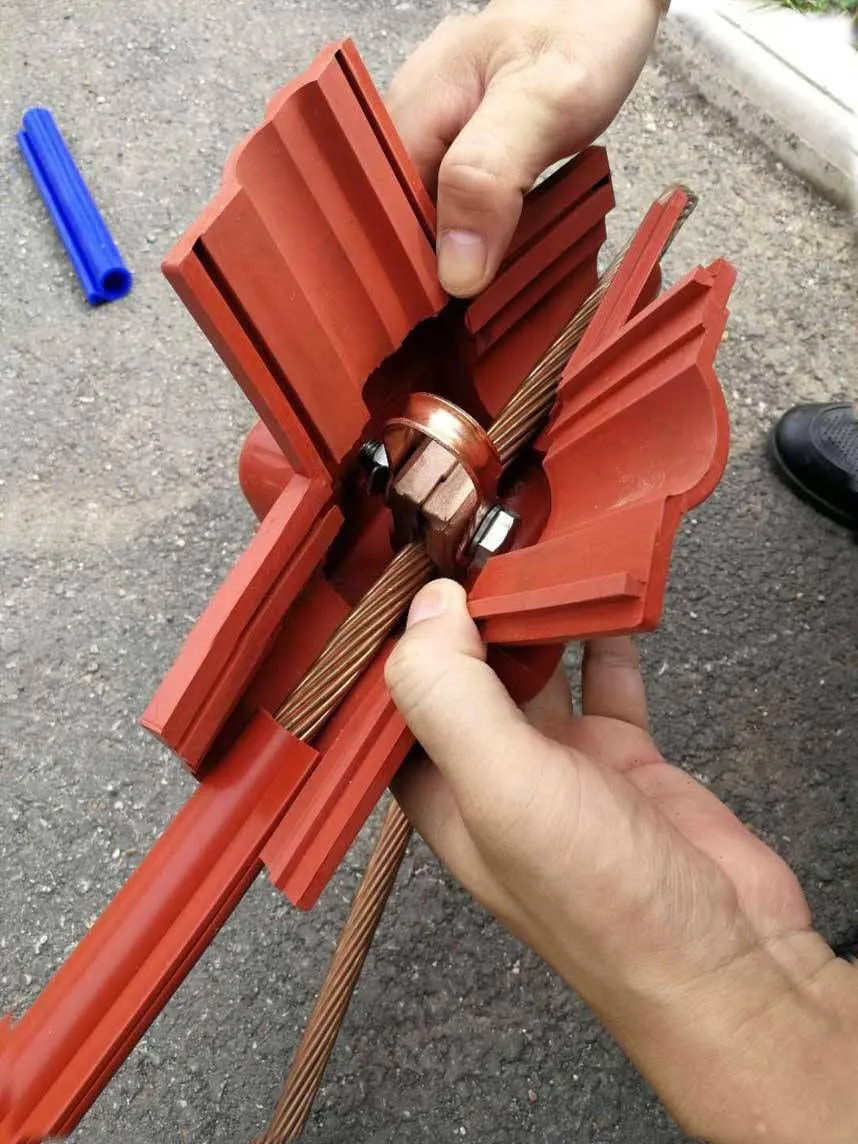

The T - type insulating sheath accessories matching the insulating sheaths, T - type accessory tees
The model classifications are as follows:

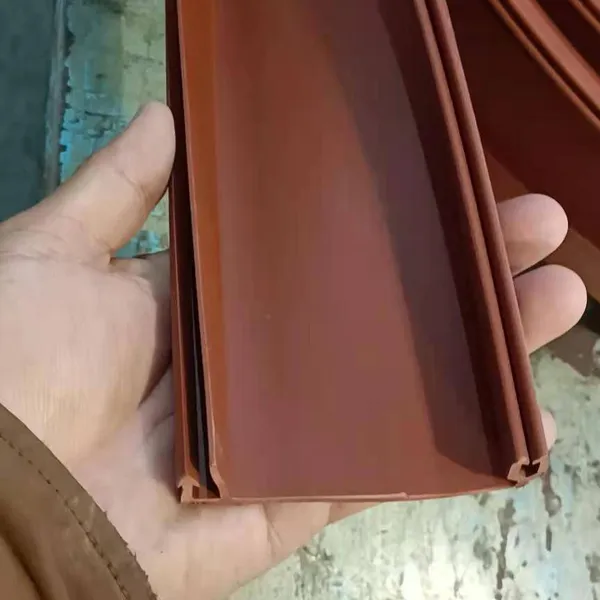

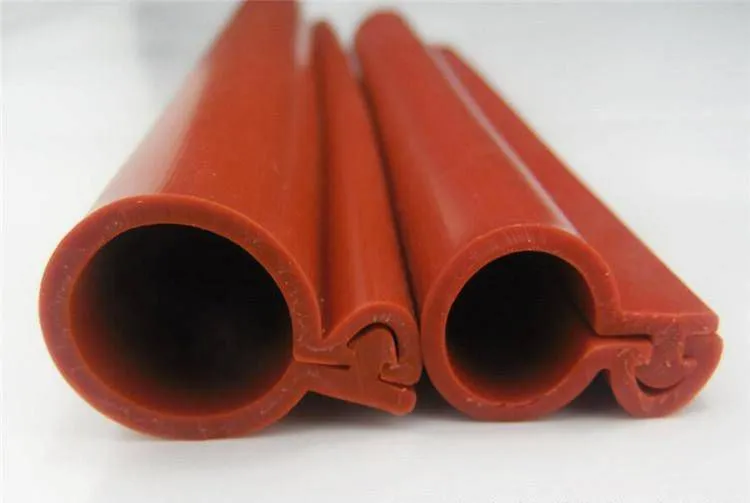

Silicone rubber insulating sheath A type insulating sheath

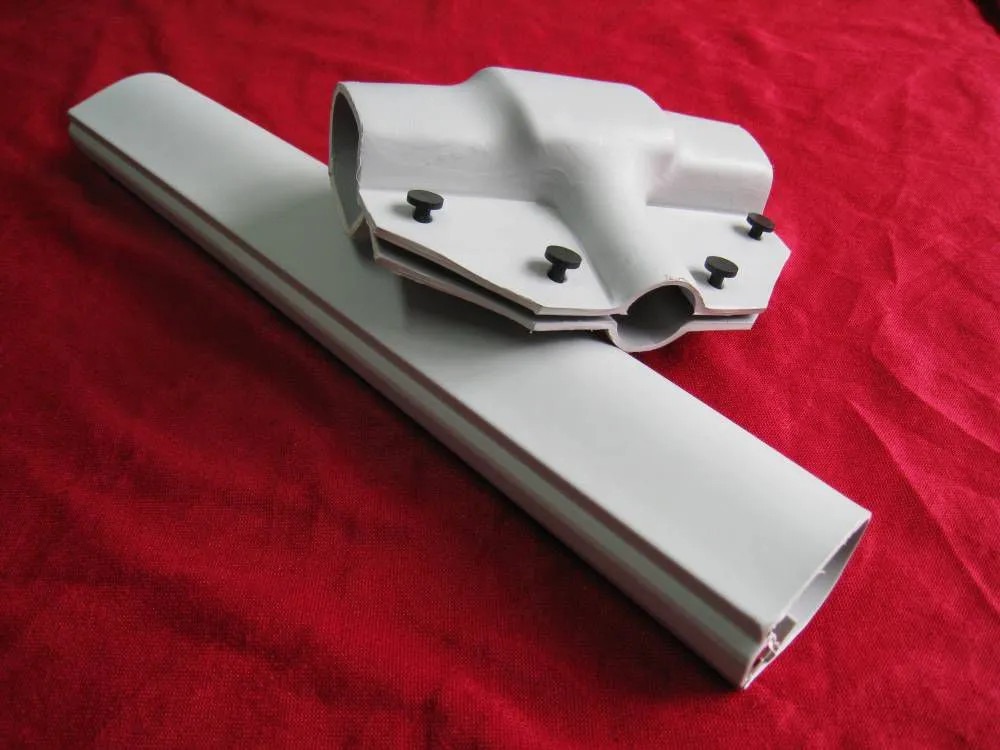

Made of polyolefin high - molecular polymerBType insulation sheath and T-type accessory tee
The T-type accessory tee is as follows
Taian Electric Trolley Wire Factory is a professional manufacturer of contact wires. The contact wire is a conductor for contact current collection in electric traction, also known as trolley wire, and is mainly used for gantry crane sliding contact lines, electric locomotives, urban trolleybuses, electrified railways, mine electric locomotives, overhead traveling cranes, and port oil-to-electricity projects
1、【Contact Wire】
1.1.Copper and copper alloy contact wires
(Sliding wires for gantry cranes and electric locomotives, contact wires, trolley wires, double-groove wires)
Copper contact wire: The copper trolley wire we supply is also known as copper contact wire, copper trolley wire, double-groove wire. According to the different cross-sectional sizes, the double-groove copper contact wires are divided into the following models:
CT65,CT85,CT100,CT120,CT150,CT185 、CT220 etc. (The old models are TCG65, TCG85, TCG100, TCG120).
There are also various round copper connections, with models: CTY50, CTY65, CTY85, CTY100, CTY120, CTY150, CTY185, CTY220.
Taian Electric Trolley Wire Factory can also process and customize contact wires of any model according to user requirements.
Copper-silver alloy contact wires: CTA85 CTA120 CTA150 CTAH85 CTAH120 CTAH150
Copper-tin alloy contact wires:
Low strengthCTS85,CTS120 ,CTS150;
Medium strengthCTSM85,CTSM120,CTSM150;
High strengthCTSH120,CTSH150
Copper-magnesium alloy contact wire:
Low strengthCTM85,CTM120,CTM150
Medium strengthCTMM85,CTMM120,CTMM150
High strengthCTMH85,CTMH120,CTMH150
Tin-plated contact wire for subways, tin-plated copper-silver alloy contact wire Tin-plated trolley wire, tin-plated copper-silver alloy trolley wire, tin-plated wire, mainly used in subways, with excellent anti-corrosion performance. The main models are: CTA120 CTA150
1.2.Internal package type steel-aluminum composite contact wire, internal package steel trolley wire, internal package steel contact wire, internal package type steel-aluminum trolley wire
Supply of aluminum-clad steel composite contact wires Steel-aluminum composite trolley wires, internally-clad steel contact wires, internally-clad steel trolley wires, steel-aluminum trolley wires, aluminum-clad steel trolley wires, aluminum-clad steel contact wires
The models of internally-clad steel-aluminum composite contact wires are:GLCN195(Original modelCGLN195), GLCN250(Original modelCGLN250)
1.3.Externally-exposed steel-aluminum composite contact wires
Externally-exposed steel-aluminum composite contact wires Externally-clad steel trolley wires, externally-exposed steel trolley wires, externally-exposed steel contact wiresCGLW173 CGLW100/65
The models of externally-exposed steel-aluminum composite contact wires are:CGLW173,CGLW215,CGLW100/65
1.4Steel, aluminum, and aluminum alloy composite contact wires
The models of aluminum alloy composite contact wires (trolley wires) are:CGLHD195 CGLHD260
2、Stranded wire category
2.1【Aluminium-zinc rare earth coated steel stranded wire】
Full product name: Zinc-5%Aluminium-Mixed rare earth alloy coated steel stranded wire, national standard productGB/T20492-2006, commonly used as guy wires and horizontal catenary wires on electrified railways. Its common product models include:
LXGJ50(19) XLXGJ50(19) Zn-5%Al-RE GJ-1x19-9-1370-B-GB/T20492-2006、
LXGJ70(19) XLXGJ70(19) Zn-5%Al-RE GJ-1x19-11-1370-B-GB/T20492-2006、
LXGJ80(19) XLXGJ80(19) Zn-5%Al-RE GJ-1x19-11.5-1370-B-GB/T20492-2006、
LXGJ100(19) XLXGJ100(19) Zn-5%Al-RE GJ-1x19-13-1370-B-GB/T20492-2006
This product is widely used in electrified railways. It is mainly used as guy wires, grounding wires, horizontal messenger wires, etc. It has high strength, corrosion resistance and reasonable price. Welcome to purchase.
2.2Aluminum-clad steel stranded wire
LBGJ70(19),LBGJ95(19),LBGJ50(7),LBGJ70(7),LBGJ90(7)
2.3Soft copper stranded wire
Electrical connection wire for electrified railways Soft copper stranded wire, electrical connection wire, electrical connection wire, soft copper wire
Soft copper stranded wire is widely used as electrical connection wires (electrical connection wires) in electrified railways. The commonly used models are: TJR1-95 with a structure of 37*7/0.68mm, TJR1-120 with a structure of 27*12/0.68mm,TJR1-150 Structure56 Strands*7 Wires/0.70mm (Original Model: TRJ or JTR, Comply with the Standard of Flexible Copper Stranded Wires for Electrical Work GB/T12907.2-2009
2.4 Copper and Copper Alloy Stranded Wires for Electrified Railways (Catenary Wires)
Comply with the Standard of the Ministry of Railways TB/T3111-2017
Copper Stranded Wires JT Series: JT70, JT95, JT120, JT150
Copper alloy stranded wireJTMJTMMJTMH series (formerly known asTHJT series):JTM70,JTM95,JTM120,JTM150;JTMM70,JTMM95,JTMM120,JTMM150;JTMH70,JTMH95,JTMH120,JTMH150.
(formerly known asTHJ10 - 150)
2.5Soft stainless steel wire
Soft stainless steel wire for electrified railways, used as binding wires, suspension wires, etc. Commonly used specifications for single - wire diameter areФ1.6 Ф3.5 Ф4.0 Ф6.0. The implementation standard for soft stainless steel wire isGB/T4240 - 2009
4、Suspension wire fittings
4.1Suspension wire devices: Adjustable suspension wire device, chain - chord suspension wire device, rigid suspension wire device, rigid suspension wire device assembly, curve suspension wire device; Curved suspension wire deviceCD - 001; Curved suspension wire deviceWX - 001,Suspension wire deviceWX - 1,Bakelite suspension wire device, porcelain suspension wire device assembly; Phenolic suspension wire device, armored suspension wire deviceAK - 1;
4.2Insulators: Messenger hanger insulators CD-1, CD-2, WX-1; Strain insulators J-1, J-2, J-4.5; Pin insulators P-6, P-10, PD-1, PD-2; Bakelite insulators, hard insulators.CD-1 ,CD-2.WX-1, ; Strain insulatorsJ-1, J-2, J-4.5; Insulators, tension insulators, pin insulatorsP-6,P-10,PD-1,PD-2; Bakelite insulators, hard insulators.
4.3Clamps: Single wire clamps DXK-1; Double wire clamps DXK-2; Parallel connection clamps BJK-2; Hard clamps L-100, L-120, L-300; Droppers DJ-1 DJ-2; Messenger hangers ED-2; Line pullers XK-1; Copper connection rods; Copper joint clamps TJ-1, TJ-2; Copper feeder clamps KDT-1; Aluminum feeder clamps KDL-1; Long loop clamps KH-1DXK-1; Double wire clampsDXK-2; Parallel connection clampsBJK-2; Hard clampsL-100,L-120,L-300; DroppersDJ-1 DJ-2; Messenger hangersED-2; Line pullersXK-1; Copper connection rods; Copper joint clampsTJ-1,TJ-2;Copper feeder clampsKDT-1;Aluminum feeder clampsKDL-1; Long loop clampsKH-1
4.4Anchoring types: Terminal clampsZD-2,ZD-3;Cross suspension wire hooks(Terminal hooks)Ф12x250,Ф16x335; Wall terminal hooks; Guy wire rings, Clamps; Rail end connectionsФ16X240;Inter-rail connectionsL-600,L-762,L-900
4.5Section switchesHHP1-200A,HHP1-400A,HHP1-600A,HHP1-800A,HHP1-1200A,HHP1-1600A,HHP1-2000A,;Section insulatorsF-3,F-2,F-1;Insulated rail splice bars12kg,15kg,18kg,24kg,30kg,38kg,43kg;Arc-suppression section switches
4.6Current collector assemblies, devices used for power receiving connections to receive power from the power supply line. Current collector heads, Carbon slipblocks
5、Bird net, bird repellent net
Net surface: Width2M *Length30M/Roll,Twisted hexagonal, wire diameter of mesh0.65mm:Mesh25mm, Material: Stainless steel304A
Can process and customize bird nets of other sizes Bird repellent net
Polyethylene (PE), High-density low-pressure polyethylene (HDPE), Polypropylene (PP)Bird net
