Xiongxing Brand Electronic Stepless Speed Control Gemstone Faceting Grinding and Polishing Machine
Product Number: 810508138
Model: K-280T
Equipment Overview

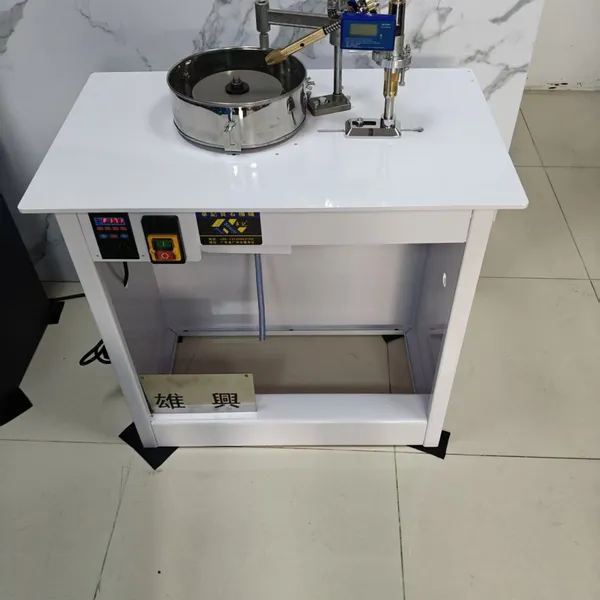

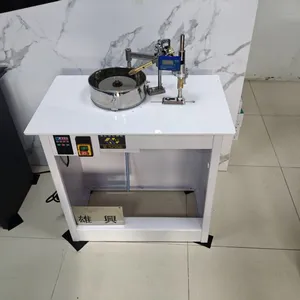

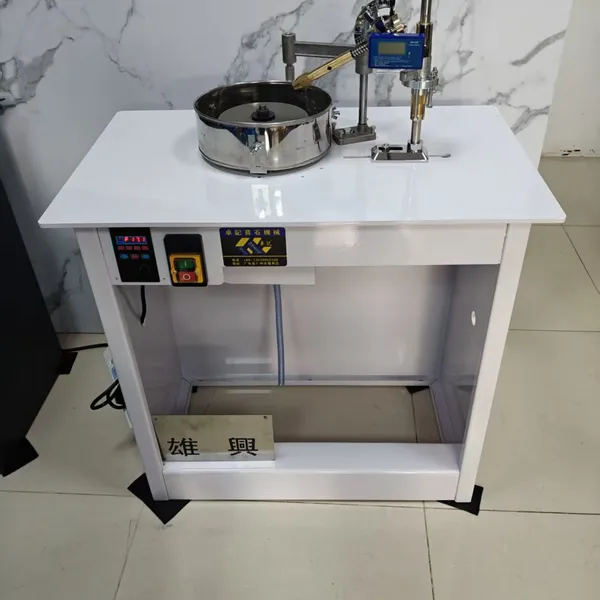

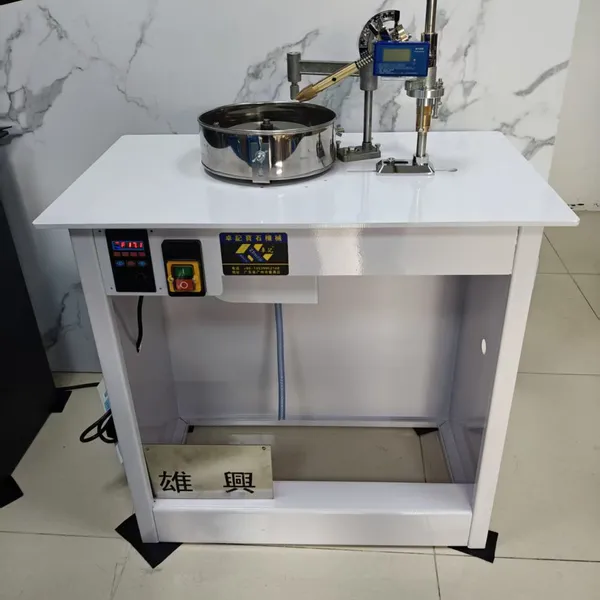

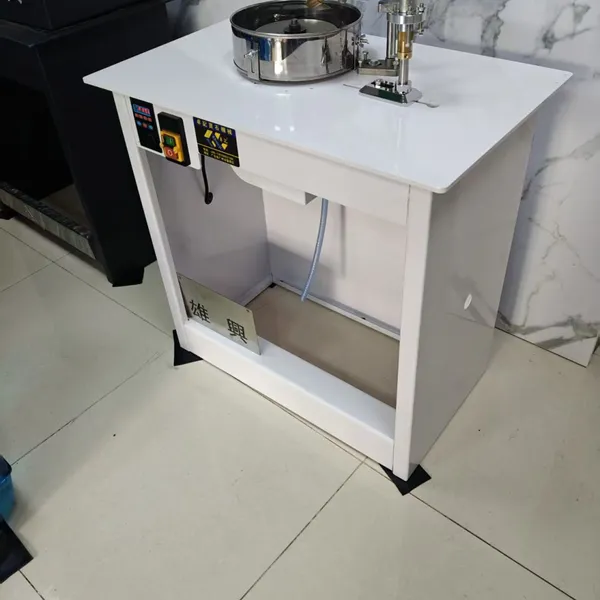

The Xiongxing K-280T Angle Grinder is a precision integrated machine designed for shaping, grinding, and polishing gemstone cabochons. Featuring electronic stepless speed control, it flexibly adapts to processing requirements for gemstones of varying hardness. By swapping out contouring dies and grinding wheels, this machine efficiently produces uniformly sized, high-precision faceted gemstones. It finds extensive application in jewelry workshops, gem processing plants, and educational laboratories.
Equipment Background
Faceted gemstone craftsmanship originated in Europe. Its ability to fully showcase the visual appeal of transparent, vividly colored, and highly lustrous gemstones has made it an indispensable technique in high-end jewelry. The Xiongxing Faceting Machine inherits and refines this traditional craftsmanship. Through modular design and stable mechanical construction, it achieves high-quality, efficient gemstone shaping and polishing.
Core Features
1. Multi-Mold Compatibility: Supports octagonal, hexagonal, pentagonal contour plates or robotic indexing discs (with 32, 56, 64, 96 divisions), enabling effortless processing of diverse faceted gems.
2. Stepless Speed Control: Features electronic stepless speed adjustment within the preset range, adapting to different gemstone hardnesses (e.g., crystal, agate, emerald).
3. High Stability: The workpiece clamping device maintains smooth, vibration-free operation even at 2800 r/min, ideal for processing small-sized workpieces from 2mm to 50mm.
4. Multi-Functionality: Integrates shaping, grinding, and polishing processes. Compatible with diamond curved discs for processing curved gemstone settings (e.g., oval, marquise).
5. Versatility: Supports processing nearly 50 gemstone shapes including square, round, heart, marquise, and triangle. Suitable for all types of colored gemstones, semi-precious stones, and optical materials.
Technical Specifications
· Power Supply Voltage: 220V
· Rated Power: 370W
· Dimensions: 750mm (L) × 450mm (W) × 700mm (H)
· Motor Speed: 1400–2800 rpm (steplessly adjustable)
· Grinding Wheel Size: Supports 8-inch grinding wheels
· Processing Range: Workpiece dimensions approx. 2mm–30mm
procedures:
1. Automated processing equipment and cutting blades for gemstone cutting and preforming.
2. Automated CNC processing equipment and tools for colored gemstones.
3. Automated CNC processing equipment and tools for producing round beads and balls from gemstones.
4. Processing equipment and tools for jade and jadeite bangles.
5. Processing equipment and tools for fancy-shaped gemstones.
6. Equipment and tools for gemstone optimization treatments like waxing/resin filling.
7. Vibratory tumbling polishing equipment and(matching abrasive media).
8. Equipment and tools for gemstone drilling and piercing.
Company Profile:
Since its establishment in 2003, Guangzhou Xiongxing Gem Machinery Co., Ltd. has focused on the research, development, manufacturing, and sales of machinery for the gem and jade industry. By(incorporating advanced domestic and international) production equipment and techniques, and through over two decades of continuous (accumulation) and innovation, we have established comprehensive R&D, production, sales, and after-sales service systems.
We consistently adhere to a principle of prioritizing product quality and continuous improvement, earning widespread recognition within the industry. Our products are not only sold across China but also exported to the Middle East, Europe, America, Southeast Asia, and many other countries and regions. We have become a core supplier to several major gemstone processing bases, trusted and highly regarded by customers both domestically and internationally.
Friends from all walks of life are warmly welcome to visit our facility for inspection and discuss potential cooperation.
