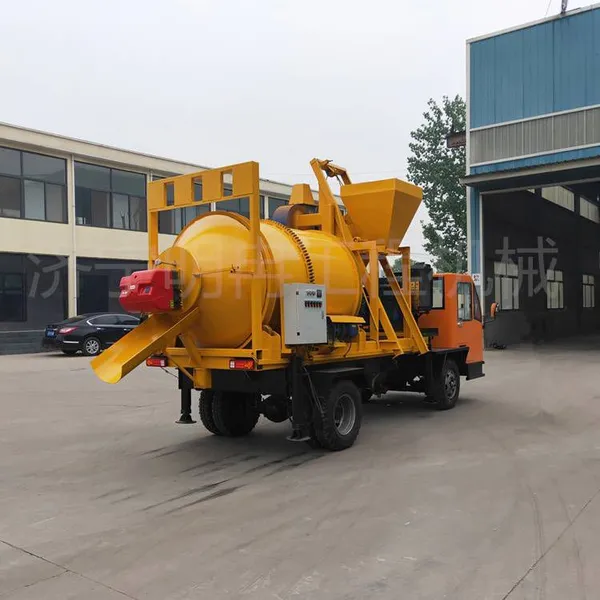

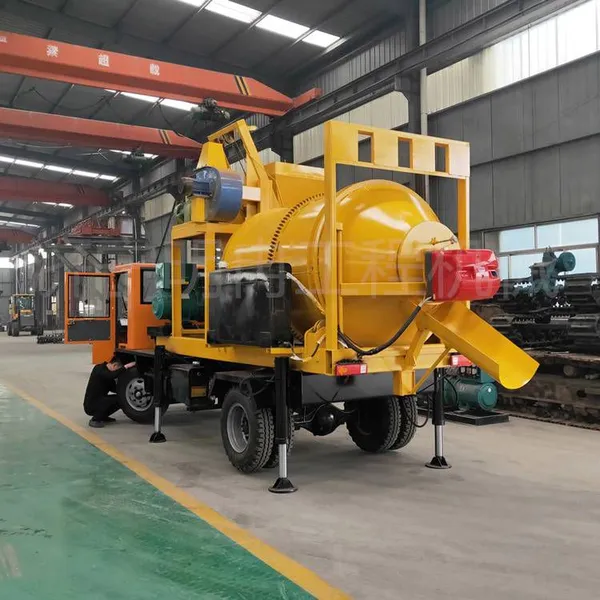

Help CenterTraction Road-building Asphalt Frying Equipment, Waste Milling Material Recycling Mixer, 1-cubic-meter Asphalt Heating and Mixing Tank
Related Products
-
High-rise Foundation Grouting and Drilling All-in-one Machine, Crawler Long Screw Pile Driver, Cfg High-pressure Jet Grouting Pile FoundationUS$ 15076.92 - 17692.31MOQ: 1 Unit -
Building Soil and Sand Transport Vehicle, Four - Unlike Wheeled Loader, Four - Wheel Drive Dump Truck for Self - Unloading and HandlingUS$ 5538.46 - 6461.54MOQ: 1 Unit
-
Four-in-one Wheeled Log Grabber With the Vehicle, Agricultural Off-road Log Clamp With the Vehicle, Garden Integrated Log Grabbing and Transporting VehicleUS$ 7384.62 - 8153.85MOQ: 1 Unit
-
Rubber Crawler Tanker, Sand and Cement Mixing Transport Vehicle, Extended Crawler Concrete TankerUS$ 8923.08 - 10276.92MOQ: 1 Unit
-
Highway Paving Frying Material Machine, Asphalt Heating Mixer, Automatic Feeding Asphalt MixerUS$ 5384.62 - 7476.92MOQ: 1 Unit
Welcome to call for consultation: 15588722150, Manager Gao
1. Main uses:
HG-D1 1.5The asphalt concrete mixer can mix new asphalt mixtures; it can also regenerate old asphalt mixtures; and it can heat and mix the stacked and stored asphalt mixtures for reuse. The electric-start diesel generator solves the problem of no common power supply for field operations. The asphalt concrete mixer can repair the potholes on the road surface on-site at any time and place. The road can be opened to traffic after the operation is completed, ensuring the road is in good condition and unobstructed. Its function is particularly prominent in the cold winter.
2. Main structure:

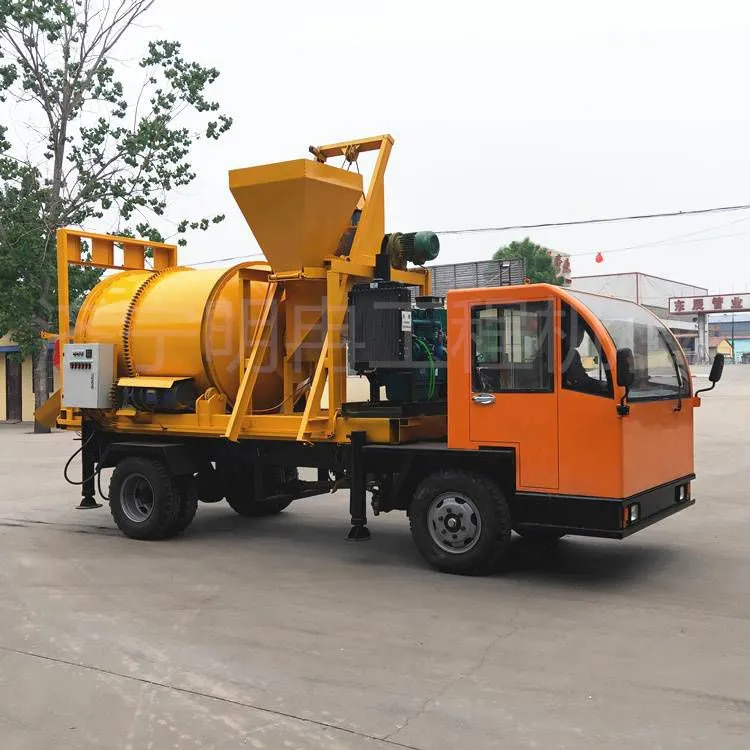

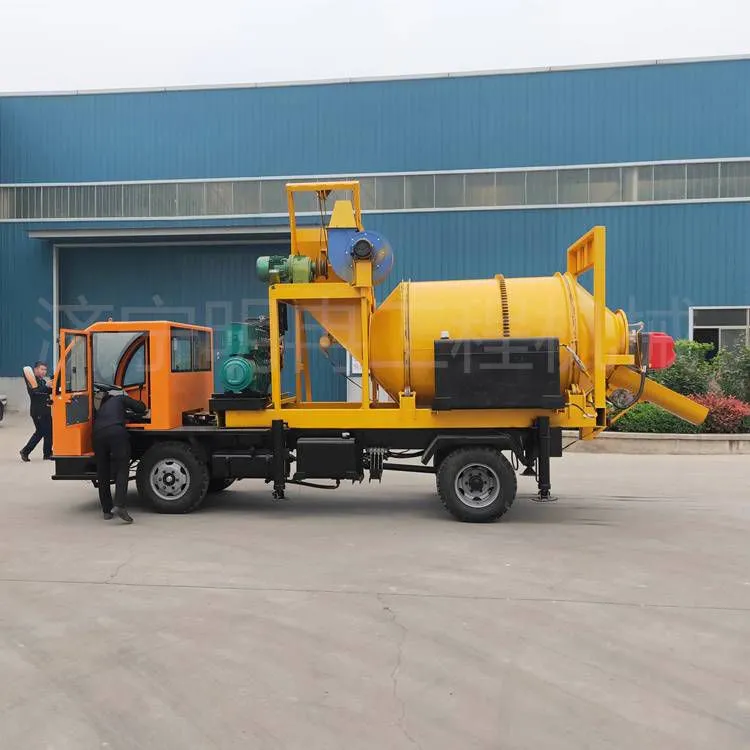

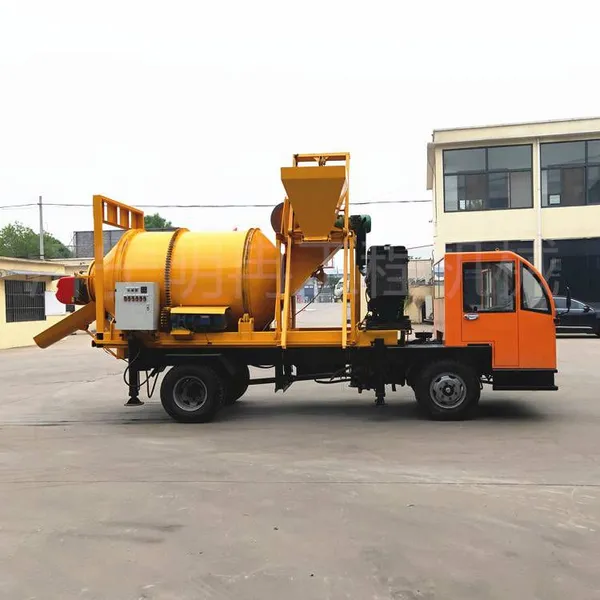

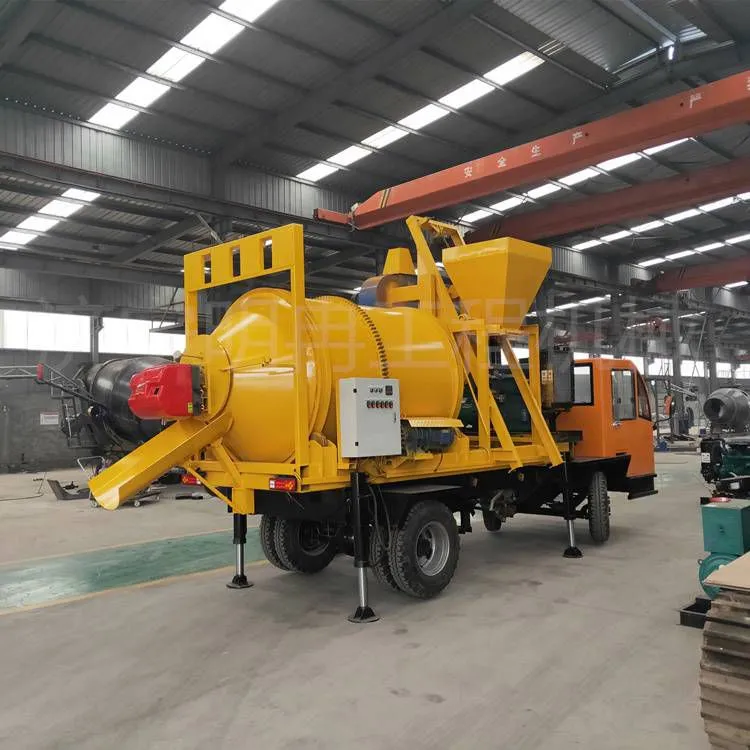

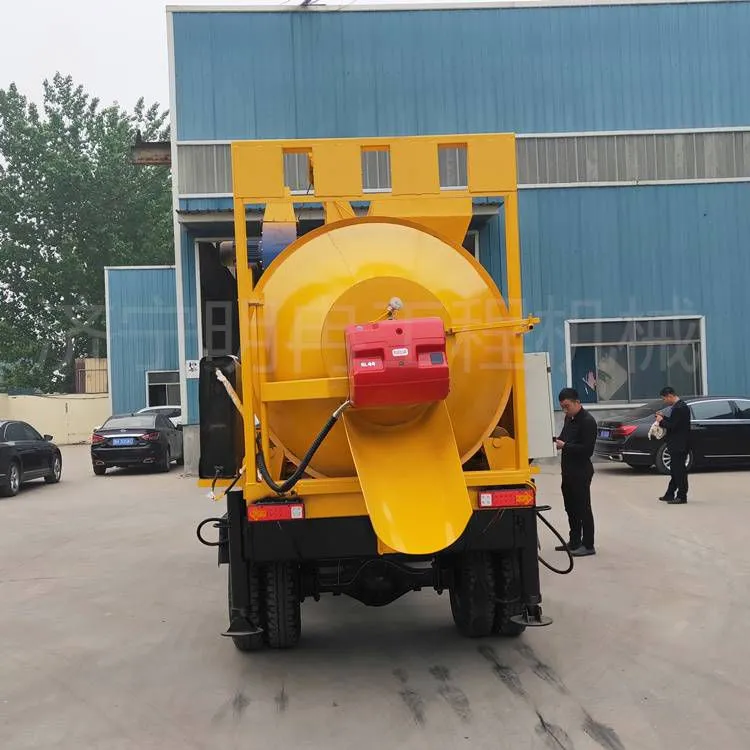

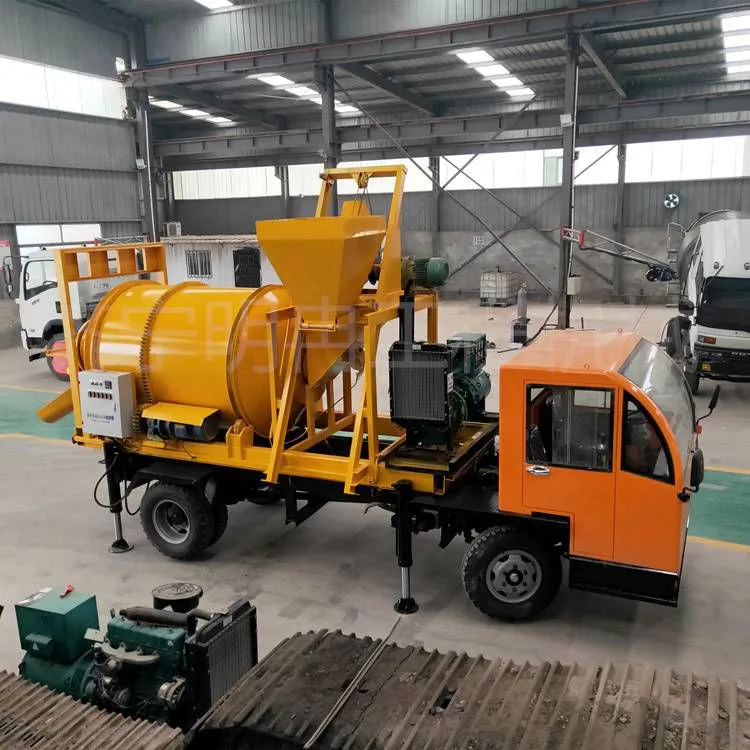

HG-D1 1.5The asphalt concrete mixer is composed of an electric-start diesel generator, and its structural forms are as follows;
1. It is a towed type equipped with rear axle brakes and tripod traction;
2. It can be hoisted on a transport vehicle for construction operations, which includes three ways: on-vehicle type and fixed type;
3. Performance Features:
(1) Mixing Method: HG-D1 1.5Asphalt concrete mixer uses the blades in the rotating drum with insulation layer for mixing; The drum rotation is driven by a cycloidal pin gear reducer to drive the gear, and the mixing volume each time is not less than1500 kg.
(2) Heating Method: Use a diesel burner to heat the gas in the drum; The temperature of the gas is transferred to the asphalt mixture, and its temperature is controlled by the temperature sensing system. When the required temperature is reached, the burner stops burning.
(3) Feeding Method: The feeding track can be folded, and the feeding hopper is of bottom-discharge type, with a capacity of300 kg/ time; The lifting is carried out by a multi-functional electric hoist, limited by a travel switch.
(4) Dust Removal Method: Use a cyclone dust removal system, and the dust and water vapor in the drum are discharged by a centrifugal fan.
(5) Power Supply Method: If the external power supply cannot be connected, it is equipped with an electric-start diesel generator set with a power of30KW; There are four sets of secondary rubber damping mechanisms under the frame of the generator set, and it runs very smoothly to prevent damage to vibrating parts and electrical appliances.
(6) The whole machine adopts a multi-functional electrical control system, which is clear at a glance and easy to operate.
4. Product parameters:
HG-1 1.5SquareAsphalt Mixer | ||
Mixing capacity |
Single time 20 minutes 1700 kg |
|
Discharging temperature |
120 - 180°(Adjustable) |
|
Heating method |
Diesel burner |
|
Fuel consumption |
20L/h |
|
Vacuum motor |
2Pole1.5KW |
|
Mixer power |
5KW |
|
Fan power |
1.5KW |
|
Lifting motor power |
3KW |
|
Diesel generator set |
Engine |
4102 |
Engine power |
Diesel engine power:80kw |
|
Generator power |
30KW |
|
Current |
27.1A,Number of poles4 |
|
Total machine weight |
6000㎏ |
|
Overall dimensions |
Length, width, and height (excluding trailer) |
6200×2000×3000mm |
