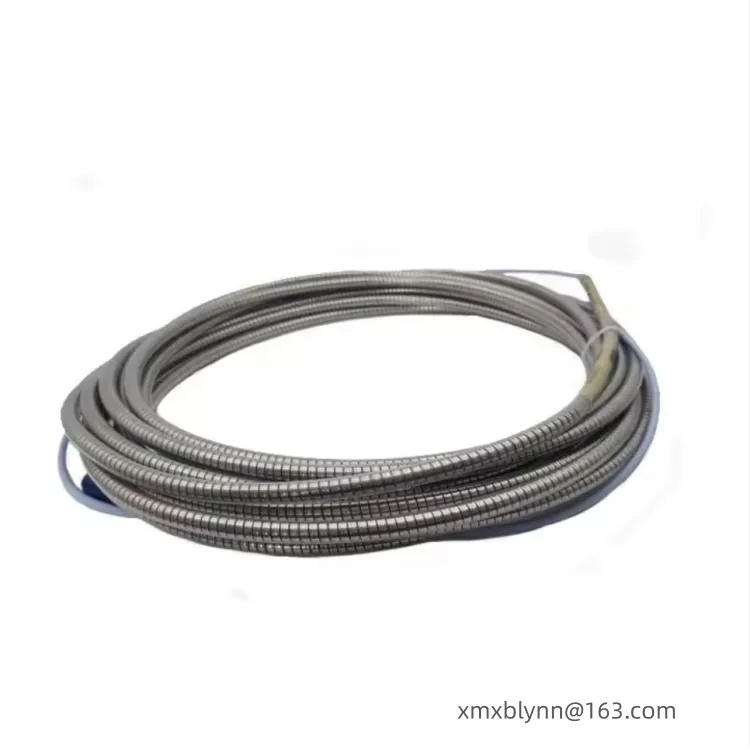

Honeywell 330930-060-01-00 Extension cable
The 330930-060-01-00 is a 6-meter extension cable from the Bently Nevada 3300 XL NSv series. Its core function is to achieve low-loss transmission of high-frequency signals between the 3300 XL NSv eddy current probe and the preamplifier. It is suitable for sensor systems with limited installation space, providing a stable signal link for monitoring parameters such as shaft vibration and axial displacement of rotating machinery, ensuring high-precision data acquisition for the 3300/3500 frame, and is widely used in the condition monitoring of key equipment in industries such as power and petrochemicals.
Core Parameters and Specifications
Item Parameter
Product Model 330930-060-01-00 (3300 XL NSv Extension Cable)
Compatible Systems 3300 XL NSv 8mm eddy current sensor system, compatible with the same series of probes and preamplifiers
Length Specifications 6.0m (19.7 feet), suitable for general industrial installation scenarios
Connection Interface Miniature coaxial ClickLoc connectors at both ends, anti-loosening locking, suitable for high-frequency signal transmission
Housing Material Stainless steel housing, corrosion resistant, suitable for harsh industrial environments
Electrical Characteristics Low-loss coaxial design, ensuring stable transmission of high-frequency signals (0-10kHz), matching preamplifier excitation and output signals
Temperature Tolerance Operating temperature -51~121℃, adaptable to high and low temperature conditions in industrial environments
Protection Rating IP65, dustproof and waterproof, suitable for humid and dusty industrial environments
System Compatibility Compatible with 3300 XL NSv preamplifiers (such as...) 330980-50-00), compatible with 3300/3500 monitoring framework
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Functions
High-Frequency Signal Transmission: The low-loss coaxial structure ensures stable transmission of the preamplifier's high-frequency excitation signal and the probe's feedback signal, reducing signal attenuation and distortion, and ensuring measurement accuracy.
Connectivity and Locking: The ClickLoc connector enables quick and reliable connection of the probe, extension cable, and preamplifier. The anti-loosening design prevents signal interruption due to vibration.
Environmental Protection: The stainless steel housing and IP65 protection rating resist corrosion, humidity, and dust in industrial environments, ensuring long-term stable operation.
Confined Space Adaptation: Adapts to the compact installation requirements of the 3300 XL NSv system, supporting high-density DIN rail or panel mounting scenarios, expanding the application range.
System Integration Compatibility: Matches the 3300 XL NSv sensor system, seamlessly integrating with the 3300/3500 monitoring framework, simplifying system setup and maintenance.
Applications and Typical Scenarios
Power Energy: Shaft vibration and axial displacement monitoring system for equipment such as steam turbines, generators, and pumps. Serving as the signal link between the probe and preamplifier, ensuring accurate data acquisition and fault diagnosis for the 3500 system, compliant with API 670 standards.
Petrochemical Industry: Shaft condition monitoring for compressors, fans, and gearboxes. Adaptable to confined installation spaces, ensuring long-term operation and preventing equipment failures.
Metallurgical Heavy Industry: Vibration and displacement monitoring for heavy-duty equipment such as rolling mills and coal mills. Provides stable signal transmission under harsh operating conditions, avoiding downtime risks.
Confined Space Applications: Suitable for equipment with limited installation space, such as small compressors and pump sets. Replaces the traditional 3300 RAM system, improving monitoring accuracy and stability.
System Upgrades and Retrofits: Adapts to the 3300 XL NSv system, replacing the 3300 RAM and 3000/7000 series 190 systems, facilitating the upgrade of monitoring systems for older equipment.
