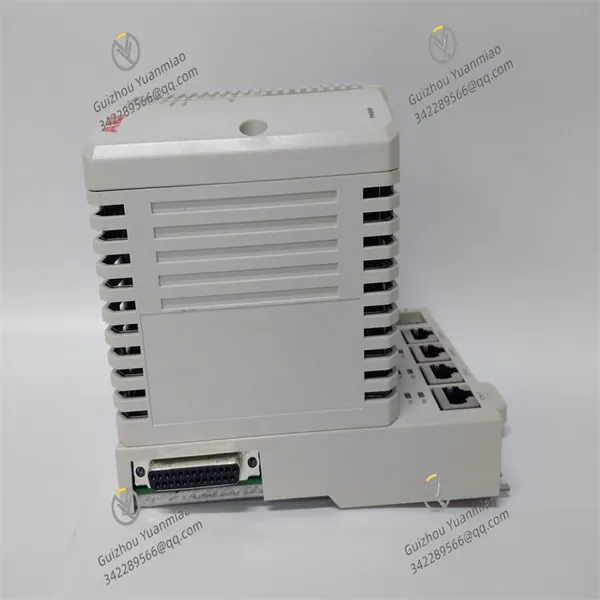

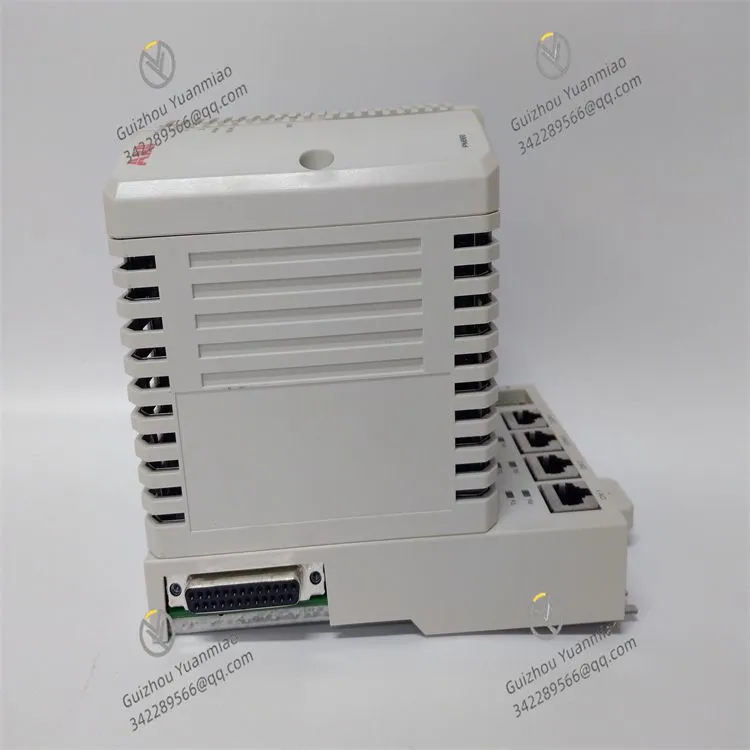

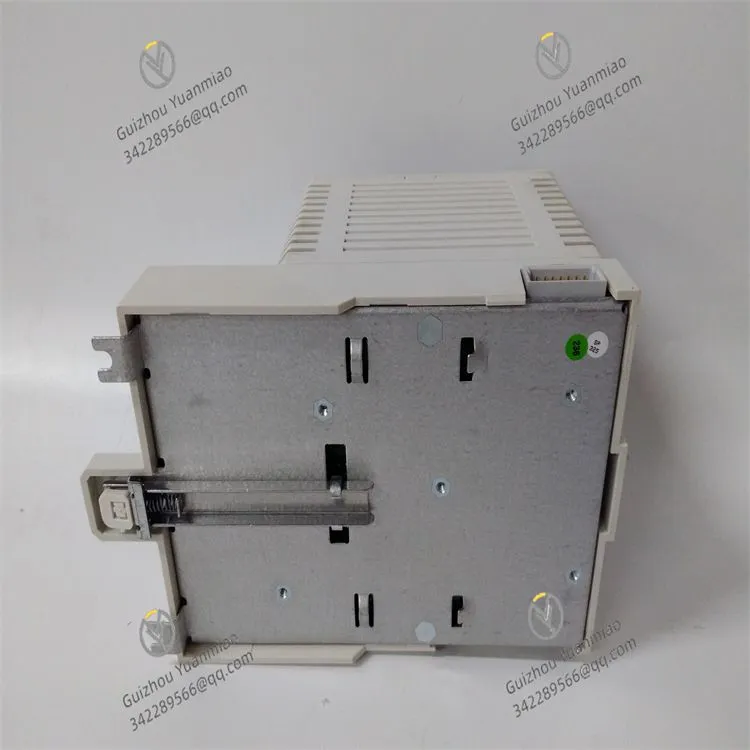

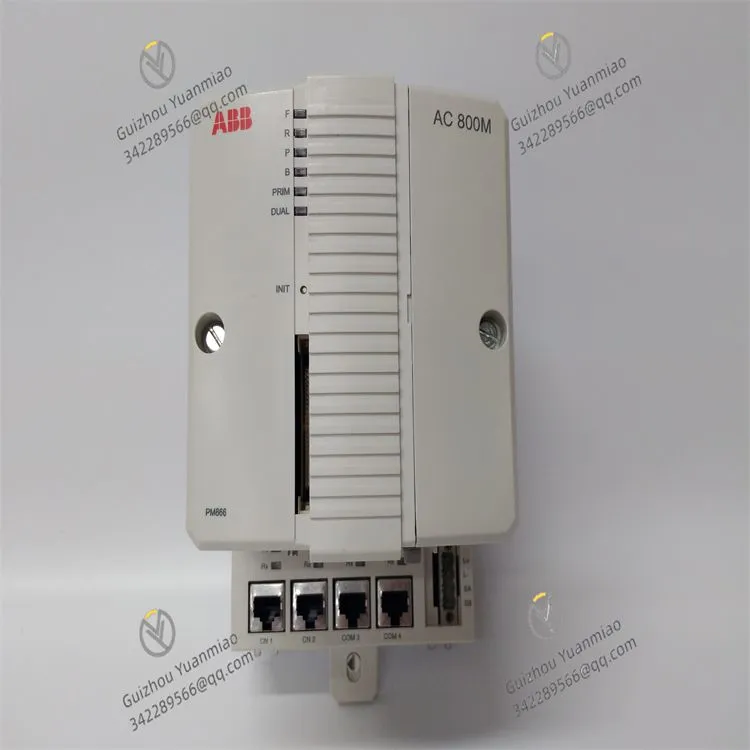

Help CenterABB PM866-2 3BSE050201R1 Processor Unit
Related Products
-
ABB OKYM175W22 Power Module/Drive Assistance ModuleNegotiableMOQ: 1 Piece -
ABB DSQC609 3HAC14178-1 Power SupplyNegotiableMOQ: 1 Piece
-
ABB UBC717AE01 HIEE300927R0101 High-voltage Inverter Board/power ModuleNegotiableMOQ: 1 Piece
-
ABB TVOC-2-240 1SFA664001R1001 Arc MonitorNegotiableMOQ: 1 Piece
-
ABB XVC772A102 3BHE032285R0102 Embedded Control BoardNegotiableMOQ: 1 Piece
I. Positioning
ABB PM866-2 (Order No.: 3BSE050201R1) is a high-performance redundant central processing unit (CPU) module belonging to the ABB AC 800M Programmable Automation Controller (PAC) series. It serves as a core component of the ABB Ability™ System 800xA Distributed Control System (DCS).
Integrating a 32-bit RISC processor and highly reliable redundant design, it strictly complies with international safety standards such as IEC 61508 SIL2. It is mainly used for centralized control, data processing and system coordination in high-end process automation scenarios, providing a stable, safe and efficient control core for continuous production in critical industries including power, petrochemical and nuclear power. It combines the reliability of PLC and the large-scale control capability of DCS, making it the preferred main control unit for mission-critical applications.
II. Technical Parameters
| Item | Specification |
|---|---|
| Type | PM866-2 |
| Order No. | 3BSE050201R1 |
| Module Type | Redundant CPU module, part of the AC 800M series |
| Processor | 32-bit RISC architecture, MPC866 processor, clock frequency ≥ 100 MHz (typical 133 MHz) |
| Memory Configuration | 8 MB program memory (supports large control logic and HMI variables), 4 MB data memory (including retain and non-retain types) |
| I/O Scanning Capacity | Supports up to 10,000 I/O points, typical scan cycle ≤ 10 ms (1K logic instructions) |
| Communication Interfaces | 2×10/100 Mbps Ethernet (for Control Network and OPC communication), 1×RS-232/485 serial port (for Modbus RTU, commissioning or HMI connection) |
| Redundancy Support | Supports synchronous hot standby pairing with another PM866-2 (via optical fiber or cable), switchover time ≤ 100 ms. Full redundancy for CPU, CEX-Bus, communication interfaces and S800 I/O |
| Power Supply | Supplied by AC 800M baseboard: ±5 V / ±12 V DC, power consumption approx. 15 W |
| Protection Class | IP20 (must be installed in control cabinet) |
| Operating Temperature | 0°C to +60°C (operating); -25°C to +70°C (storage) |
| Mounting | Pluggable into AC 800M rack (e.g. CI855A base), supports hot swapping (in redundant mode) |
| Key Features | Dual modular hot standby, hot swapping, high-speed processing, multi-protocol communication, comprehensive fault diagnosis, supports Control Builder M software development |
III. Core Functions
1. High-Performance Data Processing and Control
Equipped with a high-performance 32-bit RISC processor up to 133 MHz, together with 8 MB program memory and 4 MB data memory, it efficiently executes complex control algorithms, PID loop control and sequential logic. It easily handles the control requirements of large‑scale production systems without lag or signal loss.
It supports scanning of up to 10,000 I/O points with a typical scan cycle ≤ 10 ms, enabling fast response to field signal changes and precise real‑time control of production processes, suitable for high‑speed interlock scenarios to ensure continuity and stability.
2. Fully Redundant Design and High Availability
The module provides full redundancy and can form a synchronous hot standby pair with another PM866-2. Real‑time mirroring of program status, I/O images and internal variables is achieved via a dedicated synchronization link. If the primary CPU fails, the backup takes over seamlessly within 100 ms without field disturbance, minimizing unplanned downtime and providing a lifeline for continuous production.
It supports full redundancy of CPU, CEX-Bus, communication interfaces and S800 I/O. Redundant switchover is TüV certified and meets IEC 61508 SIL2, with microsecond‑level synchronization accuracy, no lost pulses or missed alarms during switchover. Hot swapping is supported in redundant mode, allowing replacement of faulty CPUs while the system remains running, greatly reducing maintenance impact.
3. Flexible Communication and System Integration
Built‑in dual Ethernet and one RS-232/485 serial port deliver powerful native communication, enabling connection between control, operation and information layers without extra communication modules. One Ethernet port is used for the AC 800M internal Control Network (based on IEC 61158-2), the other connects directly to OPC servers or third‑party systems. The serial port supports Modbus RTU for easy integration with legacy instruments, inverters and other legacy equipment.
It integrates seamlessly into the ABB Ability™ System 800xA DCS, cooperates with other AC 800M modules and S800 I/O, and can flexibly expand communication modules via CEX-Bus and ModuleBus to adapt to automation systems of various scales and complexities.
4. Convenient Commissioning and Maintenance
Supports Control Builder M software development with graphical programming, online modification and breakpoint debugging, simplifying engineering and reducing programming difficulty. Program download and firmware upgrade are performed via Ethernet, eliminating on‑site CF card operations and improving efficiency.
Comprehensive built‑in fault diagnosis continuously monitors CPU status, communication links, power supply and other key parameters. It generates alarms and logs fault information for quick troubleshooting. Modular design and hot swapping further simplify installation, configuration and maintenance.
IV. Applications
As a core control unit in high‑end industrial automation, this module is widely used in critical industries requiring extremely high system availability and control accuracy, especially for non‑stop continuous production:
Power Systems: Boiler, turbine and denitrification control in 1000 MW ultra‑supercritical thermal power plants, key substation equipment control, distributed PV grid‑connected system coordination, nuclear power plant auxiliary system control, etc.
Petrochemical & Natural Gas: Automation control for large refineries, chemical polymerization reactors, oil and gas processing facilities to ensure safe and efficient production.
Water Treatment & Environmental Protection: System control for large‑scale seawater desalination plants and urban water supply hubs, enabling unattended operation and remote maintenance.
Other Critical Fields: Urban rail transit power supply SCADA systems, mine hoist safety control, pharmaceutical compliant production control, high‑temperature and high‑pressure equipment control in metallurgy, etc.
V. Product Advantages
High Performance & Large Capacity: 133 MHz high‑performance processor, 8 MB program memory, supports 10,000 I/O points and fast scanning, easily handles complex logic for large automation systems without lag or signal loss.
High Reliability & Safety: Fully redundant design + SIL2 safety certification, seamless hot standby switchover within 100 ms, hot swapping, wide operating temperature range, resistant to complex on‑site interference, minimizing downtime and ensuring continuous critical production.
Easy Communication & High Integration: Built‑in multi‑type interfaces, supports multiple industrial protocols, realizes multi‑level system connection without extra modules, seamlessly integrates into ABB 800xA DCS, compatible with both new and legacy equipment.
User-Friendly Engineering & Low Maintenance Cost: Graphical programming, Ethernet‑based commissioning and upgrading, complete fault diagnosis, hot swapping design, greatly reducing engineering, commissioning and maintenance difficulty.
