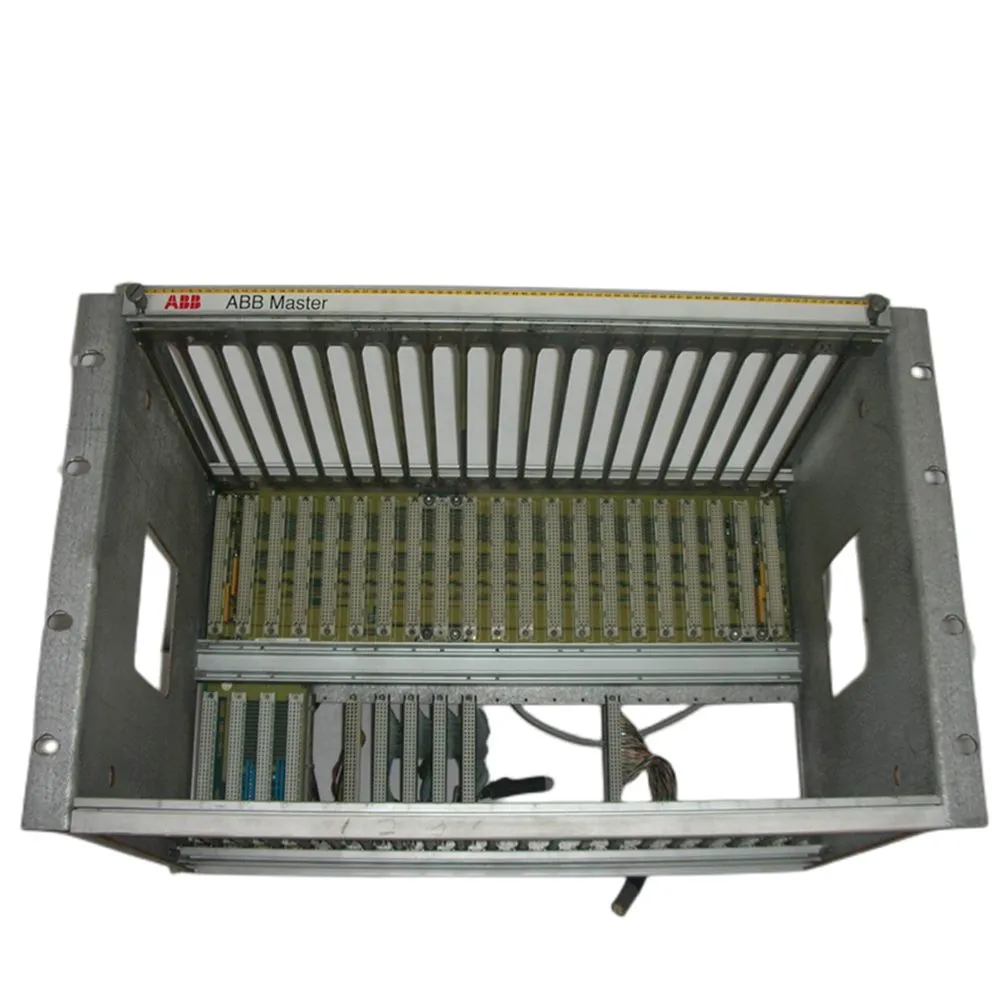

Help CenterABB DSRF180A 57310255-AV 8-Channel Relay Output Module
Related Products
-
ABB PM783F 3BDH000364R0001 CPU ModuleNegotiableMOQ: 1 Piece -
ABB FC95-22 HESG440295R2 HESG448688R22 Control UnitNegotiableMOQ: 1 Piece
-
ABB SPCJ4D34-AA Motor Protection Relay ModuleNegotiableMOQ: 1 Piece
-
ABB DSPC172H DSP Master Control CPU ModuleNegotiableMOQ: 1 Piece
-
ABB REF541KM115AAA Feeder TerminationNegotiableMOQ: 1 Piece
ABB DSRF180A 57310255-AV is an 8-channel relay output module for the S800 I/O system. It is specially designed for high-power load control in industrial field applications. With high isolation and high load driving capability, it serves as a core execution component for equipment control in metallurgy, chemical industry, warehousing and other fields.
1. Functions and Advantages
1.1 Core Functions
8 independent output channels: Each channel is a relay contact output, capable of independent load control to meet multi-channel parallel control requirements.
High load driving capability: Rated load 5A @ 250VAC / 30VDC per channel, allowing direct driving of high-power equipment without additional intermediate relays, simplifying system architecture.
High electrical isolation: 4000VAC electrical isolation between channels and backplane, effectively blocking high-voltage interference and ensuring the safety of low-voltage control systems and personnel.
Fast response: Response time ≤ 10ms, suitable for high-frequency on/off control in industrial sites.
Hot-swap support: Supports hot-plugging and, together with system diagnostics, enables maintenance without shutdown and reduces system downtime.
1.2 Key Advantages
High reliability: Mechanical life of relay contacts exceeds 10 million operations; electrical life exceeds 100,000 operations at rated load, suitable for frequent start-stop applications.
Plug-and-play: Compatible with S800 I/O system, quick DIN‑rail mounting, easy configuration, and lower integration costs.
Strong environmental adaptability: Operating temperature range -25℃～70℃, suitable for harsh industrial environments such as metallurgy and chemical industry.
Global certifications: Certified by CE, UL, cUL and other industrial standards, meeting mainstream market access requirements worldwide.
2. Technical Specifications
2.1 Communication and Electrical Specifications
| Parameter | Value |
|---|---|
| Number of output channels | 8 channels |
| Output type | Relay contact |
| Rated load | 5A @ 250VAC / 30VDC |
| Electrical isolation | 4000VAC (channel‑backplane) |
| Response time | ≤ 10ms |
| Operating voltage | 19.2VDC～30VDC (24V DC industrial standard) |
| Communication compatibility | ABB S800 I/O system |
2.2 Environmental and Mechanical Specifications
| Parameter | Value |
|---|---|
| Operating temperature | -25℃～70℃ |
| Relative humidity | 5%～95% (non‑condensing) |
| Mounting | DIN‑rail mounting |
| Protection degree | IP20 (module only) |
| Weight | Approx. 1–1.6 kg (varies by batch) |
3. Application Areas
Metallurgy: Control of rolling mill auxiliary equipment, continuous casting line fans and pumps.
Chemical industry: Interlocked fans for toxic gas monitoring, heating/cooling system control for reaction kettles.
Intelligent warehousing: Logistics area lighting, on/off control of stacker power units.
Other applications: Pump sets in cement production lines, petrochemical valve actuation, mine hoist auxiliary equipment control.
4. Installation and Commissioning Guide
4.1 Pre‑installation Preparation
Confirm system compatibility: To be used with ABB S800 I/O base units and AC 800M controllers; verify bus communication protocol.
Environmental check: Control cabinet protection degree ≥ IP20, free of strong electromagnetic interference, temperature and humidity within specified ranges.
Tools required: DIN rail, screwdriver, multimeter, ABB configuration software (Control Builder).
4.2 Hardware Installation
DIN‑rail mounting: Secure the module on a standard DIN rail to ensure firm installation.
Wiring rules:
Power wiring: Connect 24V DC power with correct polarity; 1A fuse recommended.
Load wiring: Connect each channel to an independent load circuit (e.g., motor, heater); load voltage/current must not exceed rated values.
Grounding: Reliably ground the module; grounding resistance ≤ 4Ω to improve anti-interference performance.
Bus connection: Connect to the base unit via the S800 I/O bus for communication with the controller.
4.3 Software Configuration
Device configuration: Add the DSRF180A module in ABB configuration software and assign a module address (avoid conflicts with other I/O modules).
Channel configuration: Set output mode (NO/NC) and fault protection logic for each channel as required.
Communication test: After configuration, send commands via software to verify normal output status of each channel.
4.4 Commissioning and Verification
Power test: Module indicators illuminate normally after power‑on, with no fault alarms.
Single‑channel test: Send control commands channel by channel to verify correct load switching and record response time.
Load interaction test: Connect actual loads (e.g., fans), run control programs, and verify stable and safe start/stop performance.
Fault simulation: Simulate load short‑circuit, power abnormality and other conditions to verify the module’s isolation protection and fault alarm functions.
