Help CenterSOGUT® Socketing Resin
Product Spotlights
Designed for ambient-temperature installation as an alternative to molten alloy socket casting.
Related Products
-
Socketing Wire Rope ResinUS$ 30 - 35MOQ: 24 Combos -
Elevator Spare Parts Fixed Rope Attachment With Wire Rope SocketNegotiableMOQ: 1
-
Wire Rope SocketUS$ 3.05 - 170.85MOQ: 300 Pieces
-
Steel Wire RopeNegotiableMOQ: 2500 Tons
-
Multifunctional Wire Rope Shredders and Scrap Wire Rope Shredding Equipment: Wholesale PricesUS$ 9869MOQ: 1 Set
Steel wire rope joint casting glue
1,Introduction of casting glue for steel wire rope joints

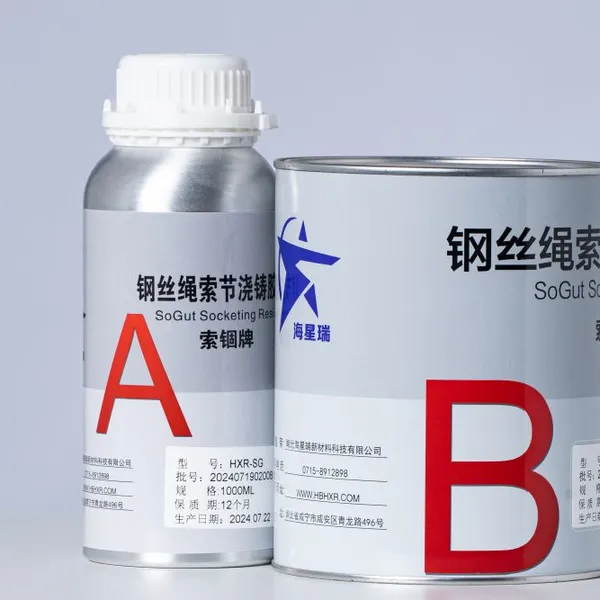

Steel wire rope joint casting glue(Hereinafter referred to"wire rope glue")It is a new product used for casting steel wire rope,widely used inShip and The sea of the facility Mooring,TowingAs well as venues, bridges, lifting, hoisting and other fields of wire rope rigging production.Wire rope joint casting glue can be cast and solidified at room temperature, which avoids the problem of damage to the wire rope caused by too high heating temperature in the traditional alloy casting process, and improves the safety of the wire rope joint.wire rope glue madeA,BTwo-component composition,AThe components are liquid resins,BThe components are solid powder.
2,wire rope glueFeatures:
1,Easy to use, no heating, can be completed at any ambient temperature on-site cable casting.
2,Room temperature casting, curing, to avoid the traditional alloy casting process heating temperature is too high and damage the wire rope.Risk, improvedriggingSafety of use.
3,wire rope glueStrong bonding force with steel wire.
4,Under the alternating temperature of cold and heat, the performance is stable.
5,High heat distortion temperature.
3,The main performance of wire rope glue
3.1Main physical properties of wire rope glue
Table1Main physical performance parameters of wire rope glue
Serial Number |
Test Item |
Test Results |
1 |
Density (g/cm3) |
1.86 |
2 |
Tensile strength (MPa) |
21.6 |
3 |
Tensile modulus of elasticity (MPa) |
10702 |
4 |
bending strength(MPa) |
60 |
5 |
flexural modulus of elasticity(MPa) |
10017 |
6 |
Compression strength(MPa) |
128 |
7 |
Steel-steel shear strength(MPa) |
16.8 |
8 |
Breaking test of wire rope joints |
The wire rope is broken and the cable joint is complete. |
3.2Tensile breaking test of wire rope glue casting rigging

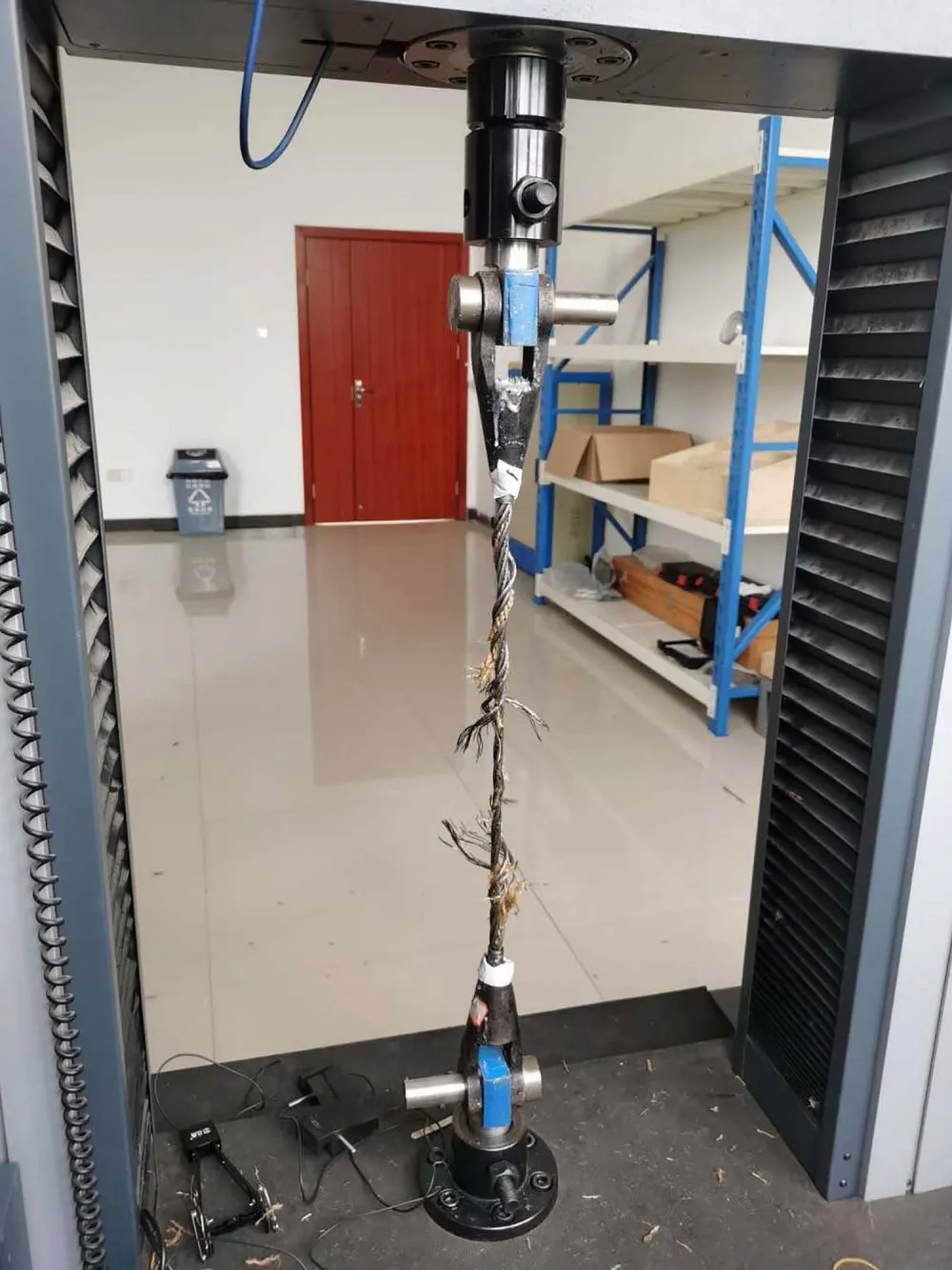

Figure3.2.1Diameter12mmTensile breaking test of steel wire rope rigging (steel wire rope is broken and cable joints are complete)
Figure3.2.2Diameter44mmTensile breaking test of steel wire rope rigging (steel wire rope is broken and cable joints are complete)
Specification
item |
value |
Place of Origin |
Xianning City, Hubei Province |
Main Raw Material |
Acrylic |
Usage |
Construction |
Classification |
Double Components Adhesives |
Other Names |
wire rope glue |
Type |
Socketing Resin |
Company Introduction
Hubei Haixingrui New Material Technology Co., Ltd. is a High-tech Enterprise integrating scientific research, technical services, production and sales of polymer new materials. We specialize in the synthesis, modification and application research of advanced resins. Our main businesses cover the R&D, production and sales of polymer new materials, with products including Special Resin for Solid Buoyancy Materials (B820), Acoustic-Absorption Core Material (X335), Suogu Brand Socketing Wire Rope Resin (HXR-SG), Adhesives for Composite Materials (CA230), anti-corrosion coatings, and functional polymer materials.
FAQ
1. who are we?
We are based in Hubei, China, start from 2018,sell to Domestic Market(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Resin solution for wirerope socketing,SocketingWireRopeResin,AdhesivesforCompositeMaterial,Composite Repair Paste
4. why should you buy from us not from other suppliers?
As a High-tech Enterprise, we have specialized in the synthesis, modification, and application research of advanced resins for over 10 years. The company is equipped with its own factory, laboratories, and R&D team.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA;
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken: English,Chinese
