Serrated S235 Heavy Duty Grip Strut Perforated Metal Plank Grating For Walkway
Product Spotlights
grip strut grating
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
JIS
Shape:
Other, hexagonal
Usage:
Commercial, Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
Max 6000mm Regular Grip Strut Walkway For Stair Treads Ramps And DecksNegotiableMOQ: 100 Pieces -
All Types Stainless Steel Perforated Metal Safety GratingNegotiableMOQ: 100 Pieces
-
Galvanized Sheet Oval Grip Strut Work Platform Walkway Safety GratingNegotiableMOQ: 100 Pieces
-
Wholesale Hot DIP Galvanized Steel Grip Strut 30X5mm Heavy Duty From China ManufacturerNegotiableMOQ: 100 Pieces
-
Anti-Skid Steel Perforated Safety Grating Diamond Grip Strut Walkway Material Plank Safety Grating for Platform WalkawayNegotiableMOQ: 100 Pieces
Certification
JIS
Shape
Other, hexagonal
Usage
Commercial, Industrial
Type
Red Iron Ore
Transport Package
pallets
Specification
1mx6m
Trademark
qijie
Origin
China

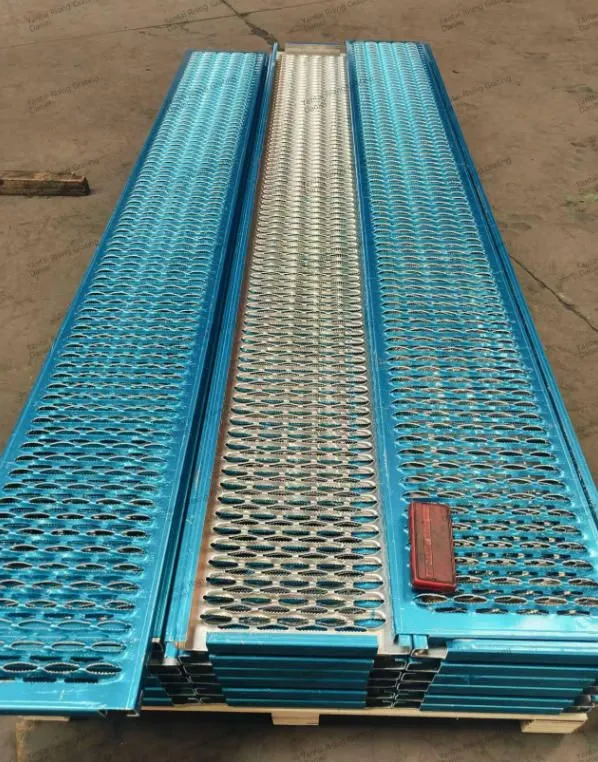

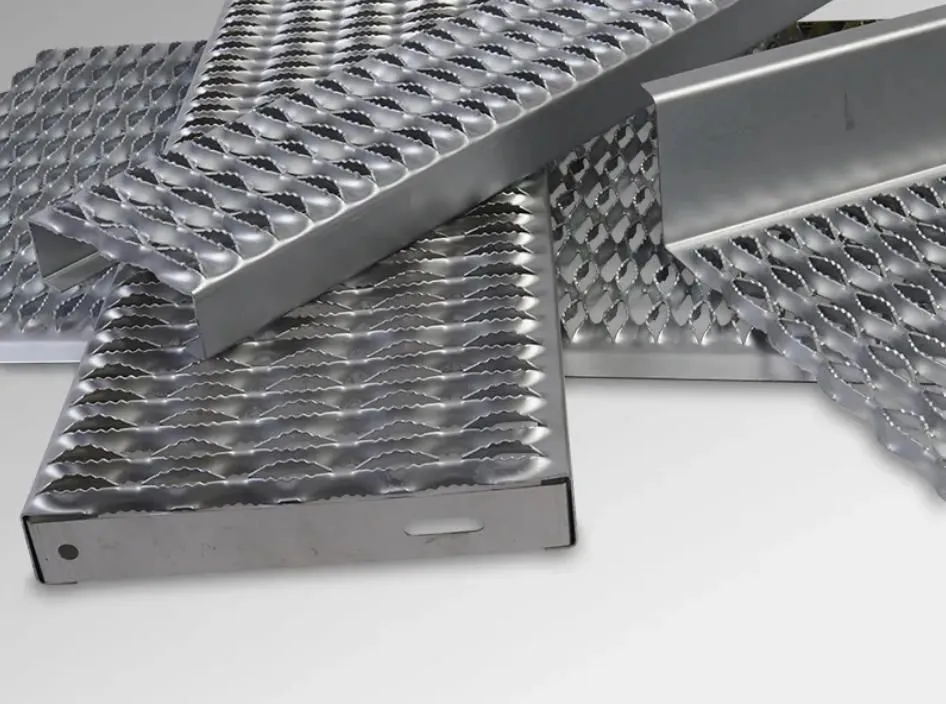

Heavy Duty Grip Strut Perforated Metal Plank Grating for Walkway
steel grating product with serrated bearing bar. Due to its scientific and reasonable structure design, it is usually used in parts that require high product bearing capacity or appearance. It is a steel grating product manufactured from a certain size of serrated steel through slotting (hole), inserting, welding, finishing and other processes. It is a steel grating product with a large bearing capacity and used for heavy bearing capacity. The industrial platform has a large safety factor. Surface treatment can be divided into galvanizing, painting and dipping.
Specification
| Product Name | Customized Anti slip Serrated Steel Grating | ||
| Material | Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc. | ||
| Surface treatment | Hot dipped galvanized, polished or untreated |
Grate size | as customer's request |
| Bearing bar width x thickness |
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm | ||
| Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", 11/4"×1/4",11/2"x 1/4"etc. |
||
| Cross bar pitch | 38,50,76,100,101.6mm or custom |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Application
It is widely used as flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp,dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian in factories, workshops, motor rooms,trolley channels, heavy loading areas, boiler equipment and heavy equipment area etc.
Packing and Transport
transport: by truck,by sea,by train,by air
